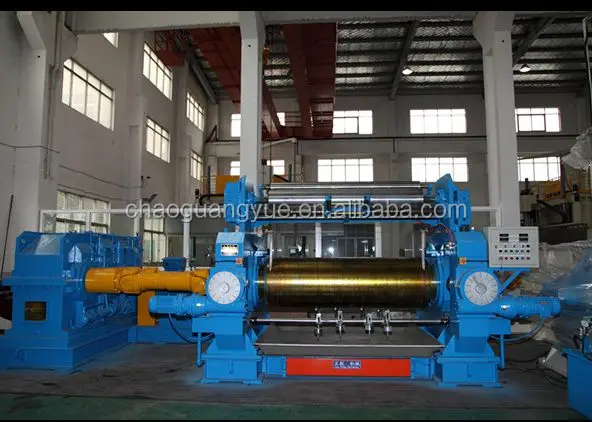

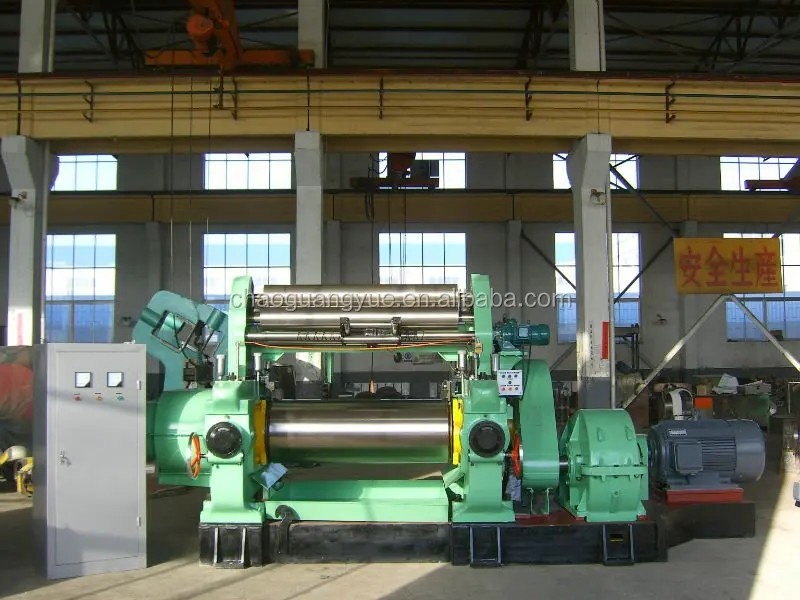

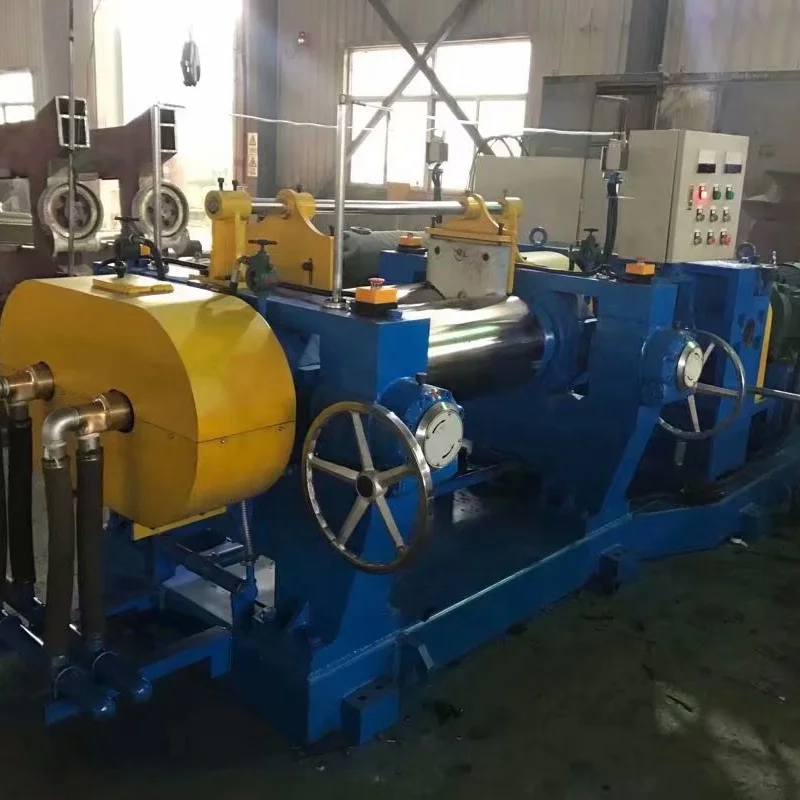

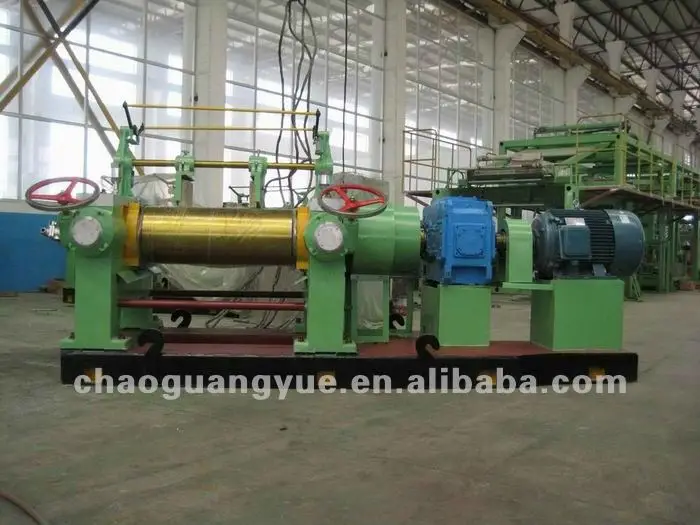

XK 450 shaft rubber two roll mixing mill with automatic stock blender for sale

Product Overview

Description



 XK-450 shaft rubber two roll mixing mill with automatic stock blender for sale



Certificate and identification: ISO 9001, CE , SGS



Application : The mill is used for rubber plasticating, mixing, warming and sheeting.

General design:

1. The mill consists mainly for rolls, frame, bearing, roll nip adjusting, screw, heating and cooling device, emergency stop, lubrication system and such sections as electrical controls and, etc.

2. The main electric motor arrives the front and rear rolls to rotate oppositely through reduar, driving geras and friction gears.

Features:





1.Simple design framework and easy to operate. Start running as soon aa connecting wire and pipeline without installation.



2.There are many speeds and speed ratios available, which can satisfy most customers' formula and processing requirements.



3.Frame, frame cap and base, looking very nice, are welded and treated by annealing for stress relieving.



4.Chilled alloy cast iron roll is abrasion resistant with long service life.



5.The speed reducer is the hard-tooth surface gear reducer of Class 6 precision, which has long service life and low noise.



6.Perfect emergency stop device can ensure the safety of person and of equipment.



7.The seal structure with special design can eliminate the leaking phenomenou of lubricating oil.



8.Stock pan is easy to clean up with dislodging device.



9.Human nature designed operating system reduces labor intensity.



10 Modular structure offers various structures for customers' option.



11.The flexible design system can satisfy customers' special design requirements within the shortest time.



12.The equipment is installed on an integral base(including electric control system). which facilitates integral package, transportation and installation.



Machine Details:

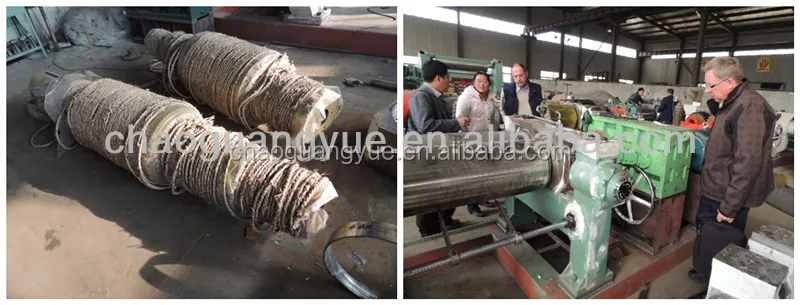

Chilled alloy cast iron roller :with 72-80Hs

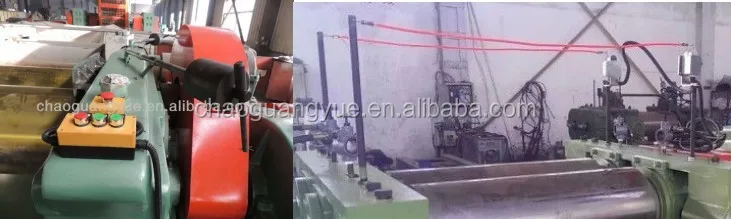

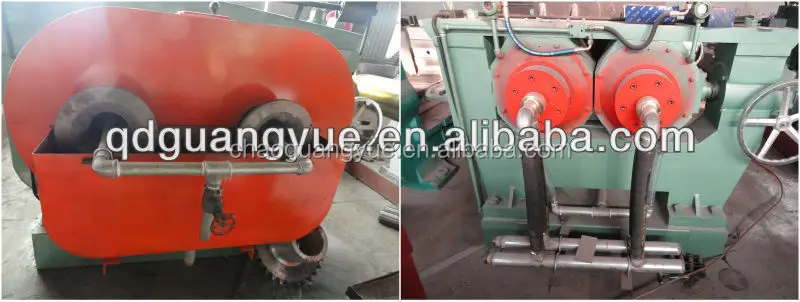

Circulating water cooling system, no leaking,clean and tidy:

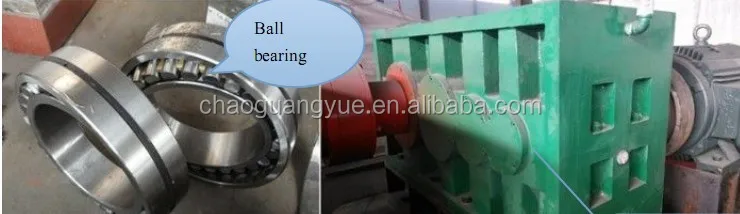

Bearing Bush and hard tooth surface reducer: save energy



Emerfency button and rop: for urgent stop,safe to control:

Parameters of Rubber sheeting machine:





Model		XK-160	XK-250	XK-300	XK-360	XK-400	XK-450	XK-560
Diameter of rolls(mm)		160	250	300	360	400	450	560
Working length of rolls(mm)		320	620	750	900	1000	1200	1530
Linear speed of front roll(m/min)		11.24	14.4	15.1	16.25	18.65	24.5	29.09
Speed ratio of front & rear roll		1:1.35	1:1.17	1:1.27	1:1.25	1:1.27	1:1.27	1:1.2
Max. roll gap(mm)		4.5	8	8	10	10	15	20
Feeding capacity per batch(kg)		1-2	10-15	15-20	20-25	18-35	25-50	50-65
Driving motor power(kw)		7.5	18.5	22	30	37	55	75
Bearing body structure		Rolling bearing/nylon bushing/copper bushing
Lubrication mode		Grease/thin oil pump
Gap adjusting mode		Manual/electric
Overall dimension(mm)	L	1140	2900	3580	3780	4250	5000	5900
	W	900	1500	1550	1850	1850	2280	2180
	H	1370	1550	1695	1740	1760	1850	2000
Weight(ton)		1	3.2	5.2	6.5	7.3	12.5	22





 100% Real Manufacturer,   Welcome to visit us sincerely.



If our products win your interest, please send us inquires and we will provide detailed information to you. We can also make machines according to your request.

Models you can choose:

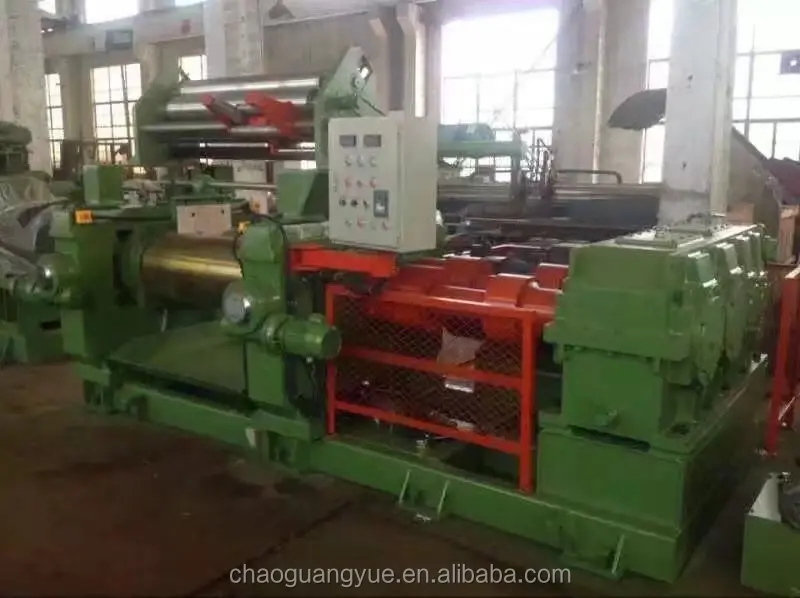

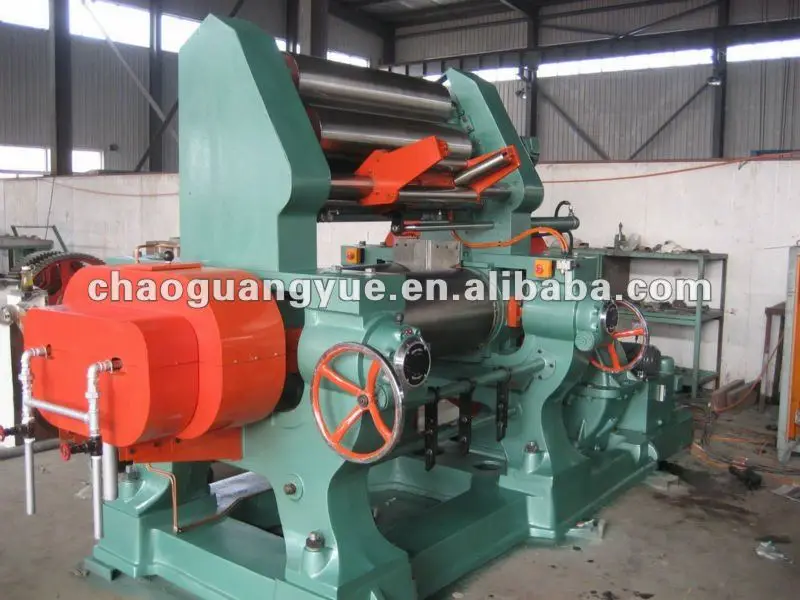

XK-660 with stock blender,double shaft,hard tooth reducer,auto nip adjust:

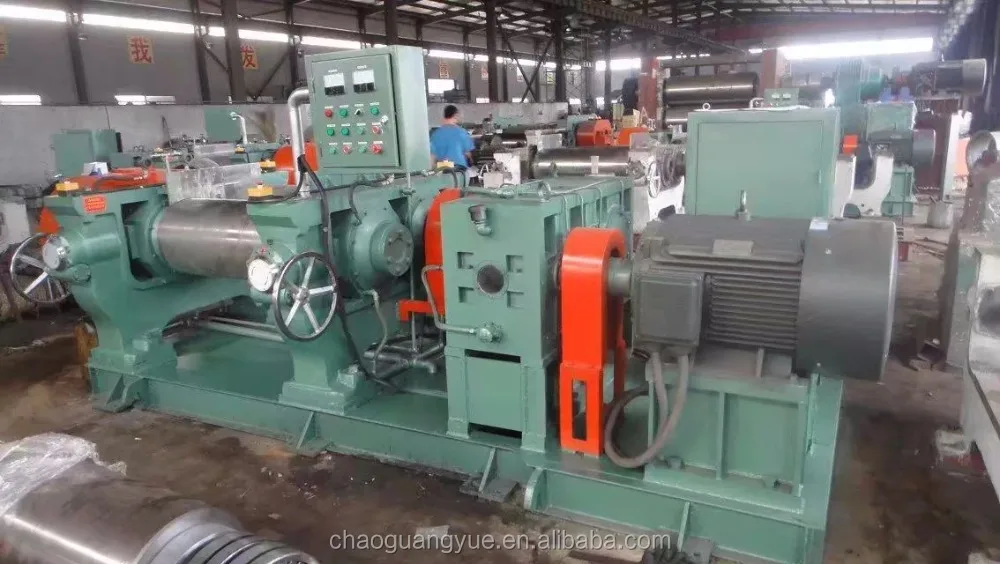

 XK-560 with stock blender,hard tooth reducer

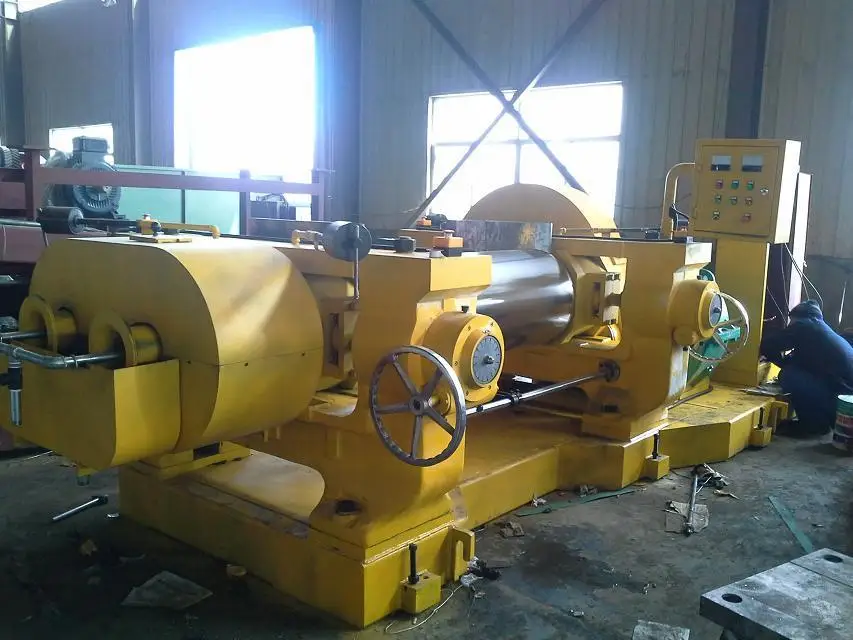

XK-560 in yellow color,open style water cooling





XK-400 with emergrncy rod

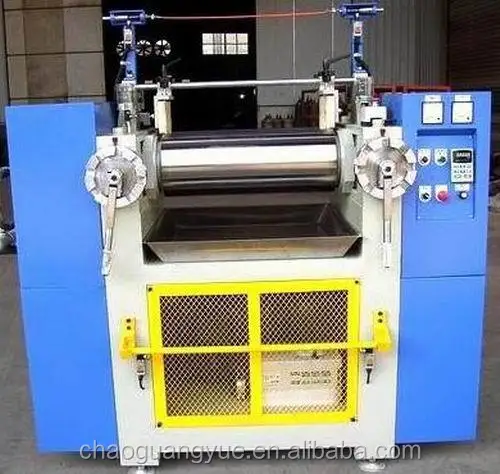

Lab use XK-160 chilled alloy cast steel mill

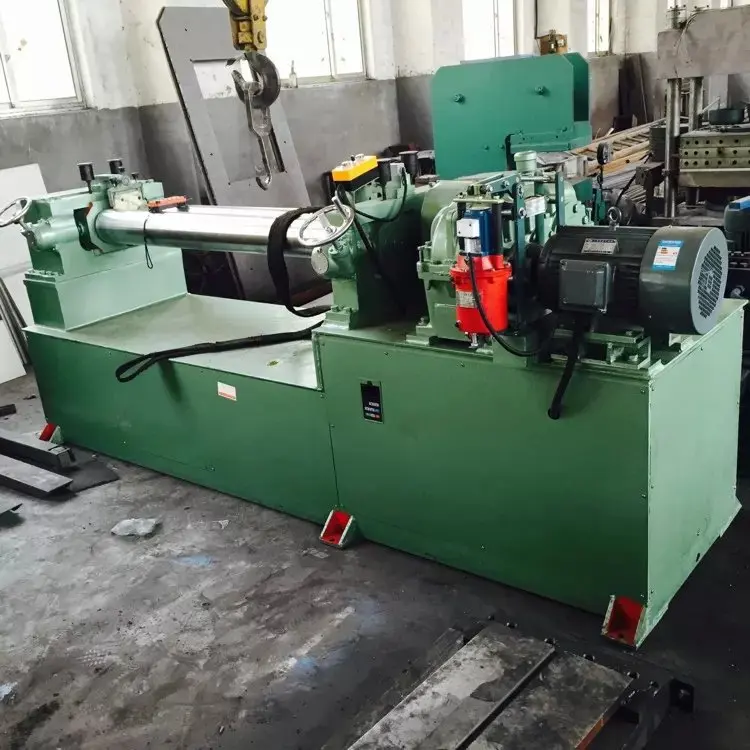

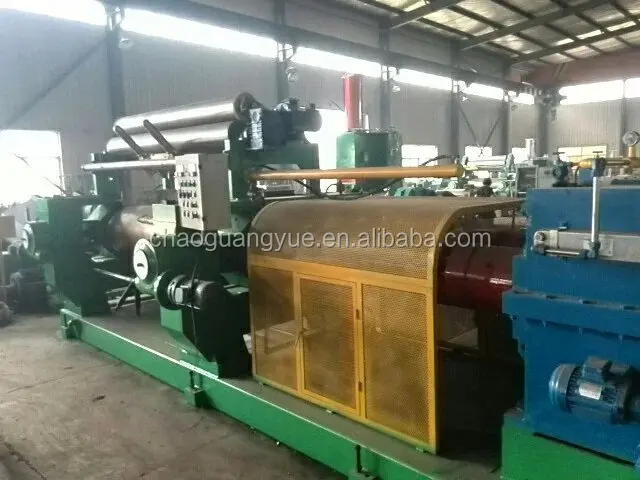

Extral length XK-250 open mixing mill for rubber sheeting:



 Blue color XK450



Our Services :



1. We will design,manufacture,install and test the machines for customers all over the world.Relevant personnel  training for customers,ensure that customers fully grasp the use and maintenance of technology.



2 .We can produce different size according to your parameter requirement. and we allow proper discount according to the quantity you order.



If our products win your interest, please send us inquires and we

 will delivery it to your hometown as soon as possible.



FAQ:



1.Q:Are you a manufacture or trading company?



   A:We are the manufacture. We have our own plant, workers and technical research developing department.



2.Q:What are your hot sale machine?



   A:Our rubber machines are popular in the foreign market. And main products are the motorcycle, electric bike and bicycle tyre making machines.



3.Q:How do you control the quality ?



   A:Quality is priority and we have our own quality control system. We will make a strict inspection before the machines leave the factory.



4.Q:All the technical parameters is fixed?



   A:Basically, each model corresponding to the related machine.



      Designing and compounding special specification products can be offered according to the customers'   requirements.
