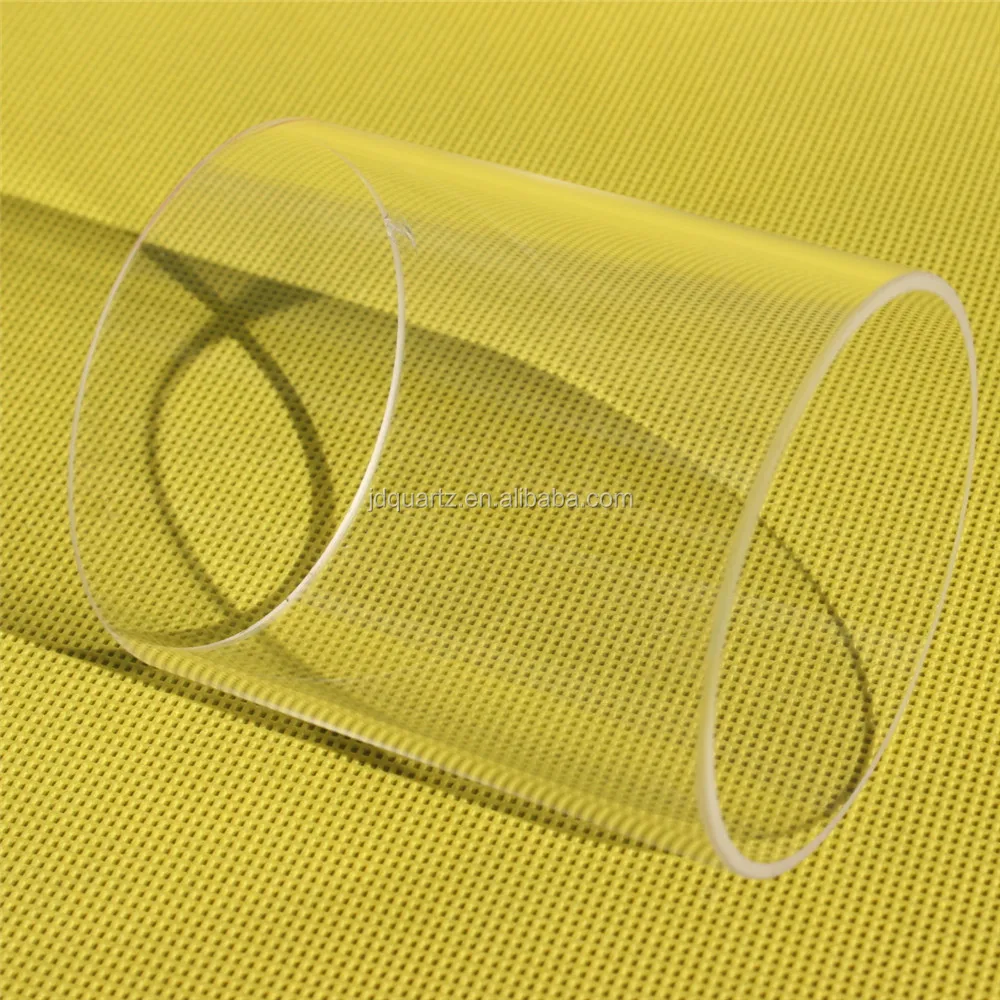

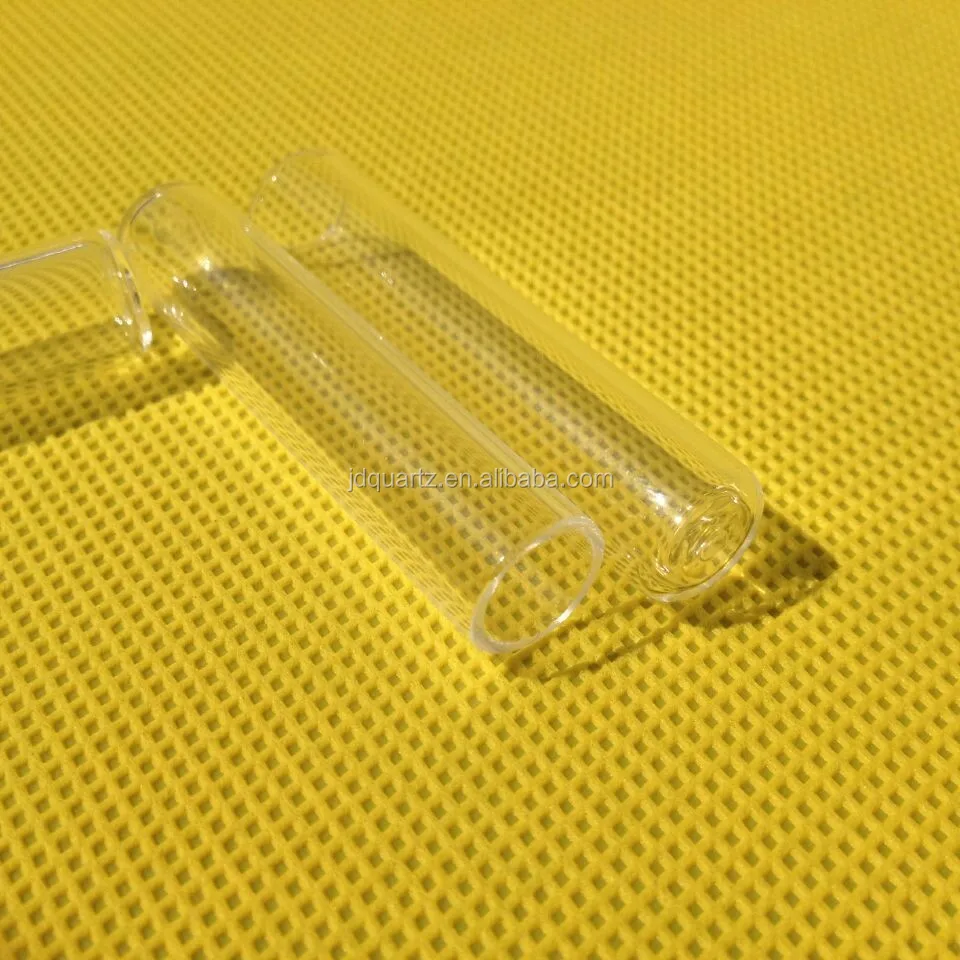

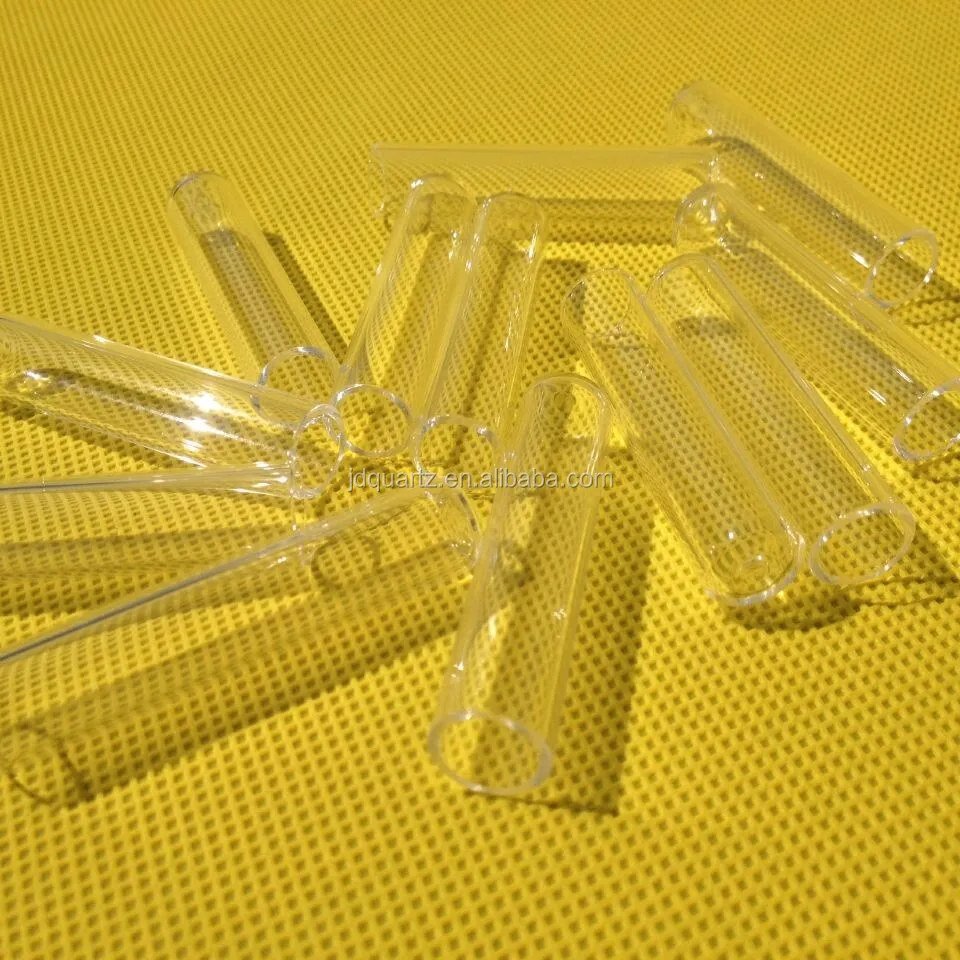

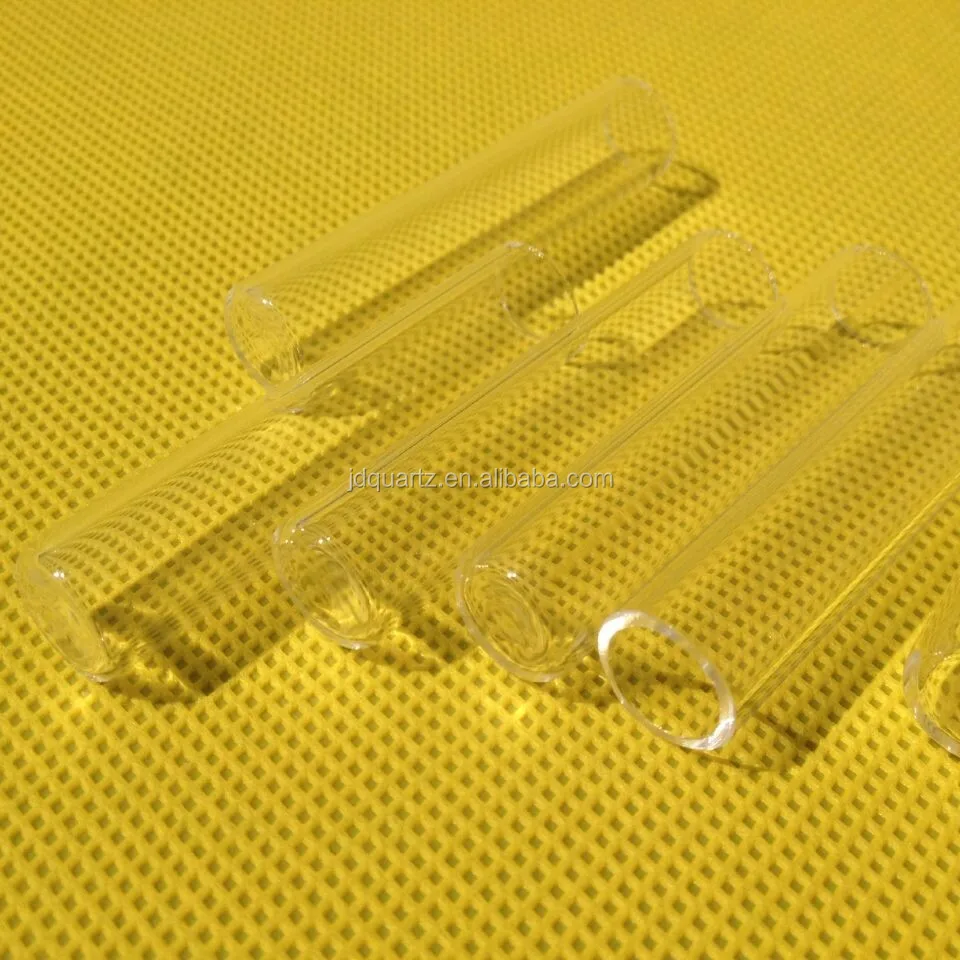

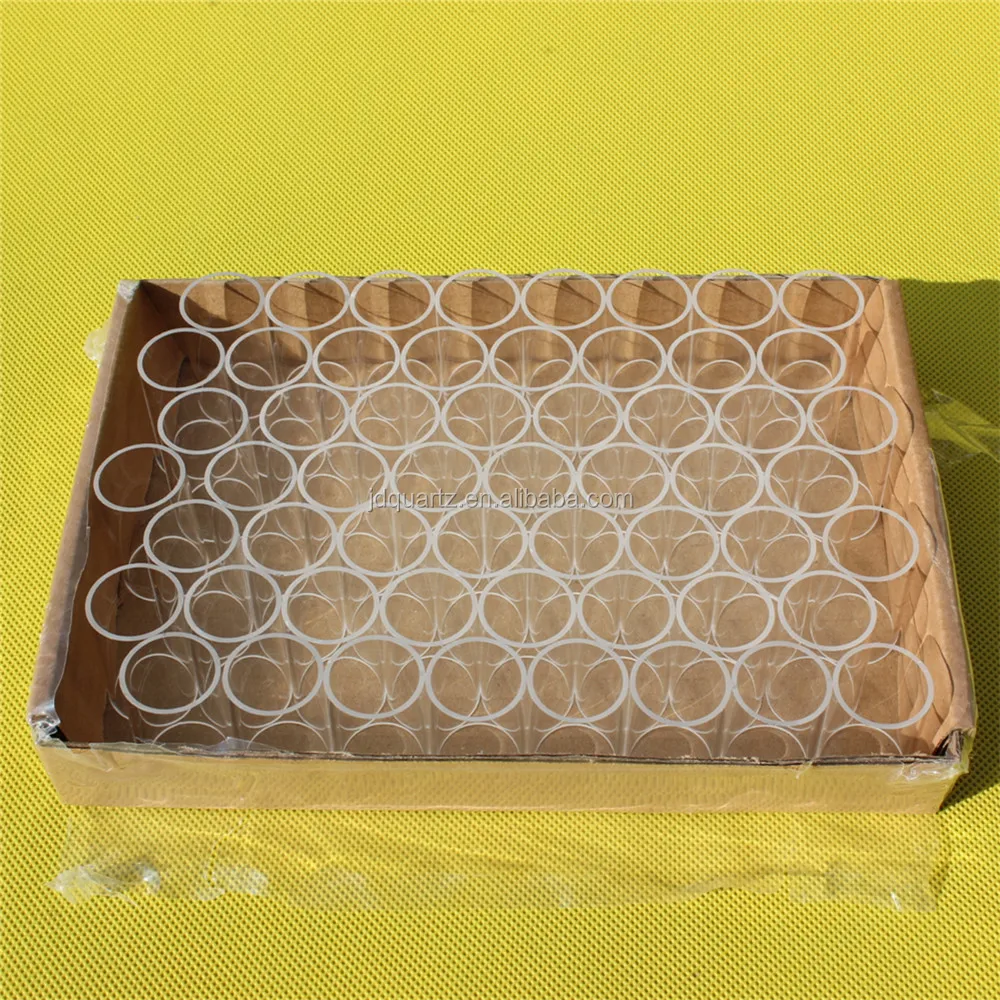

Clear Fused Quartz Tube ( One End Closed )

Product Overview

Description

Clear Fused Quartz Tube ( One End Closed )





Features of Clear Fused Quartz Tube ( One End Closed ) as follow:



1.High purity made of 99.99%-99.9999% pure quartz.

2.Strong Hardness, Can reach Morse level 7.

3.High temperature resistance, can work under 1200°C continuously,

and in short time  can even work under 1500°C.

4. Acid and Alkali resistance

 Except hydrofluoric acid, quartz glass does not react with any acid and base except hydrofluoric acid. The stability is 30 times of the ceramic, and 150 times of stainless steel

5. Electric insulation, it is 10000 times of usual glass.

6. High light transmittance , it is different from 85%-95% depend on different spectrum.

7.Excellent thermal shock stability ,Small thermal expansion coefficient,it is only 5.5×10-7/℃

8.control in less than 20 PPM, 15 PPM, 10 PPM, 5 PPM ,2 PPM.



Some key thermal properties are:





What is the chemical composition of your clear fused quartz products?

Size of fused quartz tube:



Outer diameter: 3mm-300mm
Thickness of wall:1-5mm
Length:100mm-2500mm





Application :

Clear Fused Quartz Tube ( One End Closed ) was widely used in all kinds of lights, such as sterilization lamp, mercury lamp, metal halide lamp; Diffusion tube, protection tube, MCVD, PCVD, boiler and water treatment and test for Lab.

Shipping:



Delivery the one end closed fused quartz tube within 1-7days after the payments by sea or by air,usually EMS,Fedex,DHL,UPS. and so on.







 1.Reply within one working day.

2. OEM order is acceptable.

3.Sample: we usually deliver the sample by express, such as DHL, Fedex, UPS, SF, within 2-5 days.



Aftersales service: We promise that we can change or  Refund  the products if there are any quality problem.
