Asphalt scraper machine /asphalt scarifier for epoxy floor remove(JHE 200)
- Category: Concrete Scarifier >>>
- Supplier: Changzhou Jiehe Machinery Co. Ltd.
Share on (60341932018):
Product Overview
Description

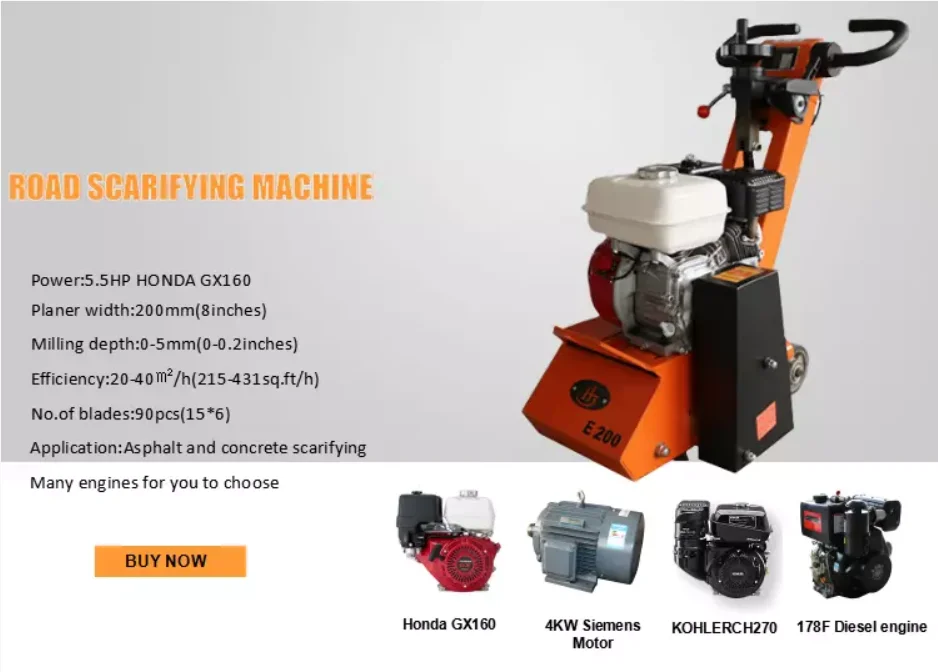

Asphalt scraper machine /asphalt scarifier for epoxy floor remove(JHE-200)
Jiehe concrete and milling machine are used for small and meduim sized areas.The low centre of gravity affords a big silent running and ensure quick and even milling results.A tripled drum bearing and hardened cutter shafts make it particularly reliable.
Three types for you to choose
Product detail
What's the Specifications?

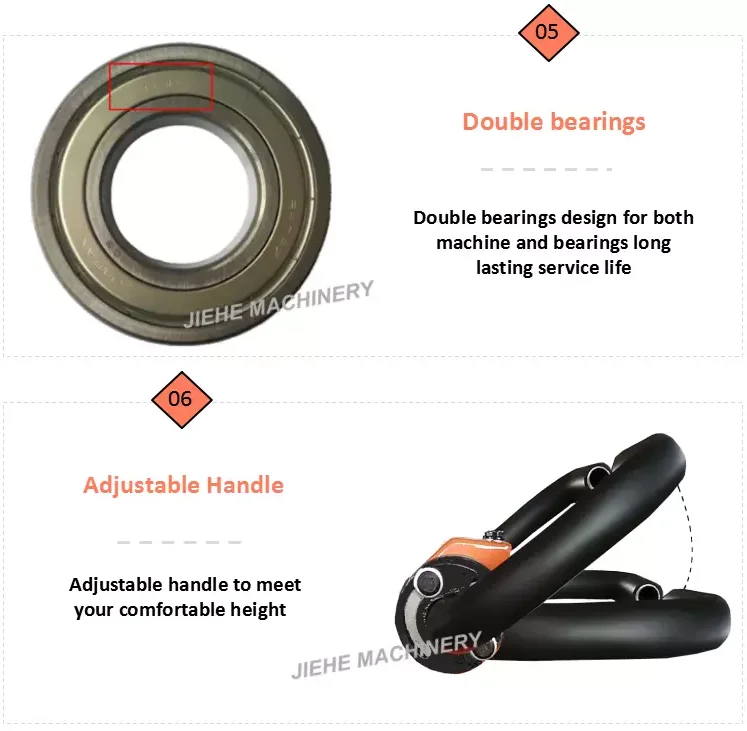

4KW Siemens Motor engine and super four or six bearings;
Drum is heat treated specially;
Exclusive supply good quality cutter;
Drum can be replaced easily;

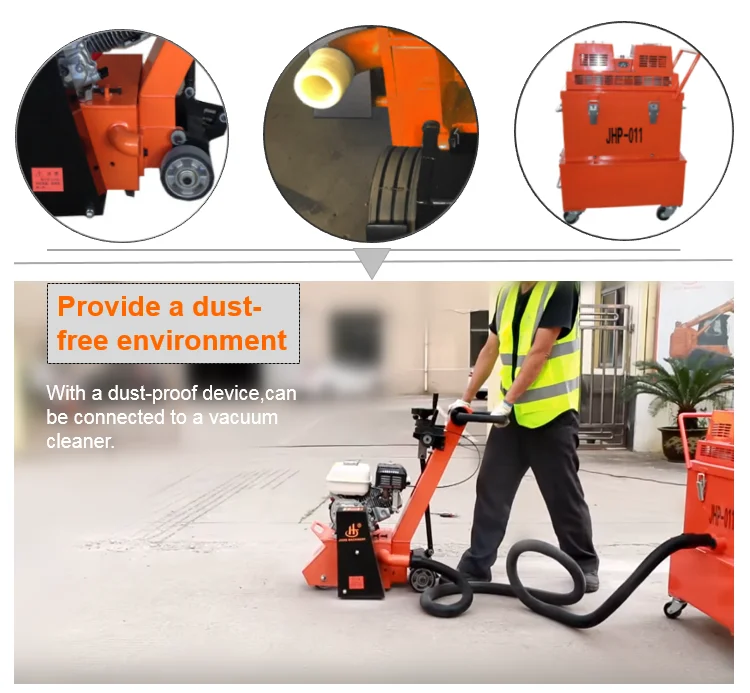

With a dust-proof device?
Parameter
Model | JHE-200 | JHE-200E | JHE-200K | JHE-200D |
Power Source | GX160 Honda/ GX270 | Siemens Electrical motor | Kohler CH270/ CH395 | 178F Diesel engine |
Horse Power | 5.5HP | 4KW | 7HP | 5.5 HP |
Working width | 200mm | 200mm | 200mm | 200mm |
Working depth | 0-5mm | 0-5mm | 0-5mm | 0-5mm |
No. of shaft | 6pieces | 6pieces | 6pieces | 6pieces |
No. of cutter | 90pieces | 90pieces | 90pieces | 90pieces |
Power Drive | Manual | Manual | Manual | Manual |
Working area | 20-40 m2 / H | 20-40 m2 / H | 20-50 m2 / H | 20-40 m2 / H |
Net Weight | 105KG | 116KG | 132KG | 119KG |
L* W* H | 820*490*810mm | 820*490*810mm | 820*490*810mm | 820*490*810mm |
Drum Rotation | Down cut (clock wise) | |||
Milling mode | downward cut | |||

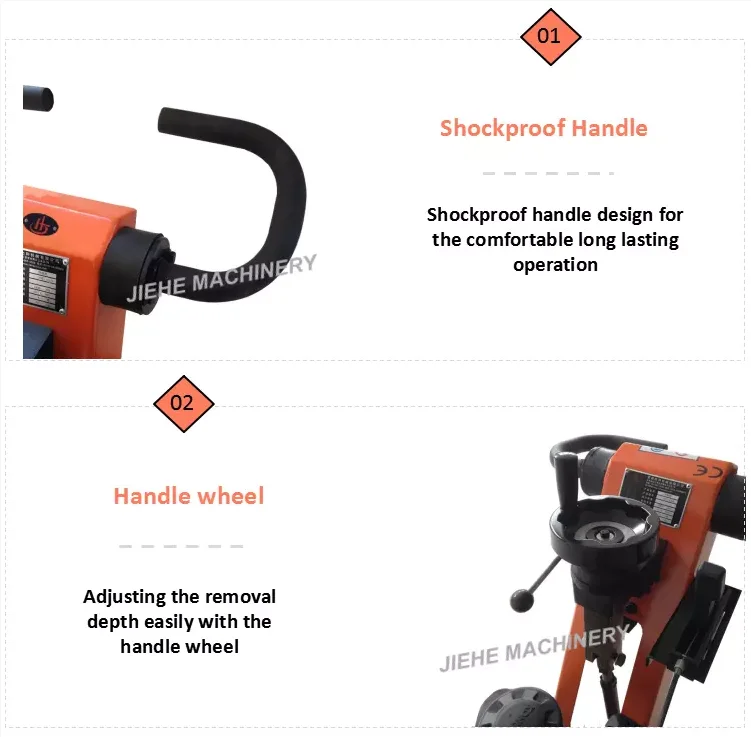

Depth Control | Adjustable | |||

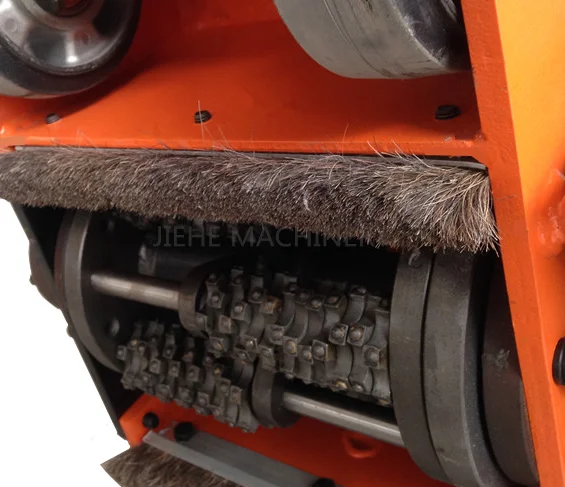

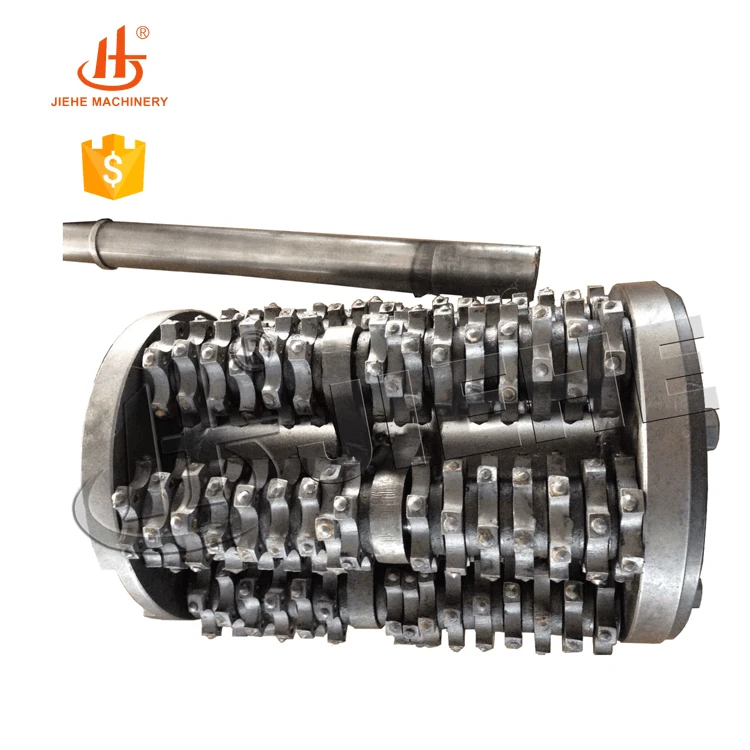

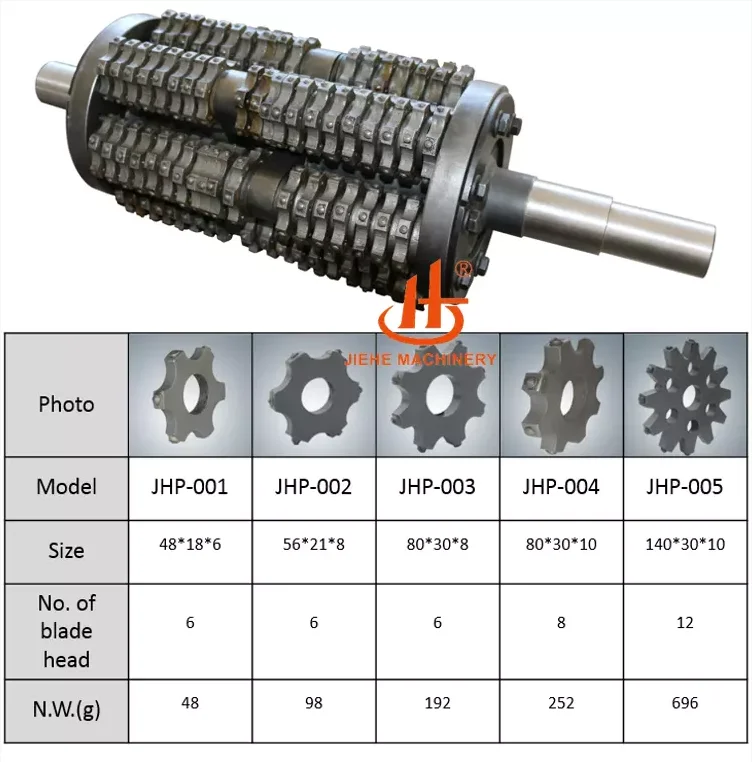

About our Drum and cuttrers
We have different styles

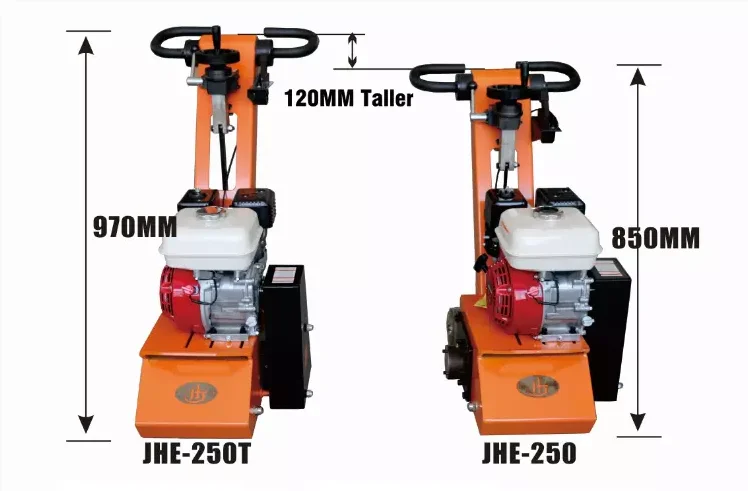

970mm(38") and 850mm(33.5")Height are Built for Your Choice
What's our road scarifier machine used for?
Products are widely used in
- municipal conservation,
- road construction,
- building construction,
- flooring treatment(epoxy floor, wear-resistant floor)
- other fields.(remove traffic line, rutty of road and airport)
Why choose US?
1.We are factory,direct factory price.
2.Picture and videos can be provide to you to show how to use the machine.
3.7*24 hours Serve:we treat our clients as friends.
4.High quality:we have strict quality control system and enjoy a good reputation in the world.
5. With more than 19 years manufacturing experiences.

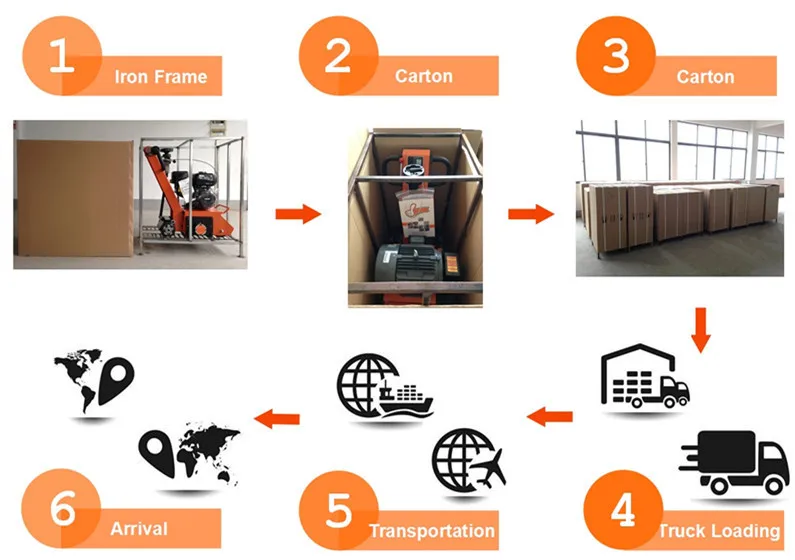

What's your Packaging & Shipping?
Our packaging is iron frame and carton generally.If customer have other requests, we will try to accommodate.
JHE-200 packaging dimensions(mm) is: 900*570*910.
30 sets 1 container normally.
FAQ
About US

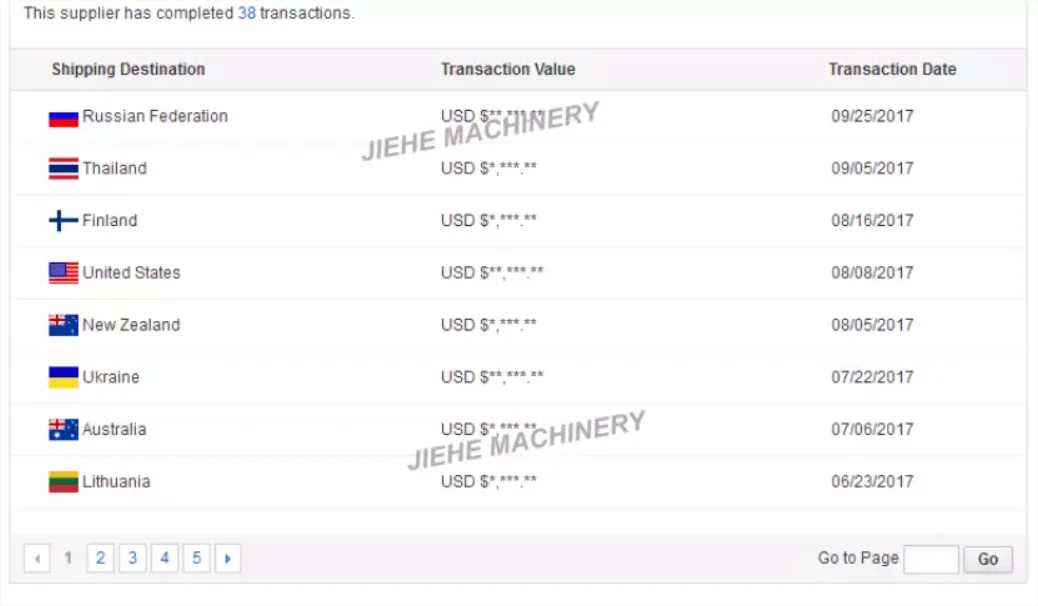

Transaction Record
