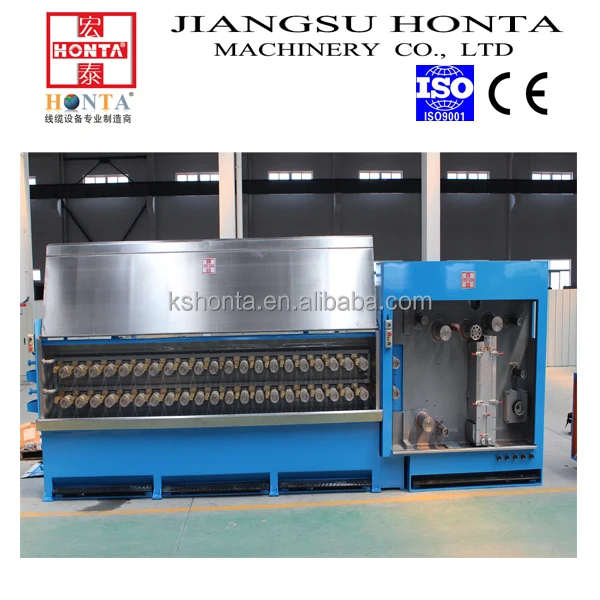

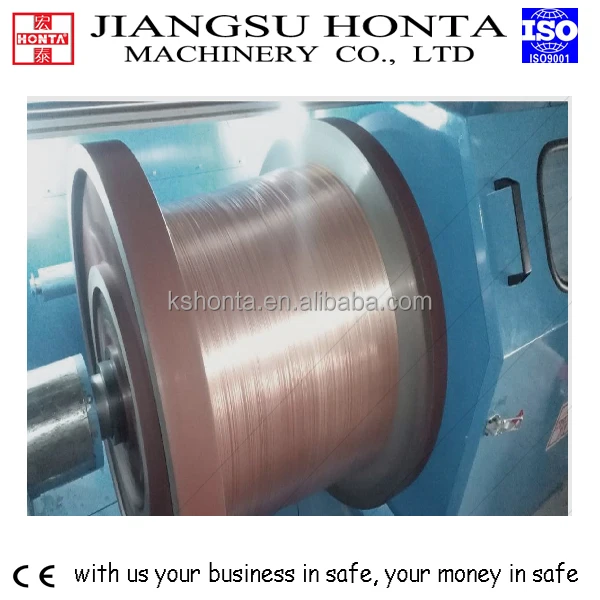

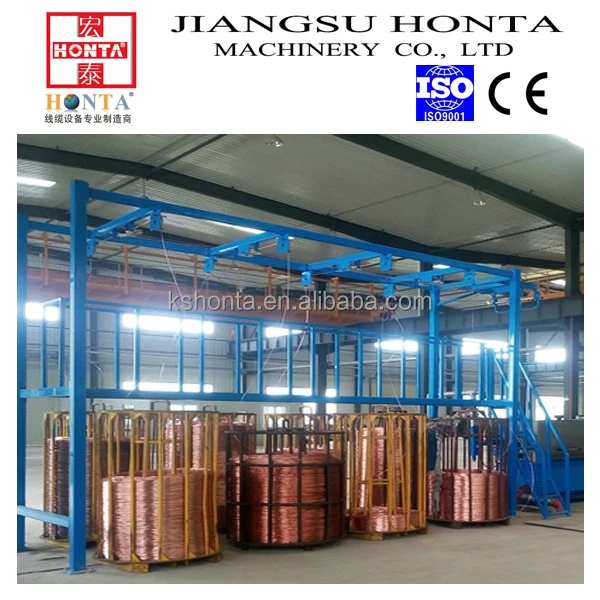

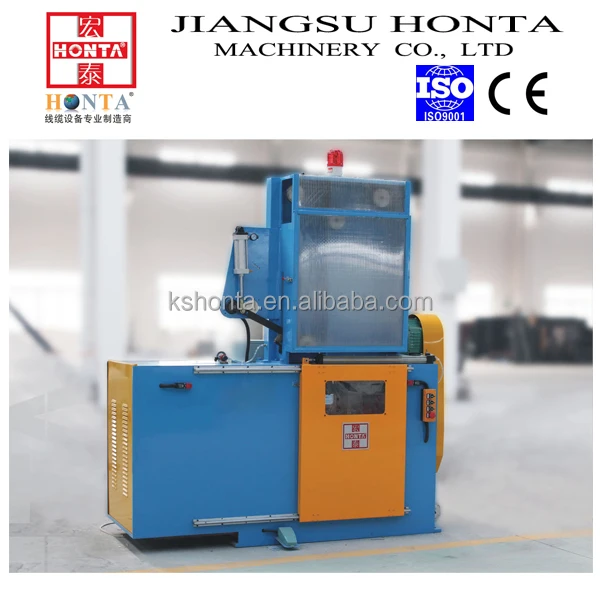

ceramic drawing capstans two or three zones annealing 16 wires/ 8 wires copper wire drawing machine
- Category: >>>
- Supplier: Kunshan City Hongtai Machinery & Electric Equipment Co. Ltd. [Jiangsu China]Kunshan
Share on (60341972193):
Product Overview
Description
You are here > Home > Ceramic drawing capstans two or three zones annealing 16 wires/ 8 wires copper wire drawing machine
Product Features
·Driven by high precise helical gears;particular oil lubrication mechanism;dual motors drive
·The capstan and die lubrication system is in design of emulsion spraying with force from inside of die holders, in this way, the lubrication is more sufficient and it saves space moreover, it makes operation more convenient
·Annealing contact copper rings, nickel tubes are made from special alloy;it can ensure a longer service life
·The annealer control system is in zero length preset voltage design, so that it can ensure stable annealing of wires in the process of machine start and stop
·A special mechanism is designed to meet requirements of drawing bare copper wires,tinned copper wires and silver plated copper wires
·The whole line is ethernet digital communication technology controlled
Product Parameters
1. Short description
Quick die change system: Allows the production of various diameters without exchanging the complete die sets; The rpm adjustment of the last capstan to the final capstan (necessary due to omission of one
or several drawing steps) is pre-set by the 2-motor-technique in connection with free-programmable control (PLC).
2. Technical specification
drawing machine
Wire material | bare copper wire and tinned wire |
Number of produced wires | 16 x copper bare i.e. copper tinned (2 levels, each with 8 wires) |
Inlet diameter(tensile strength) | max. 16 x 1.80 mm (250 N/mm) |
Finishing diameter | 16 x 0.15~ 0.40 mm with the inlet diameter of 1.80 mm copper bare and tinned 16 x 0.10~ 0.20 mm with the inlet diameter of 1.40 mm cooper bare and tinned |
Production efficiency | 1st drawing die sequence with inlet diameter 1.80 mm 16 x 0.150 with v = 25.0 m/s 16 x - 0.203 mm with v = 25.0 m/s 16 x - 0.250 mm with v = 23.0 m/s 16 x - 0.300 mm with v = 15.0 m/s 16 x - 0.320 mm with v = 18.0 m/s 16 x - 0.360 mm with v = 10.0 m/s 16 x - 0.400 mm with v = 5.0 m/s 2nd drawing die sequence with inlet diameter 1.40 mm 16 x - 0.100 mm with v = 22.0 m/s 16 x - 0.130 mm with v = 28.0 m/s 16 x - 0.150 mm with v = 28.0 m/s 16 x - 0.200 mm with v = 15.5 m/s Production efficiency for tinned wires at production speeds reduced by about 20%. The above mentioned efficiencies are theoretic and show the possible efficiency of the offered drawing line. The actual production efficiencies are depending on different factors like quality of inlet wire, drawing dies, lubricant, spools, skill-fullness of the operator etc. |
3.Packing: well packed on steel pallets in 2x 40′ container.
Suitable for long distance ocean freight transportation and to change of climate, well protected against
moisture and shocks.
Company Profile
Brief Introduction
JIANGSU HONTA MACHINERY CO.,LTD. which is engaged in R&D and manufacture of wire drawing machines for non-ferrous metal in wire and cable industry, is a high and new technology enterprise.
The company’s registered capital is RMB11.8 million, covers an area of 30000 square meters. The company has a strong machining power and the most professional design team.
HONTA constantly strives to supply wire process machineries of high efficiency,high precision,and high quality to customers both at home and abroad. Meanwhile,our company has professional technical team, which can offer professional technical guidance and complete plant equipment planning and so on for customers.
Certification
Product Range
• Copper rod breakdown machine with annealer
• Aluminium rod breakdown machine with annealer
• Wire electrolytic plating lines
• 16 wires multi wire drawing machine lines
• 8 wires multi wire drawing machine lines
• 4 wires multi wire drawing machine lines
• Medium wire drawing machine with annealer
• Fine wire drawing machine with annealer
• Fine wire drawing machine with automatic spoolers
• Aluminium wire drawing machine with automatic spoolers
• Double twist bunching machine
• Annealing & Tinning machine
• Down coilers
Factory show
Customer Commissioning
Our service
4. After-service:
·Free training / introduction of the operating and maintenance personnel
·one mechanical engineer and one electric engineer will go to customer's factory
for commissioning after customer finished installation of the machines;
5. Warranty: machines will be tested in our factory before shipment; 12 months
counted from the date of signing the Certificate of Acceptance.
FAQ
Q: What's the application of wire draw machine ?
A: It can be widely used to produce power cable, electrical equipment cable, communication cable,magnet wire, winding wire,bare wire and special cable etc.
Q: What's the characteristic of wire draw machine ?
A:
·Powered motor
·High speed
·Smart programmable control and operation
·High safety standard
·Efficient and cost-effective
Q: What' s the raw material can be draw ?
A:This wire drawing machine can draw copper, copper alloy, aluminum and aluminum
alloy, etc.
How to contact us?
With 8 years experience, we can provide professional solution for customers.
Send your inquiry details in the below, click "send" now!
