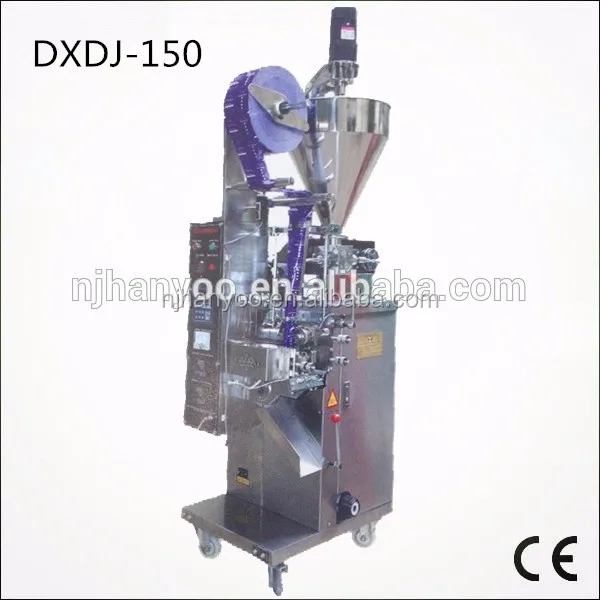

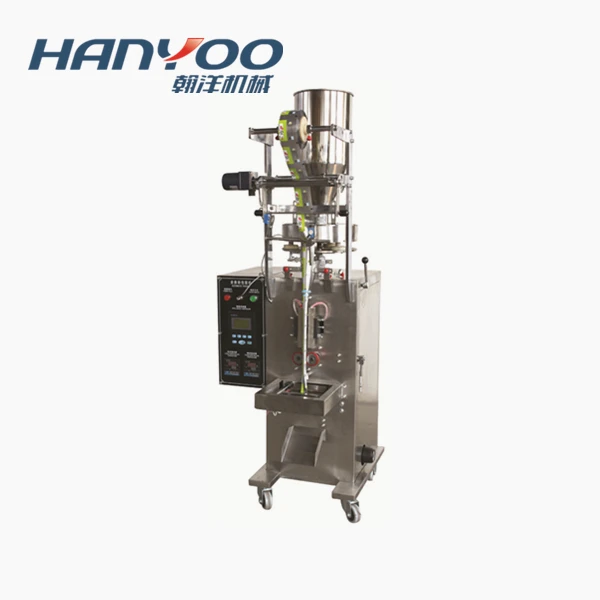

DXD 500J Jam/Juice/Chili/Sauce/Ketchup Packing Machine
- Category: >>>
- Supplier: Jiangsu Hanyoo Pharmatech Co. Ltd.
Share on (60342120676):
Product Overview
Description
APPLICATION

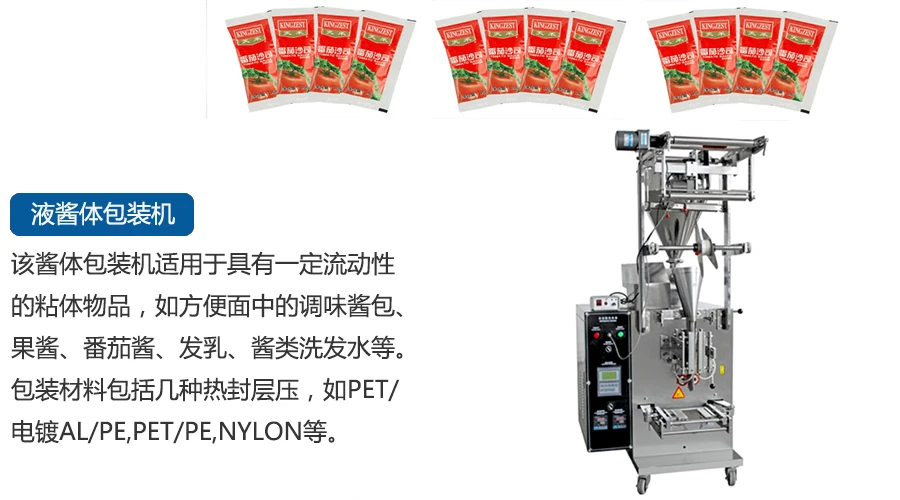

This ketchup packing machine is suitable for packing of viscous product with free-flowing such as tomato sauce, lotion noodle jam, edible oil, meat jam and broth etc.
Bags,sachet shape:three sides seal, four sides seal, pillow shape bag.

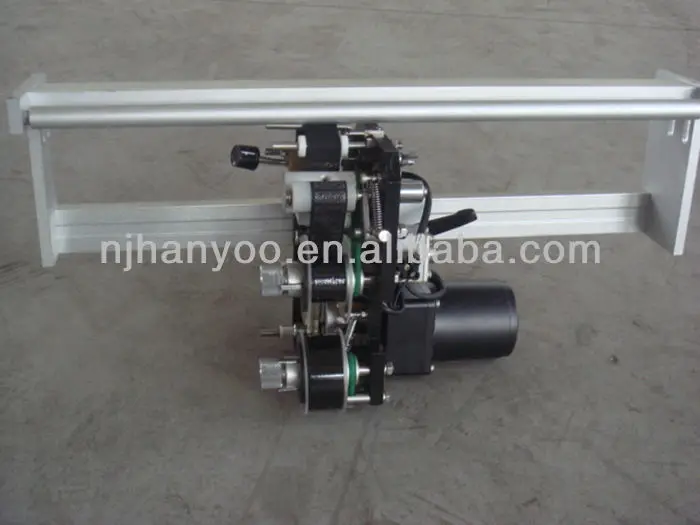

The integrated processes of bag making,measuring filling,sealing cutting, counting and pressing codes can be done automatically. packing material inlude several kinds of heat seal lamination, such as PET/plated AL/PE, PET/PE, PAPER/PE, NYLON etc.
FEATURES
1. All stainless steel cover meets to GMP standard.
2. Equipped with antipollution and dustproof device.
3. Automatic adjustment of pouch size and filling range.
4. Photocell controller is easy to operate.
5. The horizonal sealing uses high temperature resistant bearing which will ensure the continuous operation of the machine without filling the oil regularly.
6. The operation facility is controlled by American intel computer, all function is displayed with digital screen.
7. Minimum sealing temperature variation employs PID temperature, the tolerance is controlled by ± 2%.

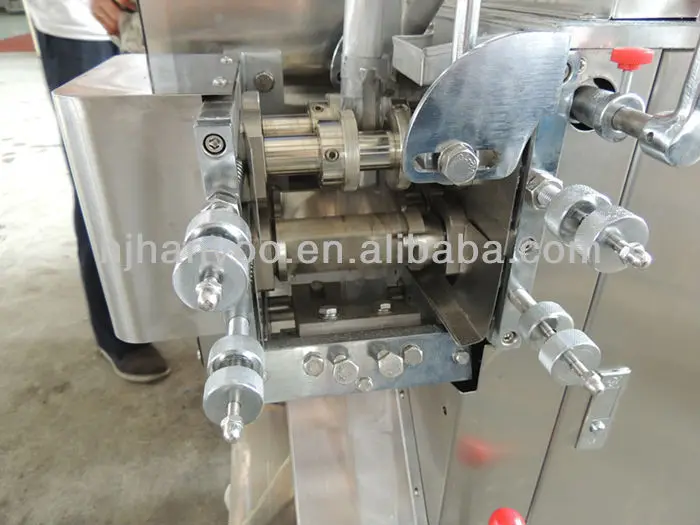

8. Sealing part: roller spend process is special designed and the effect of sealing is very well.
9. Equipped with easy open system.
TECHNICAL PARAMETER
Model | DXDJ-40 | DXDJ-150 |
Bag size | L55-110 W30-80mm | L70-150 W70-115mm |
Capacity | 40-100 bags/min | 35-80 bags/min |
Filling range | 5-40 ml(g) | 30-150 ml(g) |
Power | 220V 50HZ 1.5KW | 220V 50HZ 1.9KW |
Weight | 340 KGS | 360 KGS |
Dimension(L*W*H) | 600×790×1780 mm | 700×800×1900 mm |

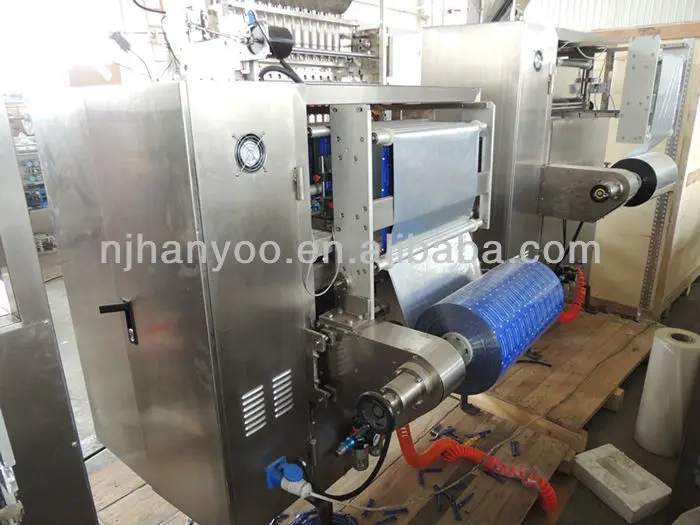

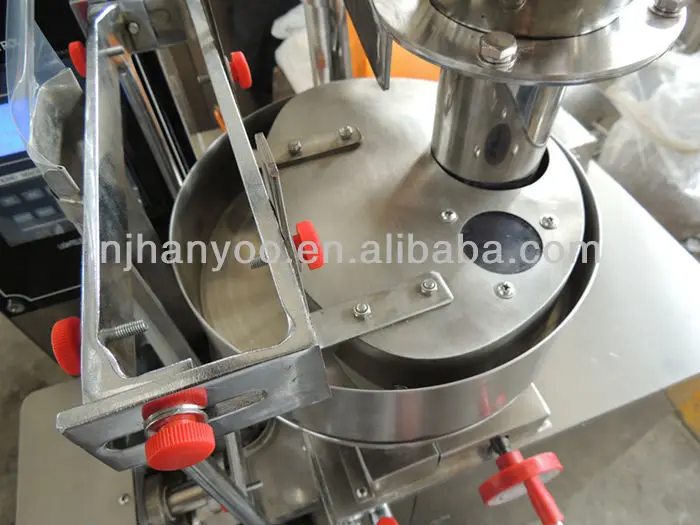

PICTURES SHOWING

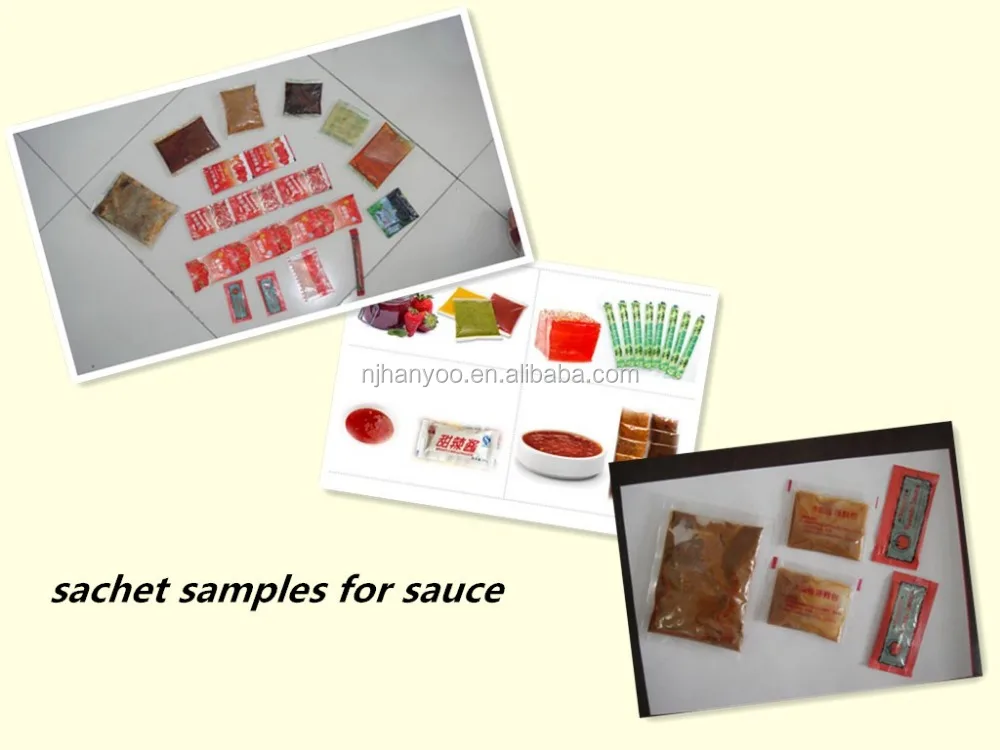

THE OTHER MATERIALS SACHET PACKING WITH ELSE MACHINE
Contact US :
Skype:djpallet
Whatsapp:+86 15189803991
PACKAGING & SHIPPING FOR OUR MACHINE
PAYMENT
1. The TT, Western Union, LC, Cash payment is available.
2. We have the machine in stock. Due to the voltage and mold difference, we need around 30 days to send out the machine. We will notice you if there is the special circumstance(such as votage etc).
DELIVERY TIME
1. We can delivery within 30 days after received the first payment.
2. The machine will be ship to you by sea shipping or plane. Please tell us your sea port or air port name so that we could quote you the freight.
3. You can also buy the insurance for the transportation.
4. We can also provide you door to door service, including custom clearance and tracking transportation in your country.
QUALITY WARRANTY
1. All our machine have 1 year free warranty, during the warranty time, all the broken parts(not caused by man factor) can be changed free.
2. We can send our engineer go over sea for adjusting the machine and training your worker in your plant.
3. We have 24 hours hot line and email to help you to resolve the problem within 3 hours.
CUSTOMIZED SERVICE
Please let us know the follow packing details when you inqury, so that we can check which model is suitable for your case. Thank you in advance.
1. Product details(what's kind of materials do you want to packing?), picture be provided is better.
2. The size of bag(L,W)
3. Bag shape
4. Packing film material
OUR COMPANY

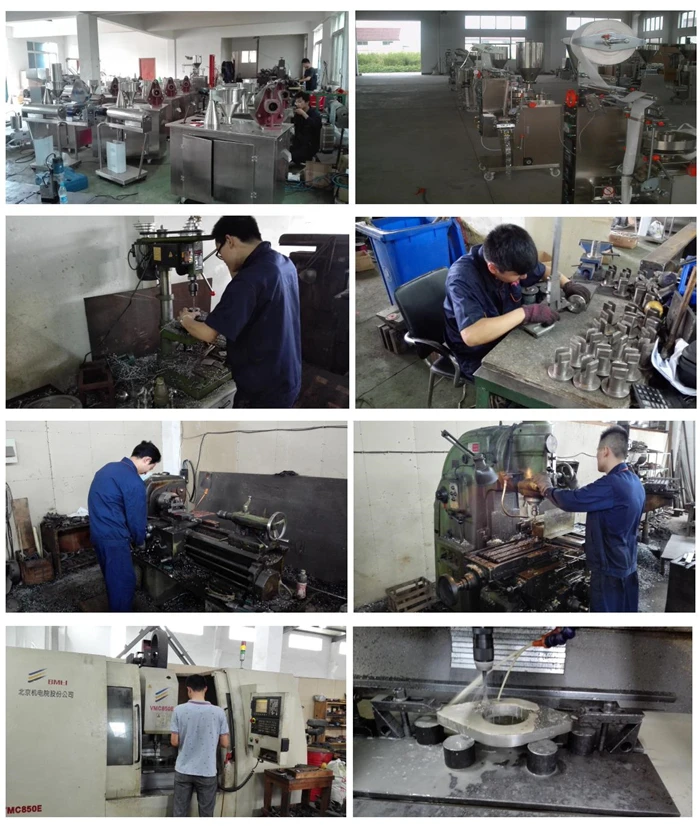

Working Shop
Company Honor
