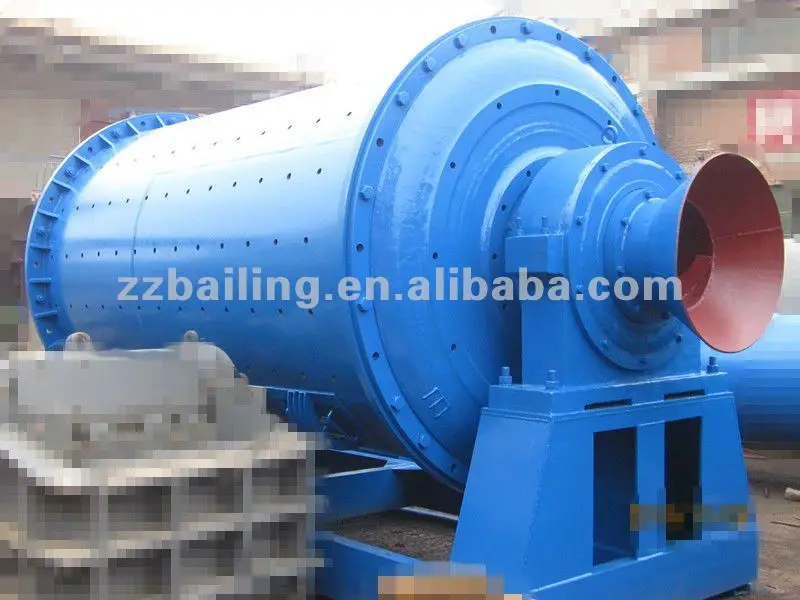

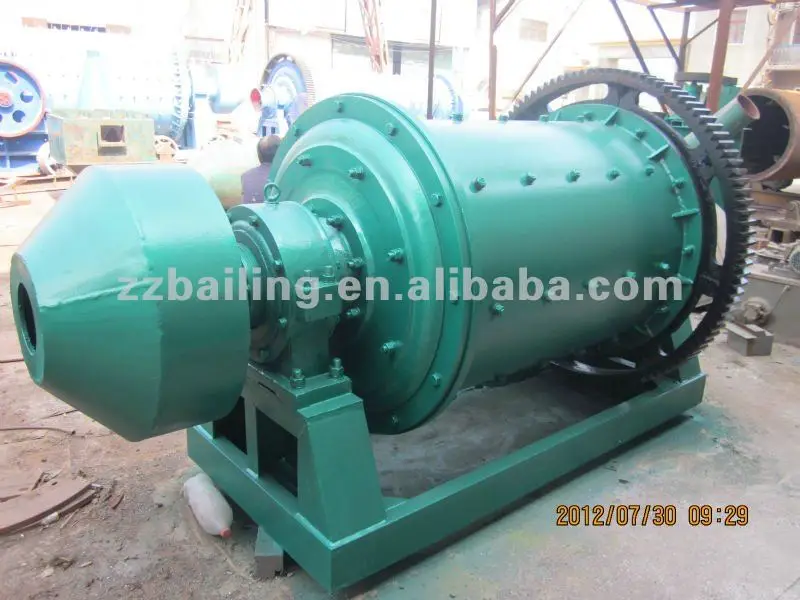

Mineral Processing Copper Lead Zinc Ore With Various Capacity Copper Ore Processing Equipment Ball Mill
- Category: >>>
- Supplier: Henan Bailing Machinery Co. Ltd.
Share on (60342267717):
Product Overview
Description
Product Description
Mineral Processing Copper Lead Zinc Ore Copper Ore Processing Equipment
Mineral Processing Copper Lead Zinc Ore Copper Ore Processing Equipment Project Description |
Copper Ore Processing Plant has two stages, crushing stage and grinding stage. Crushing stage works 12 hours, and capacity is about 20.83tph, after crushing, the material is crushed from 400mm into 20mm. Then grinding stage, grinding capacity is about 13.02t/h, and works about 20 hours. Afther grinding, the granularity is 70% of 200 mesh. Finally, Au and Ag will be in the copper concentrate.1.Use the method of flotation to recycle CuS.
2.The Au and Ag of raw ore is valuable, but it is difficult to separate them from copper. Au and Ag will be in the copper concentrate.

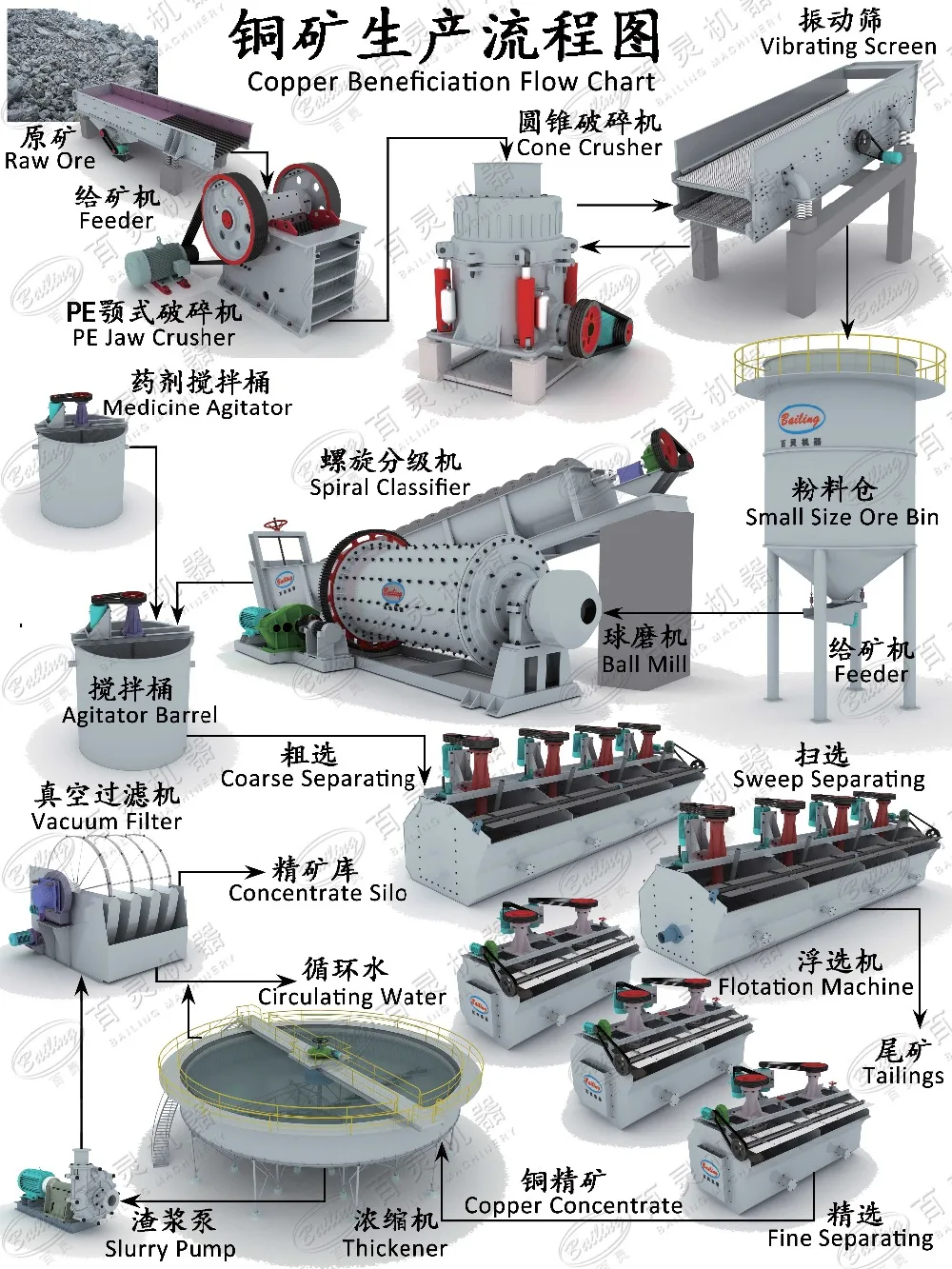

Detailed Flow of Copper Ore Ball Mill For Copper Ore Processing Plant Project Description |
Raw material is fed into coarse crusher through vibrating feeder, after first crushing, then into fine crusher. After the material is crushed in the fine crusher, the material bigger than 20mm is transported back into fine crusher and recrushed, at the same time, the material smaller than 20mm gets into fine ore bin and then is transported into ball mill. After grinding, the grinded ore gets into spiral classifier, underflow will get back into the ball mill, and overflow gets into the process of one roughing three contentrating one scavenging flotation process. Flotation Concentrate will get into settling pond, and flotation tailings gets into settling pond, part of them will transport into tailngs pond. The water of tailing can recycle and reuse.
Equipment List of Copper Ore Ball Mill For Copper Ore Processing Plant |

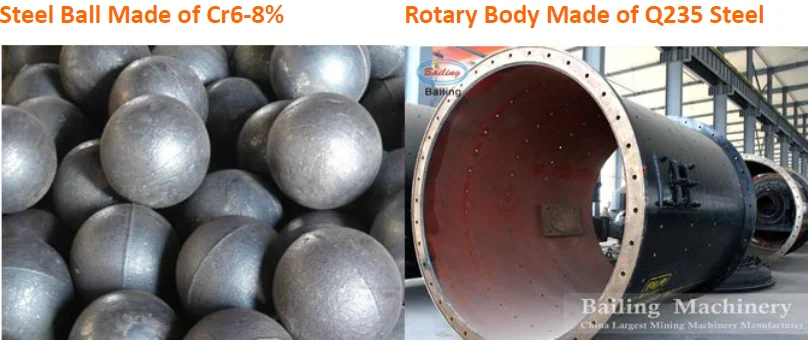

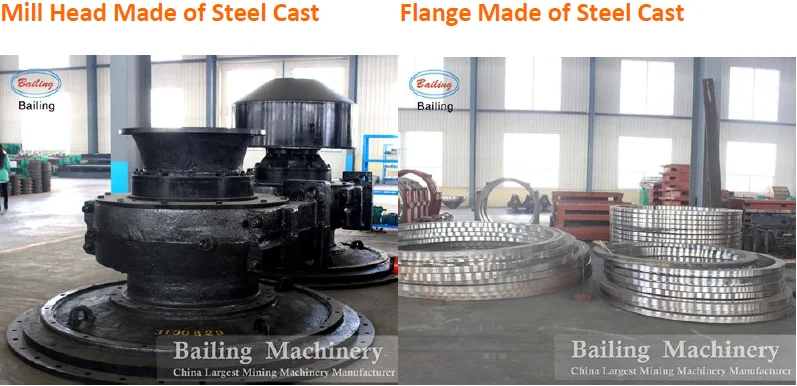

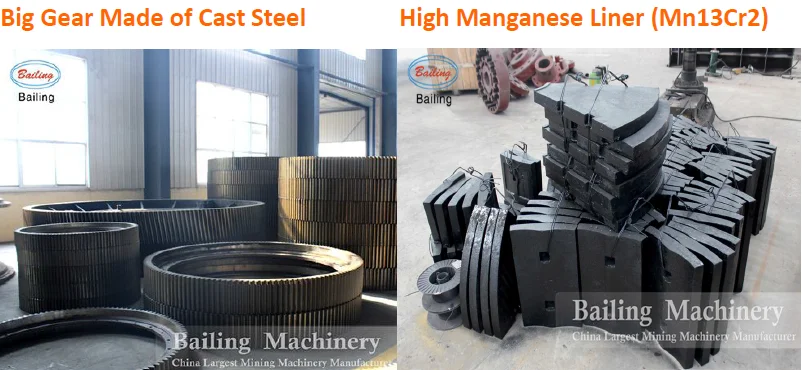

Detailed Parts Of Ball Mill |
Technical Data |
| Type | Rotational speed (r/min) | Balls weight (t) | Feeding size (mm) | Output size (mm) | Capacity (t/h) | Motor power (kw) | Weight (t) |
| 900×1800 | 42 | 1.4 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 3.6 |
| 900×2100 | 41 | 1.7 | ≤15 | 0.075-0.83 | 0.7-3.5 | 15 | 3.9 |
| 900×3000 | 41 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 4.5 |
| 1200×2400 | 36 | 3.5 | ≤25 | 0.075-0.6 | 1.5-4.7 | 30 | 11.5 |
| 1200×2800 | 31 | 6.8 | ≤25 | 0.075-0.6 | 1.5-5 | 37 | 13 |
| 1200×4500 | 32 | 5.5 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.8 |
| 1500×3000 | 31 | 6.8 | ≤25 | 0.074-0.4 | 2-7 | 75 | 17 |
| 1500×4500 | 27 | 10.5 | ≤25 | 0.074-0.4 | 3.5-8 | 110 | 21 |
| 1500×5700 | 27 | 15 | ≤25 | 0.074-0.4 | 3.5-10 | 130 | 24.7 |
| 1830×3000 | 26 | 13 | ≤25 | 0.074-0.4 | 4-12 | 160 | 28 |
| 1830×3600 | 26 | 15 | ≤25 | 0.075-0.4 | 5-13 | 160 | 33.5 |
| 1830×4500 | 26.5 | 17 | ≤25 | 0.075-0.6 | 5.5-20 | 185 | 35 |
| 1830×7000 | 26 | 25 | ≤25 | 0.074-0.4 | 6.5-22 | 210 | 36 |
| 2100×3600 | 24 | 21 | ≤25 | 0.074-0.4 | 6.5-22 | 185 | 46.8 |
| 2200×5500 | 21 | 30 | ≤25 | 0.074-0.4 | 10-20 | 245 | 48.5 |
| 2200×6500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 14-26 | 380 | 52.8 |
| 2200×7500 | 21 | 33 | ≤25 | 0.074-0.4 | 16-30 | 380 | 56 |
| 2400×3000 | 20.6 | 30 | ≤25 | 0.075-0.4 | 15-50 | 245 | 59 |
| 2400×4500 | 21 | 33 | ≤25 | 0.074-0.4 | 15-60 | 380 | 65 |
| 2700×3600 | 20.6 | 39 | ≤25 | 0.074-0.4 | 20-70 | 400 | 91.3 |
| 2700×4000 | 20.7 | 40 | ≤25 | 0.074-0.4 | 20-80 | 400 | 94 |
| 2700×4500 | 20.7 | 48 | ≤25 | 0.074-0.4 | 20-90 | 430 | 102 |
| 3200×4500 | 18 | 65 | ≤25 | 0.075-0.4 | According to different technology | 800 | 137 |
| 3600×4500 | 17 | 90 | ≤25 | 0.074-0.4 | According to different technology | 850 | 158 |
| 3600×6000 | 17 | 110 | ≤25 | 0.074-0.4 | According to different technology | 1250 | 175 |
| 3600×8500 | 18 | 131 | ≤25 | 0.074-0.4 | 45.8-256 | 1800 | 252 |
| 4000×5000 | 16.9 | 121 | ≤25 | 0.074-0.4 | 45-208 | 1500 | 203 |
| 4000×6000 | 16.9 | 146 | ≤25 | 0.074-0.4 | 65-248 | 1600 | 218 |
| 4000×6700 | 16.9 | 149 | ≤25 | 0.074-0.4 | 45-252 | 1800 | 238 |
| 4500×6400 | 15.6 | 172 | ≤25 | 0.074-0.4 | 54-306 | 2000 | 280 |
| 5030×6400 | 14.4 | 216 | ≤25 | 0.074-0.4 | 68-386 | 2500 | 320 |
| 5030×8300 | 14.4 | 266 | ≤25 | 0.074-0.4 | 88-500 | 3300 | 403 |
| 5500×8500 | 13.8 | 338 | ≤25 | 0.074-0.4 | 108-615 | 4500 | 525 |

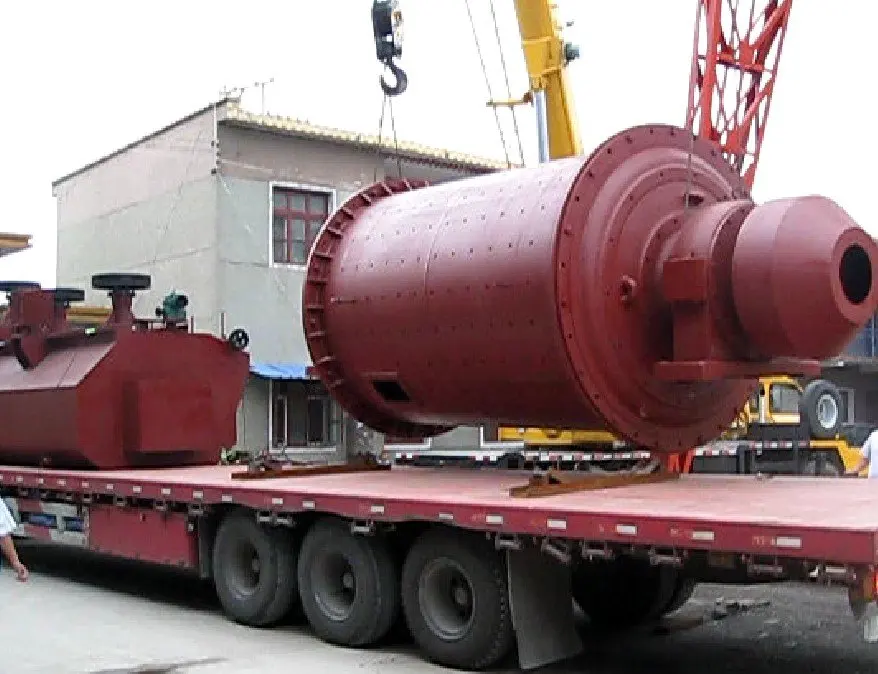

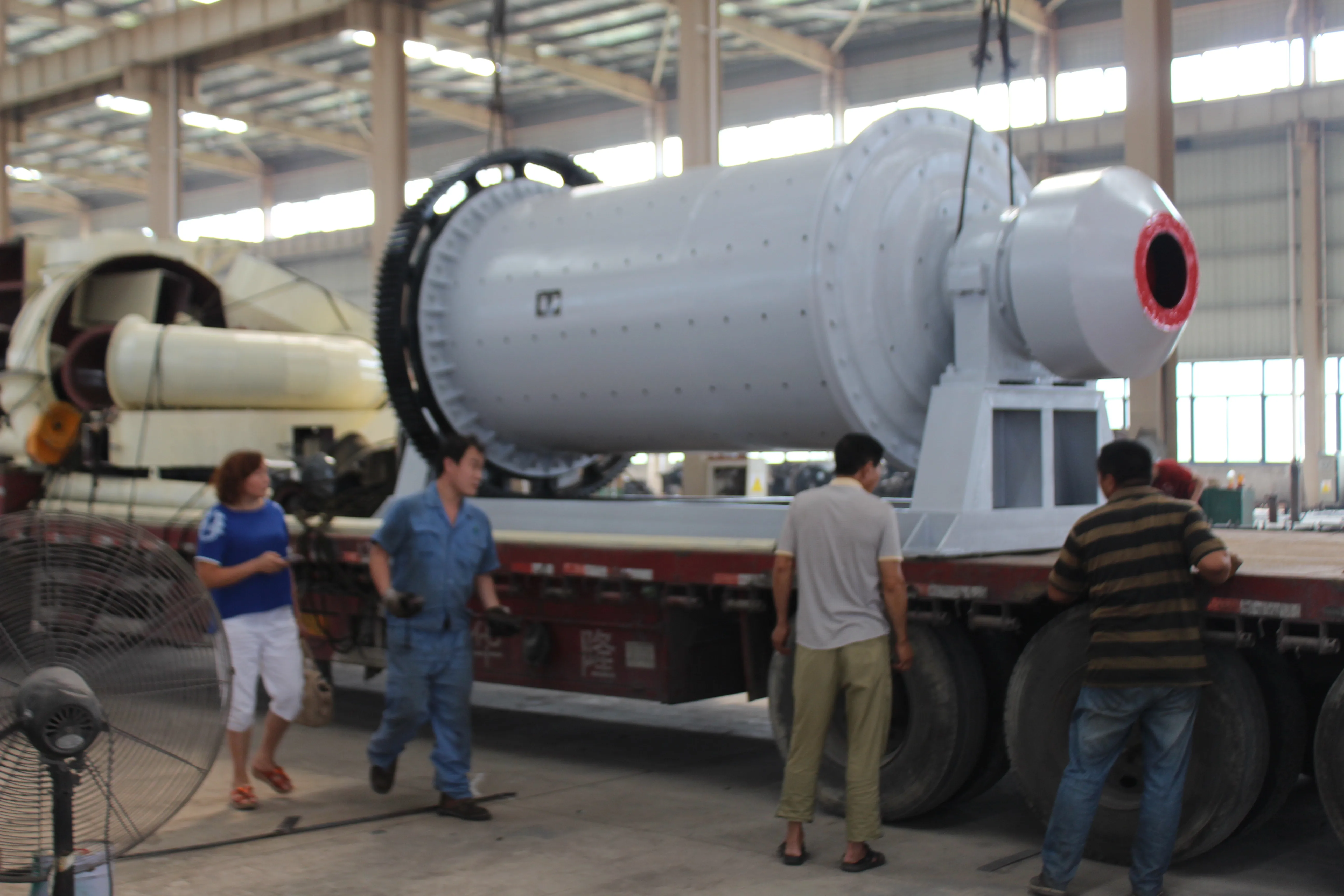

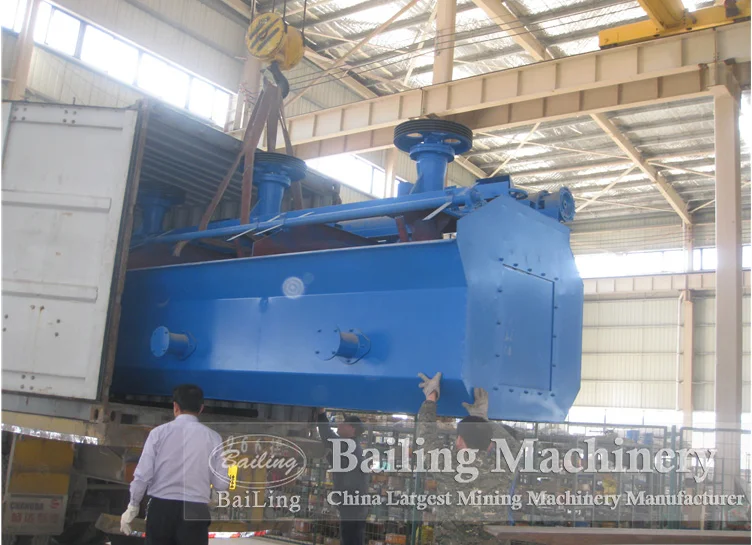

Packaging & Shipping
Packaging & Shipping
Customer Site
Customer Site
International Cooperation
International Cooperation
International Cooperation

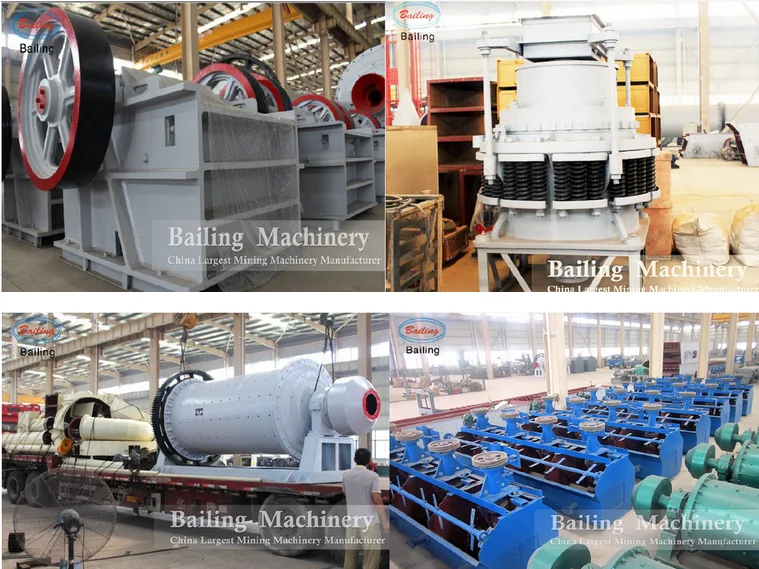

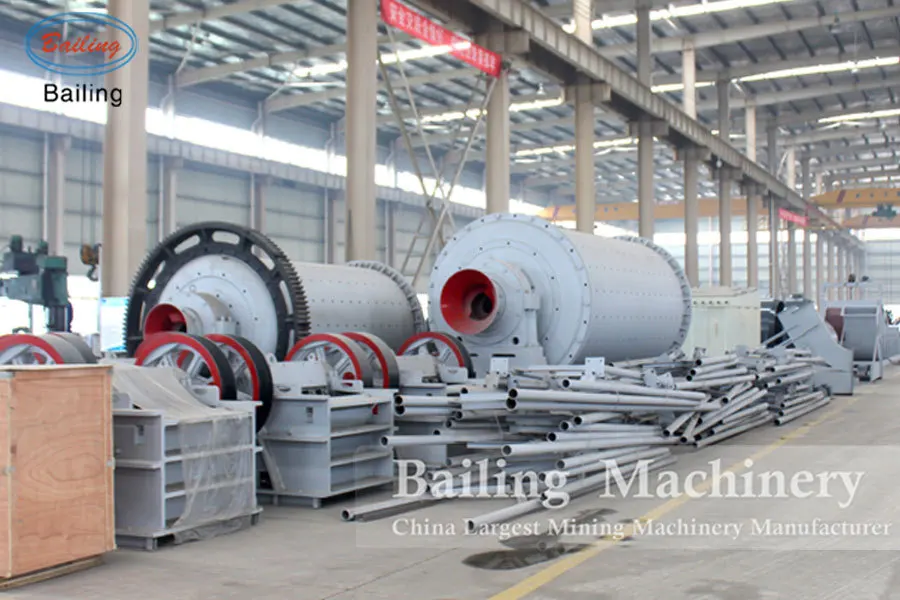

Company View
1. If the customers inquiry our machines, we will quote as soon as possible.
2. Our engineer will design the project according to the information our customers provide us, which is included the flow chart, the flash of project.
3. After our customer makes sure our project, please pay 30% of total amount, then we will arrange our workshop to produce the products.
4. Twenty days later, we will package and ship the goods to ours customers after recieving the whole price.
5. If our customer needs our guide, we will send our after-sales person to guide the installtion.
6. We will provide the best price of wear parts to our customers in the lifetime of the machine.
