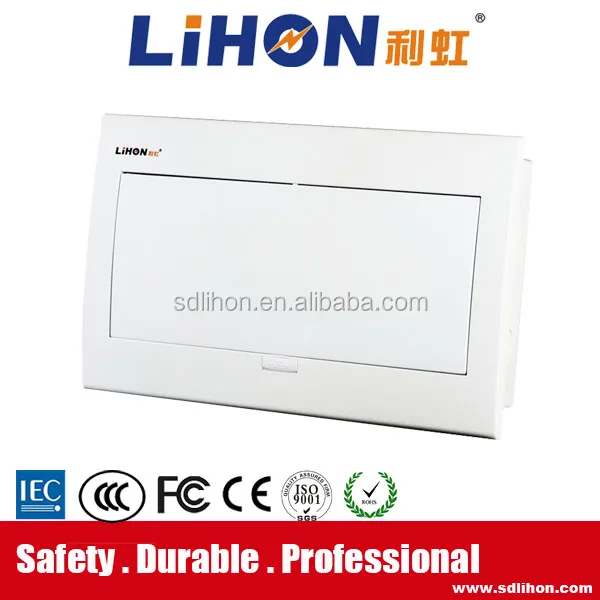

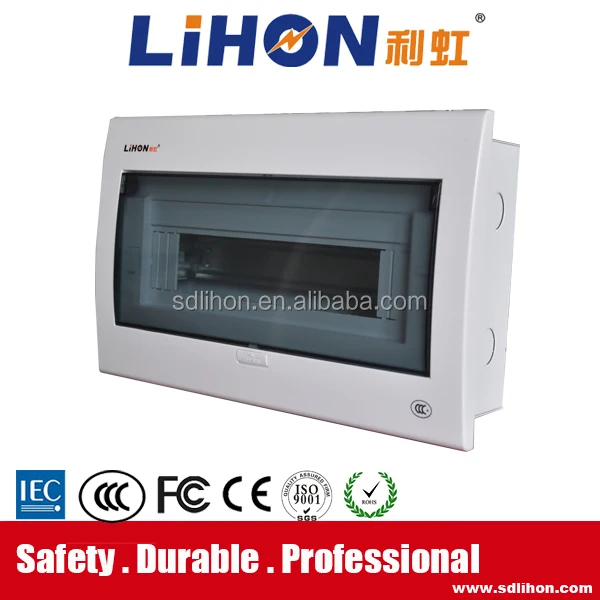

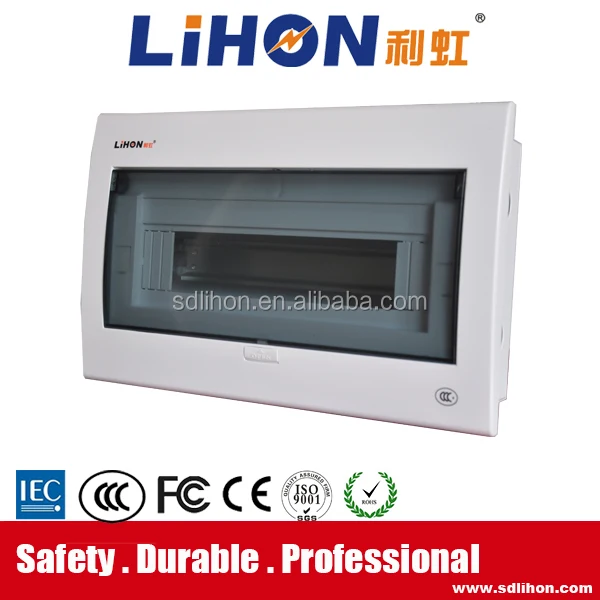

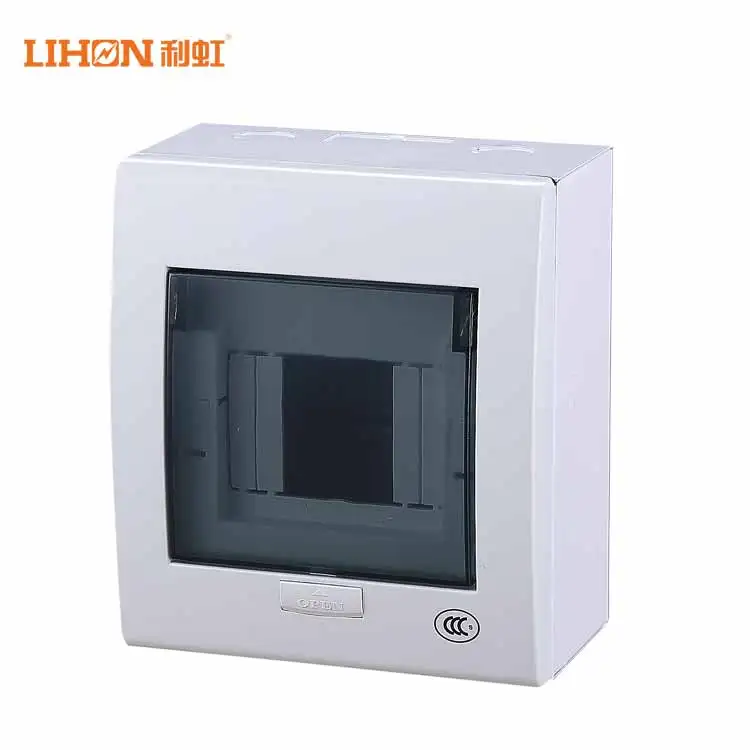

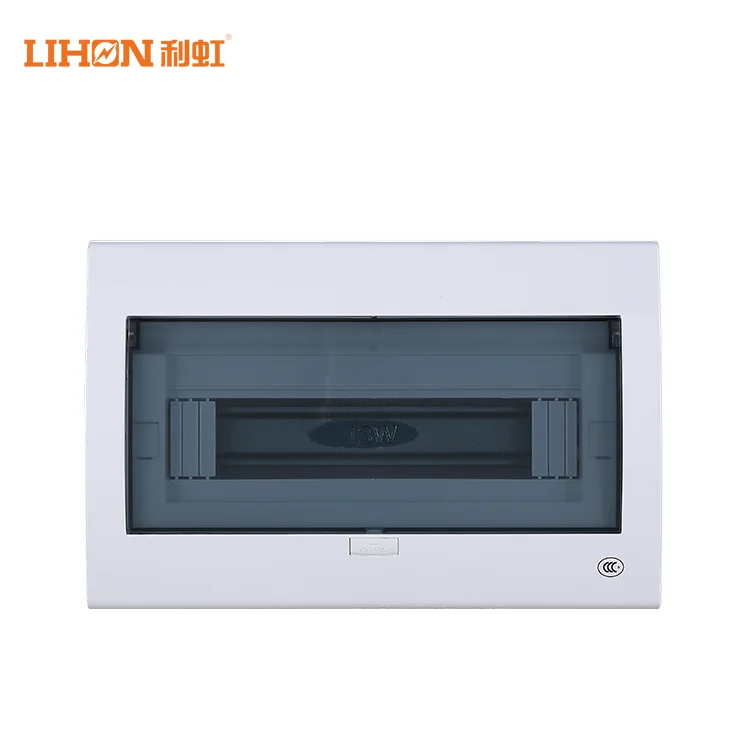

metal electrical consumer unit for home

Product Overview

Description

metal electrical consumer unit for home

Advantage:

1.Easy identification

2.Easy opening

3.Easy wiring

4. Easy adjustment

5. Long life for using



Specification:

1. High impact, resistance materia

2. Transparent covering

3. Surface and flush mounting available

4. Plenty of space for smooth and easy installation

5. Range:4,6,9,13,16,18,20,26,36,40,48,54,60,72way

6. Color : white color base box and tansparent covering

7. Material : 0.8 mm thickness iron, ABS cover



Regarding OEM/ODM:

1. Make the box thicker:Stardard box 0.8mm thick iron(MXB series is 1.0mm),we can make 1.0mm,1.2mm,1.5mm.

2. Make the box deeper:standard box 90mm deep,we can make 100mm,110mm,120mm,130mm...etc.

3. Change the color of the cover:standard is transparent blue and opaque white.

     Light yellow,dark yellow, and other color is available,MOQ is 1000pcs for each item

4. Knockable holes:reduce or increase the quantity of knockable holes,change the size and location of the knockouts.

5. Produce according to customer’s drawing.



Regarding Brand/Logo:

1. silk-print customer's brand free of charge,first must get customer’s authorization.

2. Make colorful package with customer's logo,MOQ is 3000pcs for each item.



Parts and Accessories:

*busbar : Can be provided if needed.

1P/2P/3P for 32A/40A/63A/80A/100A,U type and Pin type

(Extra service:cutted and put inside the box )



Model	Type	Frame  dimension  (mm)	Surface mounted  dimension (mm)	flush mounted  dimension (mm)	base  material	frame  material	cover material	Package /Ctn
MXC-2-4	2-4 way	140*160	140*160*72	120*143*77	0.8mm iron	ABS	Transparent PC,or opaque white ABS	20
MXC-4-6	4-6 way	210*210	210*210*70	182*182*80	0.8mm iron	ABS	Transparent PC,or opaque white ABS	10
MXC-7-9	7-9 way	255*210	255*210*70	230*182*80	0.8mm iron	ABS	Transparent PC,or opaque white ABS	10
MXC-10-13	10-13 way	325*210	325*210*70	300*182*80	0.8mm iron	ABS	Transparent PC,or opaque white ABS	10
MXC-14-16	14-16 way	380*210	380*210*70	357*182*80	0.8mm iron	ABS	Transparent PC,or opaque white ABS	10
MXC-14-18	14-18 way	413*210	414*210*70	389*182*80	0.8mm iron	ABS	Transparent PC,or opaque white ABS	10
MXC-16-20	16-20 way	413*210	452*230*80	426*210*90	0.8mm iron	ABS	Transparent PC,or opaque white ABS	5
MXC-20-26	20-26 way	13 way, two rows	325*421*70	300*395*80	0.8mm iron	ABS	Transparent PC,or opaque white ABS	5
MXC-28-32	28-32 way	16 way, two rows	380*421*70	357*395*80	0.8mm iron	ABS	Transparent PC,or opaque white ABS	5
MXC-28-36	28-36 way	18 way, two rows	414*421*70	389*395*80	0.8mm iron	ABS	Transparent PC,or opaque white ABS	5
MXC-32-40	32-40 way	20 way, two rows	452*461*90	426*441*100	0.8mm iron	ABS	Transparent PC,or opaque white ABS	5
MXC-42-48	42-48 way	16 way, three rows	380*632*100	357*607*100	1.0mm iron	ABS	Transparent PC,or opaque white ABS	1
MXC-42-54	42-54 way	18 way, three rows	414*632*100	389*607*100	1.0mm iron	ABS	Transparent PC,or opaque white ABS	1
MXC-48-60	48-60 way	20 way, three rows	692*452*100	672*426*100	1.0mm iron	ABS	Transparent PC,or opaque white ABS	1
MXC-40-52	40-52 way	13 way, four rows	325*843*100	300*818*100	1.0mm iron	ABS	Transparent PC,or opaque white ABS	1
MXC-56-64	56-64 way	16 way, four rows	380*843*100	357*818*100	1.0mm iron	ABS	Transparent PC,or opaque white ABS	1
MXC-56-72	56-72 way	18 way, four rows	414*843*100	389*818*100	1.0mm iron	ABS	Transparent PC,or opaque white ABS	1
MXC-64-80	64-80 way	20 way, four rows	452*929*100	426*903*100	1.0mm iron	ABS	Transparent PC,or opaque white ABS	1







FAQ

1.Free sample available?

Yes,but the shipping cost will be on your account.



2.What is the MOQ for samples order and formal order?

1-5 pcs for sample order,100pcs for formal order



3.How about the producing time and lead-time?

It is depend on the order quantity,delivery is flexible and negotiable.

For wirless AP,delivery is 7-15 days

For Electrical products:normally 15-25 days

For customized products:normally 20-35 days



4.What is the payment term?

TT,Western Union,L/C,Paypal,D/P available



5.Do you have warranty for the products?

Yes,Normally 1 year to 3 years depend on different products and different quality levels.

The warranty principal does not cover the damage of failure caused by alterations,mishandling,abuse,neglect,accident,damage of un-proper transporation.



6.How about the package?

Each item one inner package,protected by thick outer carton.

Neutral package and OEM/ODM package with client’s logo is available.



7.Shipping way:

By sea,by air and by courier.

We will confirm the most econimical and convenience shipping way to save the cost for our customers,choose the best forwarder partner to ensure the transportation smoothly and in time.



8.What is your production capacity?

Our production output is 50000 boxes per day.

We have huge of the automatically production machines and more than 120 skillful workers.



9.Will you Develop distributor and sole agent?

Yes,should you any interest in our distributor and agent,please let us know in any ways.

Sole agent is available depend on the sales turnover.



10.How is the service?

24 hours serivice.Each customer has the professional sales poeple to follow your case.

High quality service,friendly and efficient communications.



11.What certificates do you have?

CCC,IEC,CE,FCC
