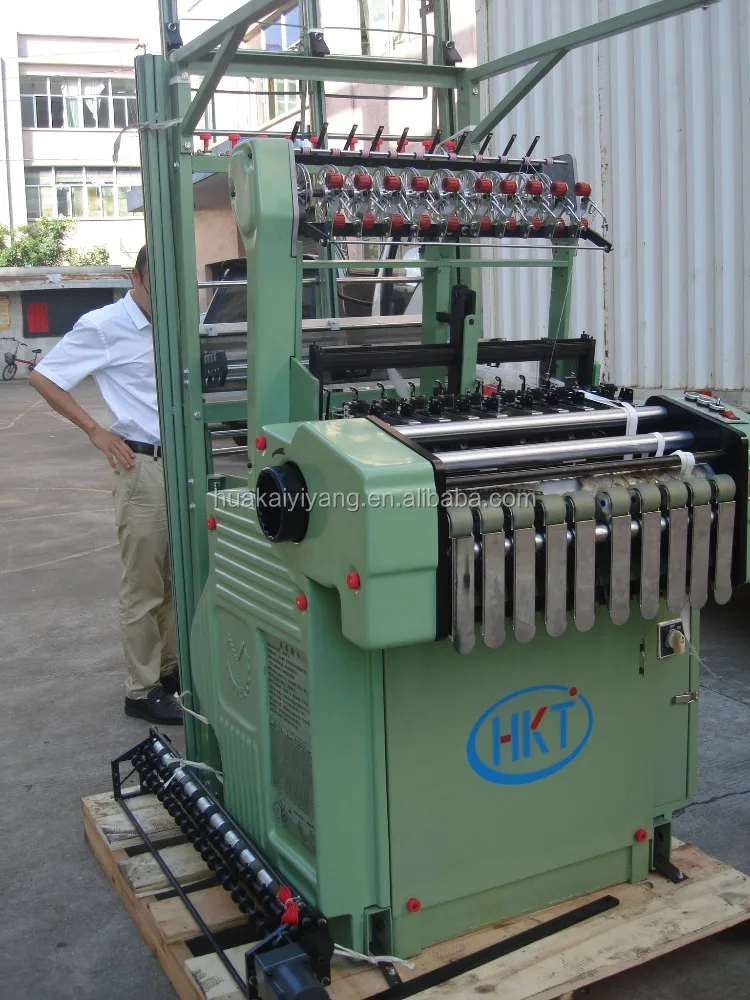

nylon zipper tape making machine

Product Overview

Description

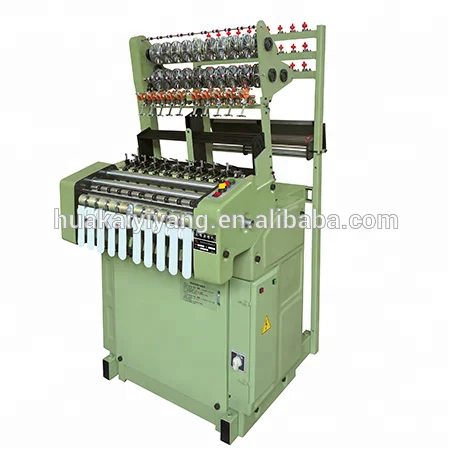

Nylon zipper tape making machine









1. automatic lubrication device
2. automatic stop system
3. Produce 20 tapes at the same time

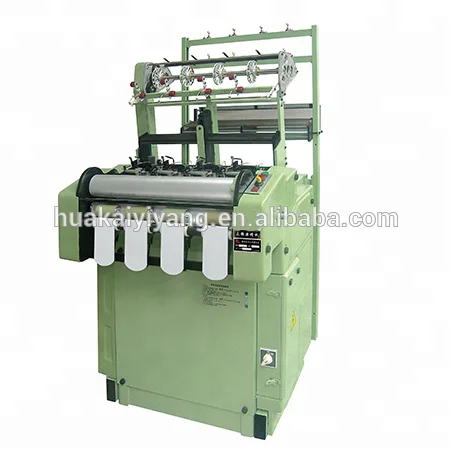

Automatic zipper tape making machine

1. Cam oil auto circulation and lubrication device

2. Yarn automatic braking system with indication light

3. Produce many tapes at the same time.



Applicable scope:



    Needle machine is specially used in producing elastic and unelastic zipper belts for many kinds of zippers, including metal zipper belt, plastic zipper belt, nylon zipper belt and other any kinds of zipper belts.





Features:



1. Special-type machine for producing many kinds of zipper belts, such as metal, resin and nylon zipper belts.

2. Adopt automatically stop device, once the yarn break, the machine will stop automatically.

3. Adopt automatic lubrication device, the oil can cycle and lubricate the machine automatically.

4. Auto regulate device for zipper belt, easy for operator to check the finished belts.

5. Simple structure, stable, low-noise, easy to maintain and repair, long operating life, spare parts available.



Details



HKT Series specification





Model	HKT 8/35	HKT10/25	HKT D10/25 (double heads)	HKT14/20	HKT-D14/20 (Double layer)
Number of tapes	8	12	12*2=24	14	28
Max tape width (mm)	35	25	25	20	20
Motor power	1.5 HP	1.5 HP	1.5 HP	1.5HP	1.5HP
Speed	1400-1600 PRM	1400-1600 PRM	1400-1600 PRM	1400-1600RMP	1400-1600RMP
Heald frame	6 pcs	6 pcs	6 pcs	6 pcs	6 pcs
Link chain repeat	CAM	CAM	CAM	CAM	CAM
Weft density	3.5-36.7 weft/cm	3.5-36.7 weft/cm	3.5-36.7 weft/cm	3.5-36.7 weft/cm	3.5-36.7 weft/cm
Normal attachment	Back take-off device, creel places, normal attachment.

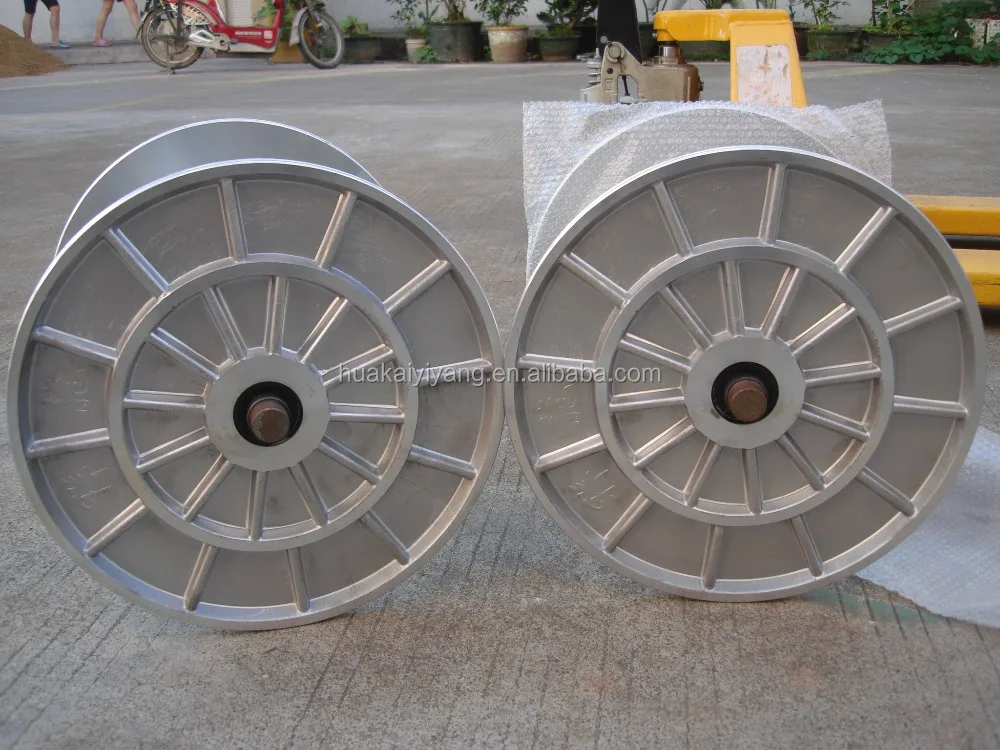

Optional attachment	Beam
