85kva silent soundproof diesel generator set price for sale by brand Deutz
- Category: >>>
- Supplier: Shandong Supermaly Generating Equipment Co. Ltd.
Share on (60342471133):
Product Overview
Description
Product Description
Specification of 85kva silent soundproof diesel generator set price for sale by brand Deutz
| Model | SD68GF |
| Standby Power (50HZ) | 74.8KW/93.5KVA |
| Prime Power (50HZ) | 68KW/85KVA |
Standard Features:
General Features
Engine(Deutz TD226B-6D)
Radiator 40°C max, fans are driven by belt ,with safety guard
24V charge alternator
Alternator (STAMFORD UCI224G), single bearing alternator IP23, insulation class H/H
Absorber
Dry type air filter ,fuel filter ,oil filter, coolant filter
Main line circuit breaker
Standard control panel
Two 12V batteries ,rack and cable
Ripple flex exhaust pipe ,exhaust siphone, flange, muffler.
User manual
Engine Data:
Manufacturer /Model: Deutz TD226B-6D, 4-CYCLE
Air intake System: Turbocharger, Water Cooling
Fuel System : A type fuel Pump
Cylinder Arrangement: 6 in LINE
Displacement : 6.23L
Bore and Stroke: 105*120 (MM)
Compression Ratio: 15.5:1
Rated RPM: 1500rpm
Max standby Power at Rated RPM:99KW
Governor Type: Mechanical
Frequency Regulation ,Steady State : <±0.5%
Alternator Data:
Manufacture /Type: UCI224G
Number of Phase: three
Connecting Type: 3 Phase and 4 wire Rotating Field
Number of Bearing: one
Power Factor: 0.8
Protection Grade:IP23
Altitude: ≤1000m
Exciter Type: Brush less, self-exciting
Insulation Class, Temperature Rise: H/H
Telephone Influence Factor (TIF): < 50
THF:<2%
Voltage Regulation, Steady State: ≤1.5%
Alternator Capacity: 85KVA
Alternator Efficiencies: 90.6%

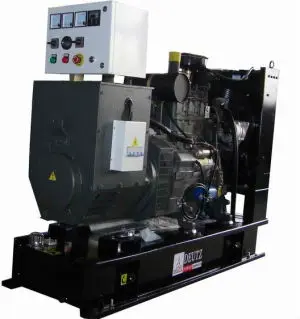

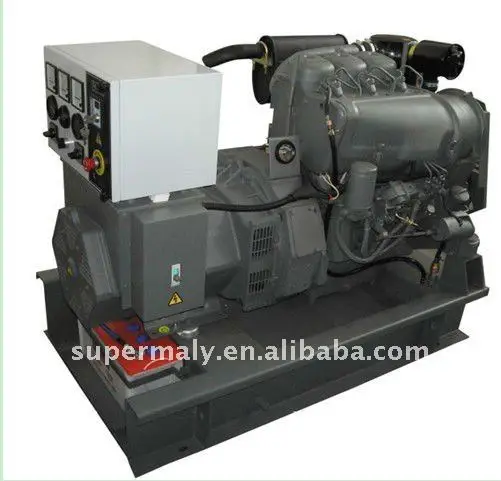

Photos of 85kva silent soundproof diesel generator set price for sale by brand Deutz
| Open -Frame Type | Silent Type | |
| Overall Size | 2300*770*1530 | 2900*950*1650 |
| Weight | 1050kgs | 1550kgs |
Silent Type of 85kva silent soundproof diesel generator set price for sale by brand Deutz
There are many types of 60kva silent diesel generator set price for sale by brand Deutz.Silent diesel generator can keep low noise and environment clean.At the same time reduce vibration ,protect diesel generator .
Difference betwwen Standard Control Panel and Automatic Control Panel
Standard Control Panel is the basic configuration for normal operation and usage. It is of some advantage such as easy to operate various function and well protection. Operative buttons such as Turn On, Per-heart. Starting, Stop (Emergency Stop) on the panel .while malfunction occurs, control panel will stop the generator and also alarm with light or buzz.
Automatic Control Panel is the basic configuration for nobody on duty controlling generator. This kind of panel can accept the remote Start/Stop signals. (Controlled by ATS)
Features: adopted Chinese producing, Auto control system, with large LCD, Display in English (or CHINESE) to show the menu. With Auto Control Panel .generator are of various functions such as auto/manual stop (Emergency Stop), programmable plugs for input and output detected data, symbols diagram will show in the LCD, etc.
OEM CERTIFICATE
These photos well demonstrate everything .We are the best !!

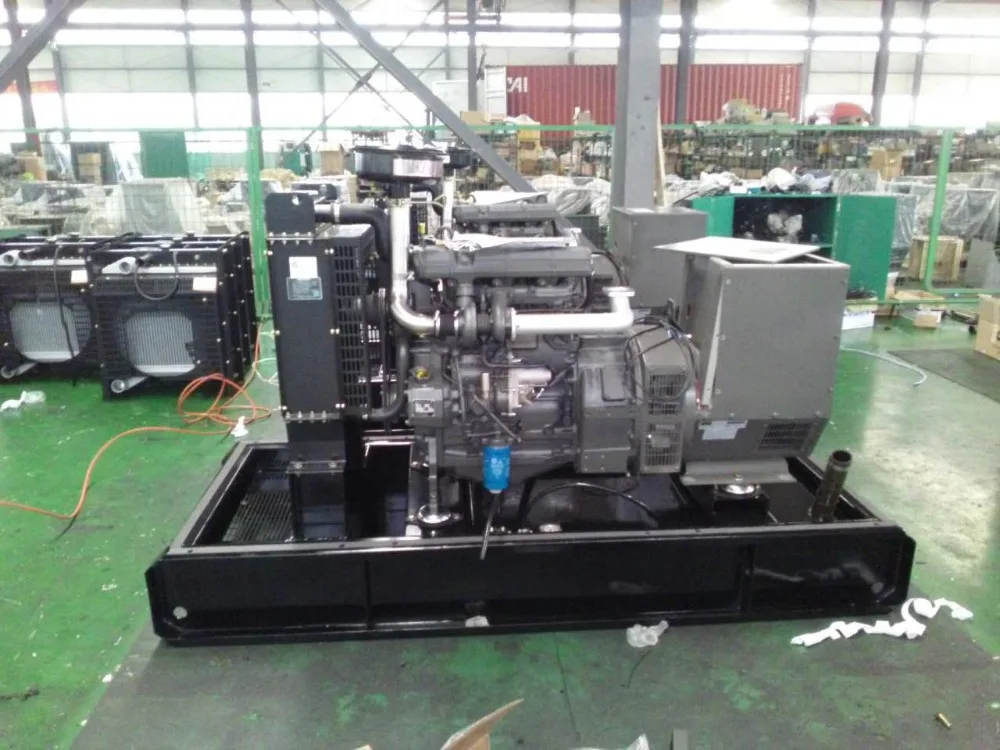

ASSEMBLY WORKSHOP
Assembly workshop ,here you can see workers carefully and seriously ,we make sure every part tightly coupled.
Packaging & Shipping
After everything is prepared ,we are goting to delivery.
EXHIBITION
Fair is a good way to Let we kow our clients nearly .Every year we take part in each fair that hold in overseas.Not only we sell our products but also make friends with our clients.
Our Services
1.Warranty iterms will be issued by our own factory, which is simple and quick;
2.Warranty period will be 12 monthes or 1500 working hours from commissioning date;
3.Parts replacement under warranty will be sent (include sea freight and insurance) to buyer freely;
Supermaly provides a full line of brand new and high quality products .Each and every unit is strictly factory tested.
Warranty is according to our standard conditions: 12 months or 1500 running hour’s, subject to the earlier one. Service and parts are available from our factory or distribution in your location.
Contact us
Please send to me your requirement, I will give you our best offer asap.
Mobile - Wechat - Whatspp - Viber: +8615095247272
Skype: elaine19861027
