Battery Powered Electric Locomotive For Underground Mining

Product Overview

Description

Introduction Of Battery Powered Electric Locomotive For Underground Mining

Details

Fuel Type: Electric
Horsepower: 30*2
Dimensions (L x W x H) (mm): 5200*1500*1920
Speed (km/h): 9.6
Model Number: CTL15/6,7,9G(B)
Condition: New

Specifications
Large traction force.
High speed.
Strong carrying capacity.
Features:
1.15T electric locomotive is specially developed for large tunnel,metro,water diversion

projects.
2.Include resistance speed regulation, chopped wave speed regulation and frequency

conversion.
speed regulation,with three braking method:mechanical braking,resistance braking and air braking.     zmwm06
3.With V-shape rubber spring,be capable of bearing vibration and impact in longitudinal,
vertical and horizontal directions.

Parameter Of Battery Powered Electric Locomotive For Underground Mining

Model		CTL15/6,7,9G(B)
Adhesive Weight(t)		15
Track Gauge(mm)		600,762,900
Traction(kN)		18.93
Max. Traction(kN)		36.18
Speed(km/h)		9.6
Power Supply  Device	Voltage(V)	256
	Capacity(An)	620
Power(kW)		30×2
Size	Length(mm)	5200
	Width(mm)	1500
	Height(mm)	1920
	Wheelbase(mm)	1400
	Wheel Diameter(mm)	Φ680
Min. Turning Radius(m)		15
Controller		Resistance,IGBT or Frequency conversion
Brake		Mechanical,Electric or Air

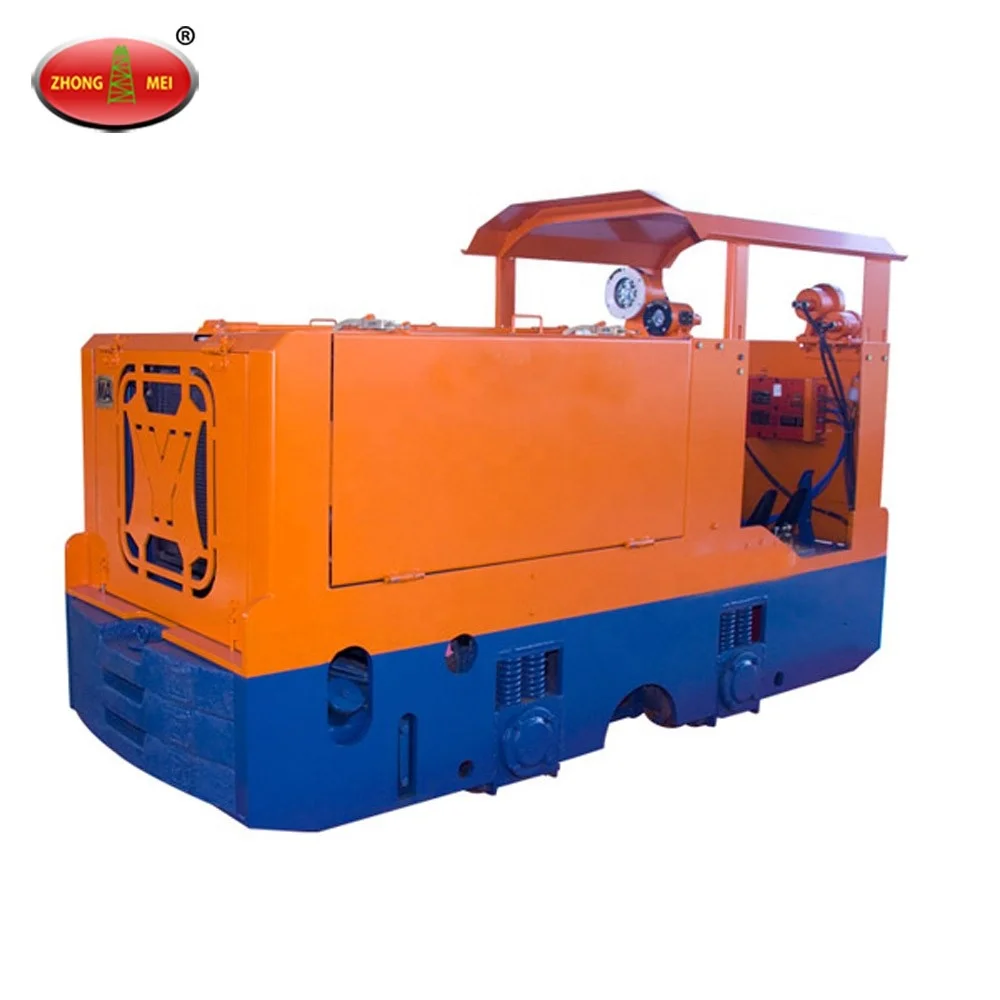

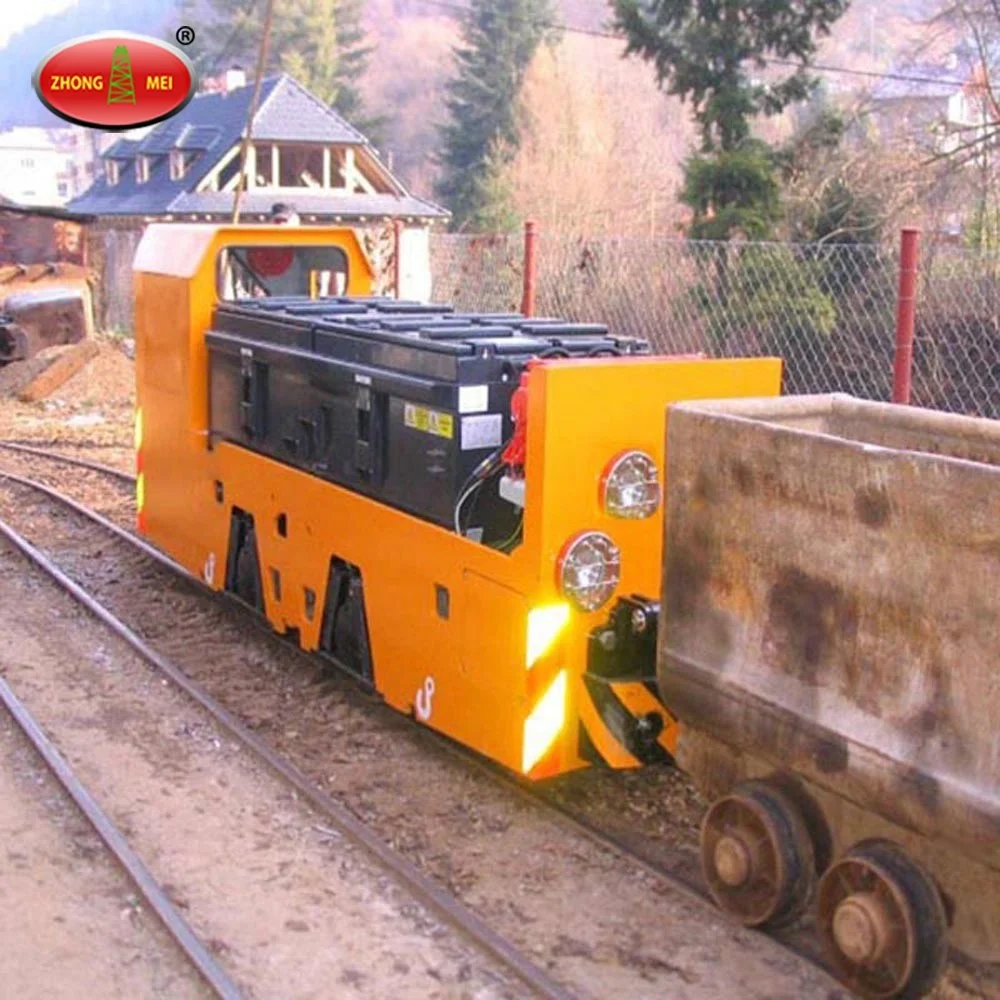

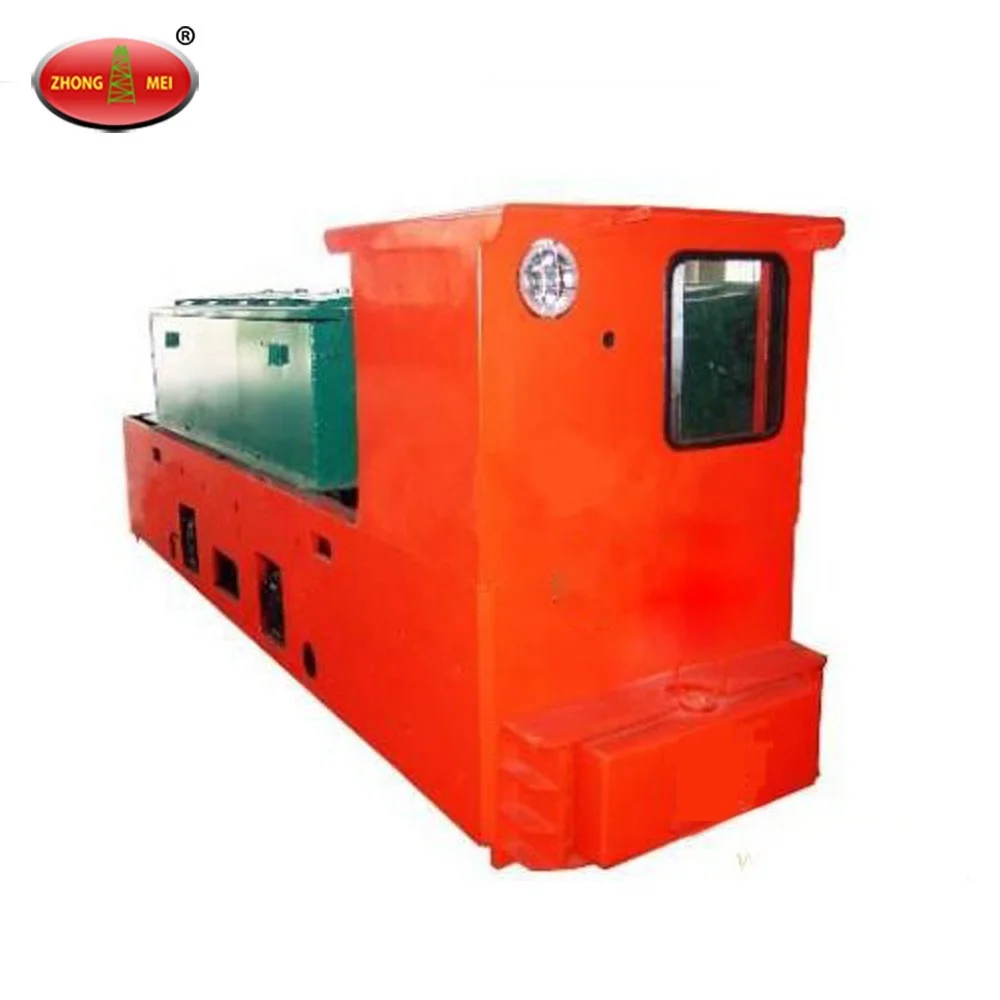

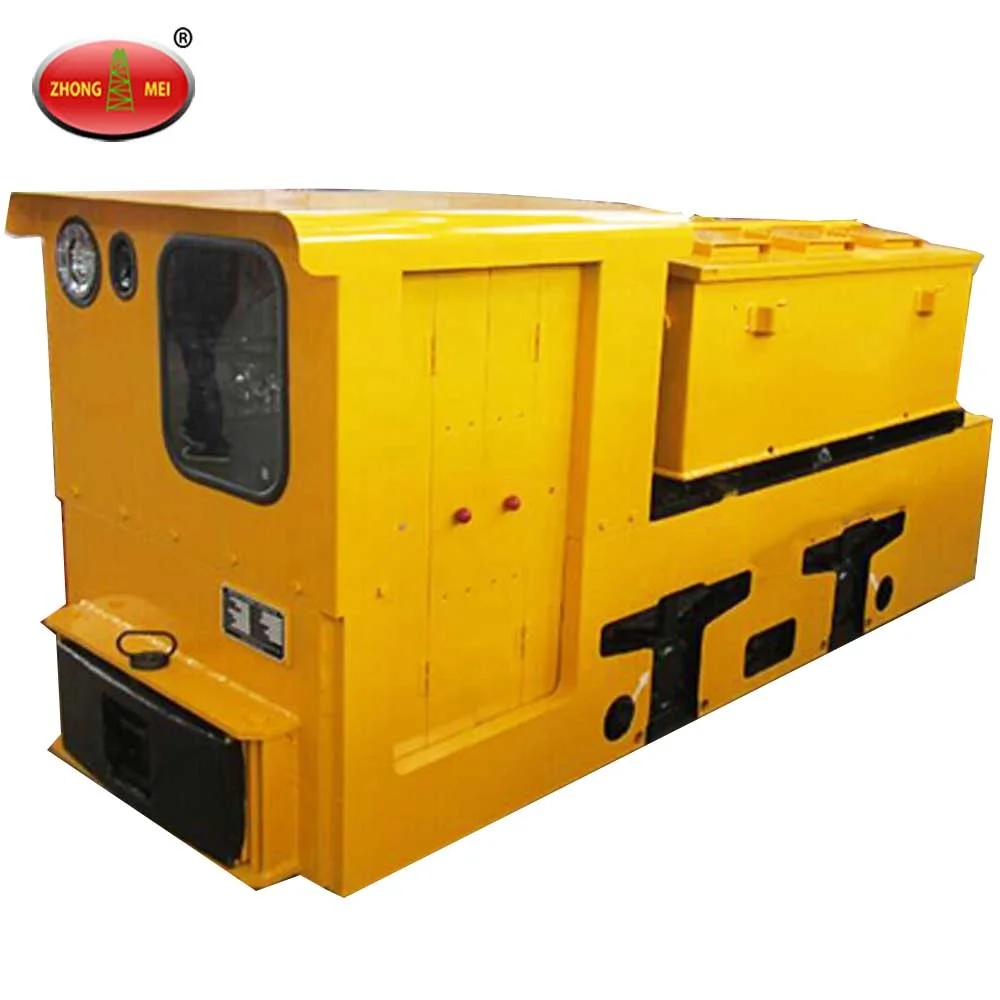

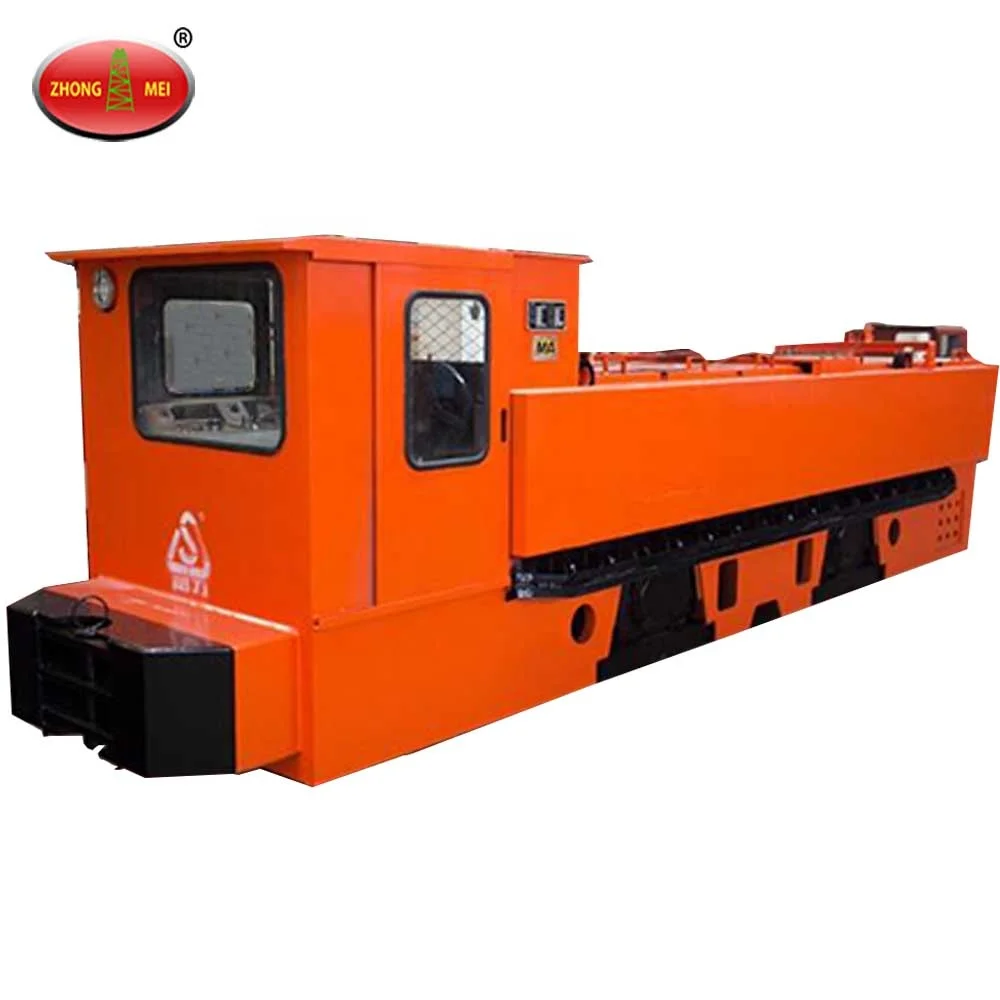

Photos Of Battery Powered Electric Locomotive For Underground Mining
