haige automatic steel bar turning lathe machine with loader and unloader

We have our own R & D team, so that we can provide comprehensive technical guidance and support. Also, we can costomized as according to customer's requirements.

We have our own machining center, so that we can well control the quality of the products.

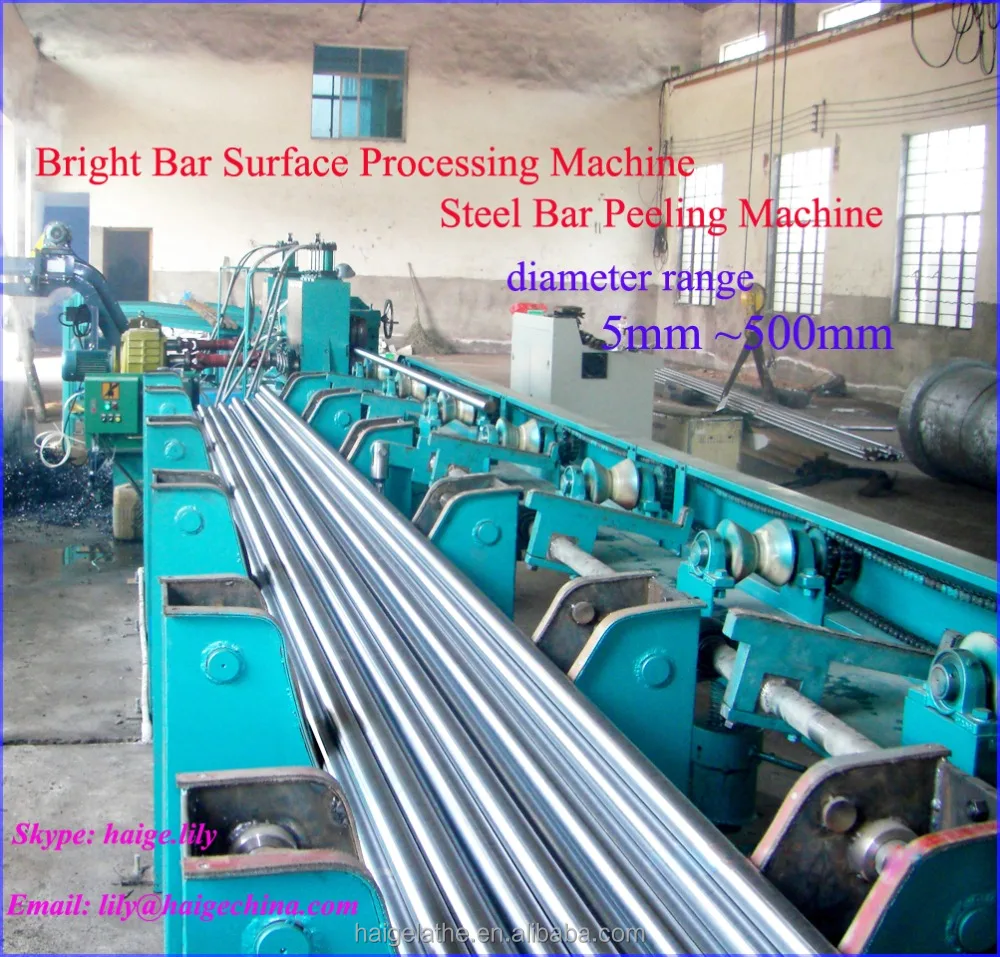

Series WXC Peeling machine is a high-efficiency lathe which is specialized in processing the surface of steel round bar and steel wire rod, for example, straightening, peeling, cutting  and polishing, etc.

Not only quickly remove surface hardened layer, cracks and other defects, but also can get high precision.
During processing, the bar doesn’t rotate itself. The cutting tools rotates at high speed to peel the surface of the bar. At the same time, after peeled , the bar keeps walking forward.
Shapes of Workpiece are requested long steel round bar and steel wire rod.

Compared with ordinary lathe / universal lathe

1. When processing over-length bar, peeling machine has incomparable advantages.

    Univeral lathe is good at processing short bar. But there is great restriction for processing long bar.

    In theory, peeling machine can process the bar of infinite length.

2. Peeling machine is not only processing round bar, but also can process steel wire / coil.     Including from wire rod to wire rod and from wire rod to bar. That's the ordinary lathe can’t do it.

3. Processing speed can reach up to 1~12m/min, the working efficiency of peeling machine is dozens of times of the ordinary lathe.

4. High precision, after peeled, tolerance of diameter can reach≤h11~h9, surface roughness Ra≤3.2μm. After straightened, Ra≤1μm.

Pre-straightening--- Peeling / Turning --- Precision Straightening --- Polishing--- Cutting

1. Free quality guarantee period for 12 months, except for wearing parts.

 2. Free provide long-term technical support

 3. Free train buyer’s operator in seller’s factory

 4. Fast response service within 24 hours

 5.Our engineers can offer overseas service, including guiding installation, commissioning, training, etc, if our customer needs.

More information, feel free to contact me by following:
