Meacon индивидуальные Универсальный 4 каналов безбумажный рекордер температуры или температуры с круговой диаграммой

Meacon индивидуальные Универсальный 4 каналов безбумажный рекордер температуры или температуры с круговой диаграммой

Category: Other Test Instruments >>>
Supplier: Hangzhou,Meacon,Automation,Technology,Co.,Ltd.

Price:

Price in USD:Details

Quantity:

Product Overview

Description

FEATURES
Basic Functions
• Up to 18 channels of universal input
• UP to 4 Alarm Output Relays
• With 150mA Power distribution Output
• Communication type: RS485, Modbus RTU
• With a USB data transfer interface

Display & Operation
• Multiple display Function :choose the display your way
• Use date and time calendar search functions
to Review historical data .

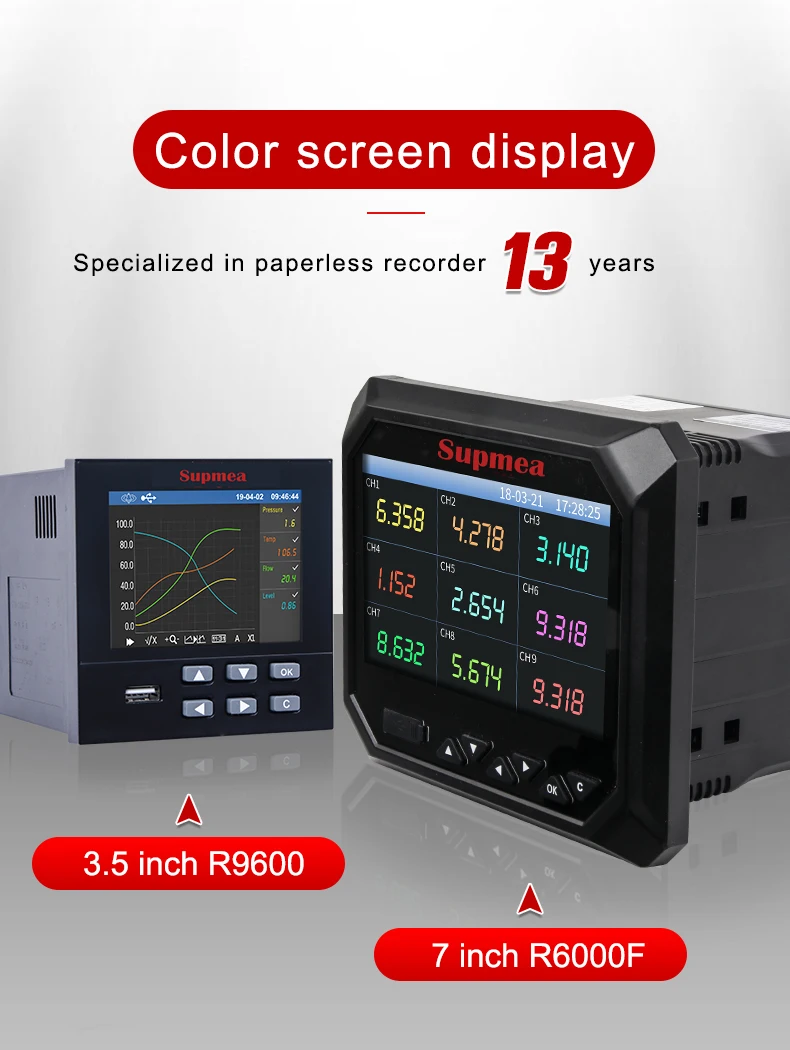

• 3.5 inch TFT color LCD (320 x 240pixels)

Shape dimension	Shape dimension:96mm×96mm×96mm Opening Size:92mm×92mm
Thickness of mounted panel	1.5mm~6.0mm
Weight	0.37kg
Electricity supply	(176~264)VAC,47~63Hz
Internal storage	48M bytes Flash
External storage	U disk support (standard USB2.0 communication interface)
The maximum power consumption	20VA
Relative humidity	(10~85)%RH(No condensation)
Operating temperature	(0~50)℃
Transport and storage conditions	temperature (-20~60)℃,Relative humidity (5~95)%RH(No condensation) Altitude:<2000m,Except for special specifications

Input signal

Type	The maximum permissible error(%FS)
(1~5)V	±0.1
(4~20)mA	±0.2
Type	Measure range(℃)
B	600 ~ 1800
E	-200 ~ 1000
J	-200 ~ 1200
K	-200 ~ -100
K		-100 ~ 1300
S	-50 ~ 100
		100 ~ 300
		300 ~ 1600
T	-200 ~ -100
T		-100 ~ 380
R	-50 ~ 100
		100 ~ 300
		300 ~ 1600
N	-200 ~ 1300
Type	Measure range (℃)
Cu50	-50 ~ 140
Pt100	-200 ~ 800
NOTE:special RTD can be customized,like Pt1000 etc
