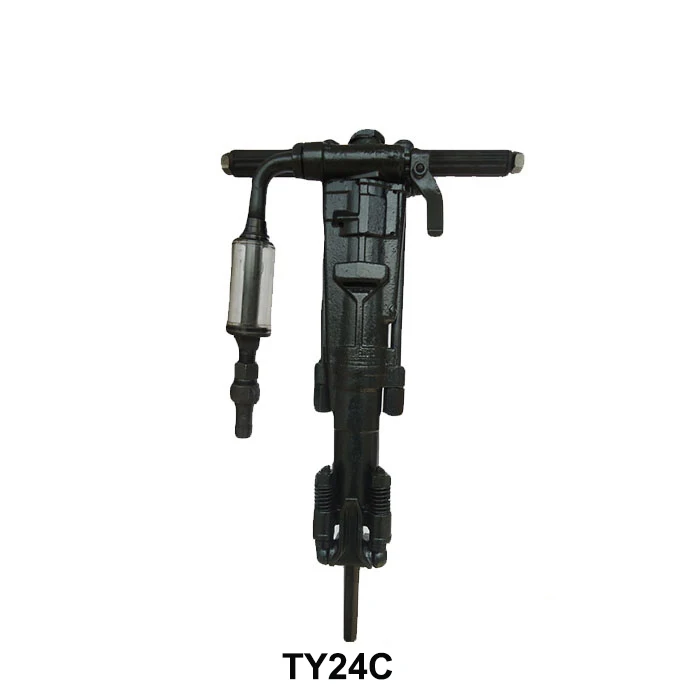

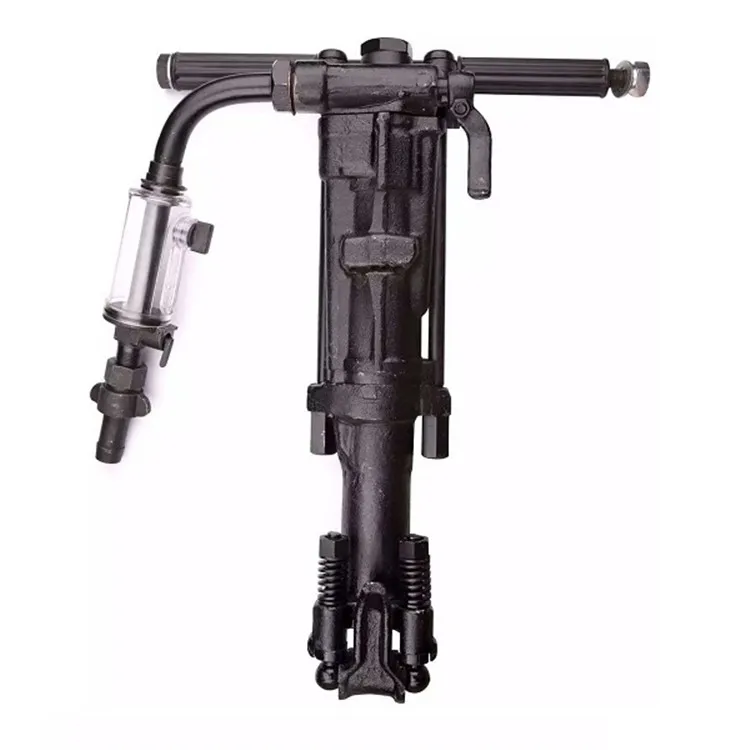

high quality drilling hole TY24C Jack hammer Pneumatic Hand Hold Rock Drills
- Category: >>>
- Supplier: Beijing Pro Drill Equipment Co. Ltd.
Share on (60343185452):
Product Overview
Description
Product Description
For more products, please click on our home page
| General introduction: |
TY 24C toyo pneumatic rock drill are light and small types designed on the basis of less recoil in safty.They are suitable to the secondary rock breaking, and bedrock drilling blasthole for demolition rock and dimension stone quarrying.
Y6,Y20,Y24&TY24C are intended for dry drilling,YO18,Y19A,Y20LY,YH24 & Y26 are for wet drilling ,Suitable for either drilling downward or incline of blast holes in medium-hard rock,or for second blasting operation.
| Type | Y6 | YO18* | Y19A | Y20 | Y20LY* | Y24 | TY24C | Y26 | Y28 | YH24 |
| Weight(kg) | 6 | 18 | 19 | 18 | 18 | 24 | 24 | 26 | 26 | 24 |
| LxL(Handle) x H(mm) | 426(L) | 550x534x15 | 600x534x15 | 605x485x11 | 609x198x13 | 604x485x162 | 650x534x12 | 654x247x195 | 604x485x16 | |
| Cylinder stroke(mm) | / | 58*45 | 65*54 | 63*55 | 63*55 | 70*70 | 66.7*68 | 64*70 | 80*60 | 70*70 |
| Air consumption(L/s) | ≤9.5 | ≤25.5 | 37-43 | 25 | ≤25 | 55 | ≤45 | ≤50 | ≤81 | 55 |
| Air hose size(mm) | 13 | 19 | 19 | 16or19 | 16or19 | 19 | 19 | 19 | 25 | 19 |
| Water hose size(mm) | / | 8 | 13 | / | 8 | / | / | 13 | 13 | 13 |
| Bore dia(mm) | 20 | 32-38 | 32-42 | 32-42 | 32-42 | 32-42 | 32-42 | 32-42 | 34-42 | 32-42 |
| Drilling depth(m) | 0.5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Shank(mm) | 15x88 | 22x108 | 22x108 | 22x108 | 22x108 | 22(25)x108 | 22x108 | 22(25)x108 | 22(25)x108 | 22x108 |
*Both hand held and with airleg available.
| Images |

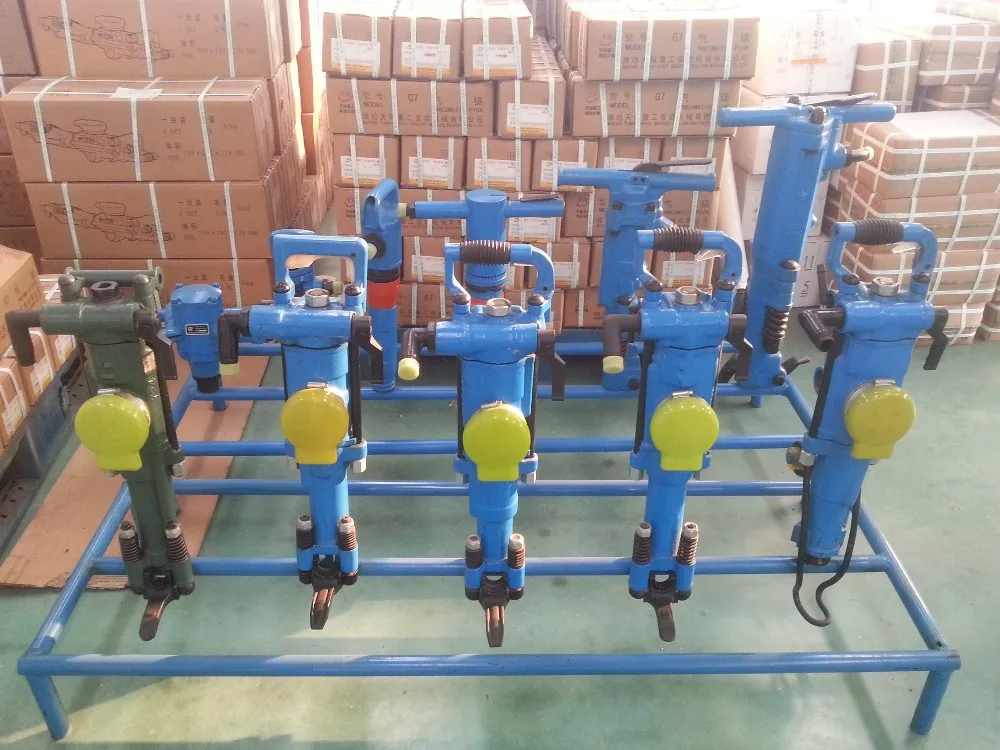

More Products

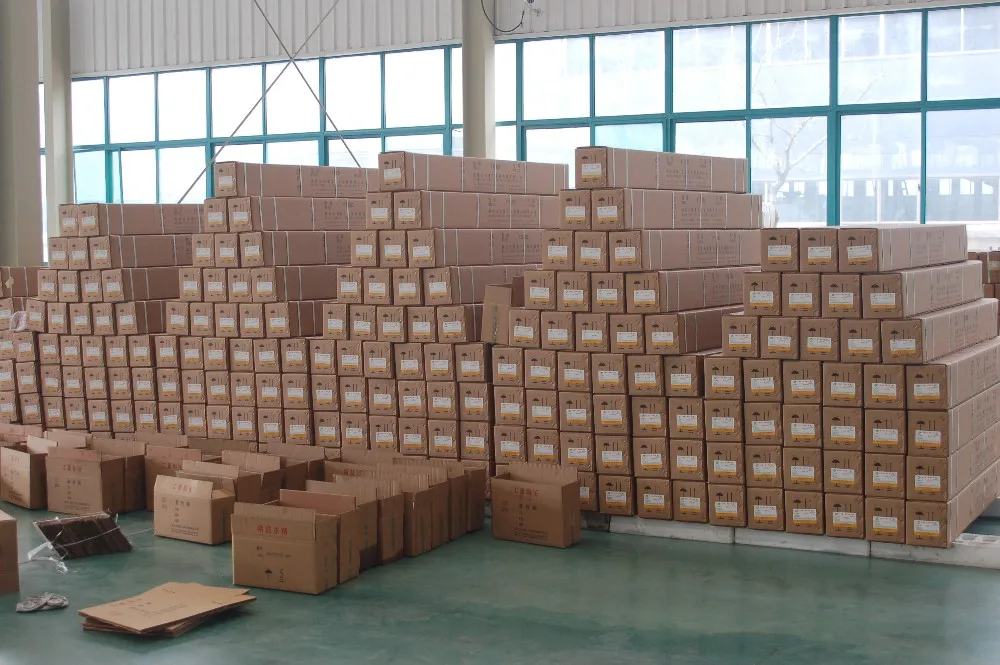

Package show

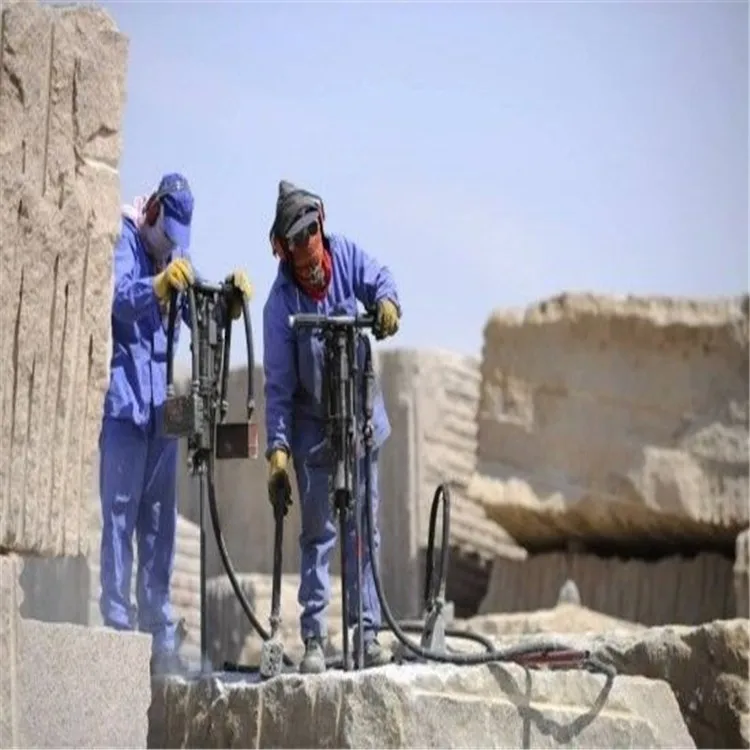

Applications
