Three ways 12 inch line array DJ sound system line array speaker box full sets for evnet audio
- Category: >>>
- Supplier: Guangzhou,Weifeng,Audio,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

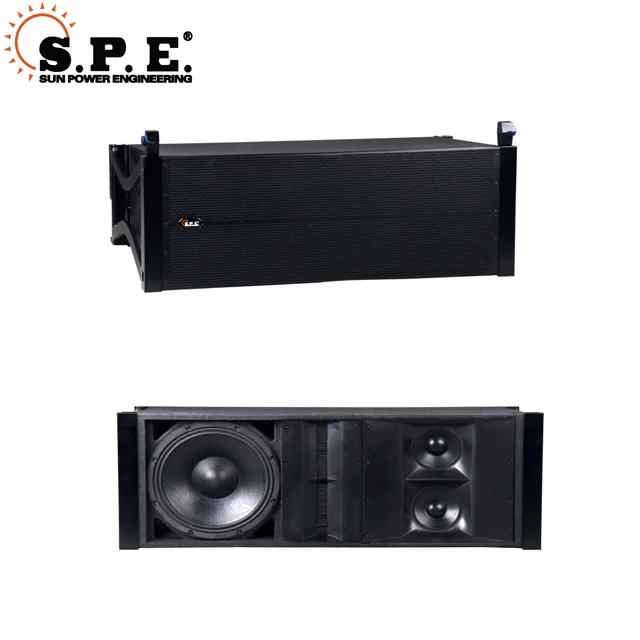

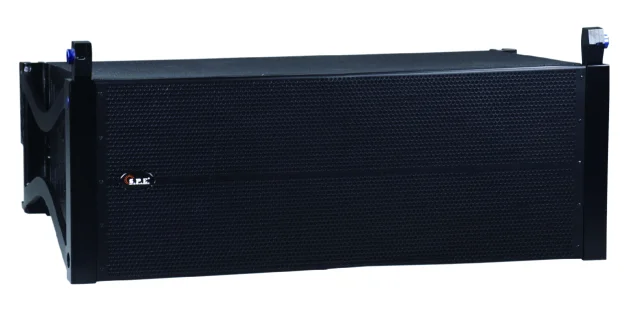

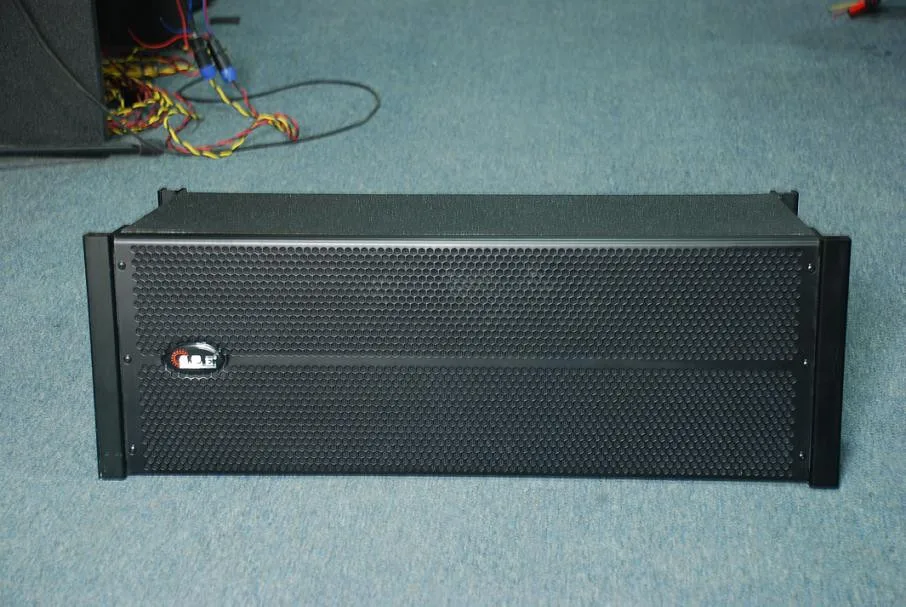

LA-2 line array audio is three-way high output compact line array speaker component with a 12'' low-frequency driver installed in the cabinet, two vertically arranged 6.5'' LF drive units with a simple load, and two compression drives connected to the 1.7'' voice coil of the plane wave horn. The LA-2 audio stereo has a 120-level coverage angle, and the front suspension/rear positioning design ensures vertical coverage for precise control and easy and economical lifting.
Suitable for Touring Show, Music Hall, Stage, Project Installation, etc... Could be choosed Active or Passive Audio!!
Specification
| LF Rated power: | 500W |
| MF Rated Power: | 300W RMS |
| HF Rated Power: | 150W RMS |
| Components: | LF 1*12" Voice4" 44mm |
| MF 2*6.5" Voice4" 50mm | |
| HF 2*1.7" Voice4" 100mm | |
| Connections: | 2*NL8±1LF/±2MF/±3HF |
| Impedance: | LF8 Ohm, MF & HF16 Ohm |
| LF Max SPL: | 122dB(continuous) 128dB(peak) |
| MF Max SPL: | 126dB(continuous) 132dB(peak) |
| HF Max SPL: | 133dB(continuous) 139dB(peak) |
| Frequency response: | 55Hz-18KHz (±3dB) |
| LF Frequency range: | 100-500 Hz |
| MF Max SPL: | 500-2000 Hz |
| HF Frequency range: | 1600-8000 Hz |
| Audio Dimension: | 672*730*520mm |
