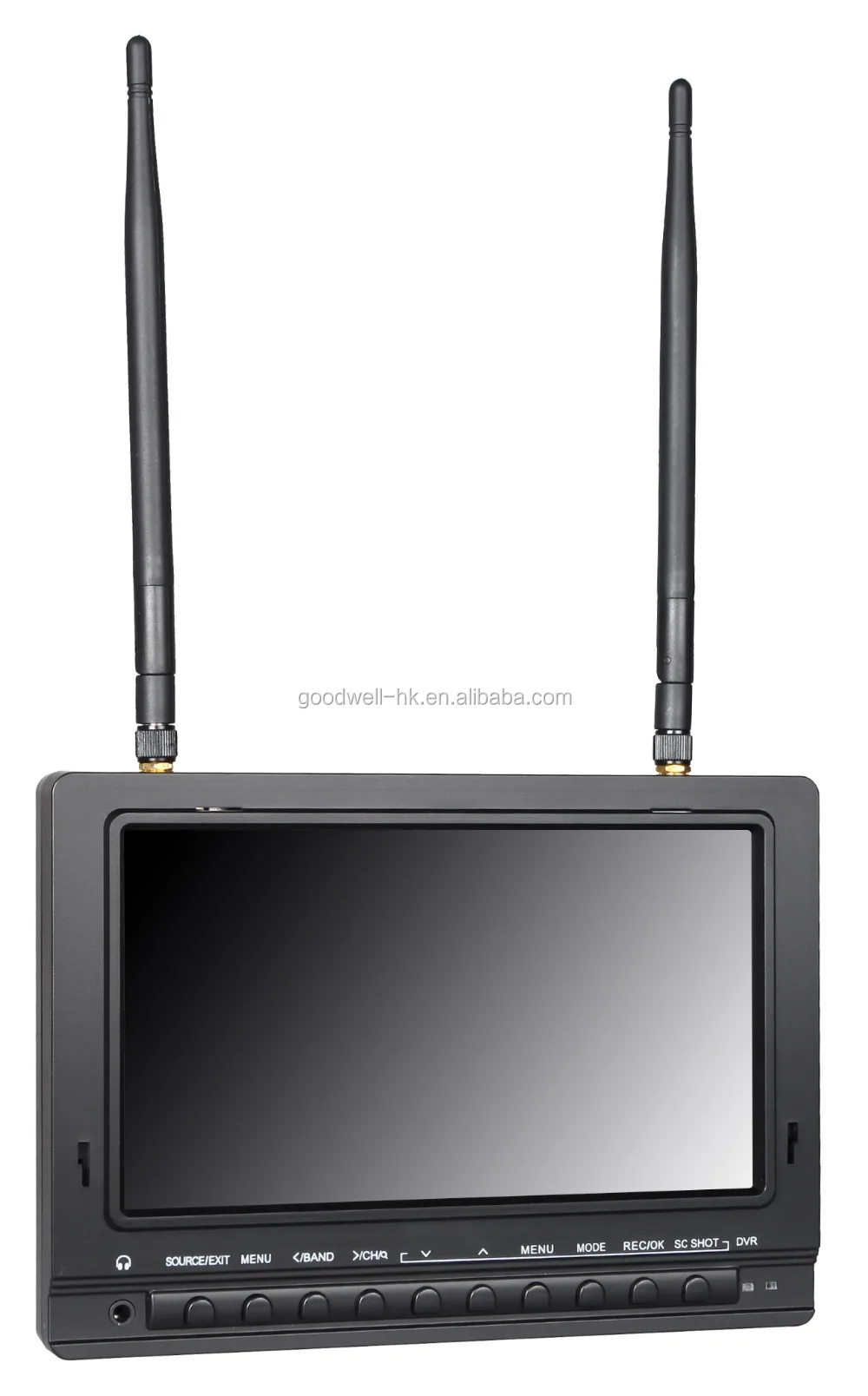

1000 cd/m2 High Brightness 7 Inch FPV Monitor built in DVR and Battery

Product Overview

Description



1000 cd/m² High Brightness 7 Inch FPV Monitor



built in DVR and Battery









Introductions :

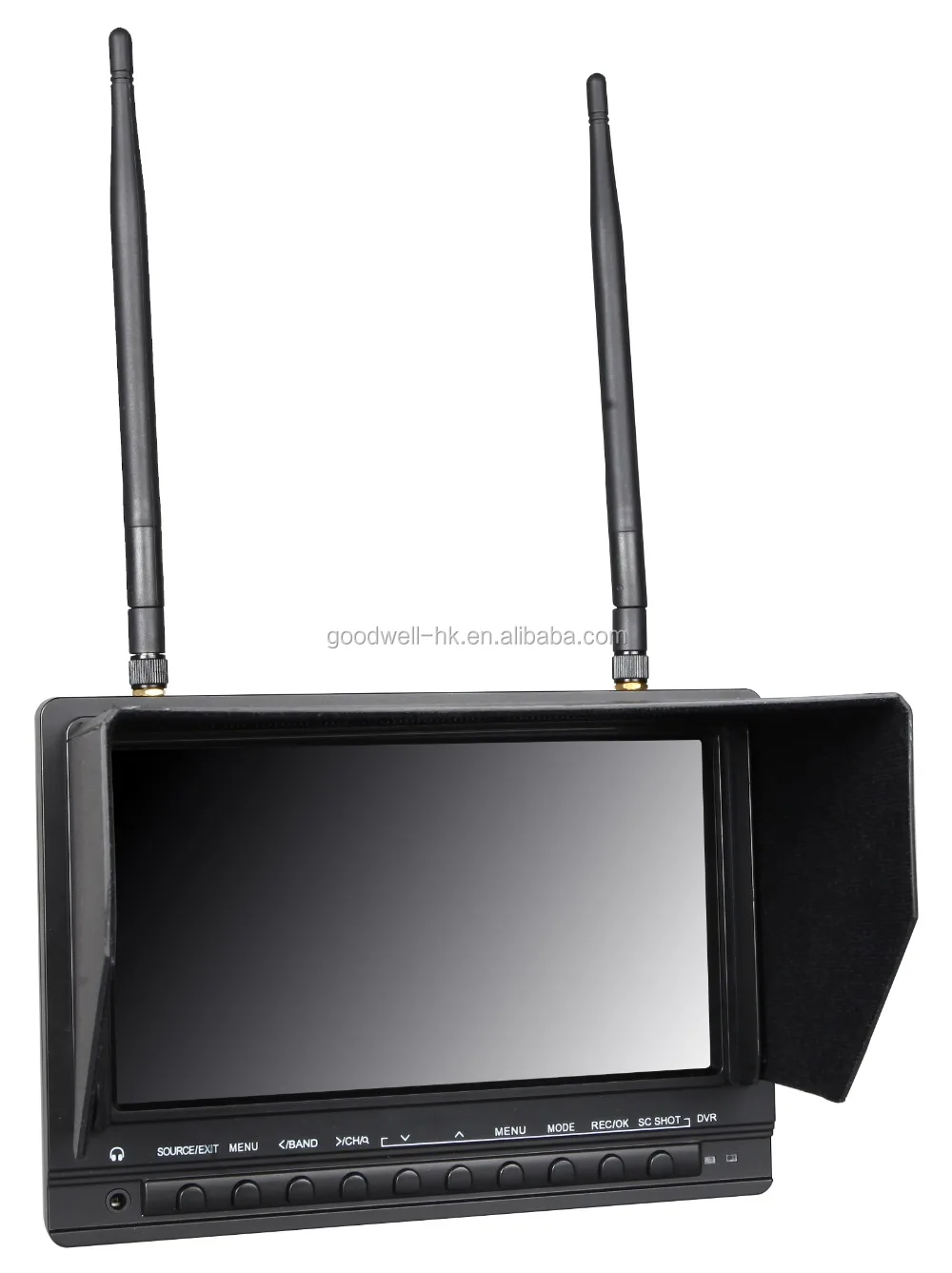

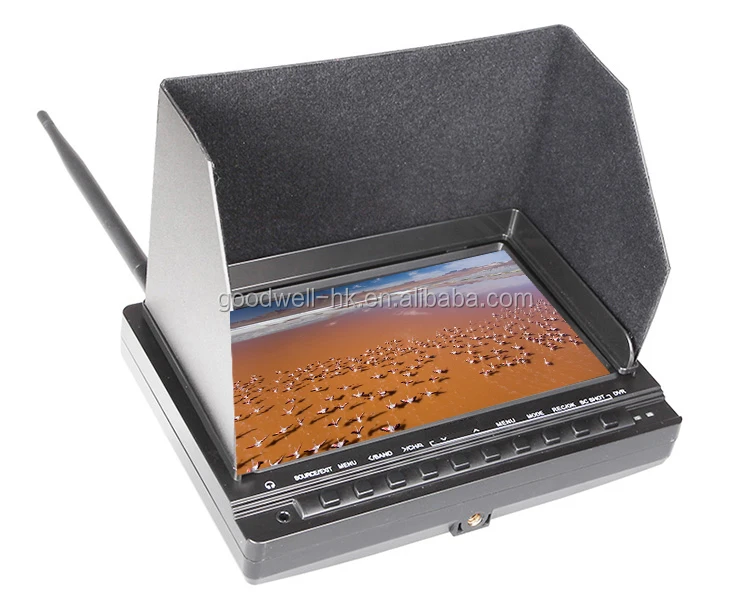

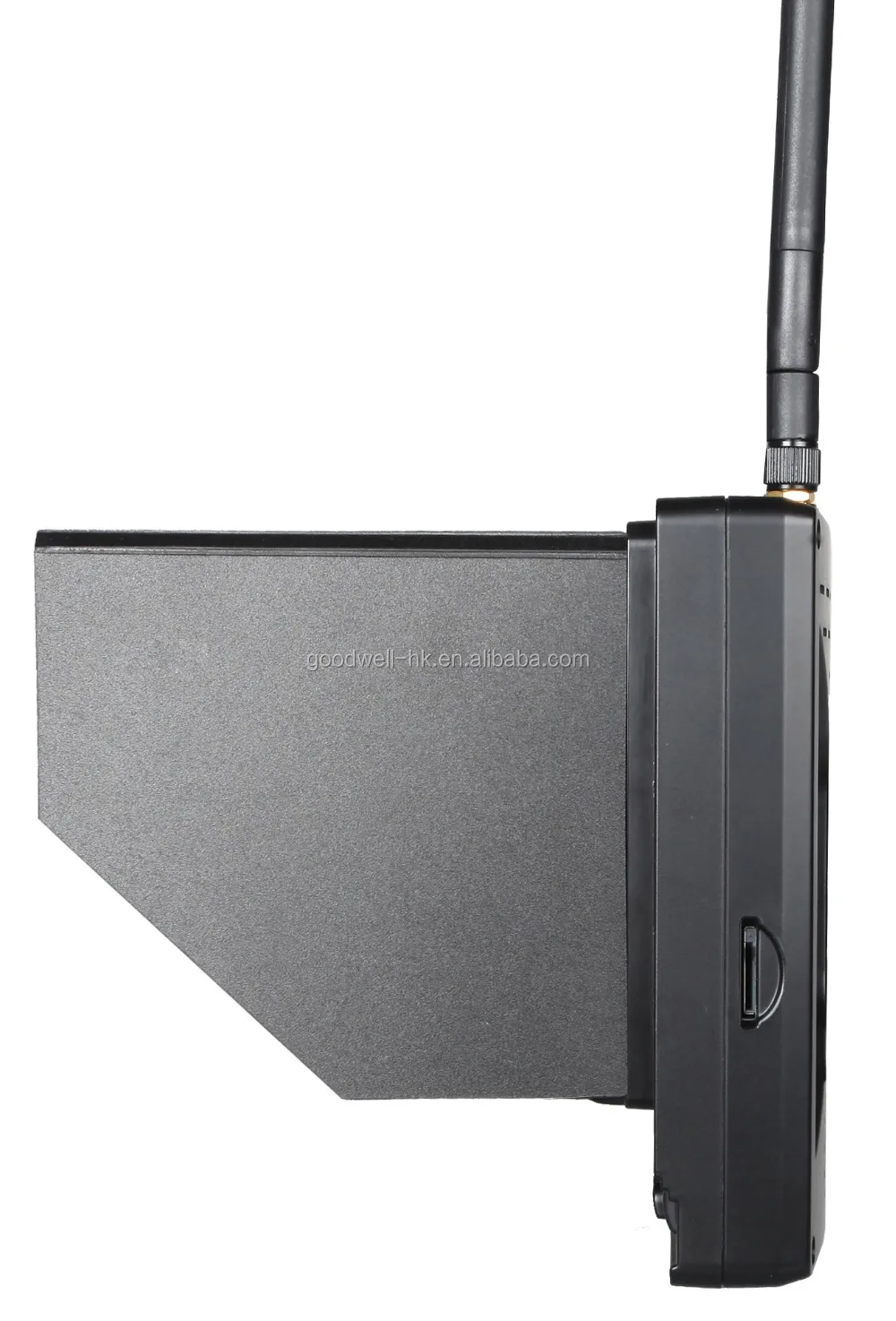

This FPV monitor is a medium sized 7" screen with a super bright LCD of 1000 cd/m² brightness and 5.8GHz 32CH diversity receiver, DVR and built in rechargeable battery of 7.4V ,2200mAH. Excellent choice for your FPV monitor, or as a secondary backup screen for your friends to watch. The monitor  include  sun shade which will help keep unwanted light off the screen, reducing glare and sunlight readable . The built in DVR makes it easy to record your flights with a touch of a button, and the integrated rechargeagble battery keeps your FPV grounstation compact and easy to use. Easily watch back your recorded DVR footage straight from the monitor.This monitor will not go to a blue or black screen when video signal is lost or static. Perfect for an FPV application where you don't want your screen to go blank when the video signal is weak.





Applications :



Professional FPV Monitor

Wireless video leisure goods

DVD/DVB AV wireless transfer

Engineering construction monitor

Wireless camera security system

Wireless video medical apparatus

Wireless visual reversing camera transmission









Advanced Features:







1.High brightness 1000cd/m², Anti reflective matte screen



2.No blue screen when signal is weak or lost



3.Built-in Rechargeable Li-Ion Battery



4.Channel Auto searching ,selection via button



5.Best Channel Receiption via Antenna Auto-switching



6.Portable DVR,TF Card max up to 32G



7.Screenshot shortcuts



8.Video outputs and DC output to connect and power other equipment



9.Motion Detection,Cycle Recording



10.High Sensitivity:-90dBM



11.Compable with all 5.8GHz transmitters 32ch, such as Fatshark, Boscam



12.Not affected by 2.4ghz radio controller









Photography Functions:







1.Peaking Focus Assist



2.Check Field(Red,Green,Blue,Mono)



3.Camera 5D II Mode



4.Screen Marker



5.Center Marker



6.4:3&16:9 image adjustable



7.Full Screen Display in mode of Monitoring & Recording







Function Button for Easy Operation:

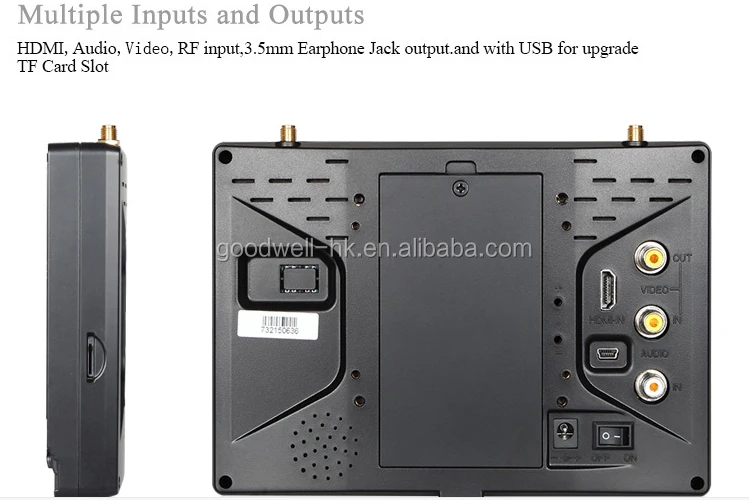

Multiple Inputs and Outputs:







HDMI,Audio,Video,RF input, Video,3.5mm Earphone Jack output,DC in and with USB for upgrade,  TF Card Slot













Built-in Rechargeable  Battery:





7.4V 2200mAH  battery last for about 2 hourse  which special design for Outdoor Operationg .













 Channel Auto Searching







It supports 32-channels totally, Long press “Search” button to realize auto channel searching function when aerial photography.  It’s much more convenient than traditional methods.





 5.8GHz Wireless AV Receiver







           · Built-in AV receiver support PAL / NTSC



           · Simulation of composite video AV inputs, aerial camera connection



           · 5.8Ghz frequency 4 Bands and total 32 channels



           · Snow screen, no more “blue” screen









DVR Function Show :







 • Built-In DVR:  The built-in DVR allows you to record your incoming wireless video to optional micro SD cards.You can set the recording resolution to 720 x 576, 640 x 480, or 320 x 240.



  • DVR Loop Recording:  The DVR offers a loop recording feature that helps you maintain specific file lengths.You can choose intervals of 3,5,or 10 minutes,and when recording reaches the end of  the designated time limit,the DVR will loop back to the beginning of the file and overwrite the previously recorded content.This mode is ideal for surveillance applications.



 • DVR Motion Detection: In motion detection mode, the DVR will automatically begin recording when a moving object is detected.









Specifications :





Model Number	PVR733(FPV733 without DVR)
Screen Size	7 Inch
Resolution	800x 480 pixels
Backlight	LED
Dot Pitch	0.0642(W) × 0.1790(H) mm
Aspect Ratio	16:9
Brightness	1000 cd/ m2
Contrast Ratio	500:1
Viewing Angle	70°/70°(L/R), 50°/70°(U/D)
Support Video Format	PAL-4.43/NTSC-3.58
Inputs	HDMI x1,  Video x1, Audio x1, RF x1
Outputs	Video
Audio	Speaker x1, Earphone slot x1
Built in Battery	7.4v/2200mA (2 hours)
Power Consumption	≤13W
Input Voltage	DC 9-19V
Working Temperature	-20℃~50℃
Storage Temperature	-30℃~65℃
Install Way	1/4"-20 Thread mounting socket
Unit Size	188.4×134H×33.7D(mm)
Unit Weight	450g/540g(with battery)
Packing	Gift Box
PCS/CNT	10PCS









 Package :  Gift Box ,10PCS/CTN
