HS SB 50NC Design Best Sell Curved De Tubes Pipe Bending Machine
- Category: >>>
- Supplier: Zhangjiagang Huashun Machinery Manufacturing Co. Ltd.
Share on (60344007723):
Product Overview
Description
Science & Technology & Service -- Achieve Huashun
Huashun keeps on improving products and successfully develops complete series of pipe processing machines, ranging from micro-computer controlled SB & DB pipe bending machine, GY rolling machine, MC cutting machine, TM pipe-end forming machine, MC metal circular saw machine, EF chamfering machine, CH ARC strike machine, SX riveting machine and some other automatic machines.
Final Products
NC Pipe Bending Machine Product Sample
Final Products Application
Widely used in: automobile, motorcycle, aerospace, bicycle, baby carriage, fitness and leisure equipment, steel furniture
manufacturing, air conditioning piping, food machinery, anti-theft doors and windows, exhaust pipe manufacturing, stainless steel pipe and other pipe manufacturing industries.
Cart
Fitness and gym equipment
Guardrail
Exhaust pipe manufacturing
Air conditioning piping
Beverage line
Furniture frame
ATV structure
Bicycle, electric vehicle frame
Main Products

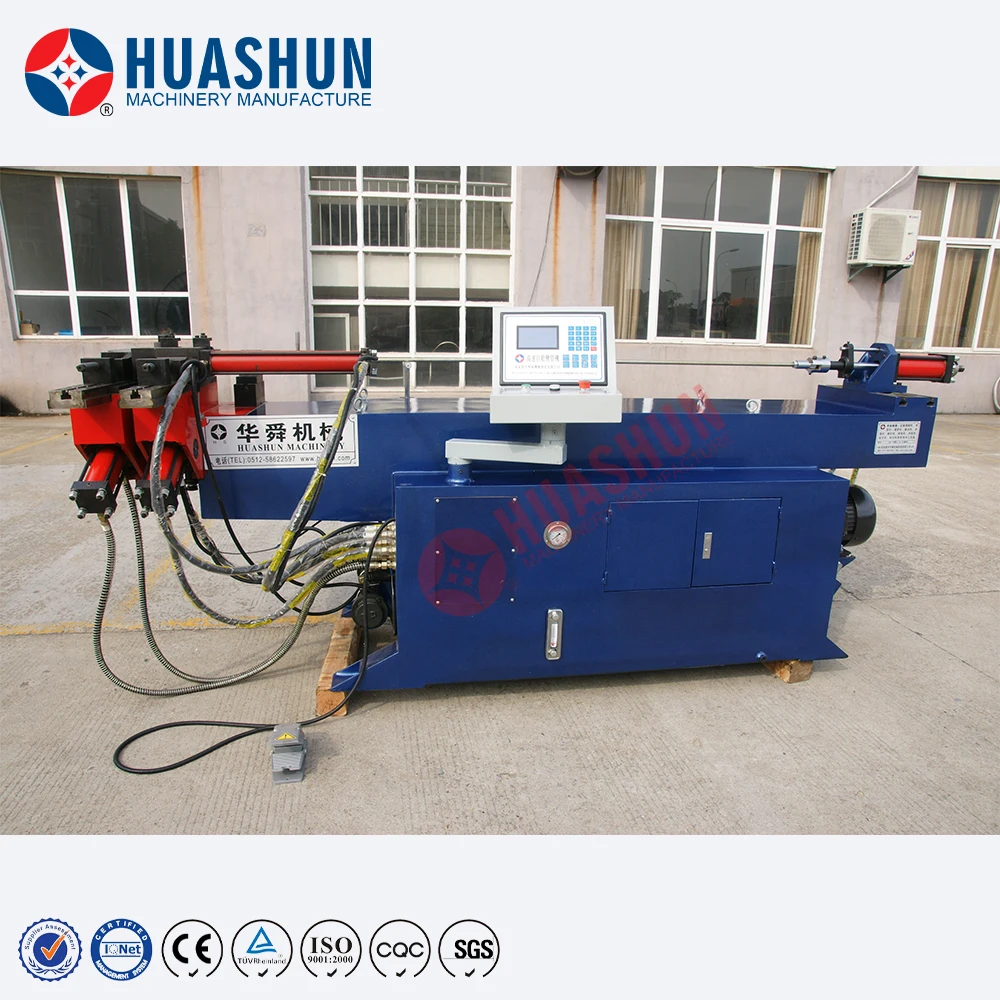

HS-SB-50NC Pipe Bending Machine.
1. Servo motor drives the bending arm to accelerate the movement speed, and obtain rapid acceleration and rapid deceleration, as well as large torque at the same time. It adopts precision, heavy-duty linear rolling bearings in the press touch, press touch boost system and centerline radius adjustment system;
2. The trolley adopts directly driven rack and pinion and servo motor, which provides the system with high precision and high reliability;
3. Self-calibration pressure with automatic positioning can be set quickly;
4. Three-station platform: It can process multiple curvatures, multiple diameters, mixed bends and rectangular polygons;
5. Semi-automatic or automatic feeding table;
5. Semi-automatic or automatic feeding table;
6. The position-controlled pipe assist system can be applied to the application of small radius and complex elbows;
7. Power assisted mold replacement, making mold replacement simple and efficient.

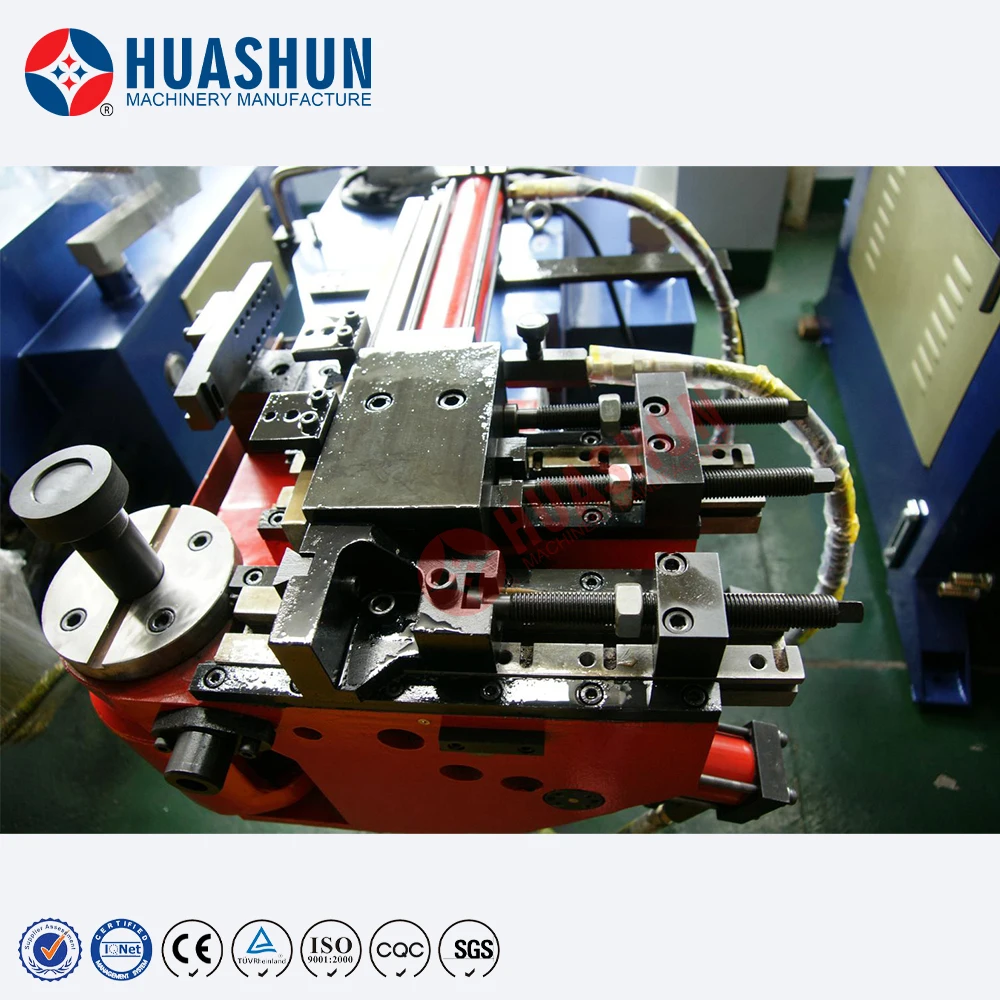

Bending Mold
Machine Details
Machine details.
* Human Interface offers easy access to auto and manual operating modes.
* Standard clockwise bending direction.

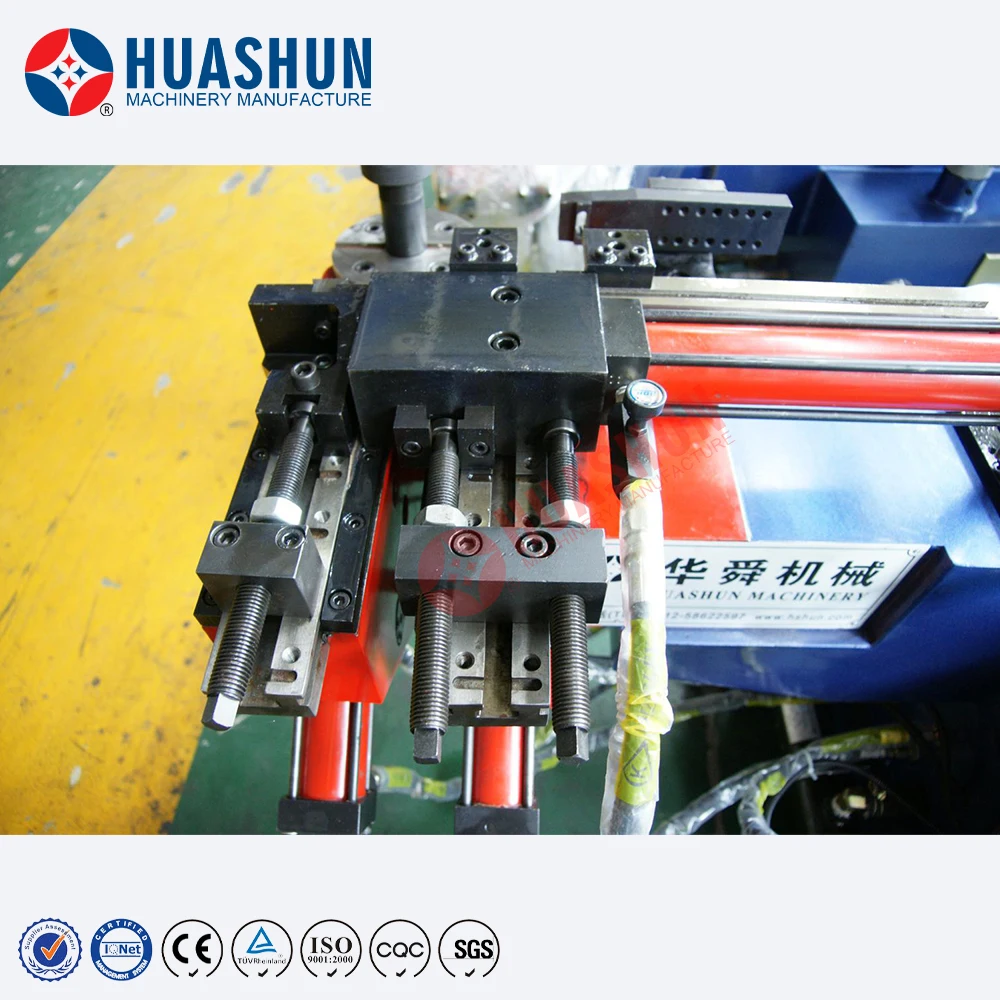

* Fully hydraulic clamping on clamp die and pressure die.
* Level-way hydraulic clamping.
* Standard clockwise bending direction.
* Fully hydraulic clamping on clamp die and pressure die.
* Level-way hydraulic clamping.
Machine details.

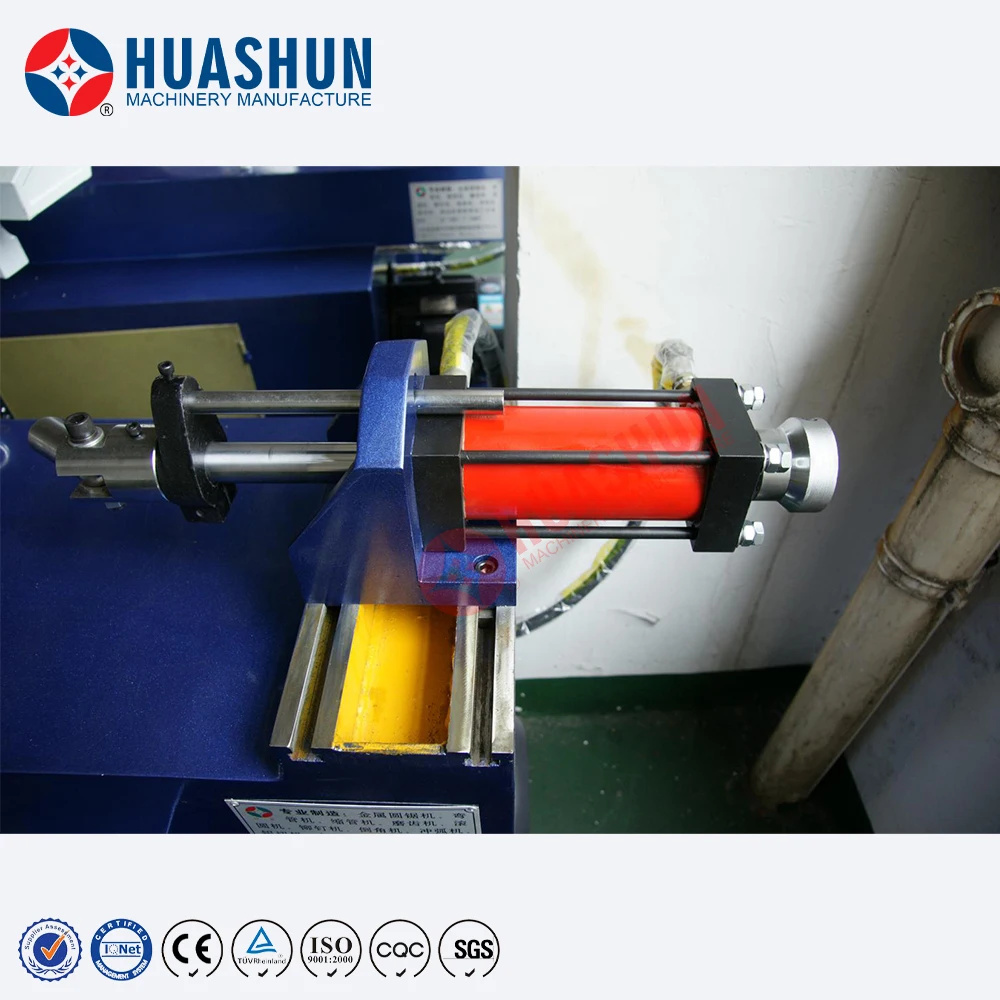

* Direct acting hydraulic pressure die with adjustable speed valve.
* Maximum 16 sets of program storage,Maximum 16 bends for each program.
* Programmable material spring back settings for each bend angle.
* Bending Axis-Driven by Cylinder,Feeding Axis-Manual,Rotating Axis-Manual.
* Obtain quality repeatable bends in steel, stainless, aluminum, titanium and brass.
* Maximum 16 sets of program storage,Maximum 16 bends for each program.
* Programmable material spring back settings for each bend angle.
* Bending Axis-Driven by Cylinder,Feeding Axis-Manual,Rotating Axis-Manual.
* Obtain quality repeatable bends in steel, stainless, aluminum, titanium and brass.
Machine details.
* Foot Pedal Cycle start.

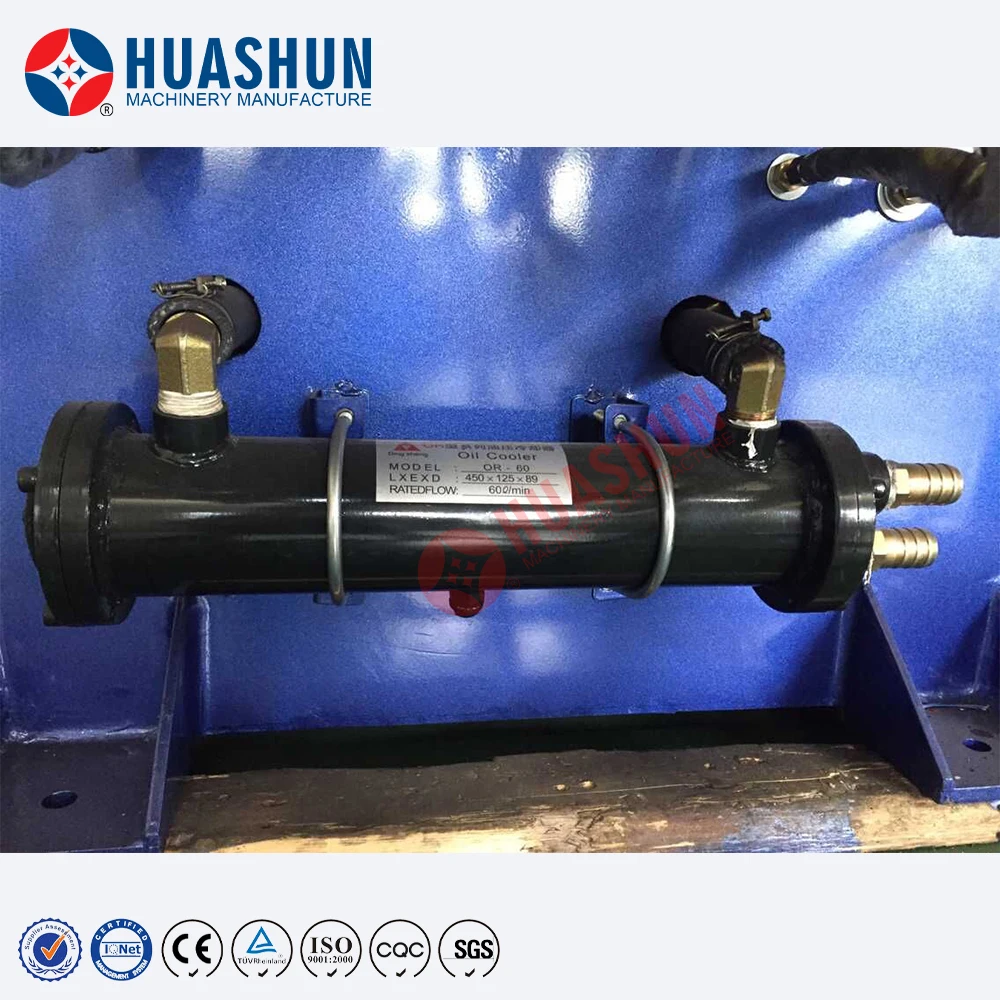

* With Water Cooling System.
* One set of Tooling for Draw Bending.
* Wiper die Bracket.
* 1 Mandrel Rod.
* Operation and Maintenance Manual.
* Tool Box with Adjusted Tools.
* Electric: As required (3 phase 220V or 380V or 415V...)
* With Water Cooling System.
* One set of Tooling for Draw Bending.
* Wiper die Bracket.
* 1 Mandrel Rod.
* Operation and Maintenance Manual.
* Tool Box with Adjusted Tools.
* Electric: As required (3 phase 220V or 380V or 415V...)
Optional.
* Anticipate Mandrel Extraction
* Automatic mandrel/machine lubrication
* Anti-clockwise bending direction
* Machine effective length over mandrel
* Safety Mat
* Automatic mandrel/machine lubrication
* Anti-clockwise bending direction
* Machine effective length over mandrel
* Safety Mat
Want to know more details about our machine, inquiry us now!
Product Paramenters
Take model SB-50NC as the reference standard.
Name | Unit | Data | ||||
Max Bending Capacity | Mild steel round tube | mm | Φ50*2.5 | |||
Stainless Steel | mm | Φ50*1.5 | ||||
Light alloy annealed round tube | mm | Φ50*3 | ||||
Mild steel square tube | mm | 35*35*2 | ||||
Mild steel rectangular tube | mm | 40*30*2 | ||||
Mild steel round solid bar | mm | Φ20 | ||||
Mild steel square solid bar | mm | 18*18 | ||||
Max Bending Radius | mm | R250 | ||||
Can customized as per customer’s requirement | ||||||
Min Bending Radius | mm | R20 | ||||
Through Effective Distance Over Mandrel | mm | 2200 | ||||
Can customized as per customer’s requirement | ||||||
Max Bending Degree | ° | 190 | ||||
Bending Unit | pieces | 16 | ||||
Bending Axis | Speed | Deg/sec | 100 | |||
Accuracy | mm | ±0.1 | ||||
Power | KW | Controlled by Hydraulic | ||||
Motor Power | KW | 5.5 | ||||
Date Input | / | 1.Coordinate ( X, Y, Z ) | ||||
/ | 2.Working value ( Y, B, C ) | |||||
Max. Pressure | Mpa | 16 | ||||
Max Storage Units | Group | 20 | ||||
Can customized as per customer’s requirement | ||||||
Machine Dimensions | mm | 2950*850*1200 | ||||
Appro. Weight | Kgs | 1500 | ||||
