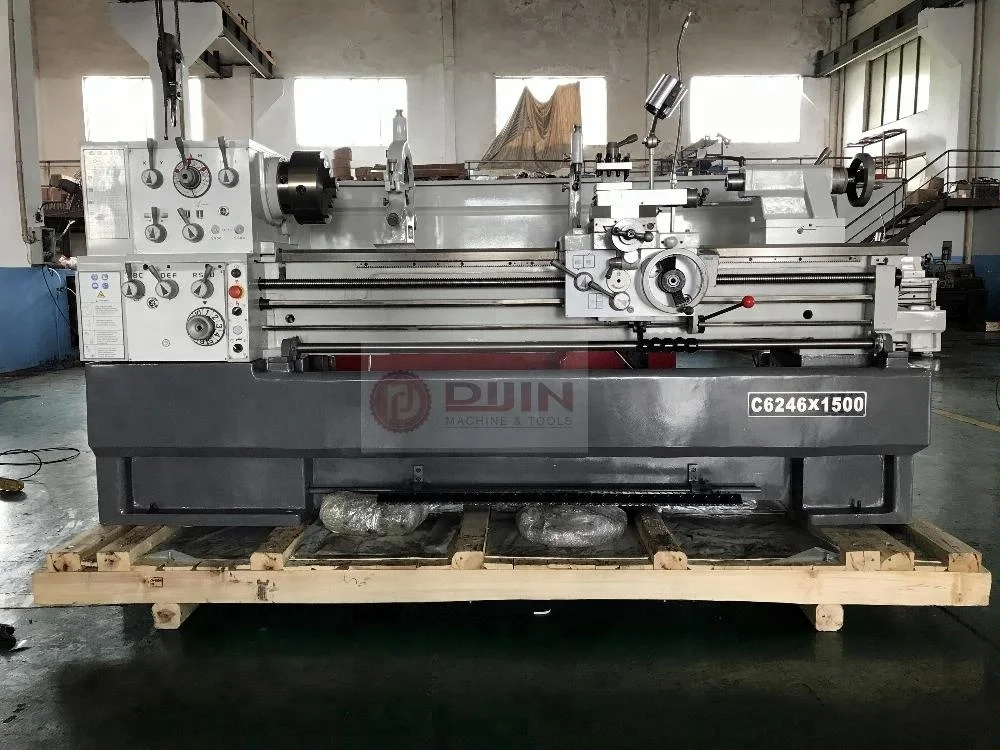

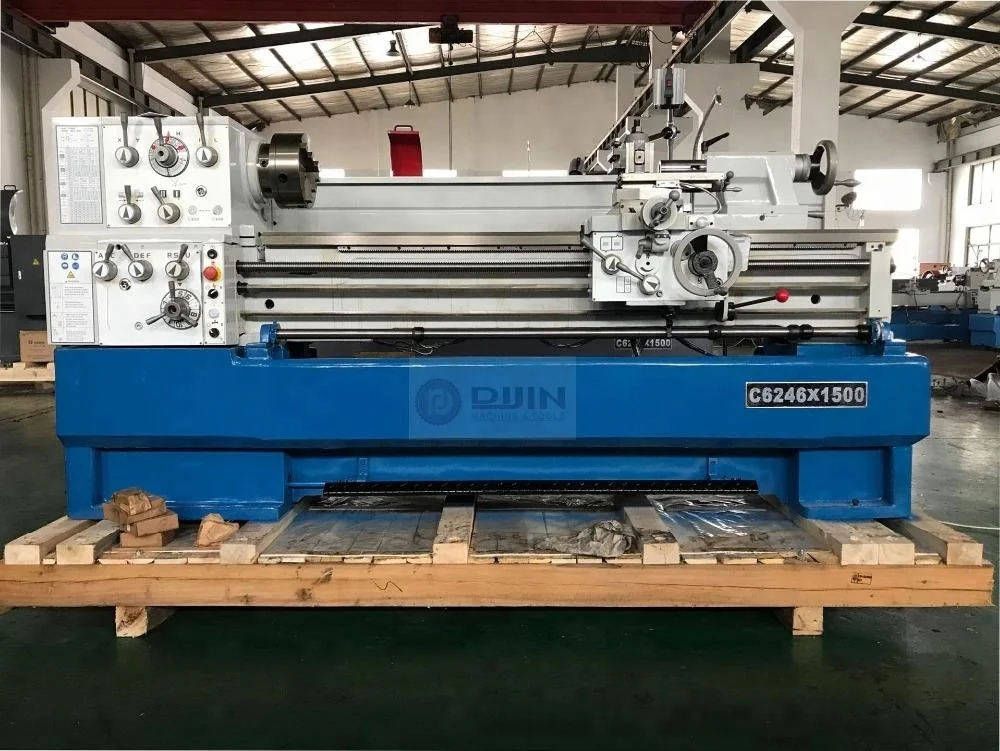

Gap-bed lathe BHC6246X1500
Feature:
Precision ground and supersonic frequency,hardened bed ways is designed in double wall structure,
giving superb rigidity.The spindle system is high in rigidity and accuracy.
Specification :
Model | BHC6241*1000 | BHC6246 * 1000 |
Swing Over Bed | 410mm(16’’ ) | 460mm(18’’) |
Swing Over Cross Slide | 224mm(8-13/16’’ ) | 274mm(10-3/4’’) |
Swing In Gap | 640mm(25-1/8 ) | 690 mm(27-1/8’’) |
Length Of Gap | 155mm(6-1/8 ) | |
Max.Length Of Workpiece | 1000mm(40’’ ) | 1000mm(40 ’’) |
1500mm(60 ’’) | 1500mm(60 ’’) | |
Bed Width | 300mm(11-13/16 ’’) | |
Spindle Nose | D1-6 | |
Spindle Bore | 58mm(2-1/4’’) | |
Taper Of Spindle Bore | NO.6Morse | |
Range Of Spindle Speed | 12changes25-2000r/min | |
Max.Travel Of Compound Rest | 120mm(4-3/4’’) | |
Max.Travel Of Cross Slide | 290mm(11-3/8’’) | |
Leadscrew Pitch | Metric 6mm | |
Max. Section Of Tool | 25mm*25mm(1*1’’) | |
Longitudinal Feeds Range | 42kinds 0.031-1.7mm/rev (0.0011’’-0.0633’’/rev) | |
Cross Feeds Range | 42kinds 0.014-0.784mm (0.00033’’-0.01837’’) | |
Metric Threads Range | 41kinds 0.1-14mm | |
Inch Threads Range | 60kinds 2-112T.P.I. | |
Diametrical Pitches Range | 50kinds 4-112D.P. | |
Module Pitches Range | 34kinds 0.1-7M.P. | |
Dia. Of Tailstock Sleeve | 60mm(2-5/16’’) | |
Travel Of Tailstock Sleeve | 120mm (4-3/4’’) | |
Morse Taper Of Tailstock Sleeve | NO.4 Morse | |
Power Of Main Motor | 4kw(5.4HP),optional 5.5kw(7.5HP)3PH | |
Power Of Coolant Pump | 90W | |
