20t/h, 40t/h, 60t/h mobile mix asphalt plant for sale
- Category: Asphalt Mixers >>>
- Supplier: Zhengzhou,Focus,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
20t/h, 40t/h, 60t/h mobile mix asphalt plant for sale
Features of MDHB series centrale d enrobage mobile:
MDHB series centrale d enrobage mobile mainly include: cold aggregate supply system, burner, drying and mixing drum, water dust catcher, bitumen supply system, electrical control system.
MDHB Mobile Asphalt Plant, can produce asphalt mixture continuously.
Burning System: 1. Oil burner; 2. Coal burner;
Advantages of MDHB centrale d enrobage mobile:
movable, convenience to assemble, dismantle and transfer, transferring time is shortened.
Capacity of MDHB centrale d enrobage mobile:
MDHB20 20 t/h, MDHB40 40t/h, MDHB60 60t/h, MDHB80 80t/h
Parameter of MDHB series Mobile Asphalt Mixing Plant:
Model | Capacity | Measurement Accuracy | Total Power | Fuel Consumption (kg/t) | ||
Aggregate | Bitumen | Coal | Oil | |||
MDHB-20 | 20t/h | ±1.5% | ±1% | 40kw | 10 | 5.5-7 |
MDHB-40 | 40t/h | ±1.5% | ±1% | 75kw | 10-13 | 5.5-7 |
MDHB-60 | 60t/h | ±1.5% | ±1% | 128kw | 10-13 | 5.5-7 |
MDHB-80 | 80t/h | ±1.5% | ±1% | 165kw | 10-13 | 5.5-7 |
MDHB-100 | 100t/h | ±1.5% | ±1% | 200kw | 10-13 | 5.5-7 |
Main Parts of MDHB series Mobile Asphalt Mixing Plant:
Control System
The heat overload protect breaker is safe and reliable, the whole set control system is integrated on the operation platform, which is convenient and shortcut. The equipment has two operation modes: inter-lock operation and single-machine operation, which is convenient for equipment commissioning and production.
Cold Aggregate Supply System
It can make aggregate material of four different sizes mixed well according to the construction requirement, for the oversized grain, it will be separated by the middle screen, and the qualified material will be conveyed into drying drum by tilted belt conveyer.
Mixing Mainframe
Integrated drying, heating and mixing in the whole part: the aggregate material will form an inadequate material flow in the drying section and go ahead promptly for preheating, and then it will form a sufficient material flow and heat quickly in the heating section. In the mixing section, the asphalt and will be sprayed into the aggregate material, which makes the aggregate material and asphalt mixing equably.
Coal Burning System
The high efficient coal crusher integrated with speed adjustable coal powder supply, it provides the coal powder with size of less than 50 micron far the burner. The burner adopts oil supply device and wind supply device, and can provide sufficient heat energy for the mixing plant.

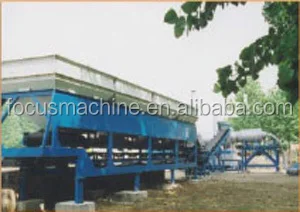

Photos of MDHB series Mobile Asphalt Mixing Plant:
