UPlink satellite tv broadcasting HD Cvbs SDI input dvb s2 encoder modulator
Outline

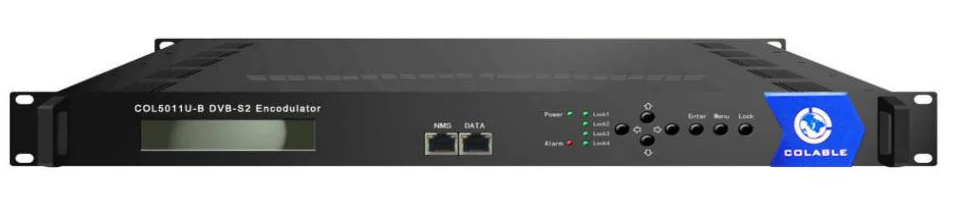

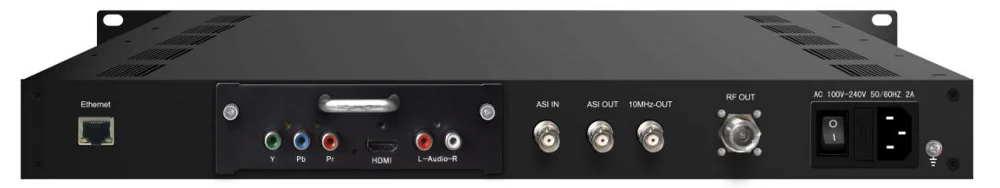

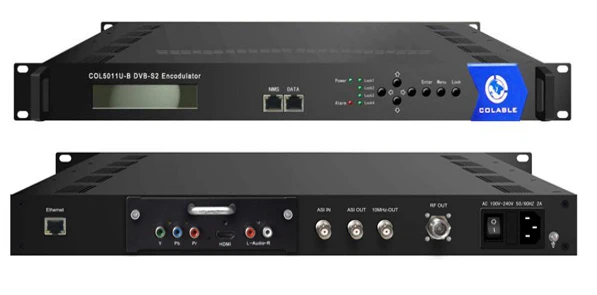

COL5011U-B DVB-S/S2 encoder modulator are Our all-in-One devices which integrate encoding, multiplexing
and modulation to convert V/A signals into DVB S/S2 RF output.. Its pluggable design makes it
convenient to change encoding module (CVBS/SDI/Full/YPbPr…) as needed. It is also equipped with 1 channel ASI input. It outputs ASI and DVB-S/S2 RF (IF Optional) in the same time. The signal source could
be from CCTV cameras, Blue-ray players and etc. It adopts user-friendly web-based operation
interface to effectively manage the device and carefully protect your content with its BISS function.
Featured with its high performance and low cost, 5011U-B is especially adequate for the TV station to encode
SD/HD programs and output to uplink.
Features
ü MPEG2 SD/HD and MPEG4 SD/HD Encoding Module optional
ü * CVBS/SDI/Full/YPbPr…signals in optional, pluggable and changeable encoding modules
ü * 1*ASI in
ü * Support DVB-S/S2 RF (IF Optional) output and ASI output
ü * LCN support (Logical Channel Number)
ü * Output Frequency: 950-2150MHz; IF: 50-200MHz
ü * “Low latency” or “Logo insertion from USB Port” function alternative (For SDI and Full+YPbPr+CVBS interface)
ü * Support BISS scrambling
ü * Support RF 24V power output
ü * Support 10MHz reference clock
ü * Support Web NMS and front panel LCD & Keyboard control
ü * Upgrade device through web NMS

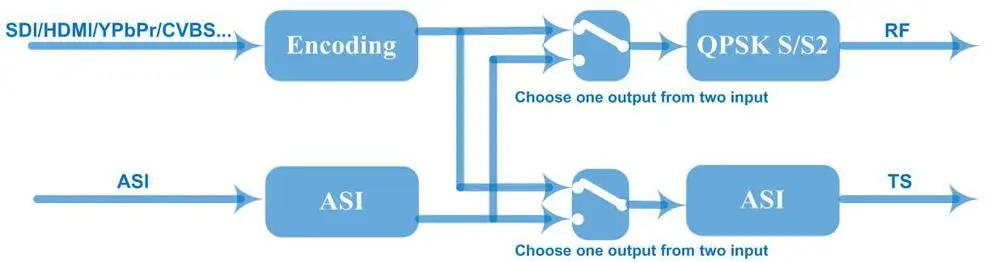

Principle Chart
Specifications
SDI to dvb-s2 encoder modulator
Single SDI Encoding Input
(“Low latency” or “Logo insertion from USB Port” function alternative)
Video
Encoding | MPEG2; MPEG4 AVC/H.264 |
Input | SDI*1 |
Resolution | 1920*1080_60P, 1920*1080_50P, (-for MPEG4 AVC/H.264 only) 1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P, 720*480_60i, 720*576_50i |
Audio
encoding | MPEG1 Layer II, (MPEG2-AAC, MPEG4-AAC and DD A3C optional, as per your order) |
Sample rate | 48KHz |
Bit rate | 64kbps, 96kbps, 128kbps, 192kbps, 256kbps, 320kbps |
Full hd/Ypbpr/cvbs to dvb-s2 encoder modulator
Full/YPbPr/CVBS 3-in-1 Encoding Input
(“Low latency” or “Logo insertion from USB Port” function alternative)
Video (Full) | |
Encoding | MPEG2; MPEG4 AVC/H.264 |
Interface | Full*1 |
Resolution | 1920*1080_60P, 1920*1080_50P, (-for MPEG4 AVC/H.264 only) 1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50 |
Audio (Full) | |
Encoding | MPEG1 Layer II; MPEG2-AAC; MPEG4-AAC (DD AC3 optional, as per your order) |
Interface | Full*1 |
Sample rate | 48KHz |
Bit rate | 64/96/128/ 192/256/320kbps |
Video (YPbPr/CVBS) | |
Encoding | MPEG2; MPEG4 AVC/H.264 |
Interface | YPbPr*1/CVBS *1 |
Resolution | CVBS: 720x576_50i (PAL); 720x480_60i (NTSC) YPbPr: 1920*1080_60i, 1920*1080_50i; 1280*720_60p, 1280*720_50P |
Audio (L/R) | |
Encoding | MPEG1 Layer II; MPEG2-AAC; MPEG4-AAC (DD AC3 optional, as per your order) |
Interface | 1*Stereo/2*mono |
Sample rate | 48KHz |
Bit rate | 64/96/128/ 192/256/320kbps |

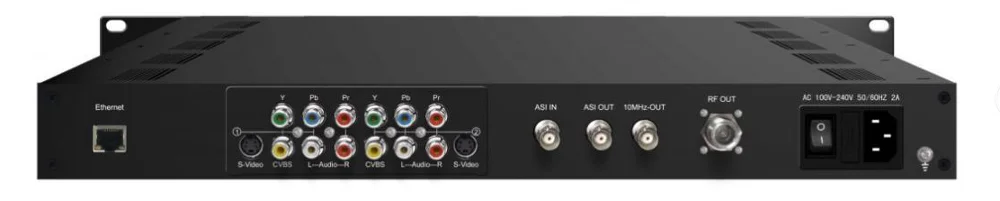

2* (CVBS+Ypbpr+S-video) to dvb-s2 encoder modulator
2*(S-Video + YPbPr + CVBS) Encoding Input
(Low Latency Function Optional)
Video
Encoding | 1: MPEG-2 MP@ML(4:2:0) 2: MPEG2; MPEG4 AVC/H.264 (With Low latency) |
Input | S-Video/YPbPr/CVBS*2 (RCA Type) |
Resolution | 720*576 (PAL), 720*480 (NTSC) |
Audio
encoding | : MPEG1 Layer II 2: MPEG1 Layer II; MPEG2-AAC; MPEG4-AAC(DD AC3 optional, as per your order) |
Input | Unbalanced 1 stereo/2 Mono per channel |
Sample rate | 48KHz |
Bit rate | 64kbps, 96kbps,128kbps, 192kbps, 256kbps, 320kbps |
Generals
Input Interface |
CVBS /SDI /Full/YPbPr… optional |
1×ASI input, BNC interface |
Output (dvb-s/s2 modulator ) |
DVB-S/S2 RF (IF Optional) output; ASI output |
DVB-S/S2 Modulation Section |
DVB-S QPSK: FEC 1/2,2/3,3/4,5/6,7/8 |
DVB-S2 QPSK: FEC 1/2,3/5,2/3,3/4,4/5,5/6,8/9,9/10 |
DVB-S2 8PSK FEC 3/5,2/3,3/4,5/6,8/9,9/10 |
RF output: 950.00-2150.00 MHz, 10Khz step IF output: 50-200MHz |
Symbol rate: 0.05-20.0Msps |
Roll Off: 0.35, 0.25, 0.2 |
Output level: -10db~-41.5db |
System
Local Control | LCD + control buttons | |
Remote Control | Web NMS | |
Low Latency Mode | Normal, Mode 1, Mode 2 | Alternative |
Logo insertion | xx.raw | |
Language | English | |
RF 24V Power Out | Support | |
Physical Specification
Demission | 410×460×44mm (W*L*H) |
Temperature | 0~45℃(operation), -20~80℃(storage) |
Weight | 4.5kgs |
Power Supply | AC 100-240V 50/60Hz |
