Product Overview
Description
Wheel-Crawler Excavator X9, with CE ISO certificates. New design, patent products, running on the wheel, working on the crawler, wheel and crawler is easy to change each other, one city transport, no need the truck again, very convenient, with good market now.
9ton, GERMANY REXROTH pump, USA EATON swing motor, traveling motor, South Korea SUNJIN valve/ Joystick, A/C cab for choose, Radio, USB, 0.32m3 bucket, Overall dimension: 6570x2120x2982 mm, Running on wheels, Working on track.

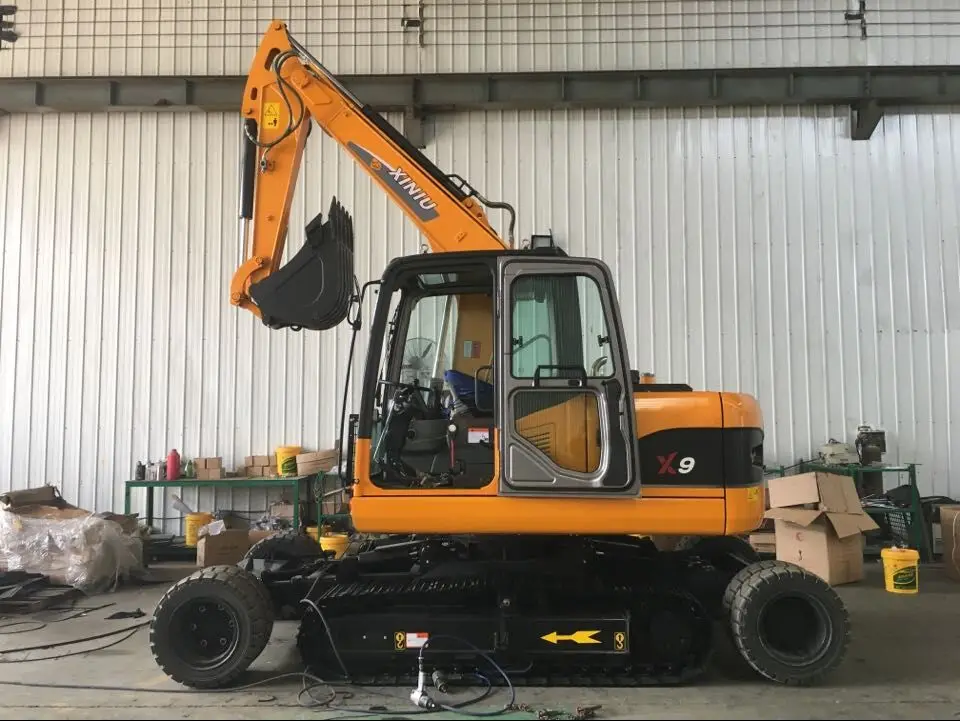

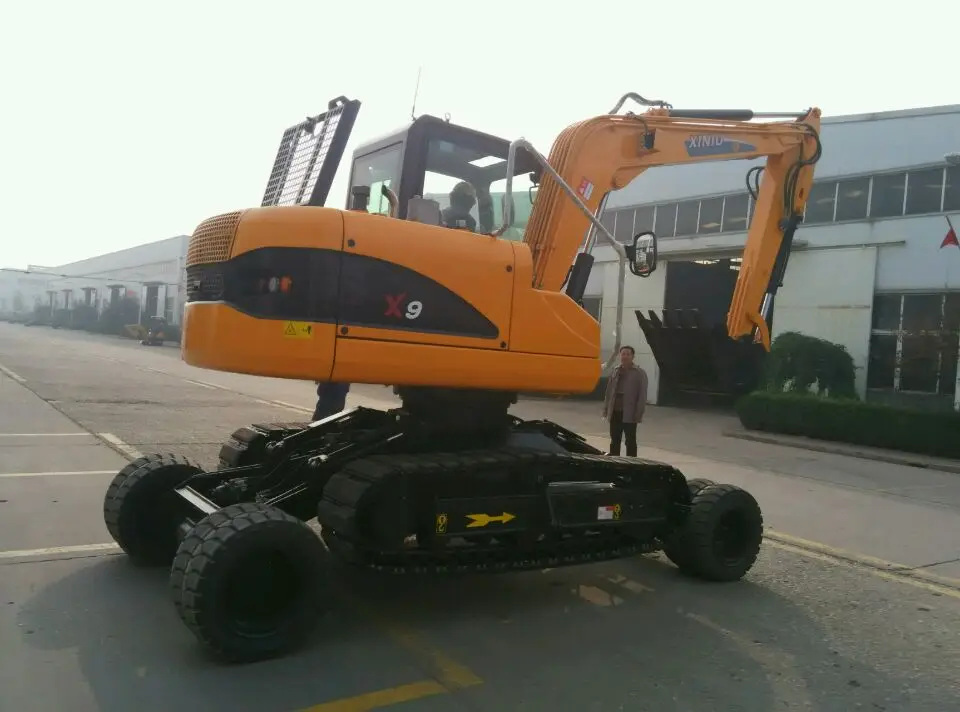

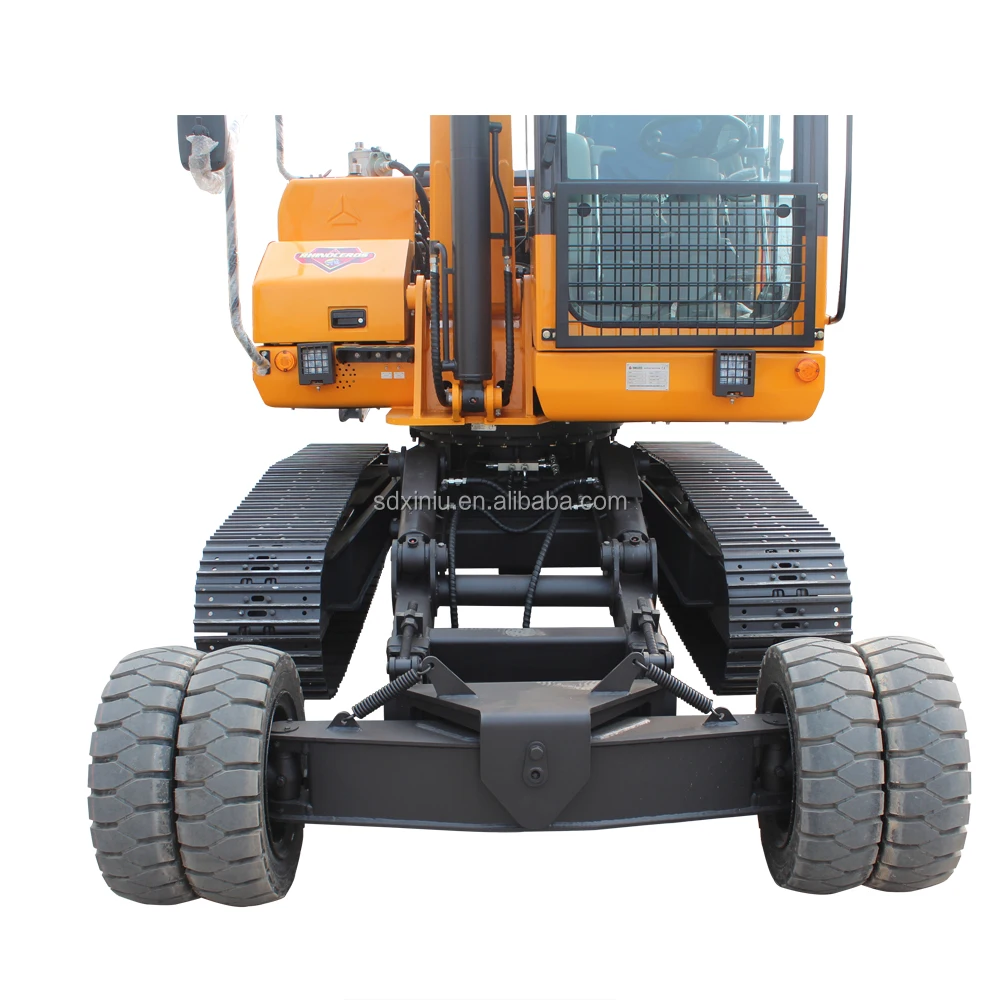

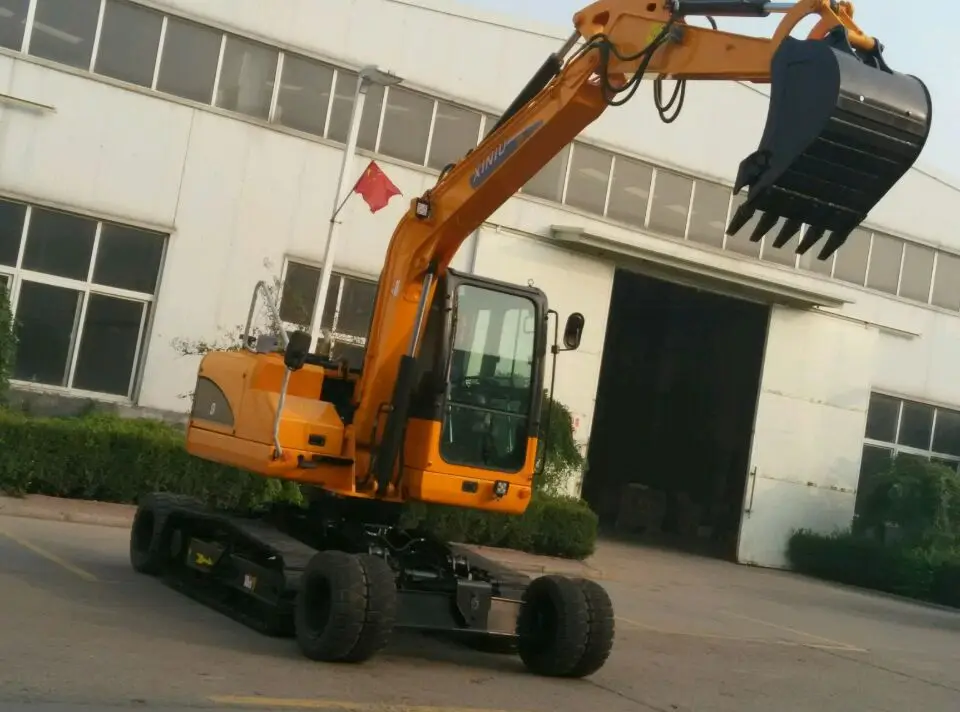

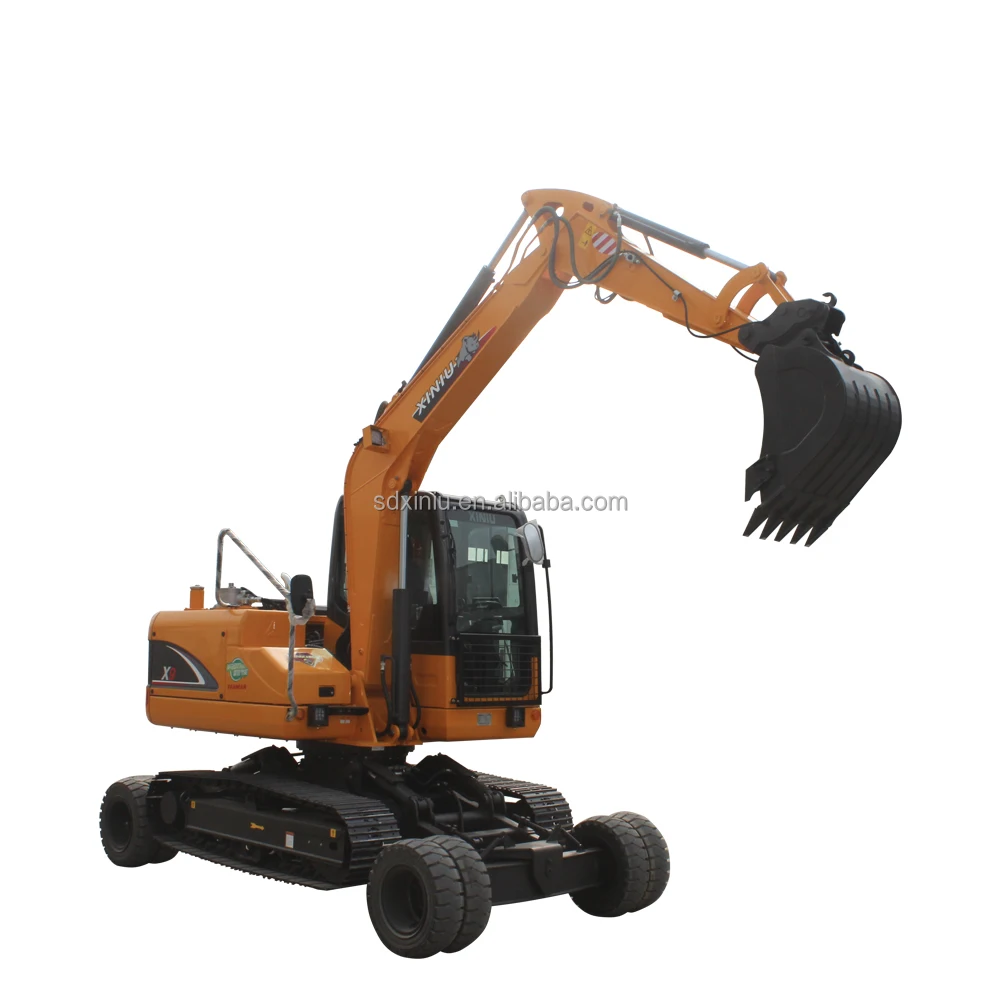

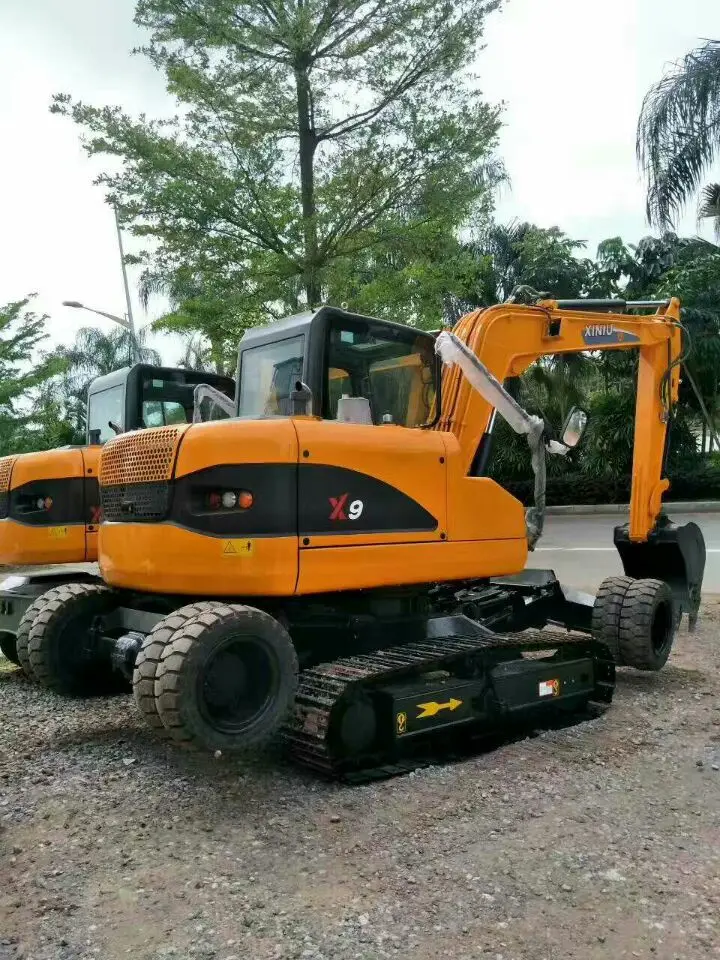

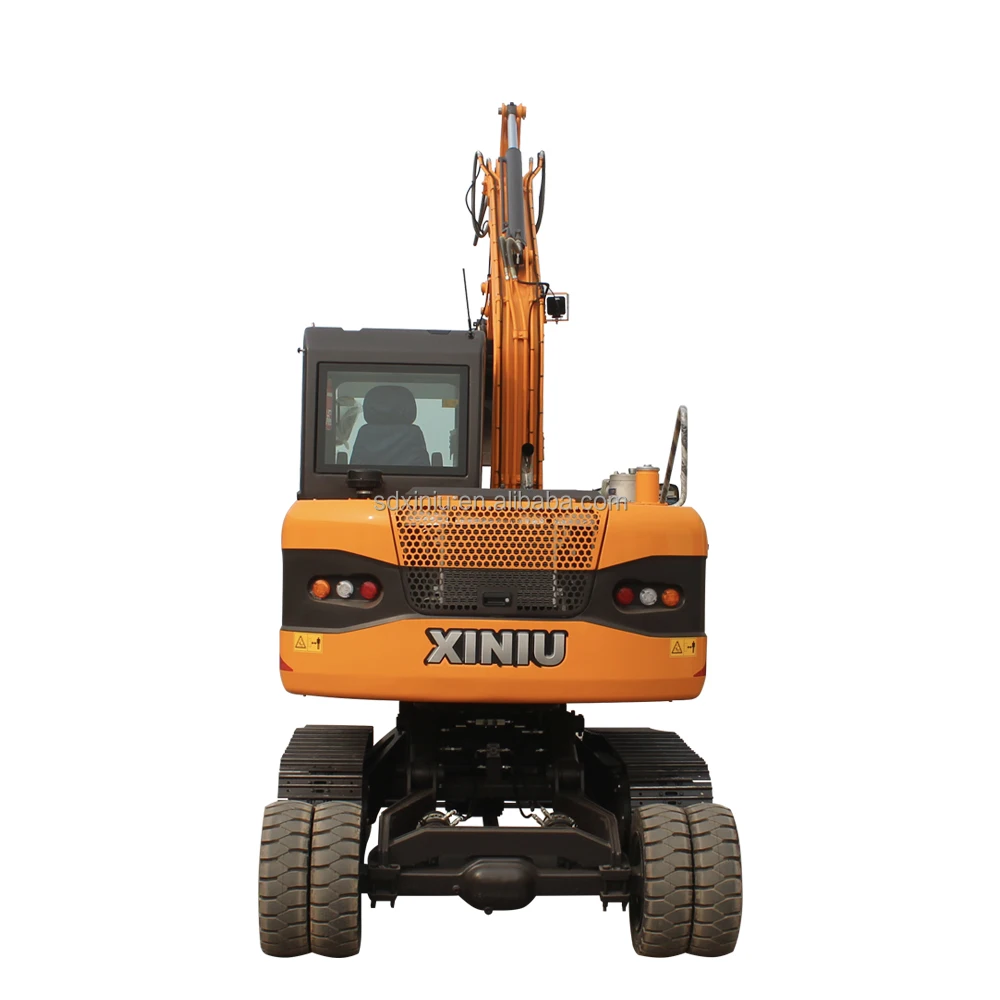

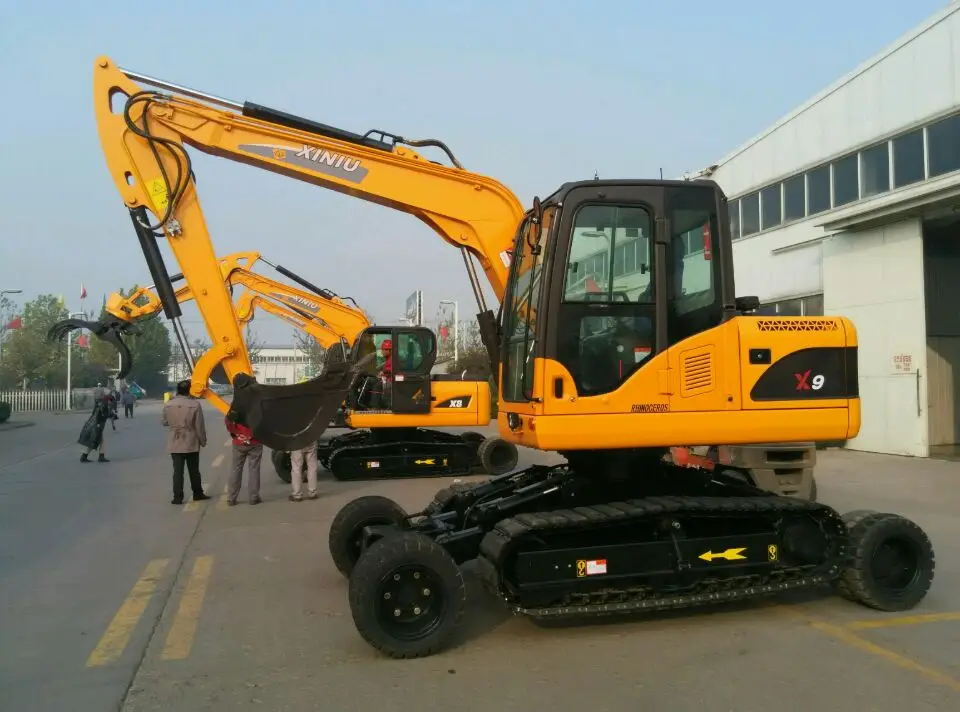

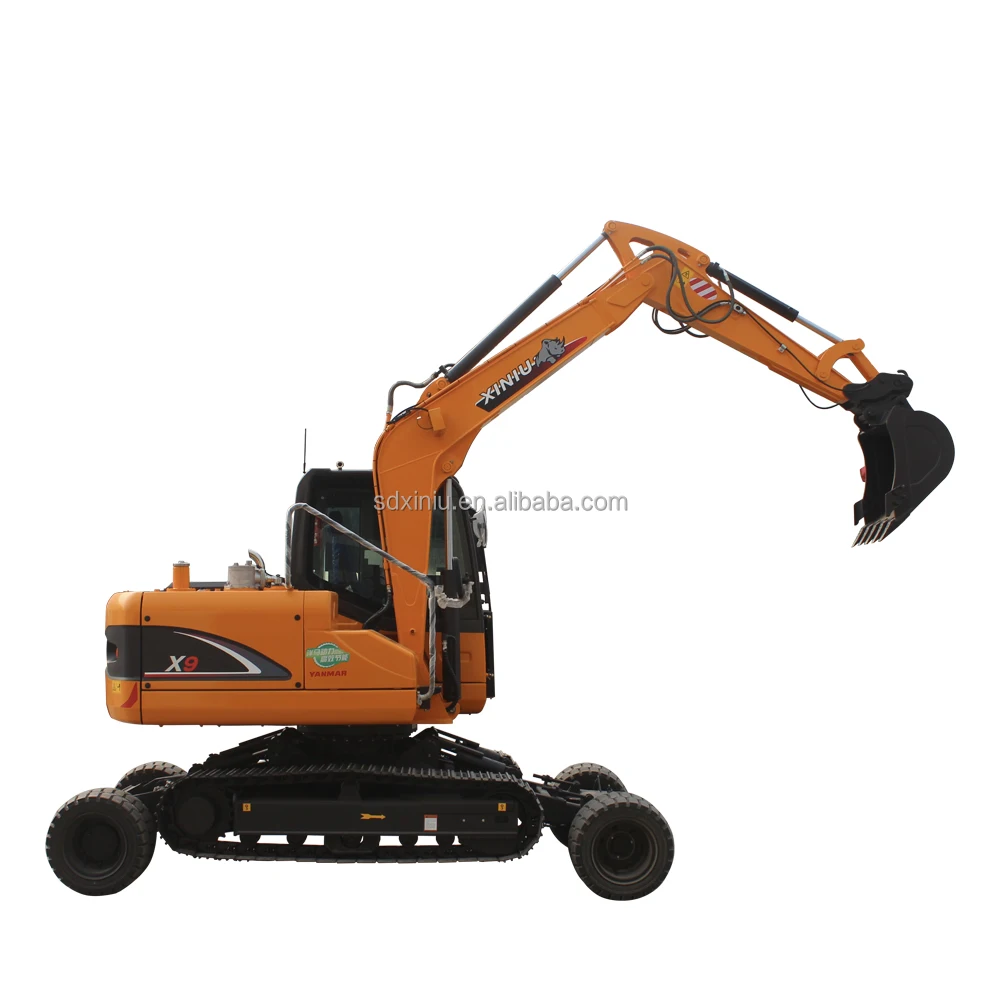

1. Wheel-Crawler Excavator X9 Photos:
2. Specification:
(Model) | X9 |
(Manufacturer) | SHANDONG RHINOCEROS ENGINEERING MACHINERY CO.,LTD |
(Brand) | RHINOCEROS |
(Operating Weight) | 9 t |
(Overall dimension) | 6570x2120x2982 mm |
(Bucket capacity) | 0.32 |
(Engine type) | YANMAR(4TNV94L-BVBKC) |
(Rated power/speed) | 33.7KW |
(No. of cylinders/type) | 4 cylinders in line |
(Bore and stroke) | 94*105 |
(Voltage of start motor) | 12V |
(Starting type) | ELECTRIC |
(Hydraulic main pump) | GERMANY REXROTH |
(Hydraulic system pressure) | 25MPa |
(Hydraulic system flow) | 132L/Min |
(Valve) | South Korea SUNJIN |
(Swing motor) | USA EATON |
(Max swing speed) | 12r/min |
(Travel motor) | USA EATON |
(Max travel speed) | 30km/h |
(Axle and Transmission) | YTO |
(Gear) | Forward 1 2 3 4 ; Reverse 1 2 |
(Bucket Digging Force) | 56Kn |
(Arm Digging Force) | 36Kn |
(Grade ability) | 35 degree |
(Arm length ) | 2000mm |
(Drive Method 2WD/4WD) | Wheel (Mechanical 2WD) / Crawler (Hydraulic) |
(light) | All LED lights |
(Max Digging Height) | 7130mm |
(Max Dumping Height) | 5220mm |
(Max Digging Depth) | 3772mm |
(Max Digging Radius) | 6880mm |
|
|
(Standard machine with A/C) | YES |
(Packing way) | one 40ft load two units |
(Passed certificates) | CE ISO |
(Can add accessories) | hammer, auger, quick hitch, grader, tilt bucket, narrow bucket, |

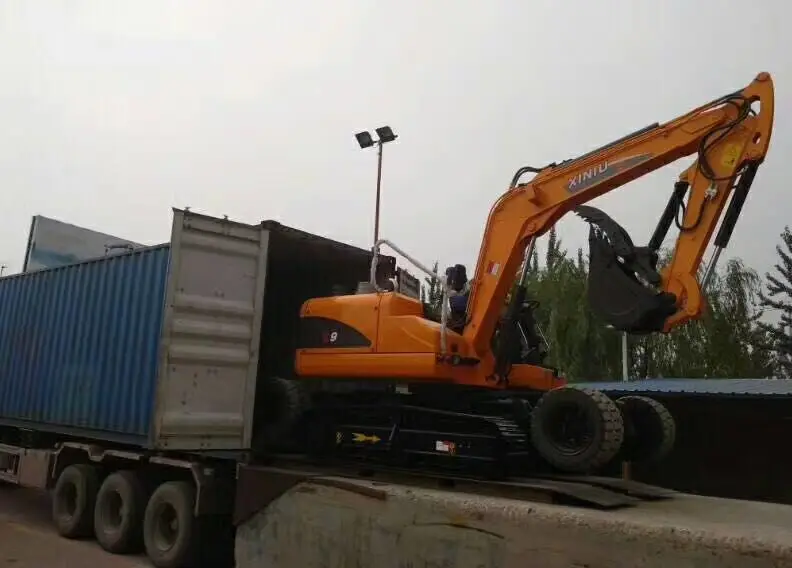

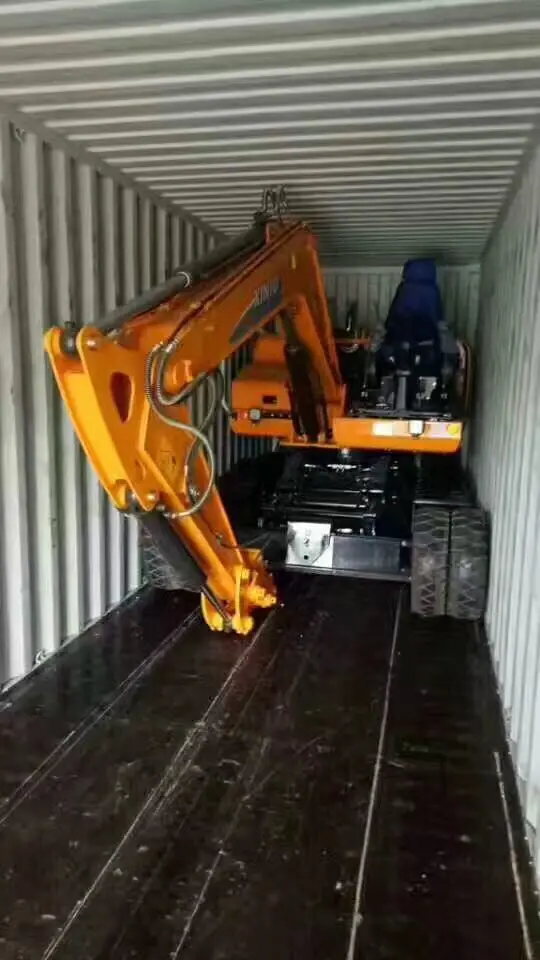

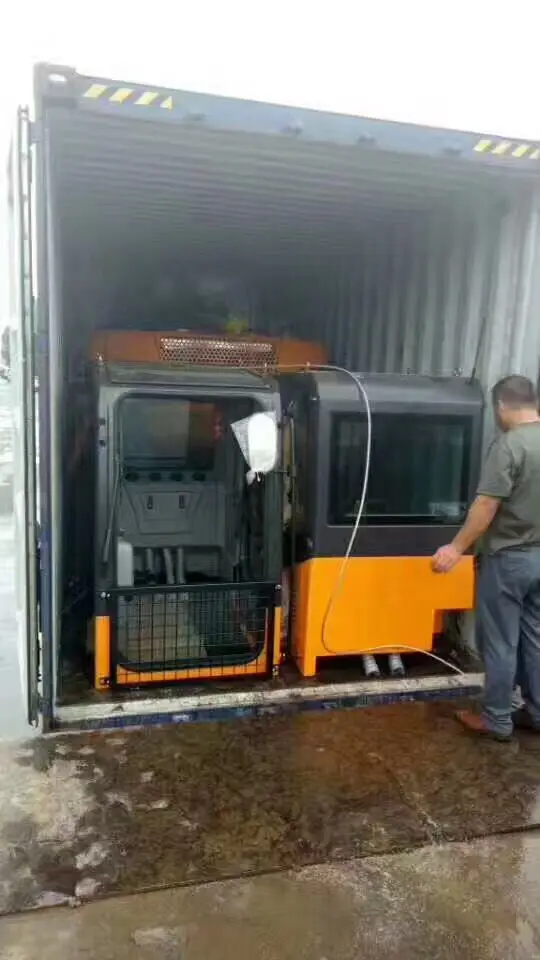

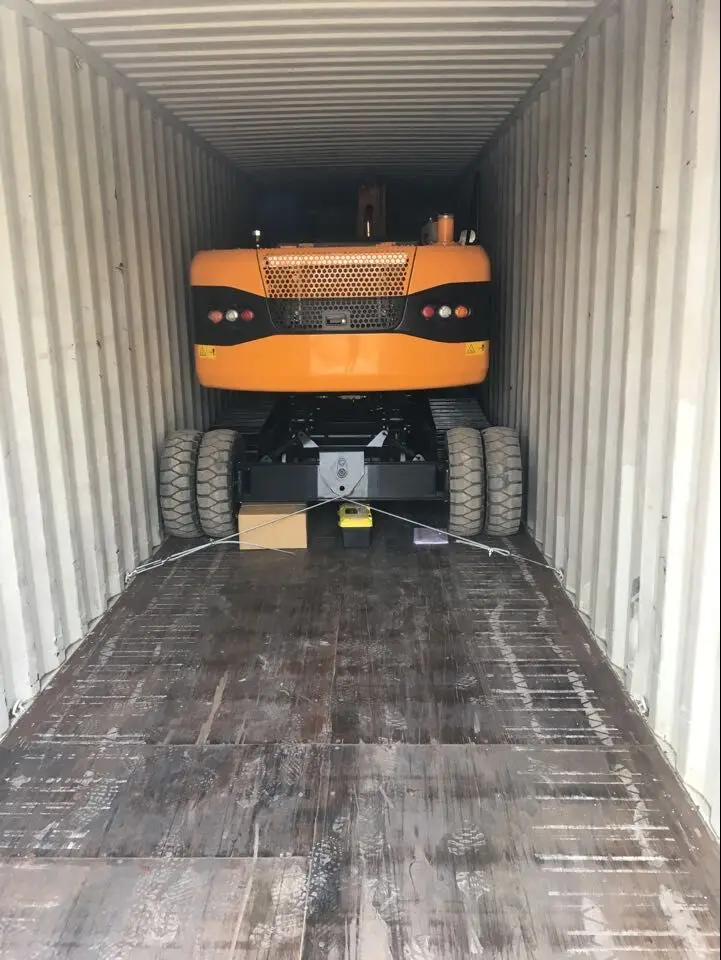

3. Loading Photos:

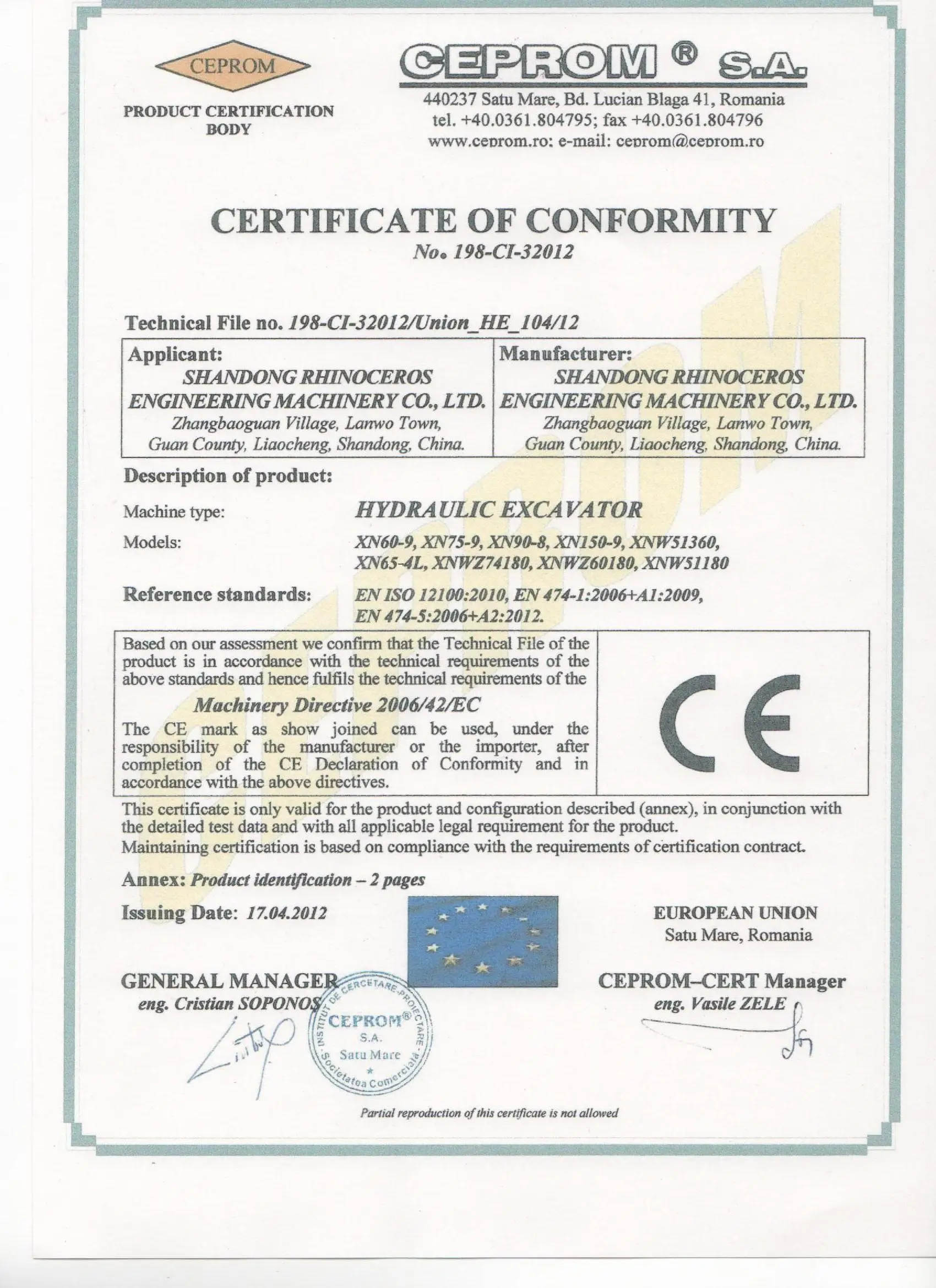

4. Certificates: CE and ISO
5. Production range:
We are power engineering machinery manufacturer in China, we produce the Excavator, Backhoe loader, loader, Forklift, Concrete pump truck
We produce many parts by ourselves, so we can low the cost and make the high stable quality, choose our company as your partner is your better choice now, we have the power and experience to make both of us good profit.
Andy Lau
FAX:0086 635 5663777 / 5846000 TEL:0086 155 6355 7938 / 158 6438 7938
EMAILl: lau#sdxiniu.com SKYPE: laugroup QQ: 864876253
WECHAT: 155 6355 7938
Shandong Rhinoceros Engineering Machinery Co.,Ltd
