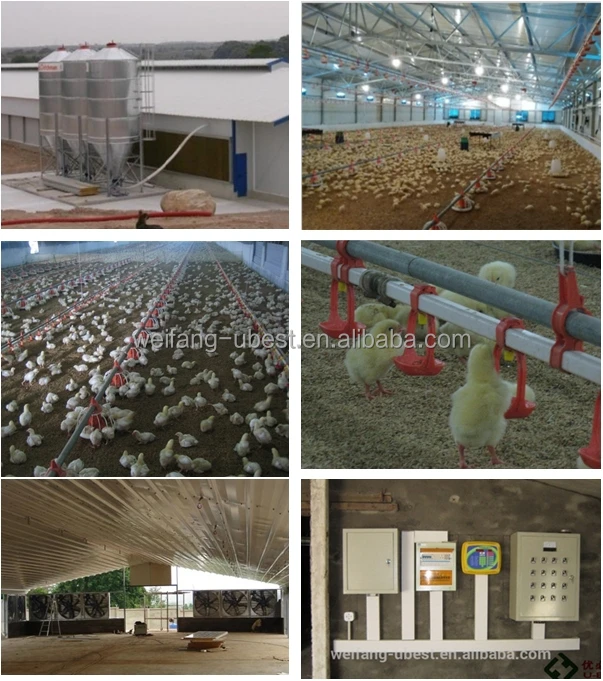

100% Pure Plastic Nipple drinker and 14 Girds Feeder pan automatic livestock feeding system

Product Overview

Description

100% Pure Plastic Nipple drinker and 14 Girds Feeder pan automatic livestock

feeding system

1.Main feeding line system

2.Pan feeding line system

3.Nipple drinking line system

4.Automatic ventilation system

5.Cooling pad system

6.Environment control system

7.Spraying&disinfecting system

8.Heating system

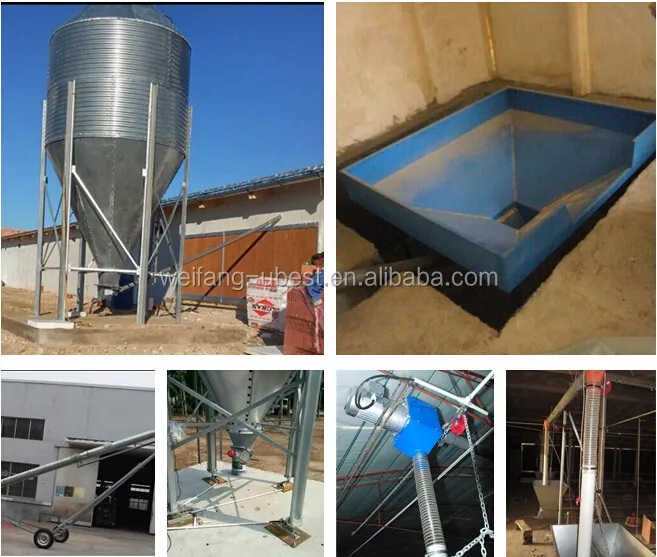

Silo/manpower hopper is the beginning of main feed line. There is a feed sensor at the end

of main feed linewhich controls motor on and off to achieve automatic feed delivery.

Name	Feature
Silo	1.Silo with standard ladder and guard railing is safe and reliable. 2.Solid connection and good sealing performance. 3.Steel sheet galvanized ensure a service life of more than 10 years. 4.Model: 1.8M,2.75M,3.05M,3.6M; Capacity:2.5T to 27T;
Manpower hopper	Galvanized sheet material, 600kg,800kg capacity
Driving  Motor	Power:0.75kw; Voltage:380V ; frequency :50HZ, three phase AC current.
Feed level sensor	Germany IFM feed level sensor.
Feed Conveying	Diameter of conveying pipe:75*3.6mm ; Material: PVC Helical spring auger from South Africa;  Feeding ability: 1,400kg/h, Maximum Coveying lenrth:60m;  Radius of bending pipe: R1500-2000

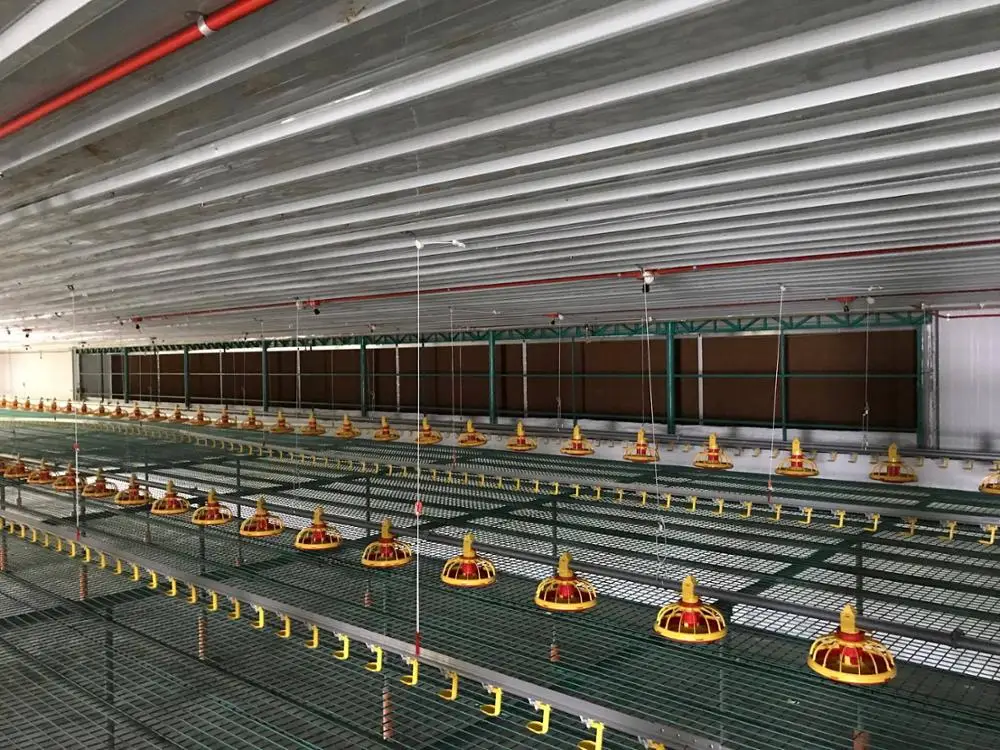

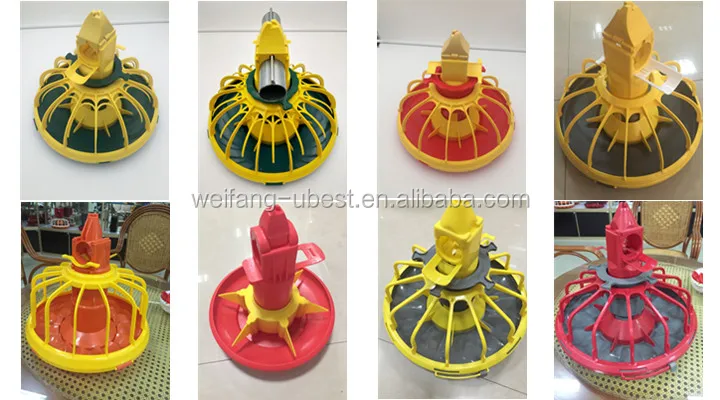

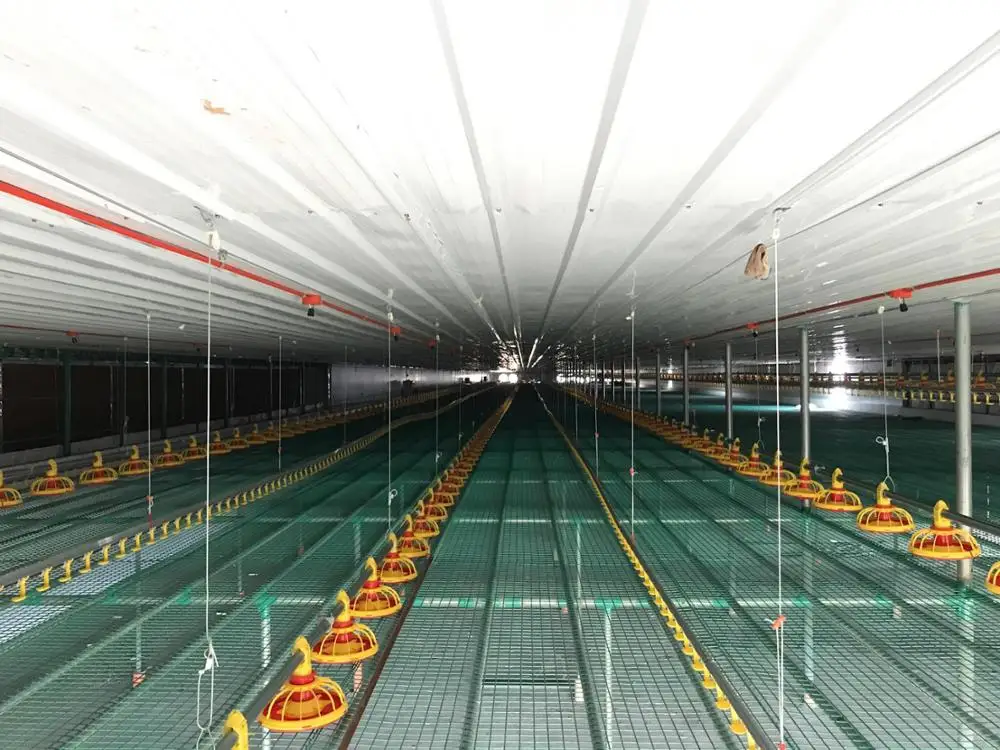

2.Automatic Pan Feeding Line System:

There is a pan feed sensor at the end of each feeding line which controls motors

on and off to achieve automatic feed delivery.

Name	Features
V-shaper Bin (with hopper)	Bin volume: 115L,  Material: hot-dip galvanized sheet. Material thickness: 1mm
Special driving  reduction motor	Taiwan Motor with overload protection of IP55) Power:0.75kw Voltage:380V Frequency: 50HZ, three phase AC current
Feeding system	Diameter of conveying pipe: 45mm (4-pan/3m, 3pan/3m) Material: hot-dip galvanized sheet pipe with the zinc coating  amount of more than 275m2. Helical spring auger from South Africa feeding capacity: 450kg/h.
Feed level sensor	time delay range 0 to 2 hours.
Suspension and lifting system	It's very convient to adjust the feeding line height by winch.

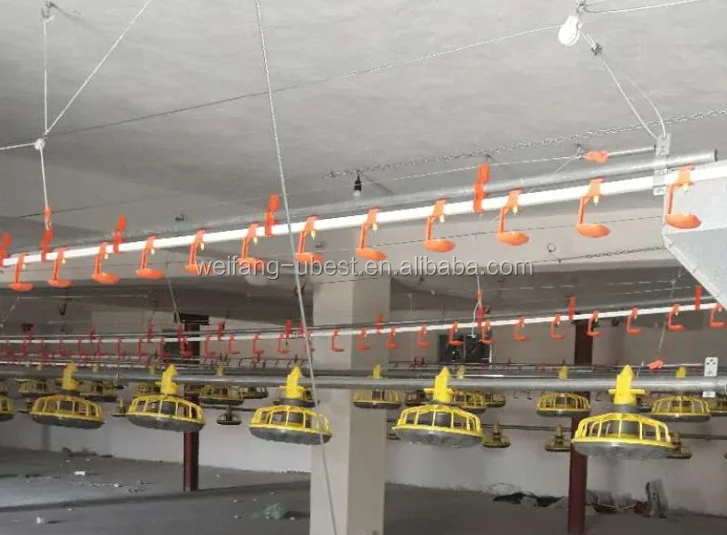

3.Automatic Nipple Drinking line System:

This system can provide fresh and clean water for poultry which is crucial for the growth of poultry.

The drinkers can be triggered from 360 degree which helps young birds start well and makes drinking

easier.

Name	Features
Nipples for the system	1).All nipples are anti-rusting, service life more than ten years. 2).Double sealing structure with good sealing performance, can avoid leaking water. 3).Valvo rod is movable in 360 degree, is suitable for all chicken to drink.
Lifting and suspension system	Correct height for drinking system is very important for chicken (both higher and lower can effect chicken bone's distortion, it's bad for chicken growth, and also can have some water wasting), it's very easy to adjuct drinking system's height if use this system.
Water display level tube	Use high transparency & impact resistant material, it's sturdy and durable, and convient to watch water level. This device with advanced design, it's very easy to take down and clean.
Pressure regulator (Double barreled with large flow capacity)	1). Regulating stability. 2). High switching performance. 3). Water supply is sufficient& equality. 4). Recoil cleaning with good cleaning result, and can save time and can save water. 5). Good quality movable valve, it's easy to change.
Doser	1).can add medicine into drinking system automatically. 2).Don't use power. It's economical and reliable. 3).Accurate, after setting, it can adjust medicine volume according to water pressure change. 4). It's easy to control and maintain, with good corrosion resistance.

Plasson type nipple drinking system:



Big herdsman type nipple drinking system:





4.Automatic Ventilation System:

This system controls climate conditions,fresh air,humidity and temperature in poultry shed.

It is vital for growing birds,including air inlets,exhusat fans for your choice.

Airinlet window parameters:

The wall of installed windows must keep the same level.

Within 15cm below the window must be soild wall which could be fixed with eapansion bolt,

hollow brick not available.

To prevent water flow backward, the window hole of inside is higher than outside.

Pre-embedded wood frame is same level with inside wall of chicken house.

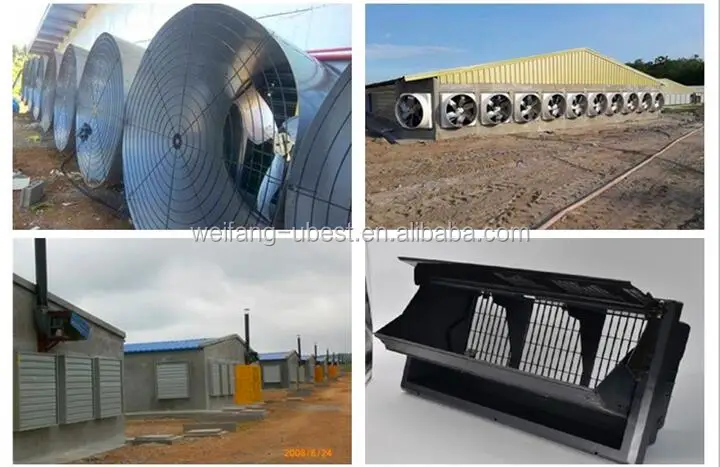

Exhaust fan:

Model: Centrifugal box fan;Hanging fan;Shutter/Butterfly cone fan;Speed vaiable fan.

Size: 24'',36'',50''

Motor: Chinese brand and Siemens Brand available

Blade: Stainless Steel

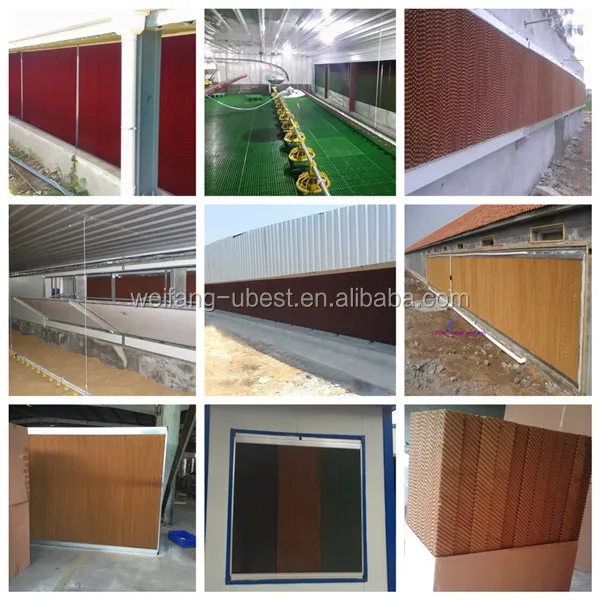

5.Cooling Pad System:

The longitudonal way of cooling-fan ventiliation is the most economical and effective

way to reduce temperature of chicken house in summer.

Advantages:

Hygroscopicity, Dry solution, Non-porous surfaces.

Cooling pad parameters:

Thickness	100mm;150mm
Width	300mm;600mm
Height	1660mm;1960mm;2160mm
Frame	Galvanized sheedt and Aluminium alloy
Aluminium alloy frame	High strength, good corrsion resistance,  water distribution uniformity,beautiful and practical.

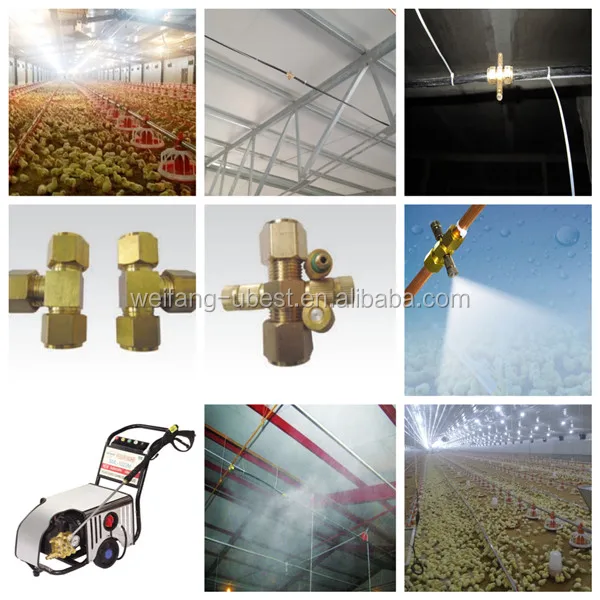

6.Spray & Disinfecting System:

Function:

It is effectively tools for cooling, damping, dedusting, disinfecting the house.

Characteristics:

-Instant cooling but not wet.

-Large flow high pressure, good atomization, and corrosion resistance.

-Increase the humidity to the preset range according to the requirements--60 to 70 percent

of the maximum relative humidity.

-Effectively prevent the dust, and reduce respiratory diseases of livestock and poultry.

-Disinfect with chickens.

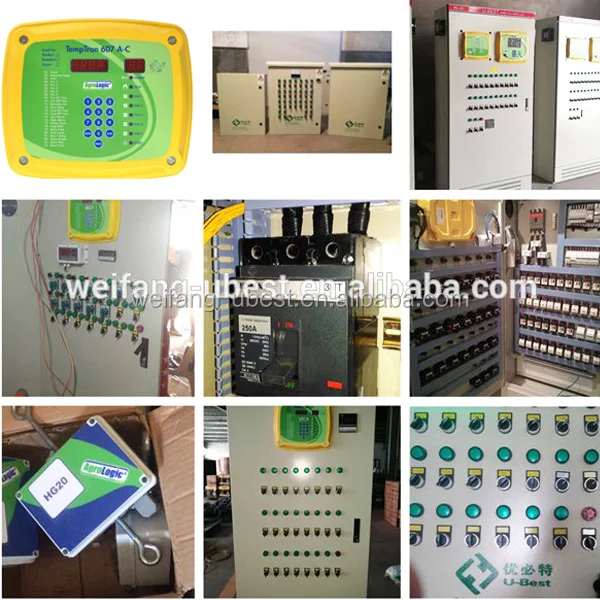

7.Environment Control System:

This system saves the labor and the resources under the condition of assuring the optimum growth environment of the chickens. It is imported from Israel can set an optimum working mode according to

the local climate and raising environment.

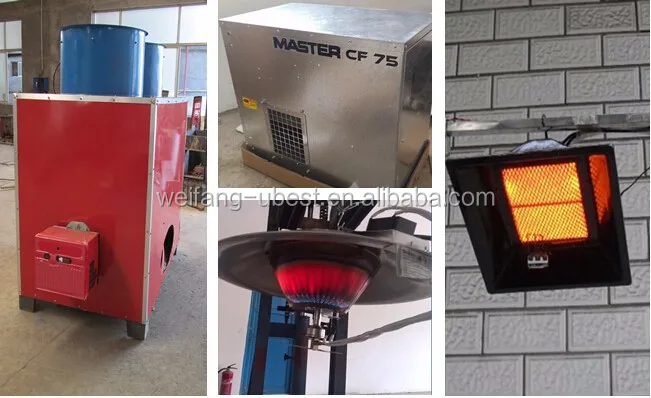

8.Heating System:

Heating poultry house when it is needed to satisfy the temperature demand of chickens at different

growth stage. Hot-blast heater of coal and diesel, poultry gas heater and infrared gas brooder,

3 different kind at your option.
