DG-1500 pipe jacking machine is one our star product, which is used for trechless underground pipe laying projects, eg. sewage, water supply, discharging projects, cables, tunnel.....This model have served in Singapore, Thailand and Hongkong, from clay to hard rock.
Product Description
Specification
- Breakage ability strong, breakage particle size and number more;
- With independence water and slurry injection system and washing clean device for cutter in particular;fit for big N value hard soil;
-Jackng speed is very fast, thoery max, speed is 120mm per min.
-Operation precision high, adjust the direction from up and down, left and right, Max. corrective angle is 2.5 degree.
-jacking distance can be long;
- Adopt ground operation system, safe, intuition and convenient!
- Structure firm, use and maintain easy, convenient for dismantling in work tunnel receiving tunnel.
Technical parameters:
Item
Unit
DG1200
I.D
(mm)
Φ1200
OuterDimensionΦ*L
(mm)
1470*3800
Power
(KW*set)
45*1
Torque
(KN·M)
81
Revolution
(r/min)
0-5.25(5.25)
Steering Cylinders
(KN*st*set)
650*50*4
Hydraulic Unit
(KW)
1.5
Pips Diameter Inside Machine
(mm)
100
**
1)Custom-made size - ID250m to ID 5000mm;
2)Custom-made configuration - design the most suitable and economic configuration to customer’s project;
3)Custom-made parameters - Above parameters can be adjusted based on clients needs, rated pressure of hydraulic system is 31.5Mpa. Customer-built is available.
Our advantages,
1) 35-year experience in pipe jacking machine, 10-year export;
2) Engineers on-site service oversea;
3) Full range of soil application, clay to rock; ID250mm to ID 5000mm;
4) Combines multi-disciplinary technologies in one, including the machinery units, hydraulic system, electric controller (including PLC), Laser system, measuring device, etc
5) One machine for multi-inner diameter pipes , curve jacking,variable frequency speed control
Experience

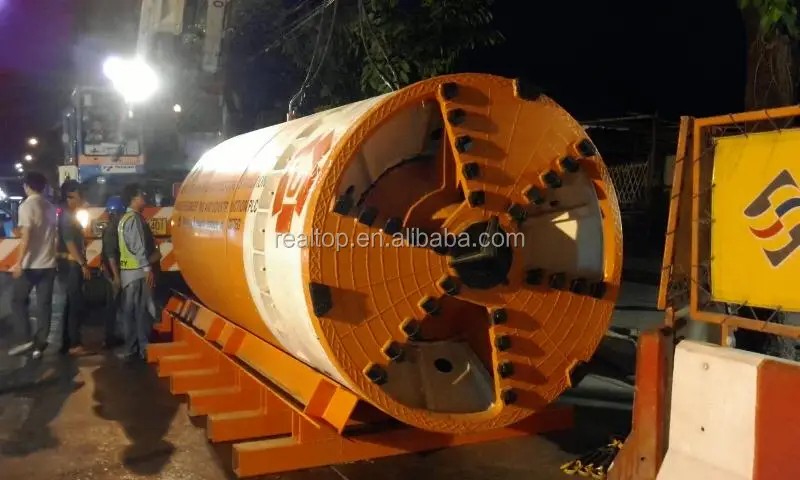

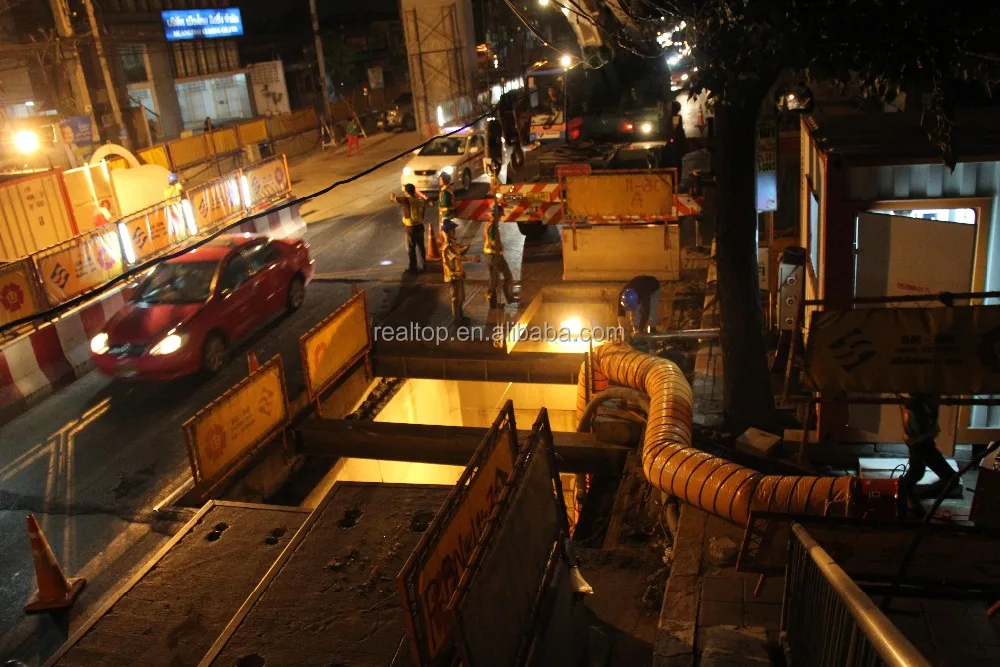

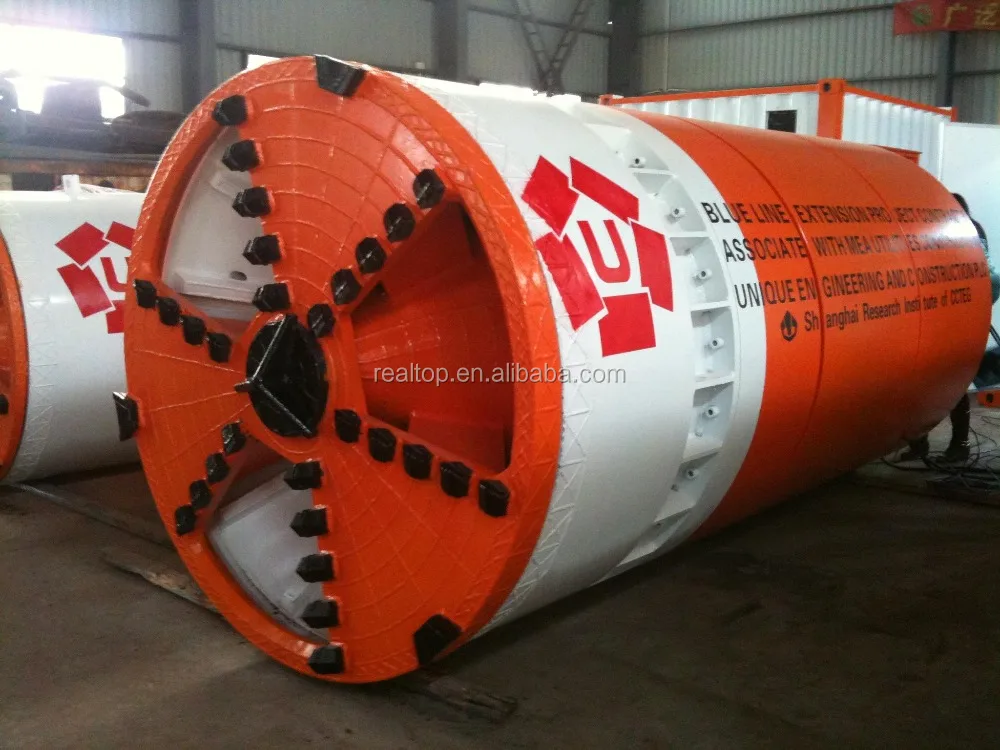

TBM machine 1500mm Thailand

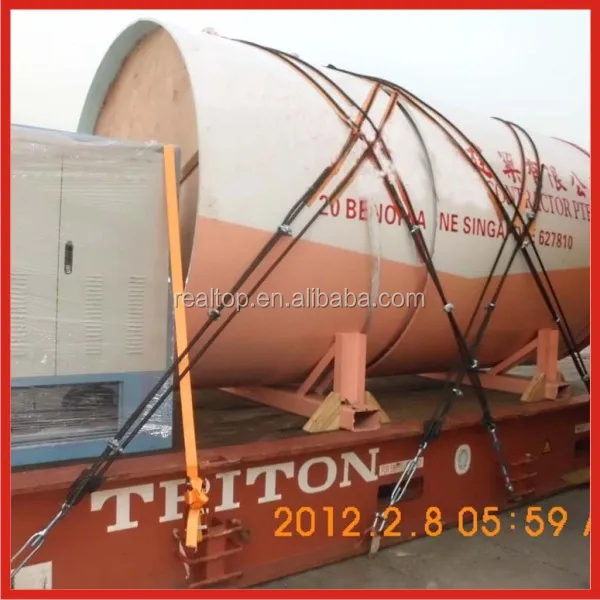

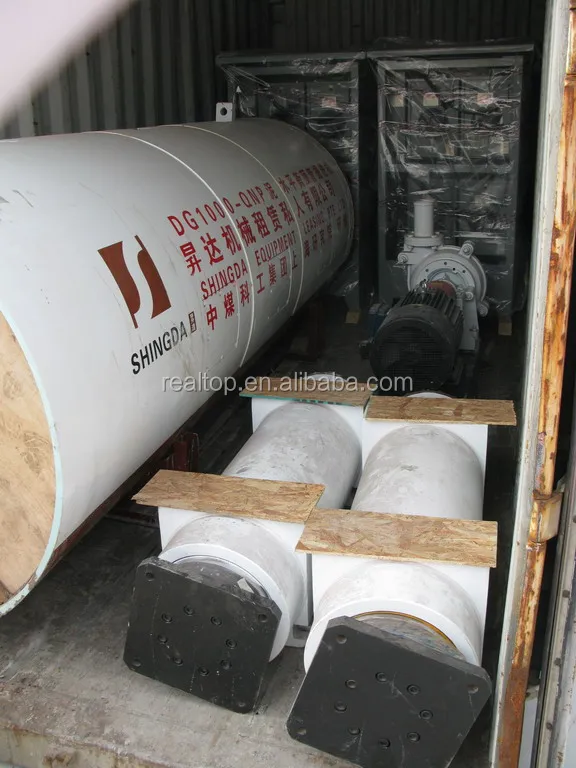

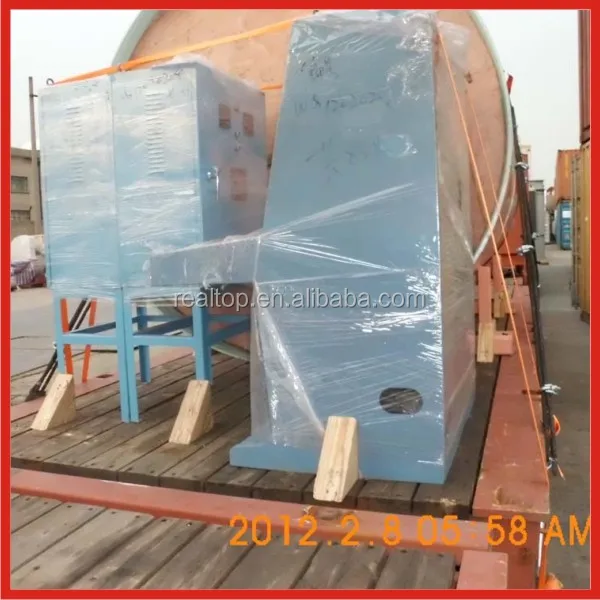

Packaging & Shipping
Our Services
-design the machine according to the project
-introduce the installation, and use
-engineer regular checking for every machine
-spare parts available
Company Information
With headquarter located in the capital of construction machinery-Changsha City, Hunan, China, REALTOP belongs to national-owned enterprise REALTOP has invested in 9 factories, devoted to R&D, manufacture, sales of construction machines.
Information needed for quotation accordingly:
1 Project total length, distance for one section, how many sections will be built?
2 Pipe type: concrete or steel etc, single length of the pipe? outer and inner diameter ?
3 Projects information: for water supply, sewage project?
