Professional Factory Made stainless steel compact solar hot water heater
- Category: >>>
- Supplier: Haining Jixiang New Material & Technology Co. Ltd.
Share on (60345164618):
Product Overview
Description
Professional Factory Made stainless steel compact solar hot water heater

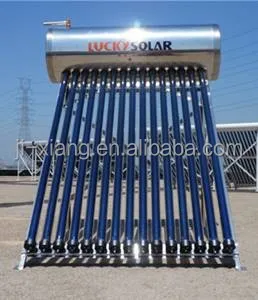

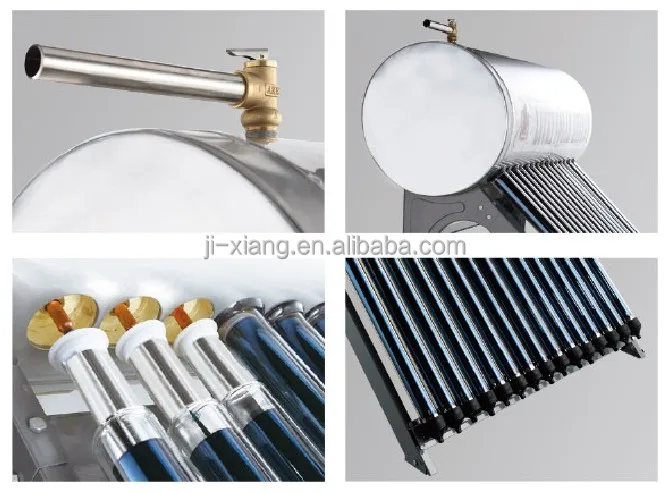

1. Compact Pressurized Series Product Show
2015 new solar energy products, OEM&ODM Professional Factory Made stainless steel compact solar hot water heater
2. Features
1.The system can still operate in the event of occasional tube breakages;
2.Can operate with water pressure up to 0.7MPa;
3.No additional device for automatic filling water to the tank;
4.More pressure, more comfortable
5.Simple and convenient to use
3.Advantage
FEATURES | LUCKY SOLAR |
Product warranty | 5 years |
Diameter | 58mm |
Tube Generation | 3G |
Heat transfer liquid | Non-toxic |
Resistance hail | 30mm |
Water tank | SS304/316 -auto welding |
Insulation | 55mm (up to 70mm) |
Drain outlet | YES |

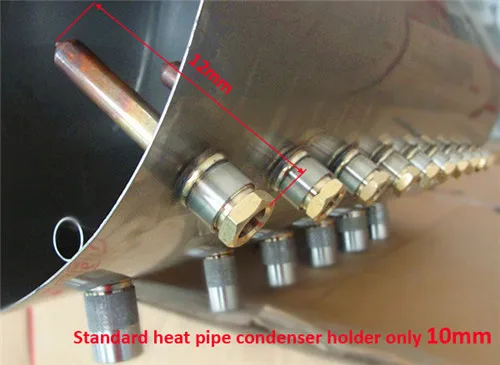

Copper Heat Pipe | extended condenser length -larger heat transfer area |
Reliability | 20-25 years |
4.Specifications of compact pressurized solar water heater
Heat Pipe Vacuum tube | Material | Three target vacuum tube, red copper heat pipe |
Spec(mm) | Ø 58x1800 | |
Tube(pcs) | 10/15/18/20/24/25/30/36 | |

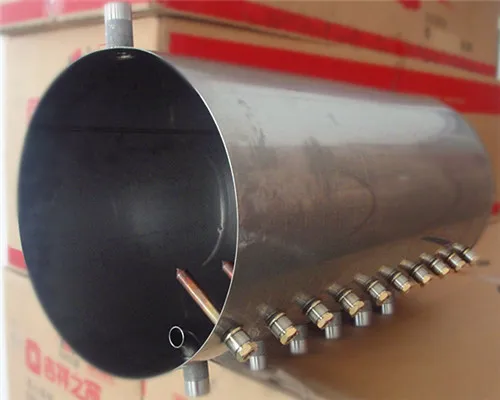

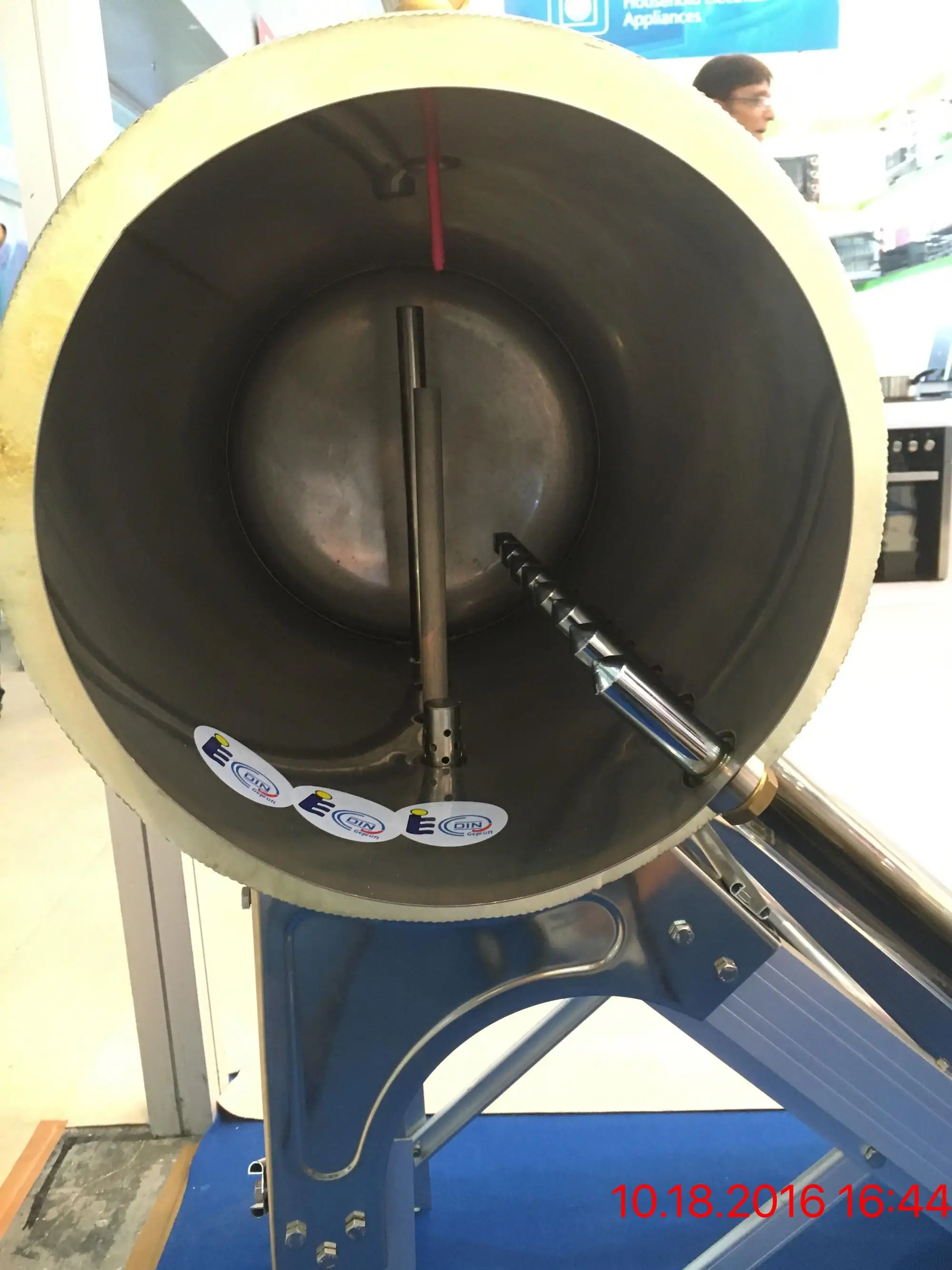

Pressurized Water tank | Inner tank | Imported food-grade stainless steel SUS304-2B/SUS316, 1.2mm |
Insulation | Integrated foam-forming polyurethane,58mm | |
Outer shell | PVDF/Stainless steel/Color steel, 0.45mm | |
bracket | material | Imported galvanized steel bracket, suitable for flat, slope roof and straddling roof, 1.5mm (Stainless Steel, Aluminum alloy is offered) |
Optional Devices | Electric heater, Intelligent LCD Controller, Anode magnesium bar | |
Working Pressure | 7 Bar | |
Anti-freezing | Below (-)40°C | |
5.Compact pressurized solar water heater series
Item No. | Solar Vacuum Tube | Effective Collector Area (M2) | Storage Tank Capacity (L) | Insulation (MM) | Diameter of water tank(mm) | Loading Qty (set) | ||
Qty /Pcs | Size / mm | 20’GP | 40’HQ | |||||
JX-IP-58/1800/15 | 15 | Φ58*1800 | 1.39 | 150 | 55 | 480 | 45 | 110 |
JX-IP-58/1800/20 | 18 | Φ58*1800 | 1.67 | 180 | 55 | 480 | 36 | 88 |
JX-IP-58/1800/20 | 20 | Φ58*1800 | 1.86 | 200 | 55 | 480 | 34 | 83 |
JX-IP-58/1800/24 | 24 | Φ58*1800 | 2.25 | 240 | 55 | 480 | 28 | 68 |
JX-IP-58/1800/30 | 30 | Φ58*1800 | 2.79 | 300 | 55 | 480 | 23 | 56 |
6.Working principle of compact pressure solar water heater
The vacuum tube absorb the solar ray and conduct the heat to heat-pipe (inside) by the aluminum slice, because the heat-pipe is connected with the copper connector which in the water tank, so there exists heat exchanging between the heat-pipe and copper connector, when the heat exchanging goes on, the water in the tank will be heated and become hot water.
7.Compact Solar Water Heater Installation
Special design for frame with 4 forms, it can be suitable for different roofs

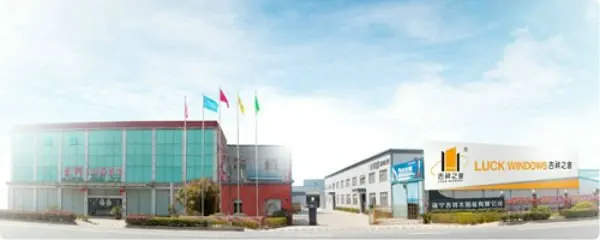

Company Information
