Перевернутый Вертикальная стальная проволока проволочно волочильный станок
- Category: Metal Moulding Machinery >>>
- Supplier: Beijing Orient Pengsheng Tech. Co. Ltd.
Share on (60345419047):
Product Overview
Description
Drawing machine
Steel Wire Inverted Vertical Drawing Machine
The inverter vertical type wire drawing machine is specialized for drawing big diameter of high/medium/low carbon steel wire and stainless steel wire rod.
Line characters:
1, Combining wire drawing and take-up functions in one machine.
2, Wire drawing and take-up mechanisms are driven by independent motor.
3, Designed for drawing big diameter of carbon steel wire and stainless steel wire
2, Wire drawing and take-up mechanisms are driven by independent motor.
3, Designed for drawing big diameter of carbon steel wire and stainless steel wire
Product specifications:
Block diameter | 600mm | 750mm | 850mm | 1000mm | 1200mm | ||||
Inlet wire size | 3.0-7.0mm | 6.5-9.0mm | 8.0-12.0mm | 12.0-18.0mm | 18.0-25.0mm | ||||
Drawing speed | 60-120m/min | 60-120m/min | 40-80m/min | 40-75m/min | 25-50m/min | ||||
Motor power | The motor power depends on wire materials and sizes | ||||||||
Block Diameter | 800mm |
Raw material | High/medium/low carbon steel; Stainless steel |
Inlet wire size | 5.5-12.0mm |
Outlet wire size | 5.0-11.0mm |
Compression ratio | Max. 30% |
Drawing speed | 125m/min (Working speed) |
Control method | SIEMENS PLC control |
Main machine photos:
Main drawing machine part:
---Casted steel material for the blcok
---Tungsten carbide coated on block surface
---Adjustable die box
---High efficiency of water cooling for blocks and dies.
---NSK bearing for the block and reducer
---Whole line controlled by PLC program
Vertical pay-off
---1.5 tons of loading capacity
---Equipped with hydraulic station
---Equipped with Siemens motor
Coiler take-up
---500mm block size
---Equipped with straighteners
---Continuously for wire coiling
Electrical cabinet

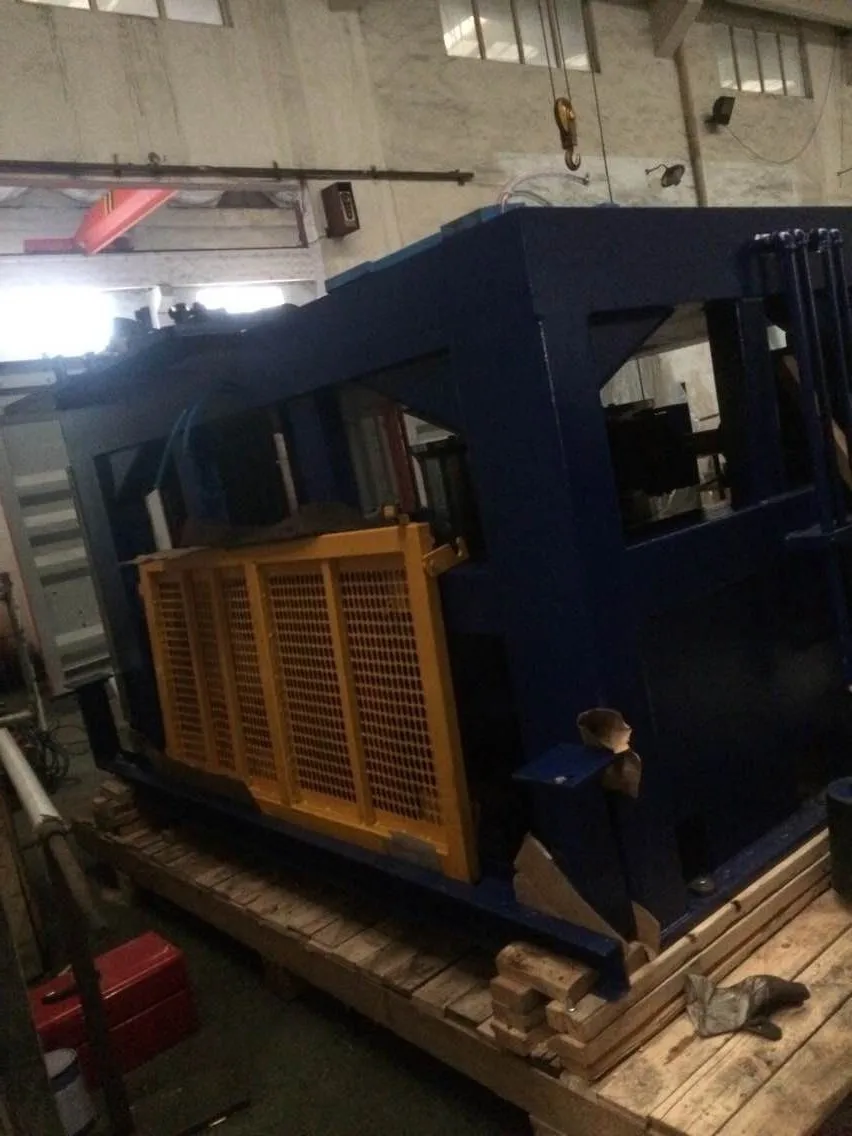

DL 800 inverted vertical drawing machine

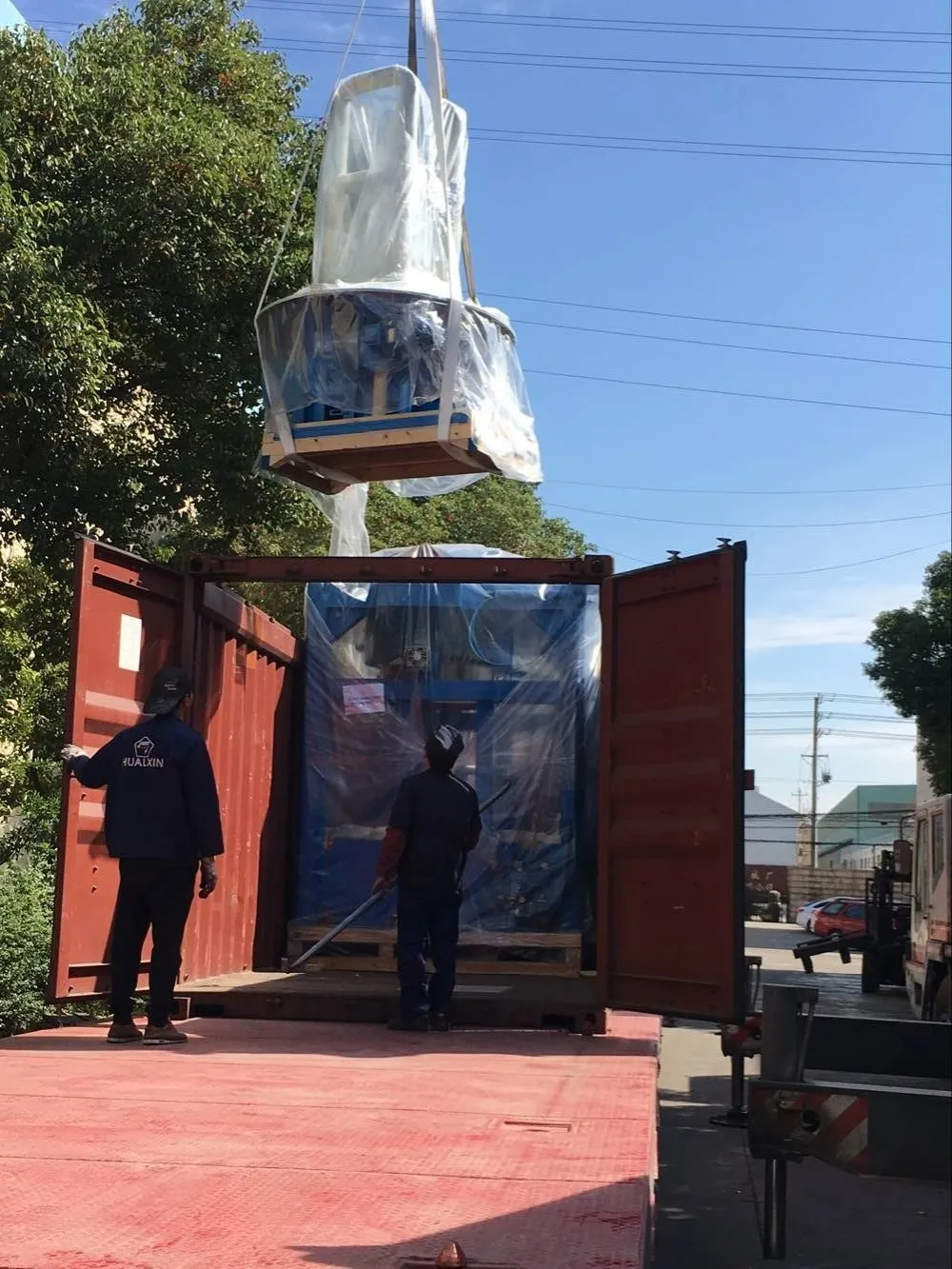

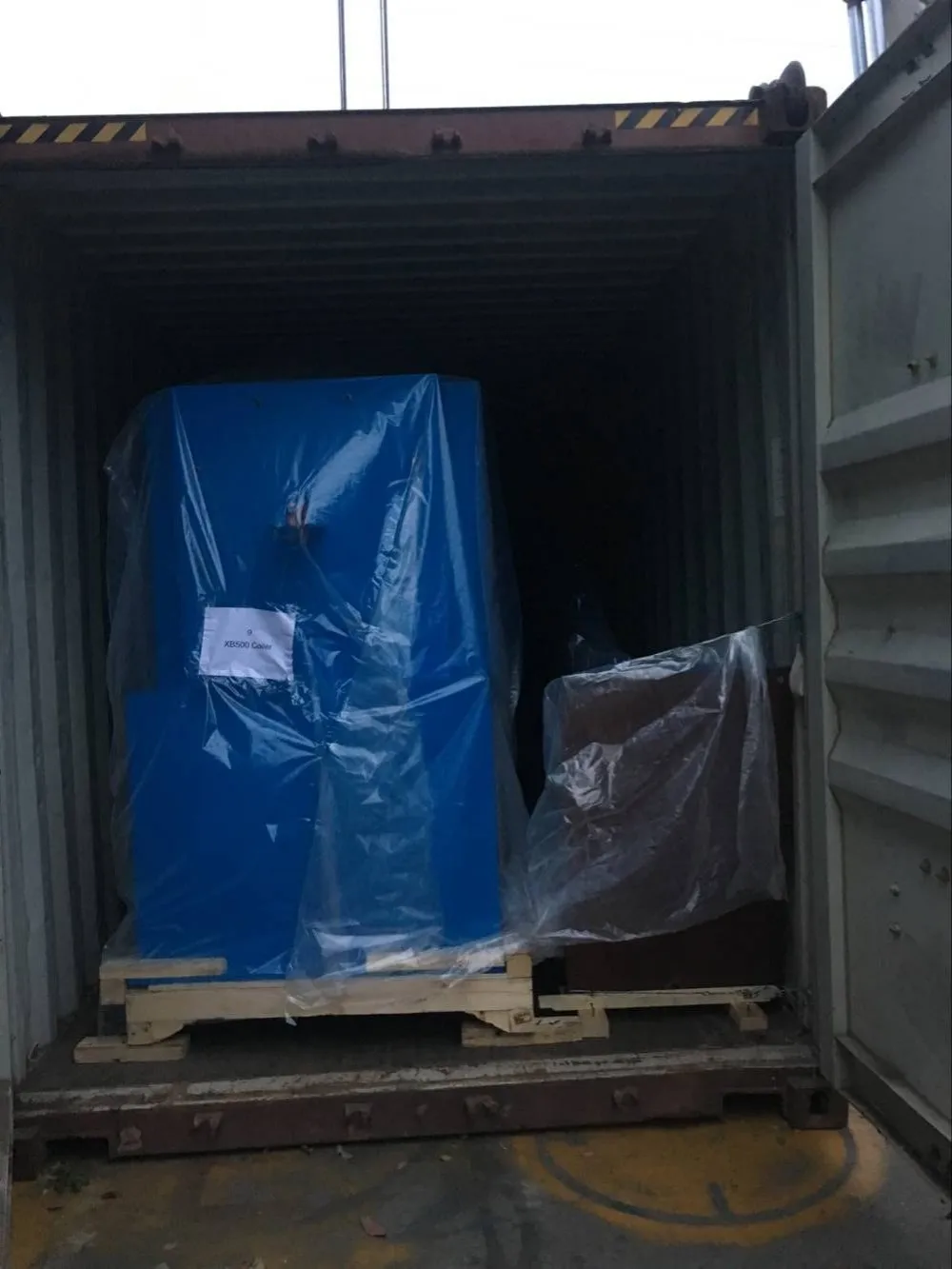

Loading to the containers
Our Service
Pre-sales Service
---Offer technical & commercial quotation
---Factory visiting
---Quick response for any questions
After-sales Service
---Provide technicians available to service overseas
---24hours service for customers
---Further technical communication
Packing & Delivery
Packaging | ||
Size | 3.23m(L)*2.26m(W)*3.15m(H) | |
Weight | 6380KGS | |
Packaging Details | The normal package is wooden pallet (Size: L*W*H). the wooden pallet will be fumigated. The machine will be also pacakged with films to prevent dust and moist-proof. | |
Packaging | ||
Size | 2.55m(L) * 1.32m (W) * 2.40m (D) | |
Weight | 2350KGS | |
Packaging Details | The normal package is wooden pallet (Size: L*W*H). the wooden pallet will be fumigated. The electrical cabinet will be packaged with fumigated wooden box. We can also make the packages according to customers requirements. | |
