Hydraulic Electric manual Bus bar bending tool for copper/ aluminum
- Category: >>>
- Supplier: Jinan Jingpeng Cnc Machinery Co. Ltd.
Share on (60345431141):
Product Overview
Description
Hydraulic Electric manual Bus bar bending tool for copper/ aluminum
.
Product Description

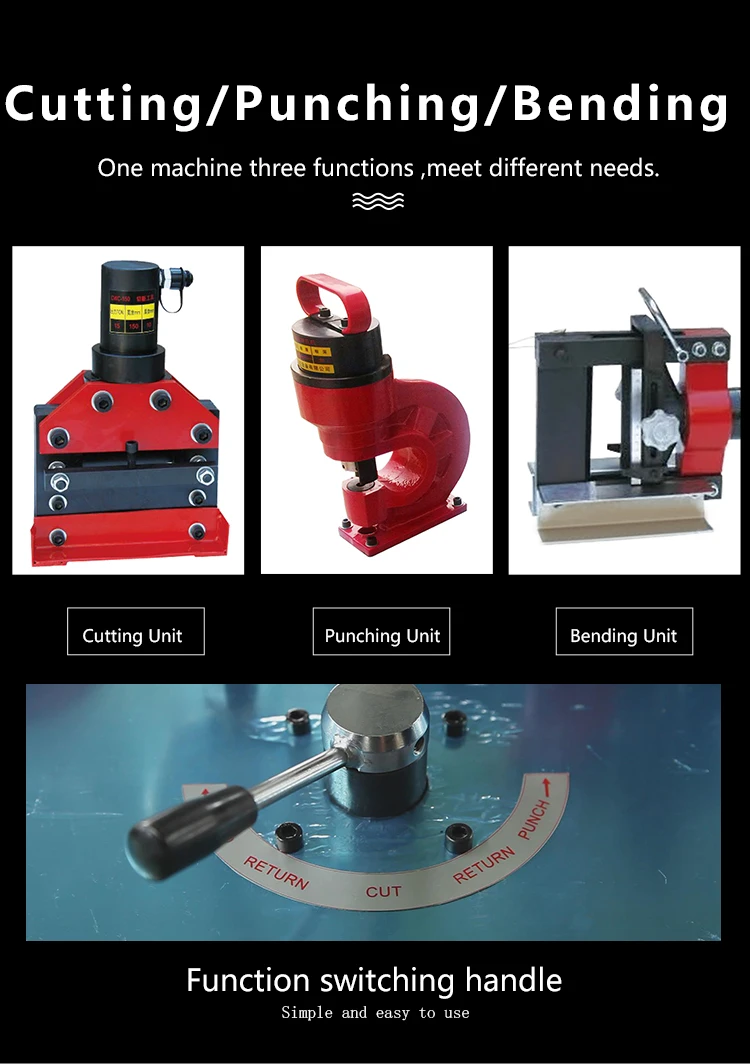

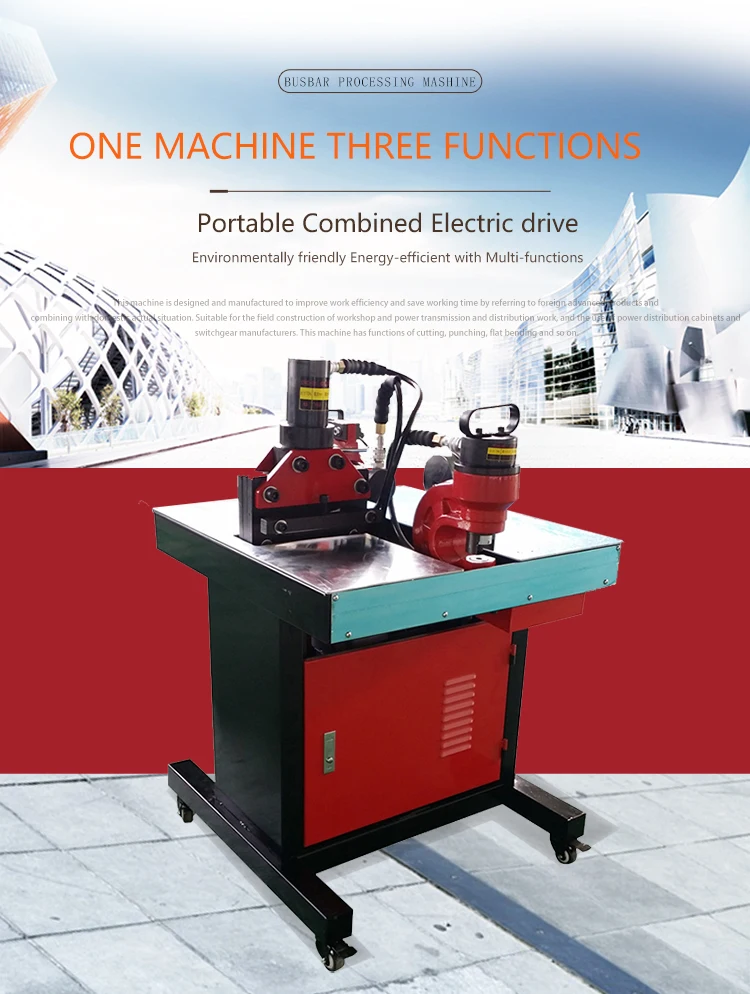

Hydraulic Electric manual Bus bar bending tool for copper/ aluminum has three units:punching, shearing and bending.It is easily to adjust each unit to shorten the processing time and improve the production efficiency.
Work Unite:
Bending cutting punching independently .
Metal Processed on :
Brass/Copper and Alumimum Busbar.
Functions:

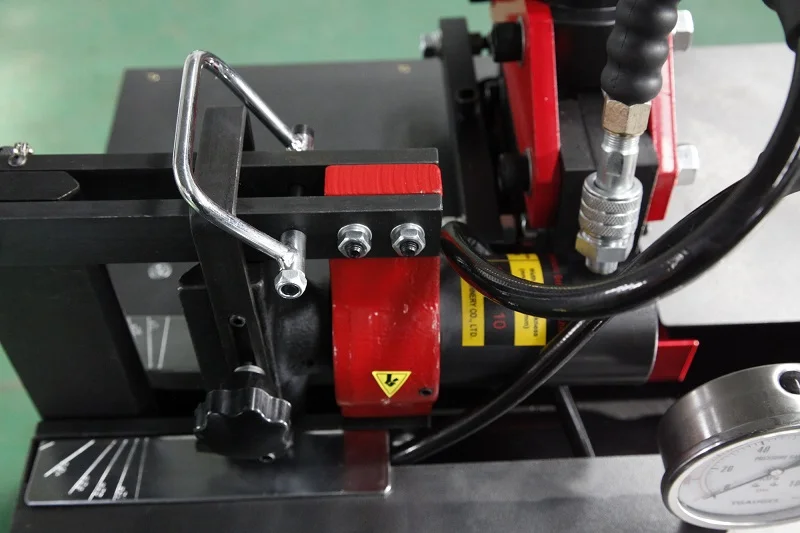

1. bending at vertical and horizontal direction.

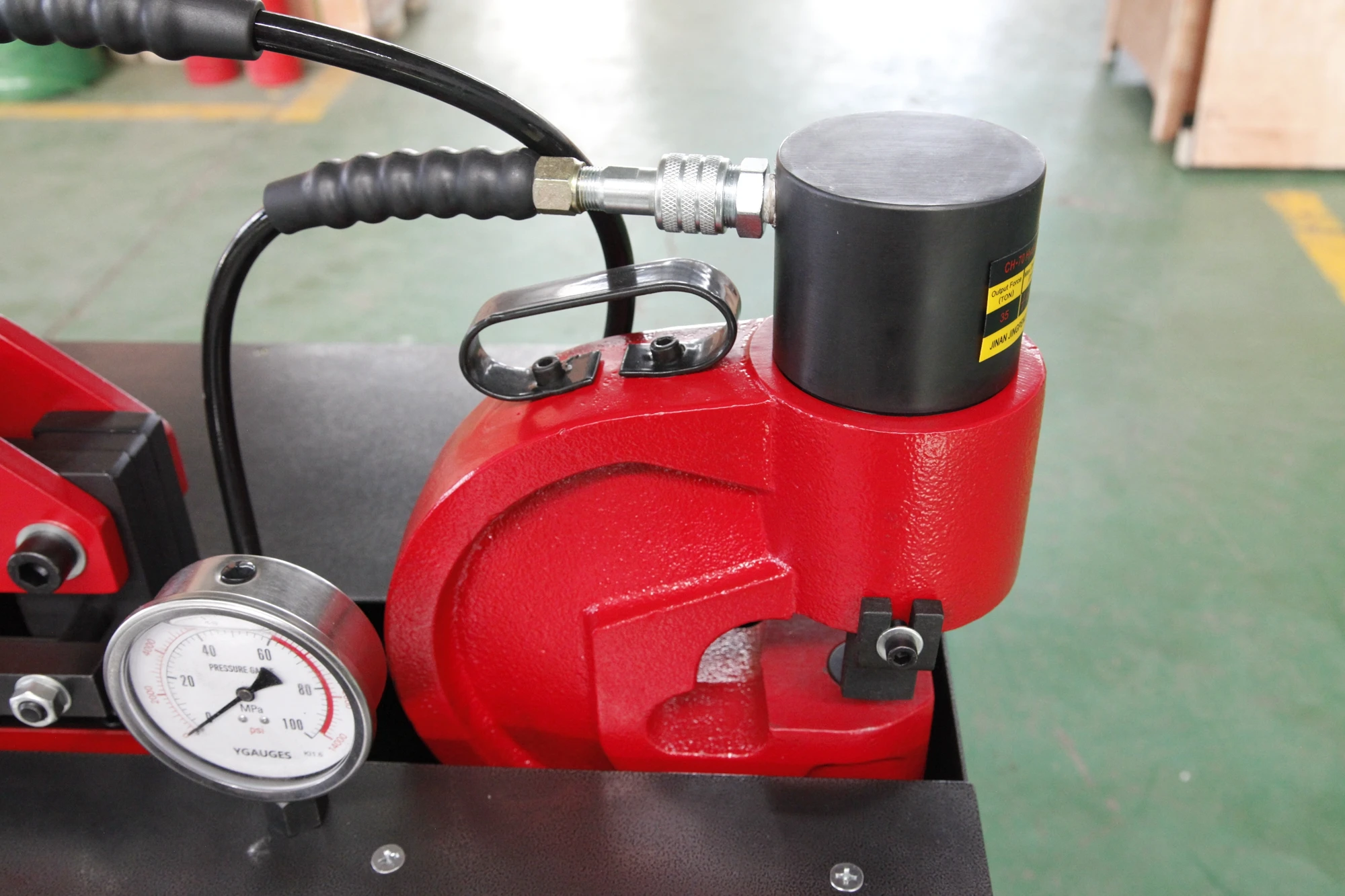

2. punching for round and oblong hole.

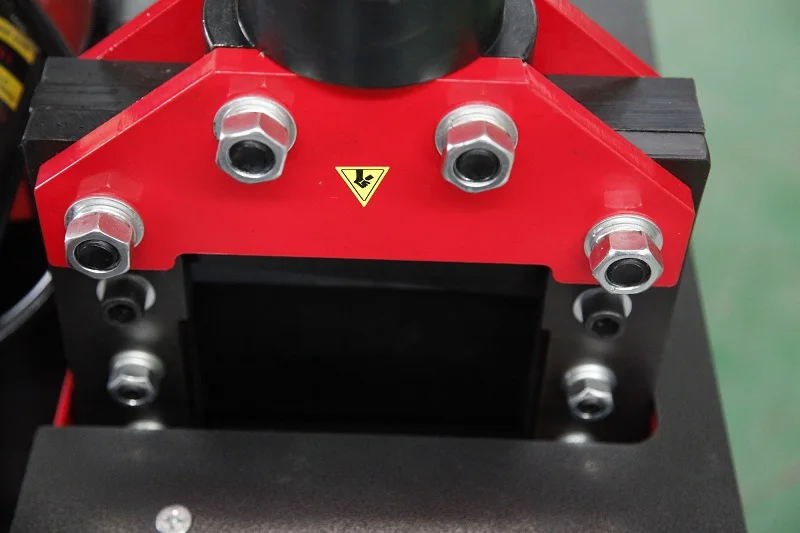

3. cutting busbar.
Technical Parameters
Parameters Of Busbar bending cuting / Shearing Punching Machine
| Unit | Parameter |
|
| JPMX-301A |
Work piece |
| copper/ aluminum busbar |
Input voltage |
| 220V |
Rated oil pressure | KN | 630 |
Max. cut size | mm | 10*150 |
Max. punch size | mm | 10*150 |
Max. bend size | mm | 10*150 |
Out dimension | mm | 690(L)*700(W)*1060(H) |
Diameter of standard dies | mm | Φ10.5 |
| mm | Φ13.8 |
| mm | Φ17 |
| mm | Φ20.5 |
Machine weight | kg | 170 |
Main Features:
1. The cut surface is smooth and neat, no droop, no burrs, no waste
2. Easily to be moved with four castors
3. Adjustable working stroke
4. on users requirement, special mold for special shape

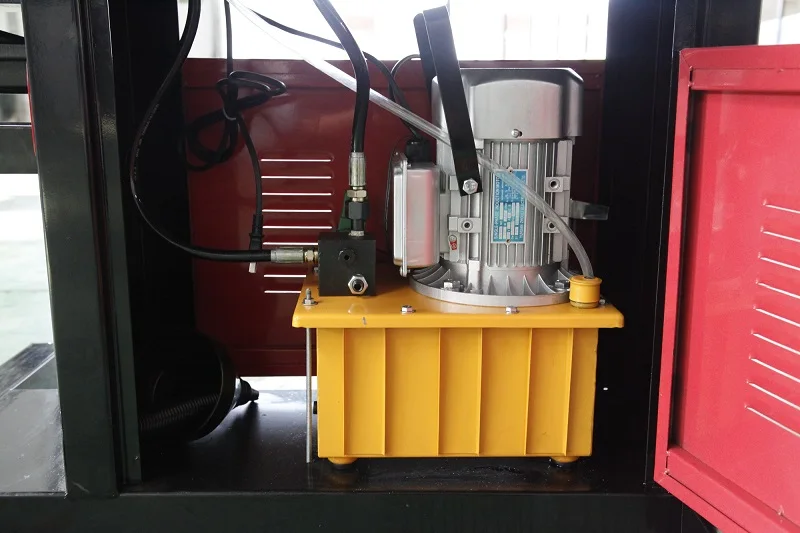

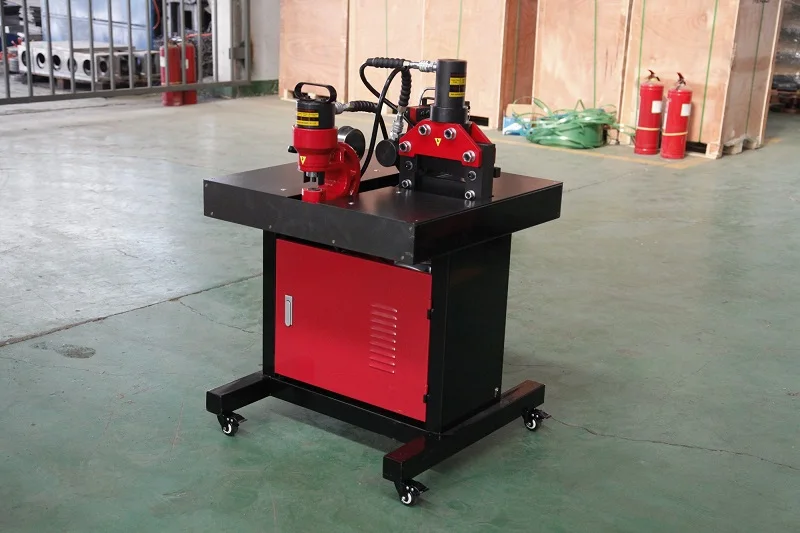

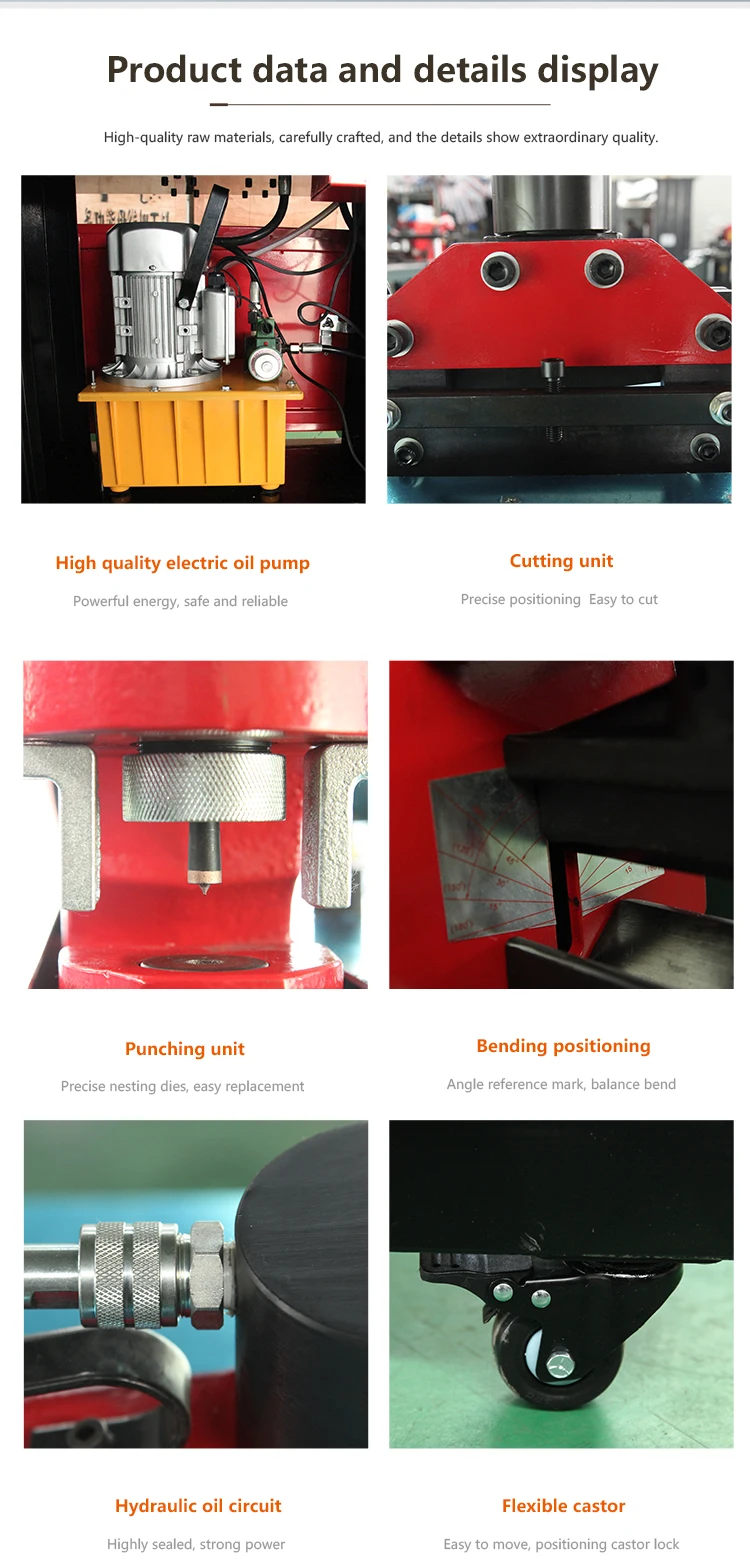

Detail Pictures

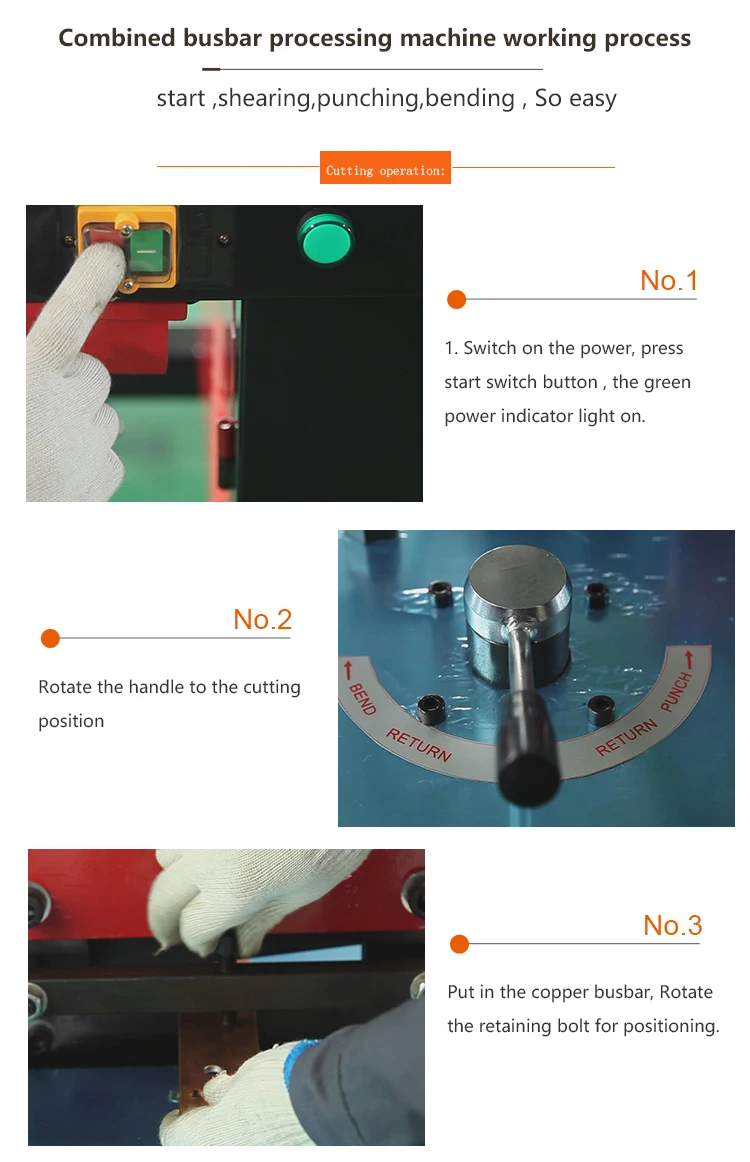

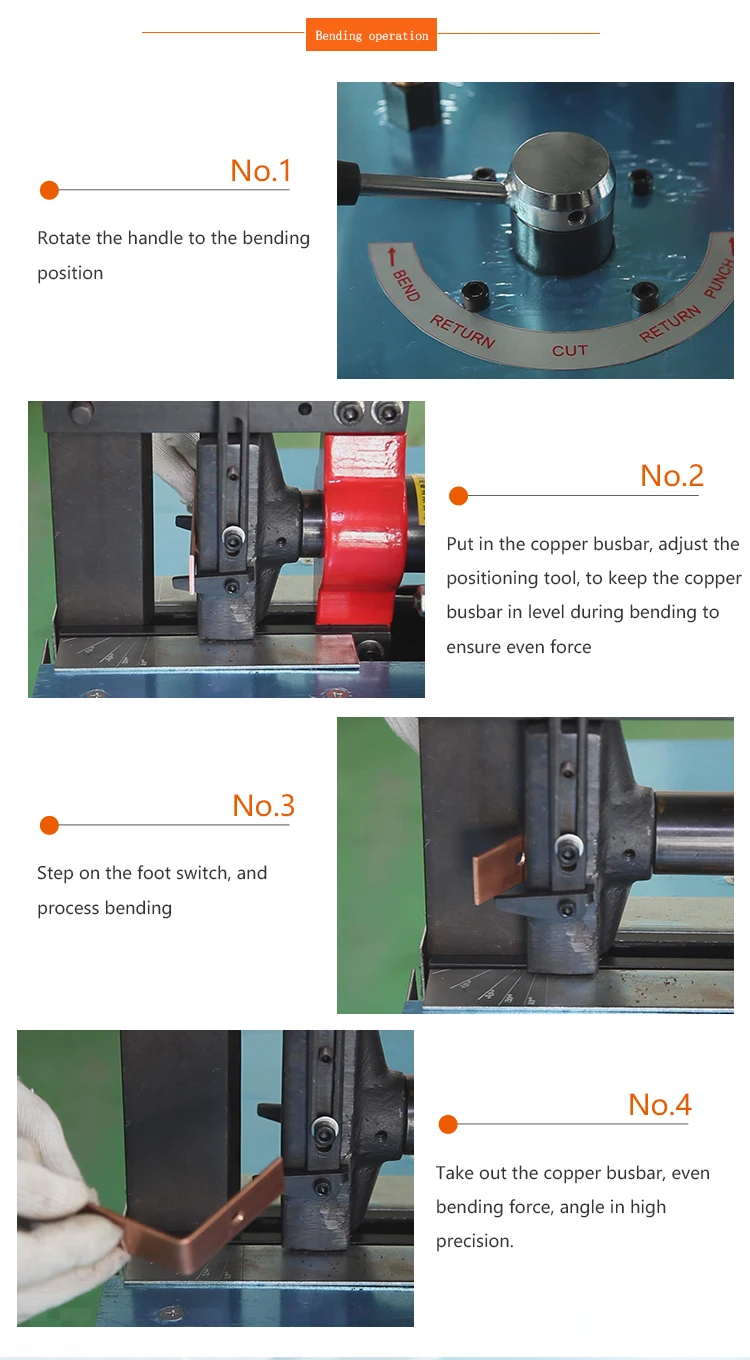

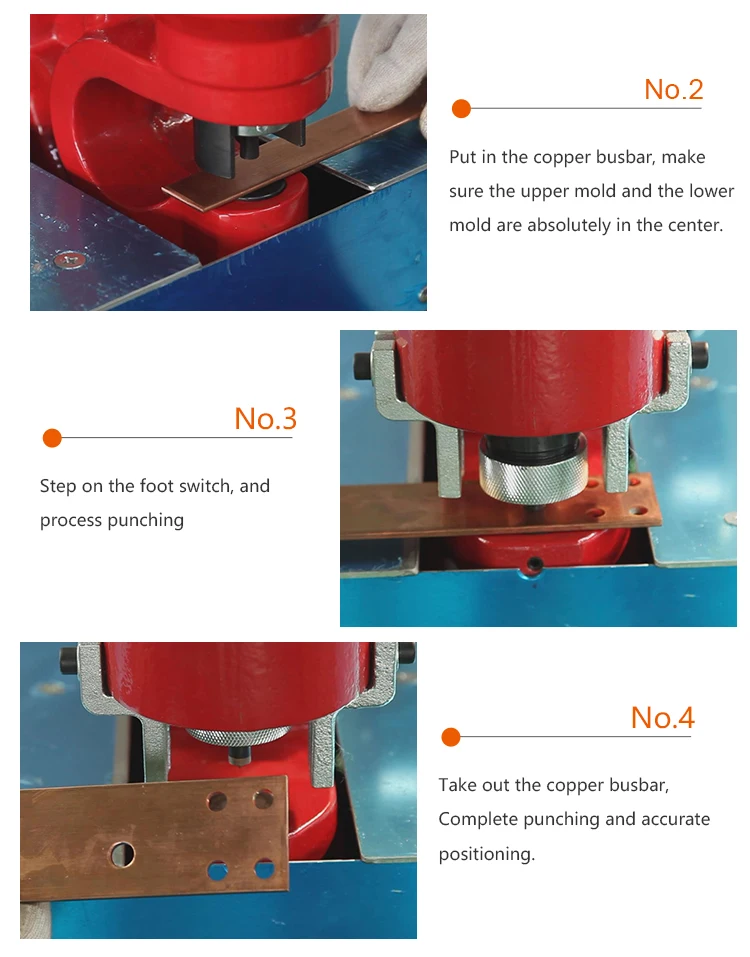

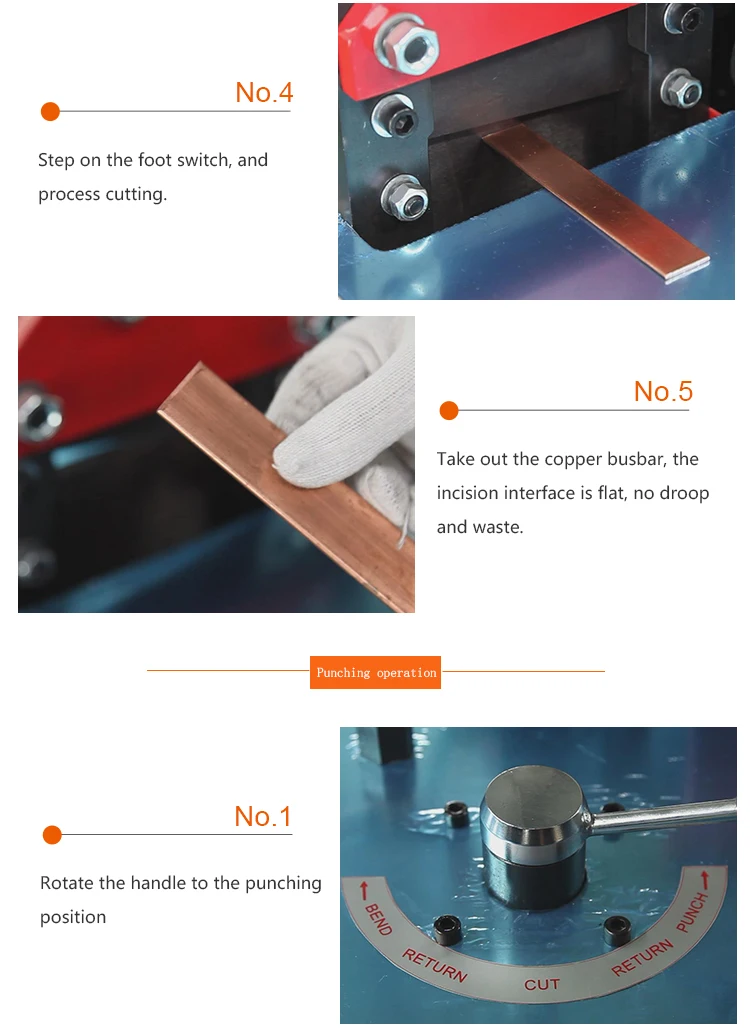

How does Busbar machine finish Bending Cutting Punching :
Application Area:
Switch cabinet, electric control panel manufacturing , high low voltage switchgear, eletric transformer station,Electric panel ,voltage transformer,appliance swich,ship manufacturing,electric elevator manufacturing,electric cabinet manufacturing , Power distribution system product maufacturing.

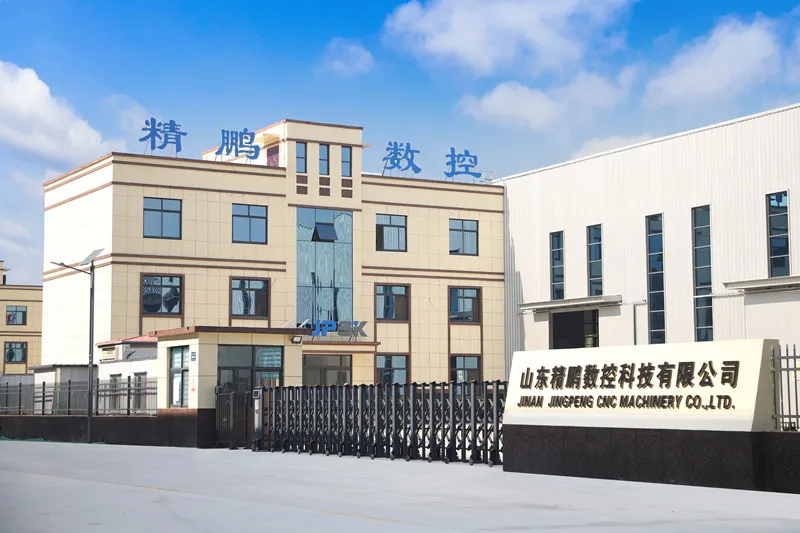

Our Factory :
