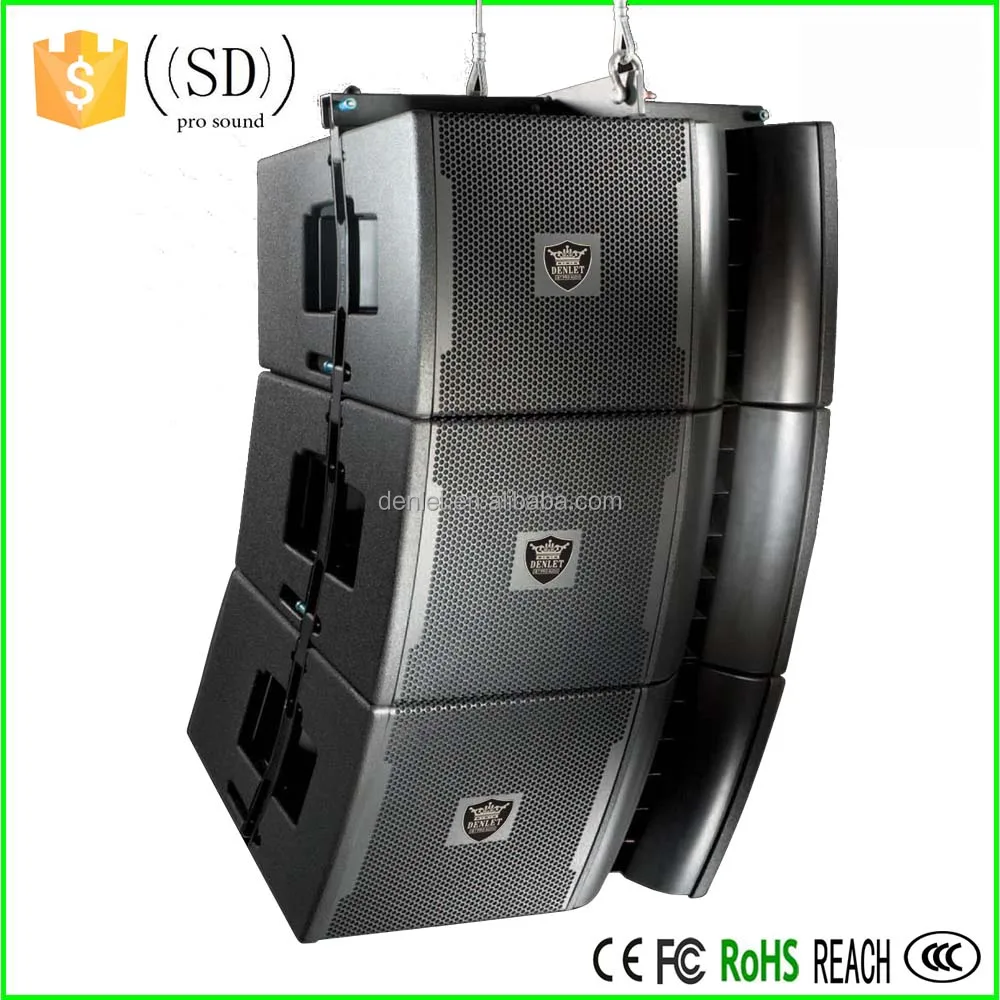

LA932 single 12inch 3 way passive line array speaker L932
- Category: >>>
- Supplier: Guangzhou Shengda Audio Equipment Co. Ltd.
Share on (60345596096):
Product Overview
Description
Main Picture

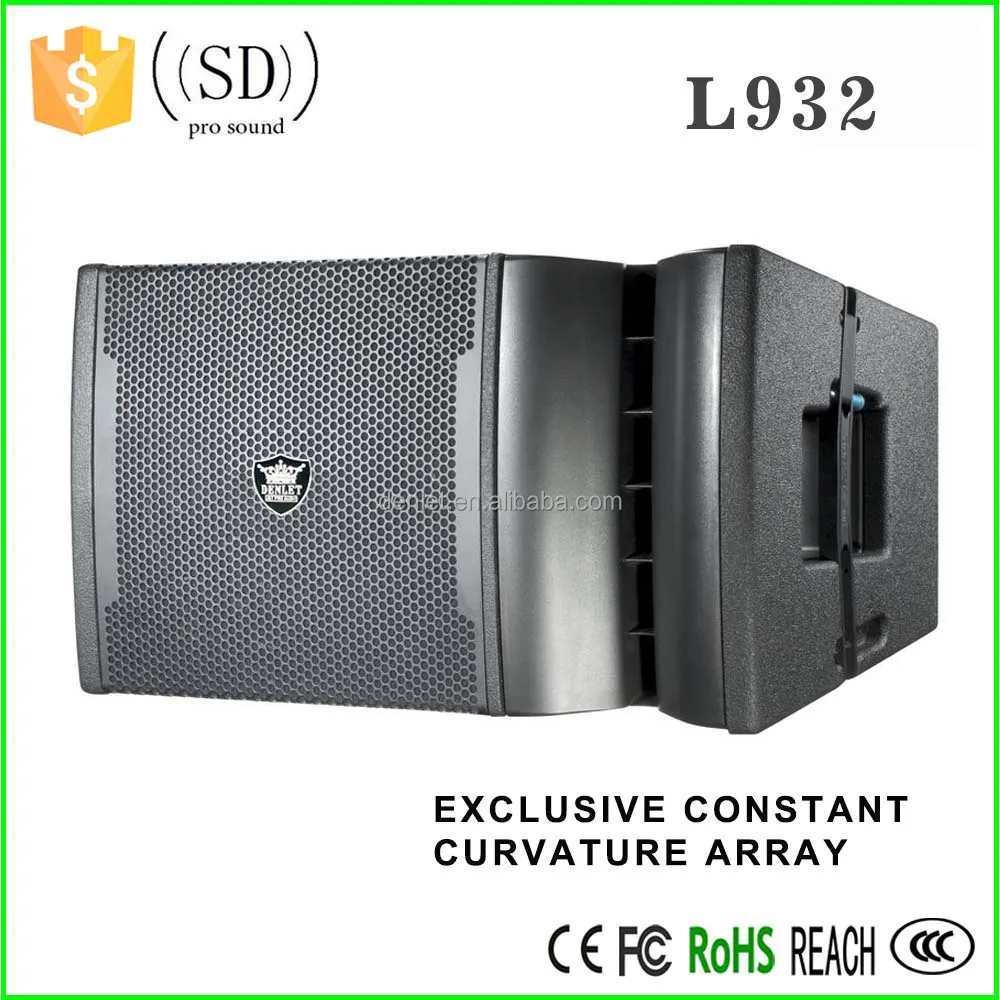

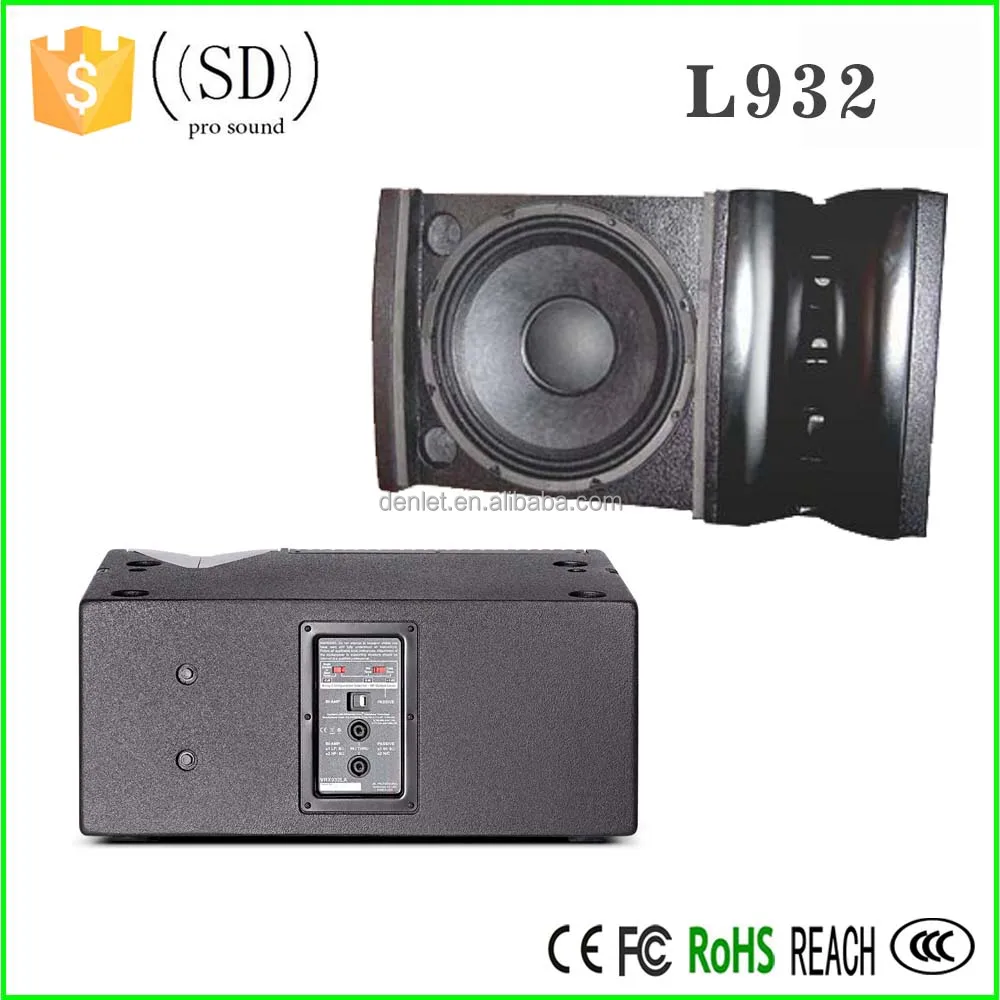

SD-L932
12 in. Two-Way Powered Line Array Loudspeaker System
The L932 is a powered, lightweight, compact 12" two-way line-array speaker system designed for use in arrays of up to five units. L932 is the ideal choice when line-array performance is needed but the venue size doesn't call for the very long-throw characteristics of larger line-arrays and a fast and easy setup is vital.
Product Description
| Power Rating | 2000 Watts Peak |
| 875 Watts Continuous | |
| Frequency Range | 45 Hz - 18 kHz |
| (-10 dB) | |
| Dimensions | 349 mm x 597 mm x 444 mm |
| (H x W x D) | (13.75 in x 23.5 in x 17.5 in) |
| Frequency Response | 75 Hz - 20 Hz |
| (+/-3db) | |
| Maximum Peak Output | 144 dB SPL at 1m |
| Coverage Pattern | 100 x 15 nominal |
DPC-2 Output as (Continuous IED shaped pink noise into rated load impedance) | LF: 750 Watts, HF: 125 Watts |
| LF Driver | 1 x LF12G301 305 mm (12 in) |
| HF Driver | 3 x 2408, 38 mm (1.5 in) |
| AC Power Operating Range | 90-132 VAC or 216-264 VAC, 50/60 Hz |
| Input Connector | 2 x Neutrik@, Speakon@, NL4MP |
| Enclosure | 15mm layer plywood |
| Suspension / Mounting | line array frame kit, 10mm forged eyebolts or internal dual angle 36mm pole mount cup for pole or tripod mounting |
| Finish | Black DuraFlex finish |
| Grille | Powder coated, black, 16-gauge perforated steel with acoustically transparent foam |
| Net Weight | 24 kg (52 lb) |
Product Detail
Company Information
Company Information:
Our product range as follows: woofer speaker, tweeter speaker, coacial speaker, professional speaker box, sound system proposal, microphone and etc.
As one of the OEM & ODM suppliers,We specialize in design and manufacture all kinds of products and accessories for customers.
Our Sales Teams at April 5th,2015,Guangzhou Exhibition:

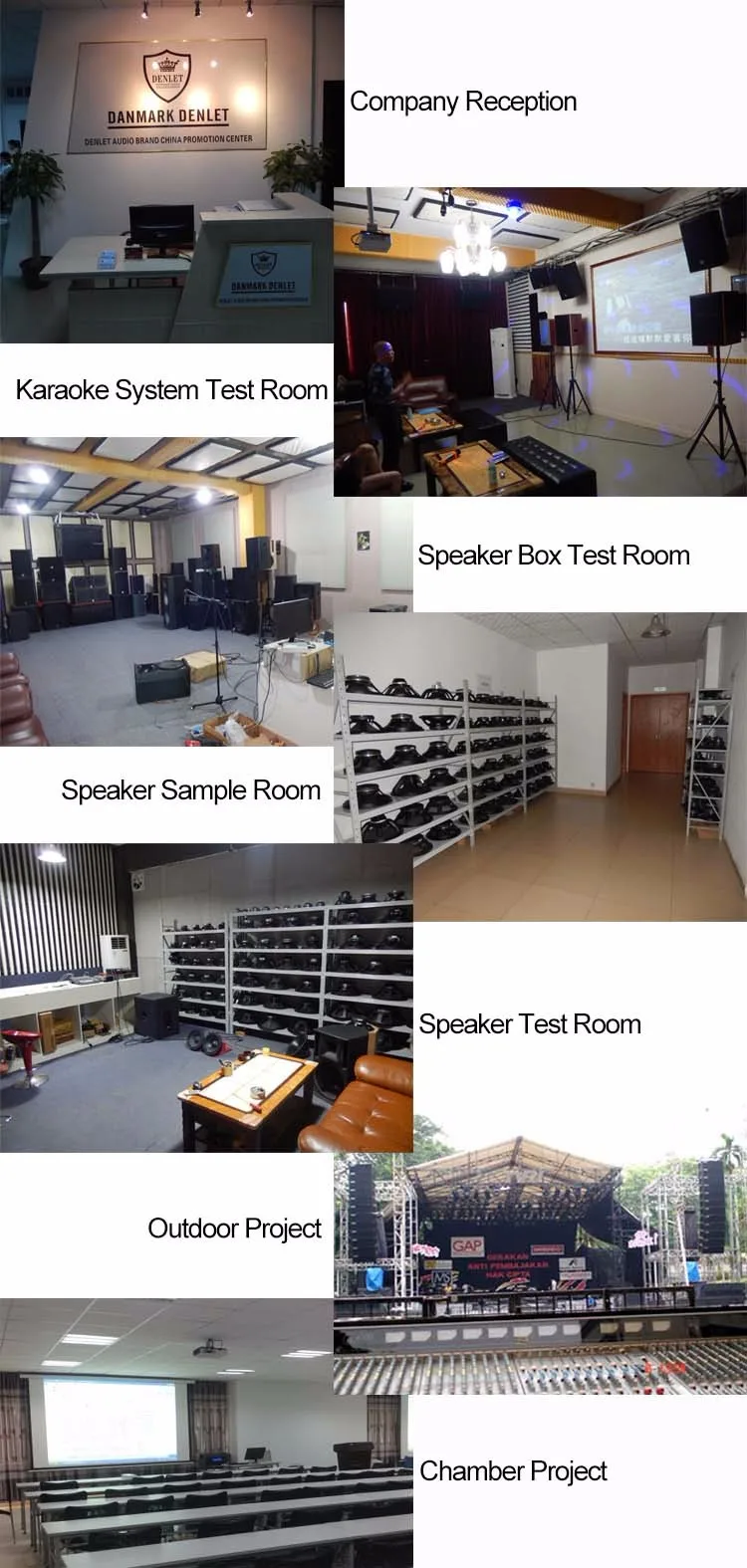

Company Detail:
