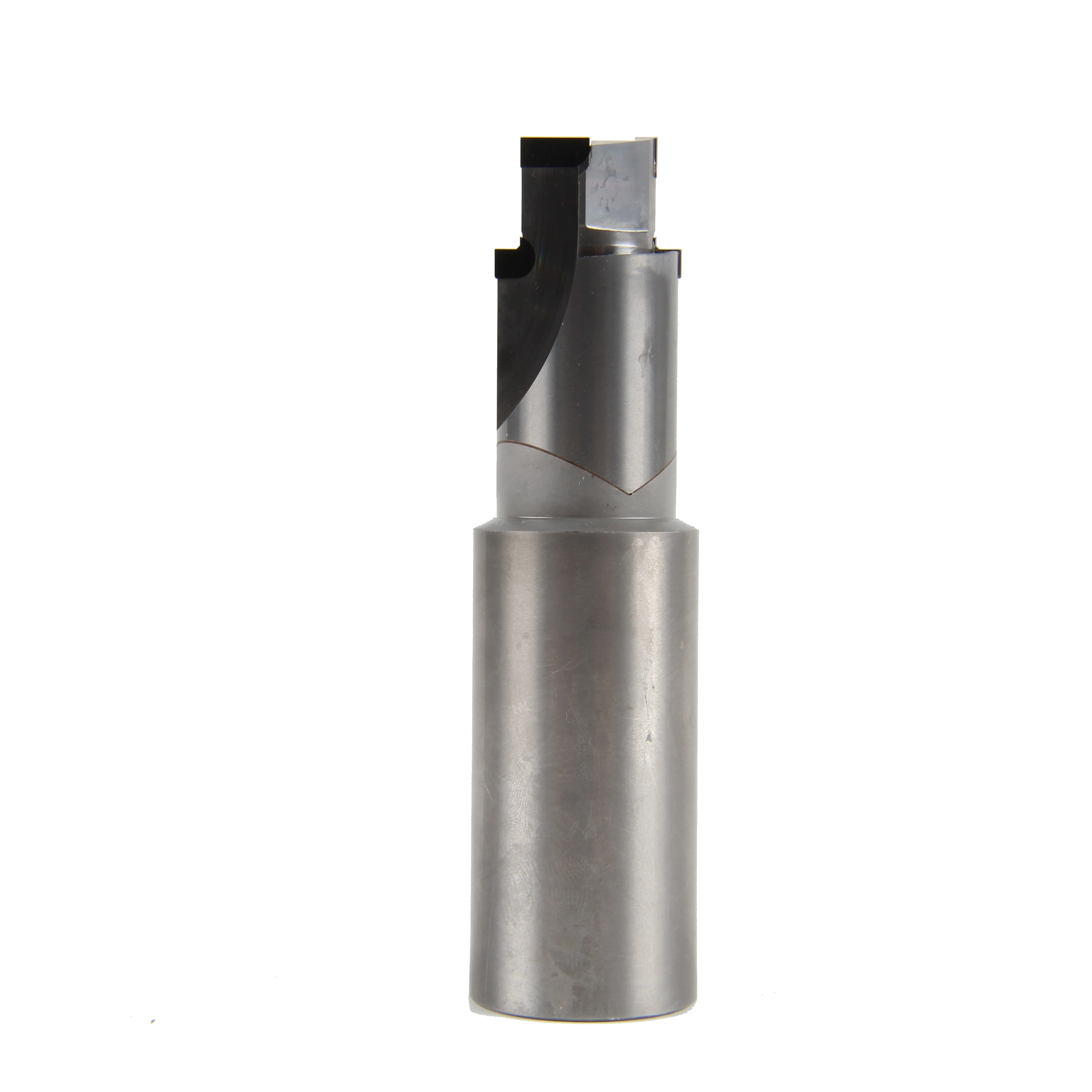

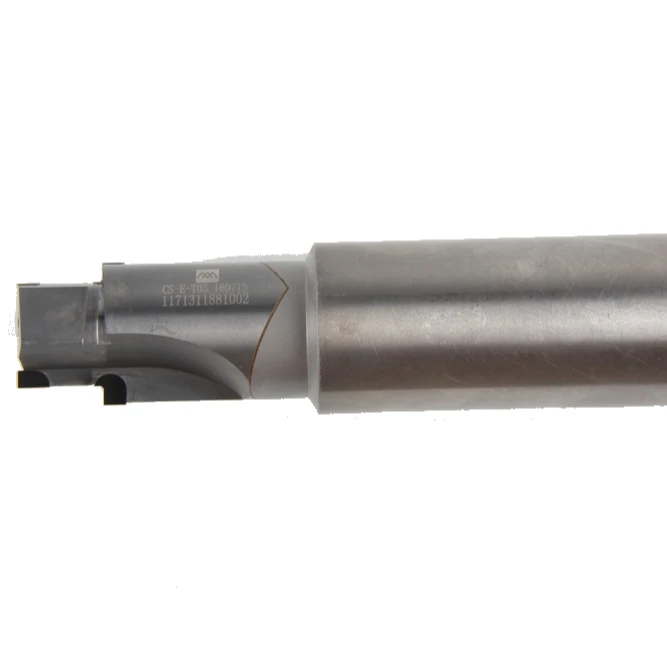

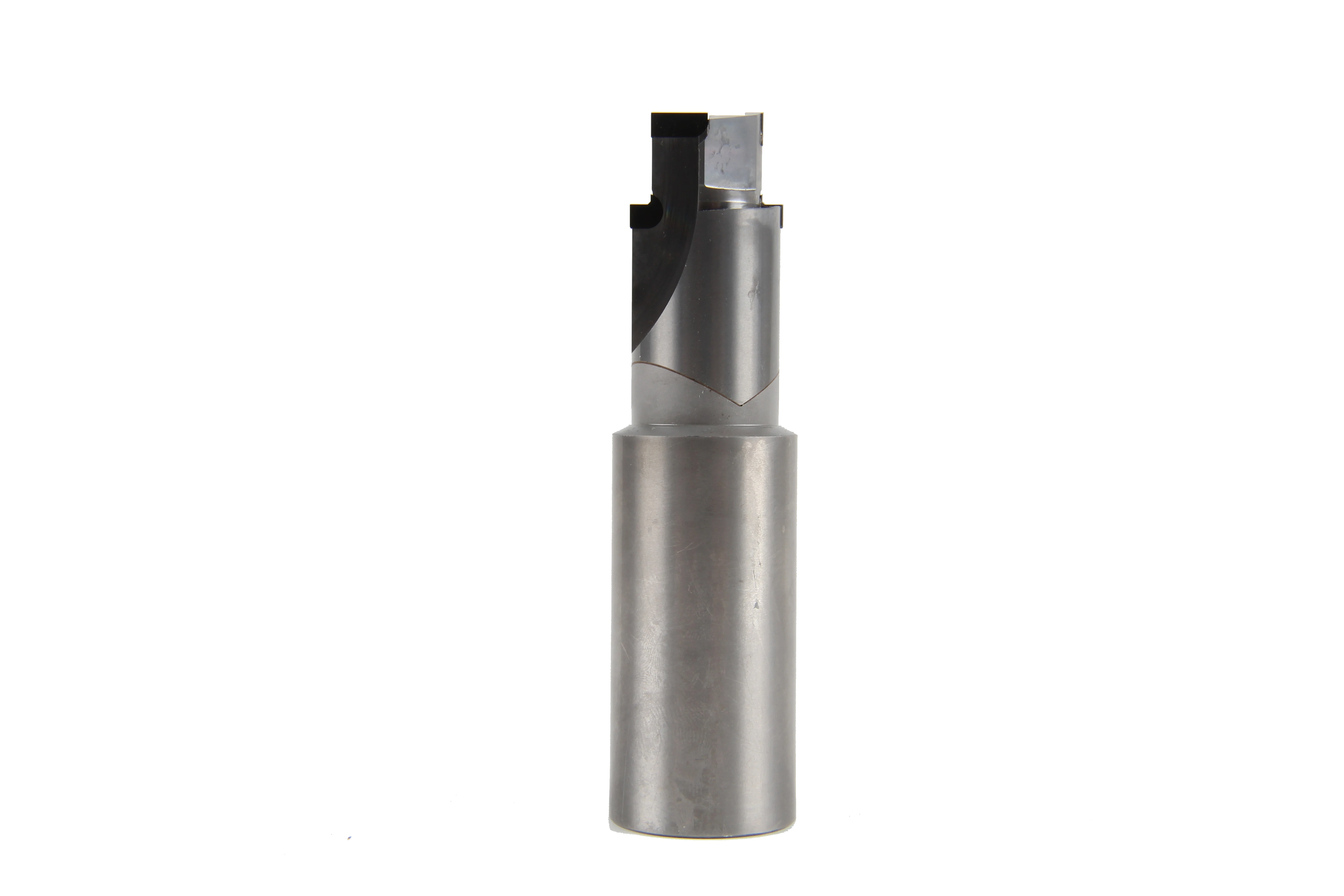

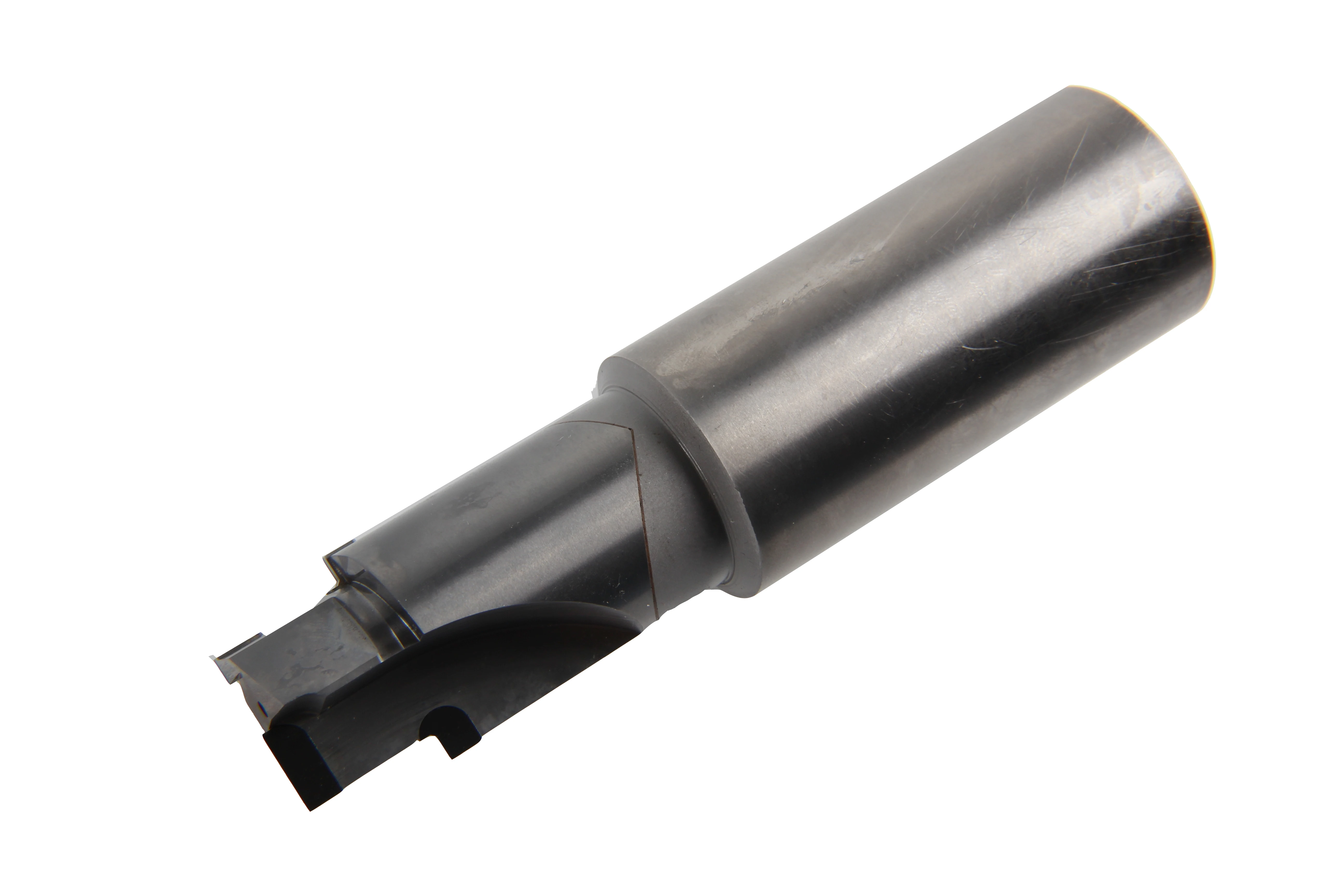

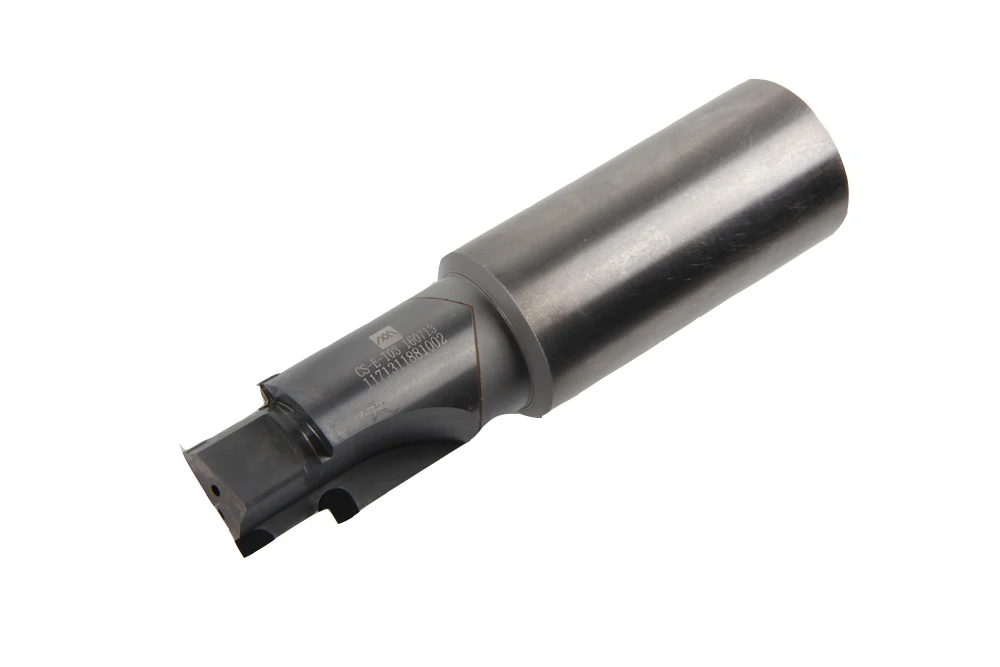

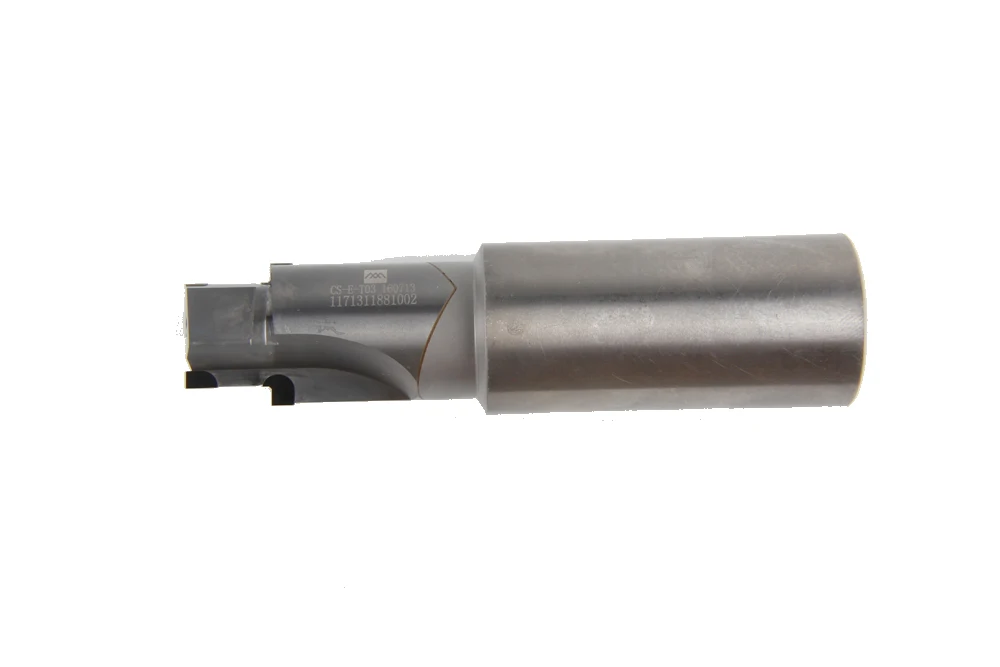

Алмазный расширитель PCD по лучшей цене, супер жесткие режущие инструменты

Product Overview

Description





1.Application:finishing and roughing machining

2.Material Supplier:GE and E6

3.Certification: ISO14001:2015 , ISO9001:2015

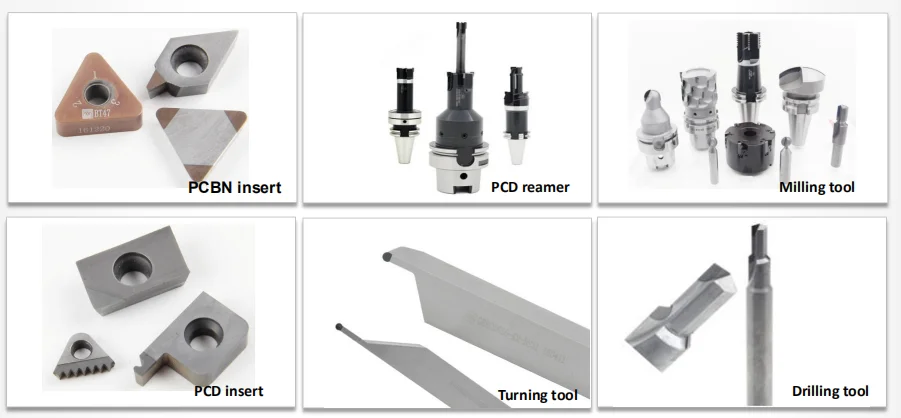

4.Productiong Range: PCD/PCBN insert,PCD Reamer, Turning/Lathe insert,End Mills,PCD Milling Insert,Threading Insert, Cutting Solution for auto industry

5.PCD/PCBN Machining Character: PCBN For Rough Machining Different types of PCBN exist for the rough machining of the materials listed above which are usually selected on the basis of the required amount of stock removal. For roughing cuts in excess of 1mm depth the PCBN is usually supplied in the form of solid ISO tips for use in a clamp type tool holder, designed for use with negative top rake geometry. It is also usual to provide a strengthened cutting edge by means of a lapped or honed 'T' land. Where roughing cuts up to 1mm only are to be taken or when the applications require positive tool geometry, a brazable type of PCBN may be employed. In these cases the inserts are fabricated in a similar manner to diamond tips but usually with a polished 'T' land. PCBN for Finishing A specific form of PCBN with reduced CBN content is supplied for use on fine finishing of hard ferrous materials. This material is capable, given the correct machining parameters, of producing turned finishes equal to those of ground components. The attendant cost savings found from switching from grinding to turning are often very dramatic. Again, the inserts are fabricated in a similar manner to those in PCD.

6.Workpiece Application Guidelines Polycrystalline Diamond (PCD) --aluminum, AL-Si alloys, MMC --copper and copper alloys --fiber reinforced plastics --graphite, and carbon composites --green or sintered tungsten carbide Polycrystalline Cubic Boron Nitride (PCBN) --grey cast iron --hardened alloy steel --hardened tool steel --powdered metal (sintered iron) --hard irons (Ni-hard, high Cr irons) --Ni & Co based thermal sprays --superalloys (heat treated)







PCD
appearance	shape	type	inscribed circle	thickness	Radius	Inner hole demeter
	TNMM	TNMM160404	9.525	4.76	0.4	3.81
		TNMM160408			0.8
		TNMM160412			1.2
	TCGW	TCGW110302	6.35	3.18	0.2	3.4
		TCGW110304			0.4
	TCGT	TCGT110202	6.35	2.38	0.2	2.8
		TCGT110204			0.4
		TCMT080202	4.76	2.38	0.2	2.4
		TCMT080204			0.4
		TCMT090202	5.56	2.38	0.2	2.8
		TCMT090204			0.4
		TCMT110301	6.35	3.18	0.1	3.4
		TCMT110302			0.2
		TCMT110304			0.4
	TPGW	TPGW080202	4.76	2.38	0.2	2.4
		TPGW080204			0.4
		TPGW090202	5.56	2.38	0.2	2.8
		TPGW090204			0.4
		TPGW110302	6.35	3.18	0.2	3.4
		TPGW110304			0.4
		TPGW160404	9.525	4.76	0.4	4.4
		TPGW160408			0.8
		TPGW160412			1.2
	TPGT	TPGT110302	6.35	3.18	0.2	3.4
		TPGT110304			0.4
	TPGN	TPGN090204	5.56	2.38	0.4	/
		TPGN090208			0.8
		TPGN110302	6.35	3.18	0.2	/
		TPGN110304			0.4
		TPGN110308			0.8
		TPGN160302	9.525	3.18	0.2	/
		TPGN160304			0.4
		TPGN160308			0.8



PCBN
appearance	shape	type	No of cutting edges	inscribed circle	thickness	Radius	Inner hole demeter
	TNGA	X-TNGA160404	1          3          6	9.525	4.76	0.4	3.81
		X-TNGA160408				0.8
		X-TNGA160412				1.2
		X-TNGA160416				1.6
	TCGW	X-TCGW090202	1	5.56	2.38	0.2	2.8
		X-TCGW090204				0.4
		X-TCGW110202	1	6.35	2.38	0.2	2.8
		X-TCGW110204				0.4
	TPGW	X-TPGW080202	1	4.76	2.38	0.2	2.3
		X-TPGW080204				0.4
		X-TPGW090202	1	5.56	2.38	0.2	2.8
		X-TPGW090204				0.4
		X-TPGW090208				0.8
		X-TPGW110302	1	6.35	3.18	0.2	3.4
		X-TPGW110304				0.4
		X-TPGW110308				0.8
		X-TPGW160304	1          3	9.525	3.18	0.4	4.4
		X-TPGW160308				0.8
		X-TPGW160404	1          3	9.525	4.76	0.4	4.4
		X-TPGW160408				0.8
	TPGN	X-TPGN110304	1	6.35	3.18	0.4	/
		X-TPGN110308				0.8
		X-TPGN160304	1          3	9.525	3.18	0.4	/
		X-TPGN160308				0.8















Packaging: Plastic box



Rose plastic cases protect tools perfectly



All products well package with or without labels



Customers requirement lables are accepted



Shipping Time: 5-7 working days



Shipping Method: DHL, UPS, FEDEX, EMS etc



1.Are you factory?

  Yes,we are

2.Where are your factory?

   We are in Shanghai.

3.Could we visit your factory.

   Sure.Our address is here:

   NO.265 ZhanglianT ang Road,Qingpu District,Shanghai, P.R. China 201716

4.How long is your delivery time?

   General 20 days,but we can promote more if you're very urgent.

5.How could I get your quotation?

   We really need your drawings or samples

6.How about your aftersale service?

   Our sales team will not stop to help you once we begin the business.

7.Could we begin the business at low quantity.

   Absolutely.We always think that it is a chance for us and very cherish

   your friendship.



24hrs service,welcome to contact us!
