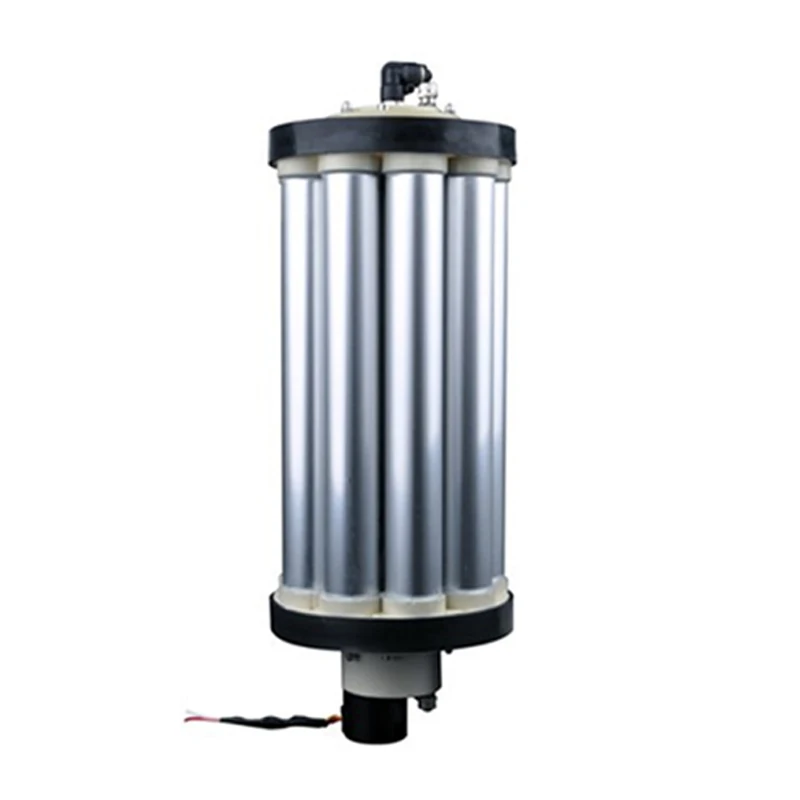

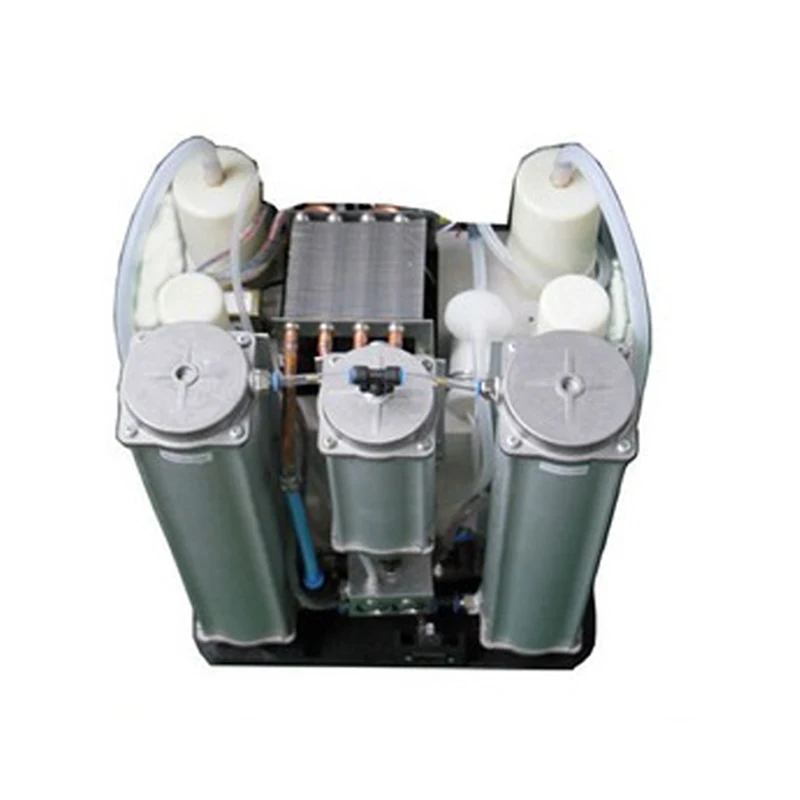

93% Two towers PSA oxygen concentrator molecular zeolite sieve aquarium oxygen tube

Product Overview

Description

  High purity 3L 5L 8L15liter portable oxygen generator for room and home



Description:

1. Simple structure, easy to operate, and stable oxygen output.

2. Material: zeolite/alumina; each unit can work independently, and oxygen output can reach to 3-10 LPM or higher.

3. With chiller for cooling air, no need additional refrigerant dryer for reducing cost.

4. Oxygen purity can up to 90+5%. Two oxygen cylinders exchange working, auto drain water, nitrogen and other impurities output.

5. Parts with shipping: chiller, fan and air inlet pipe.

6. Oxygen outlet pressure: 0.06-0.08Mpa.

Specification

Item	Unit	High Efficiency Material
		OGP-O3L-1	OGP-O5L-1	OGP -O8L-2	OGP -O10L-2
Oxygen output	LPM	3	5	8	10
Oxygen concentration	%	90%±3%	90%±3%		90%±3%
Power	W	280	450	650	650
Pressure(inlet)	Mpa	0.18-0.2	0.2
Pressure(outlet)	Mpa	0.06-0.08
Temperature	℃	indoor temperature
Relative humidity	%	≤85%
Noise	Db	≤ 55	≤60	≤60	≤70
Dimension	mm	550×160×80	550×180×80	610×310×120	610×310×120
Weight	kg	9.25	16.7	19.1	19.1

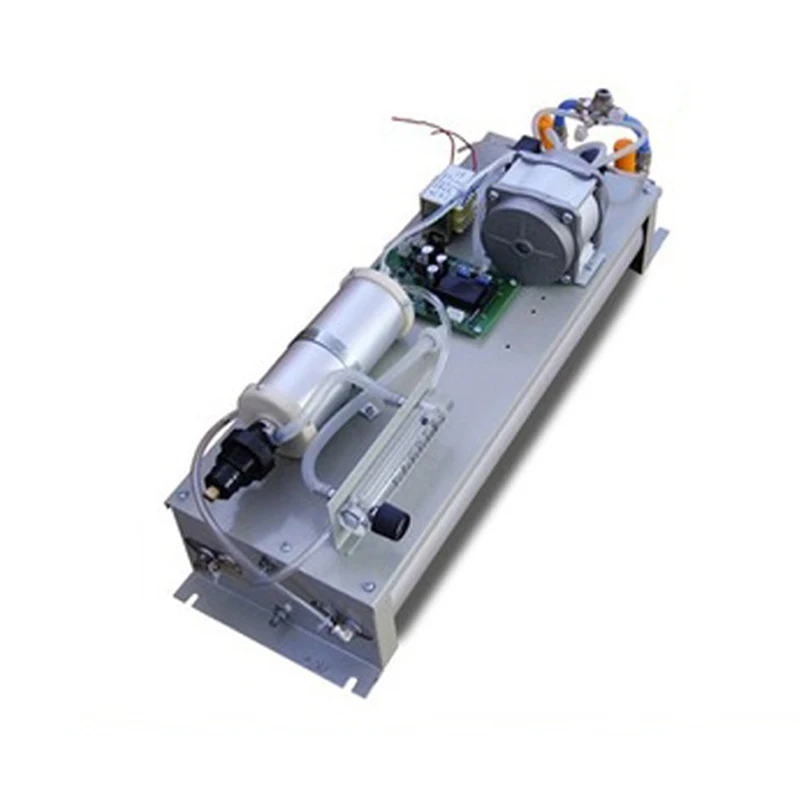

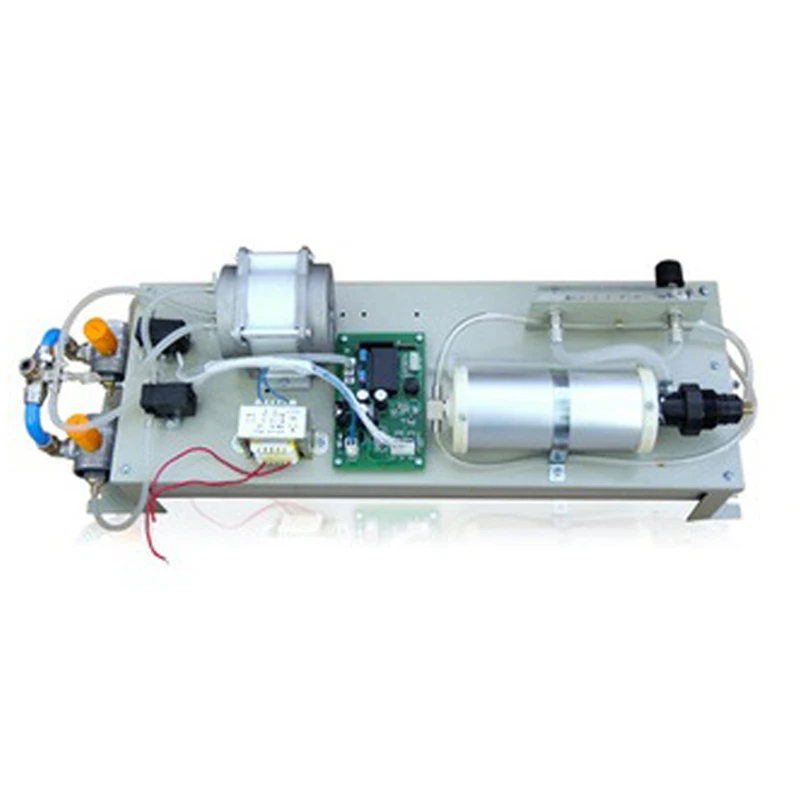

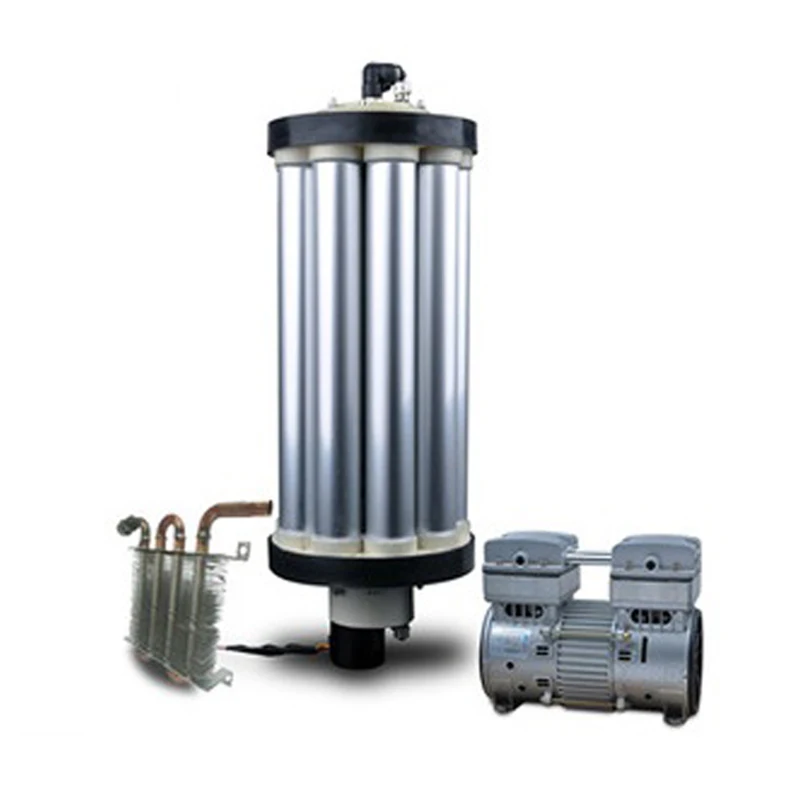

OGP-OL 3L 5L 8L 10L oxygen generator part include oxygen tower ,air compressor ,chiller, air flow meter etc.



OGP-OX 3L 5L 7.5L 10L oxygen generator part include oxygen tower ,air compressor ,chiller, air flow meter etc.

OGP-TOA 3L 5L 8L 10L oxygen generator part include oxygen tower ,air compressor ,chiller, air flow meter etc.
