FN150 cashmere de hairing machine for cleaning wool

Product Overview

Description



FN150 Cashmere Carding Machine for cleaning wool

1.Model:YQ-FN186 YQ-FN150
2.Characteristic:

(1)Cylinder transmission using centrifugal friction clutch and v-belt for driving ,with reliable structure ,smooth start ,the motor sit on the rack ,no need of anchor bolts.

(2)Randolph transmission using electromagnetic clutch, electromagnetic switch outside the shield , operating easier safer and more effective then before.

(3)The bottom is 6mm closer then before ,reduce the loss of the short velvet

(4)The board is 42mm width ,reduce the loss of fiber

(5)Feed roller using spring-loaded , more convenience and feeding uniform.

3. Main technical parameters

Model:	YQ-A186		YQ-FN150
Working Width:	1020mm		1500mm
Dimensions(L*W*H)	Main Engine	3300*1800*1800mm	3300*2450*1800mm
Weight:	About 4.1 Tons		About 5.8 Tons
Dragging Power:	Main Engine	2.8KW	3.0KW
Machine Type:	Right Hand		Right Hand
Main Parts	Licker working Speed		500-600r/min
	Cylinder Working Speed		180-210r/min
	Doffer Working Speed		10-12r/min
	The Chopper Frequency		1200/min
Fiber Loss	< 2%
Output	4-8 kg/H		5-10kg/H

4. Details.

4.1Machines Parts R & D and production---No best, only better.

1..Cylinder transmission adopts centrifugal friction clutch and V-belt for driving,with reliable

structure,smooth start,the motor sit on the rack,no need of anchor bolts.

2.Doffer transmission using electromagnetic clutch,The protective cover is provided with anelectromagnetic switch ,operating easier safer and more effective than181 connecting rod.

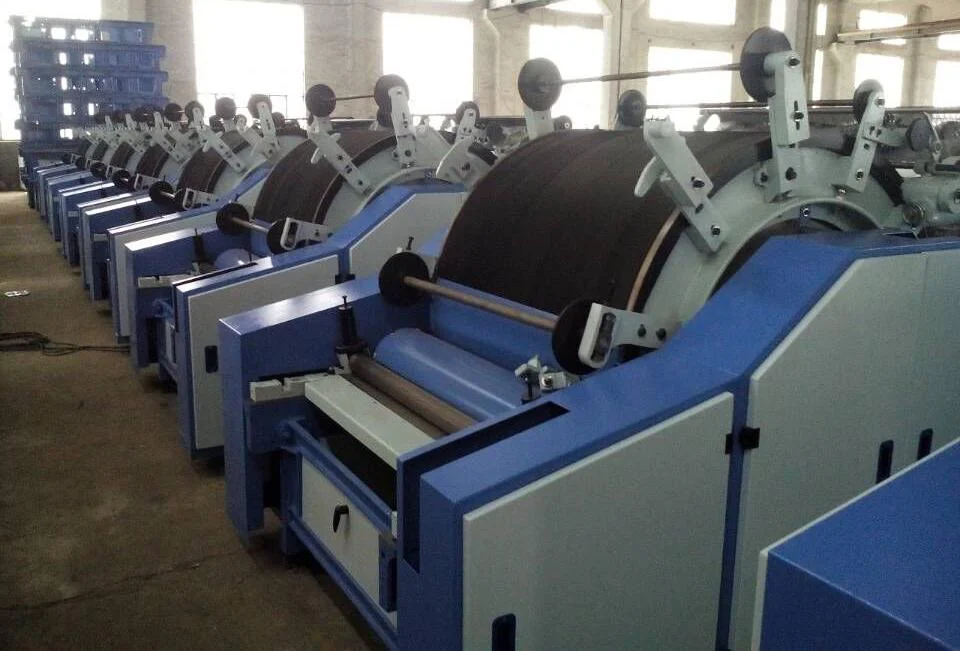

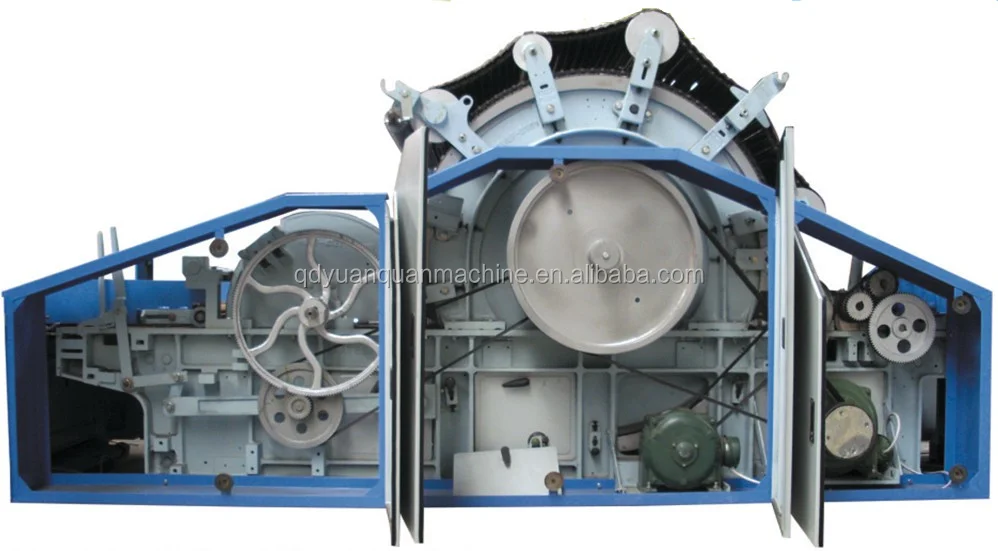

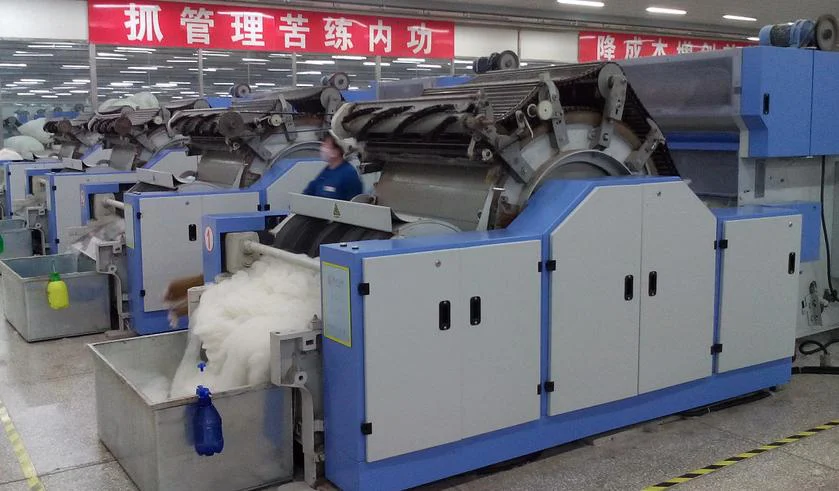

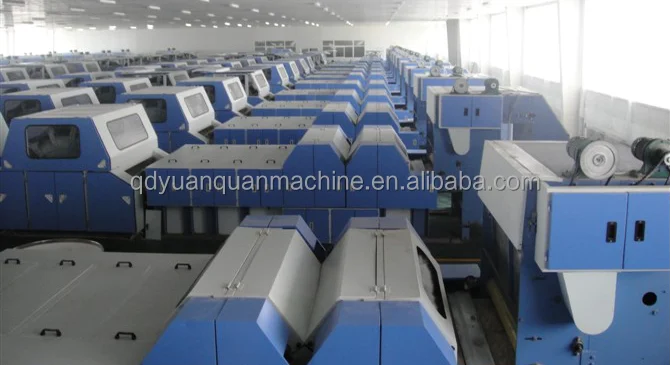

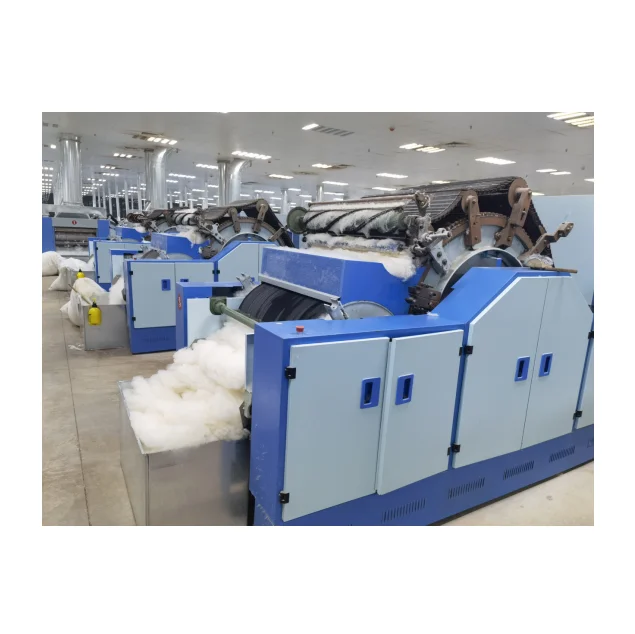

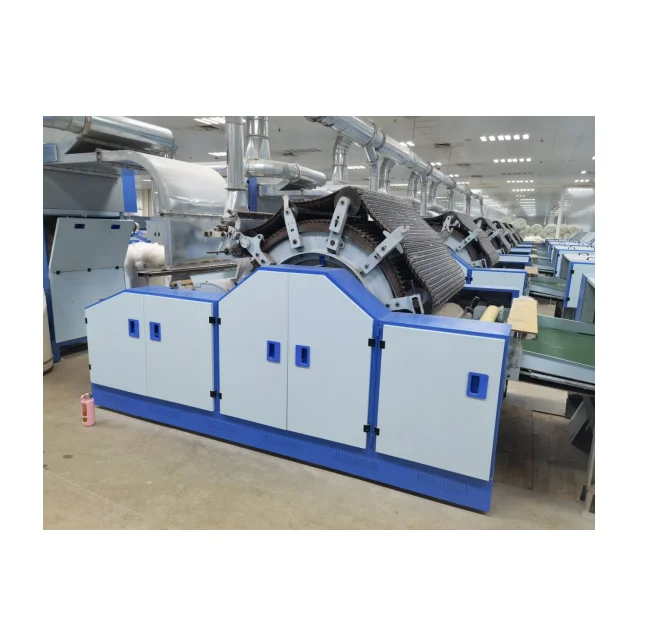

5.Product display

6.contact us
