  • pen type visual fault locator VLS 8 visual Laser Source cable fault locator
pen type visual fault locator VLS 8 visual Laser Source cable fault locator
pen-type visual fault locator VLS-8 visual Laser Source cable fault locator
pen-type visual fault locator VLS-8 visual Laser Source cable fault locator
pen-type visual fault locator VLS-8 visual Laser Source cable fault locator
pen-type visual fault locator VLS-8 visual Laser Source cable fault locator
pen-type visual fault locator VLS-8 visual Laser Source cable fault locator
pen-type visual fault locator VLS-8 visual Laser Source cable fault locator

pen type visual fault locator VLS 8 visual Laser Source cable fault locator

Share on (60346164845):


Price:

Quantity:


Product Overview

Description



Product Description2

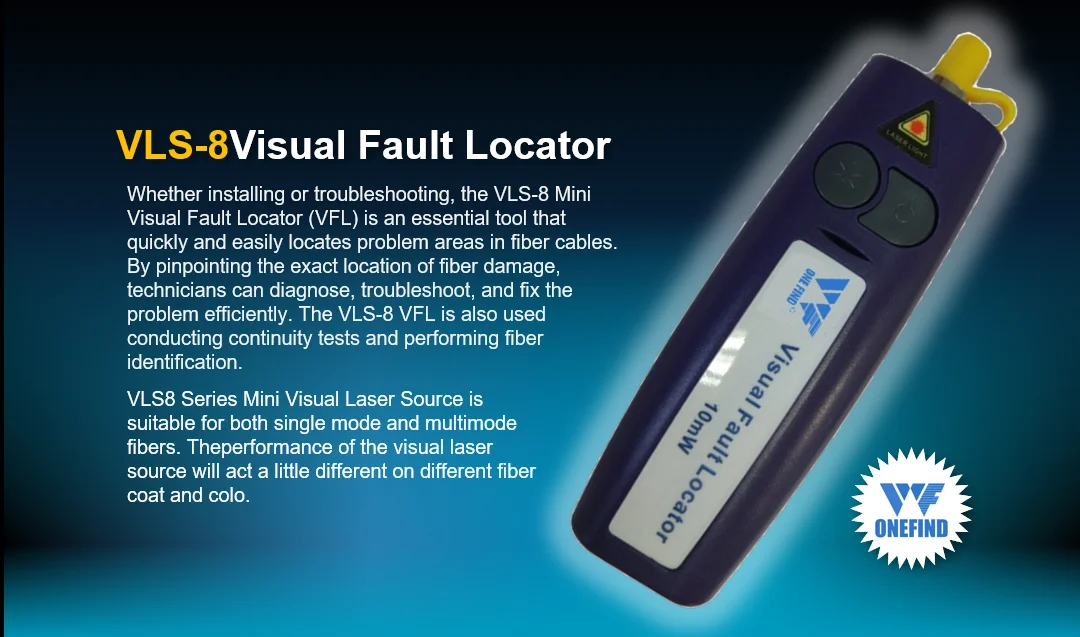

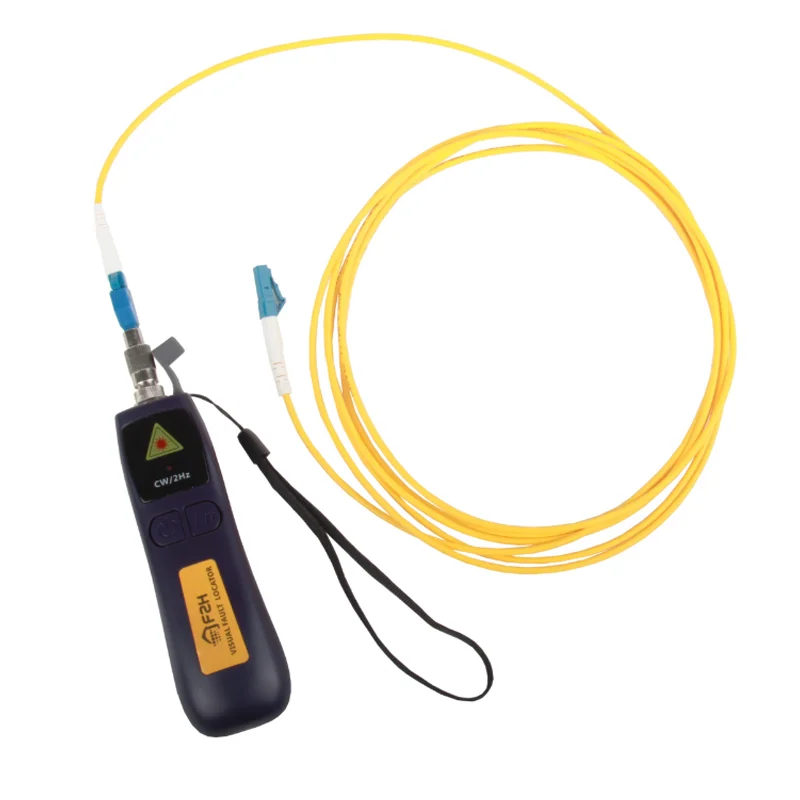

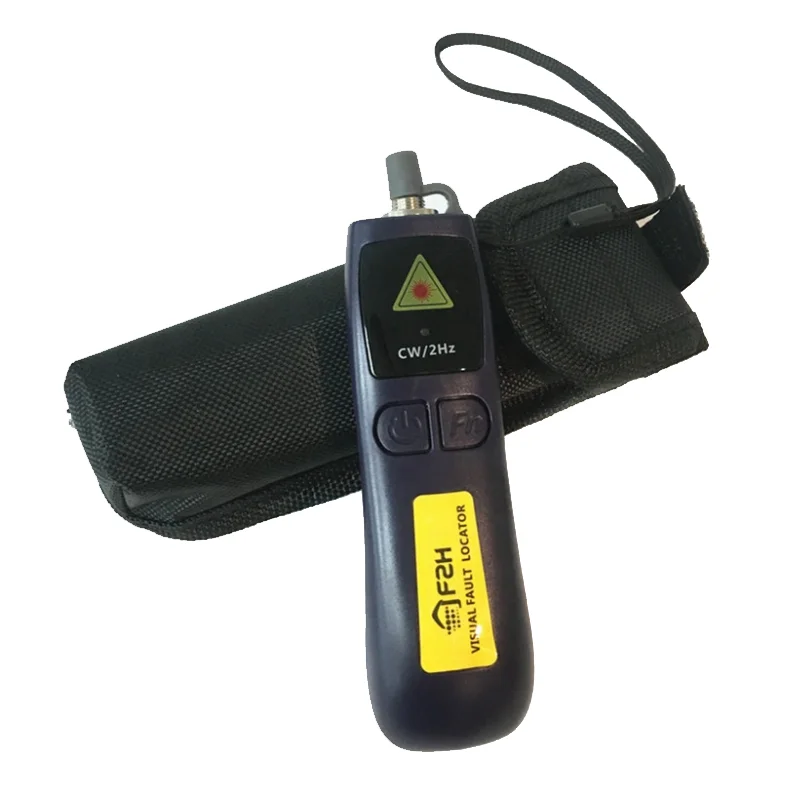

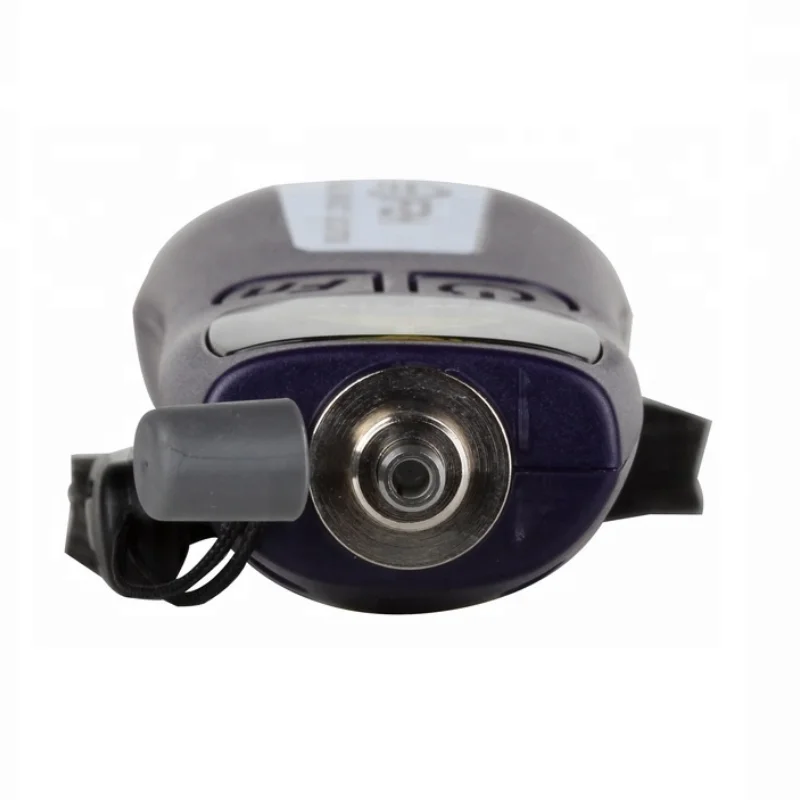

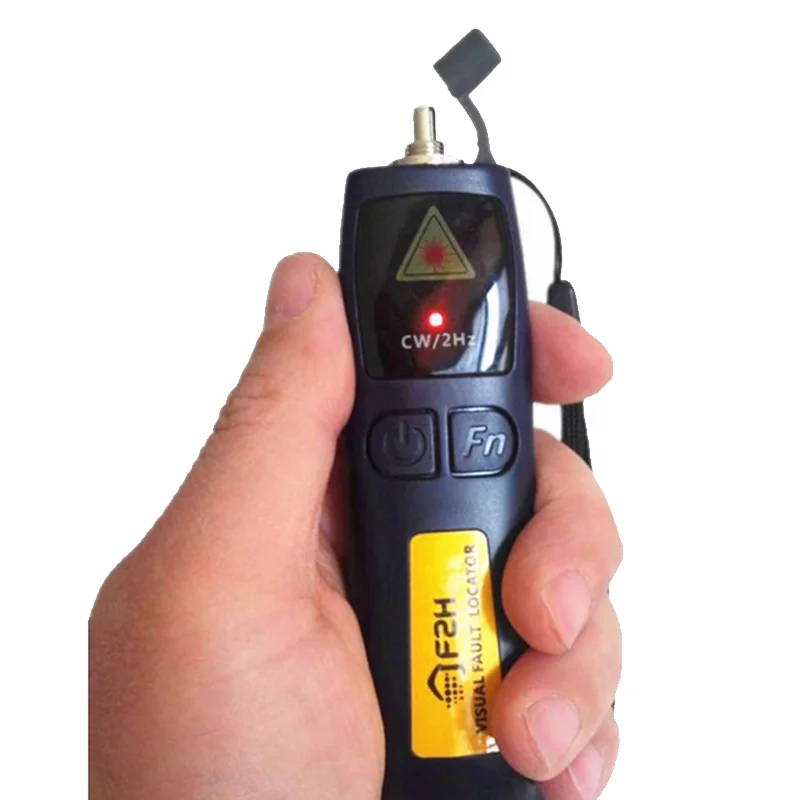

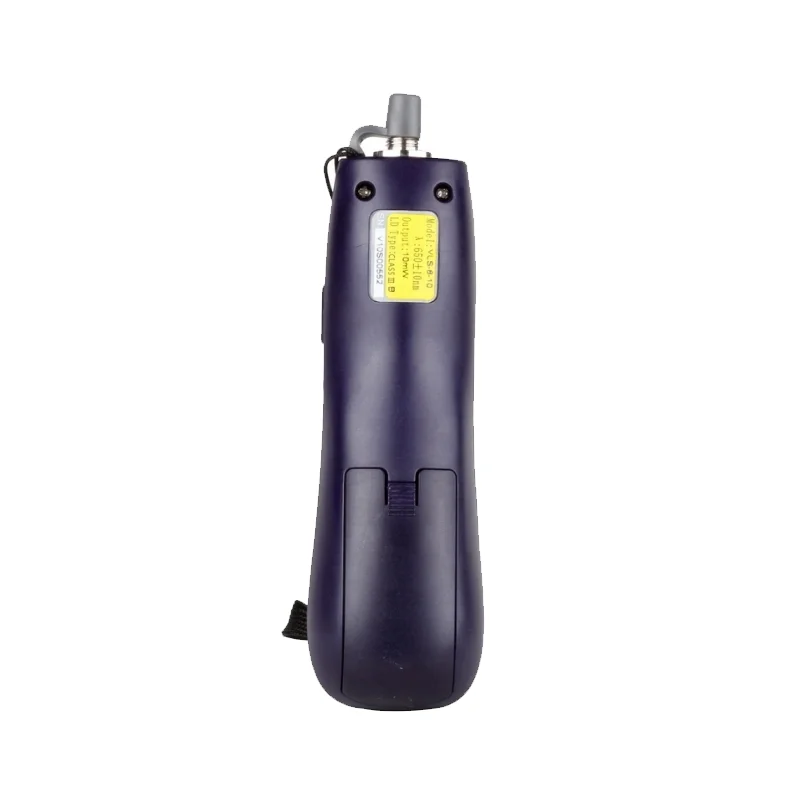

                           pen-type visual fault locator VLS-8 visual Laser Source









333











444










1. Totally comply with the human engineering design. Small, portable and durable


2. Standard Multi-adapter can be applied to connect with almost any adaptor type. Also provides interchangeable fiber adaptors of several common types


3. Higher output laser power, max 15km detecting range


4. Integrated with continuous wave and 2Hz modulated wave output function













555















































































































 ModelVLS-8-1VLS-8-10VLS-8-15VLS-8-30
 Laser Launcher LevelCLASS IIIACLASS IIIBCLASS IIIBCLASS IIIB
 Output Power≥1mW≥10mW≥15mW≥30mW
 Detecting RangeAbout 5kmAbout 12KmAbout 14kmAbout 15km
 CW Mode Battery LifeAbout 13 hoursAbout 6 hoursAbout 5 hoursAbout 3 hours
 2Hz Mode Battery LifeAbout 23 hoursAbout 12 hoursAbout 10 hoursAbout 6 hours
 Laser Launcher TypeLD
 Optical Connectoruniversal 2.5mm adapter (FC/SC/ST)
 Output Wavelength 650nm±10nm
 Modulation FrequencyCW / 2Hz
 Power 2*AAA dry batteries
 Working Temperature -10℃~+50℃; <90%RH
 Storage Temperature-20℃~+70℃; <90%RH
 Dimension & WeightL120mm×W33mm×H30mm / about 67.8g
 Standard Accessories:
 2*AAA batteries, carrying bag, user manual
 Optional Accessories:
 Male FC to female LC adapter for LC connector (model: HD078)





































 1Fusion Splicerssumitomo /fujikura /Fitel/ Comway Chinese;
 2OTDRChinese /Noyes / JDSU/ EXFO /Yokogawa
 3Fiber CleaverINNO/Chinese/Fitel/Sumitomo/Fujikura
 4Test instrumentsoptical power meters/optical laser sources/visual fault locators / PON power meters /cable fault locators
 5Accessoriespatch cords/ fiber optic pigtails/fiber optic adapters/optical attenuators
 /optic join closures/optical fiber tools;
