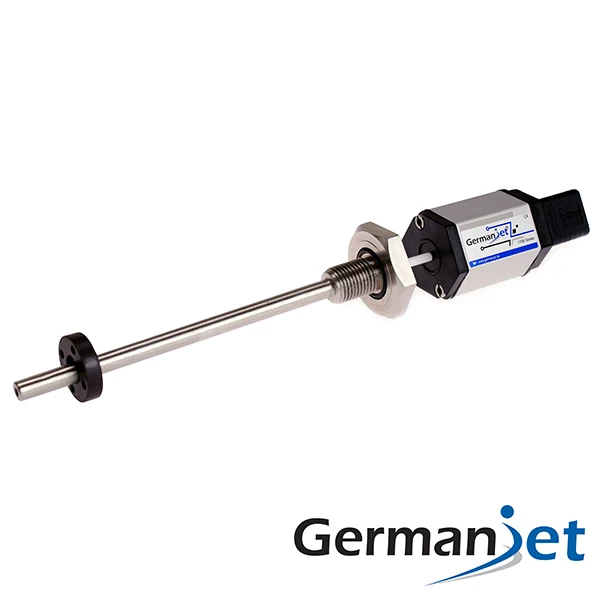

start/stop Magnetostrictive hydraulic cylinder linear position sensor

Product Overview

Description



Magnetostrictive Position Sensor, Level Sensor, Magnet Sensor

17 Series - Hydraulic Cylinder Insert



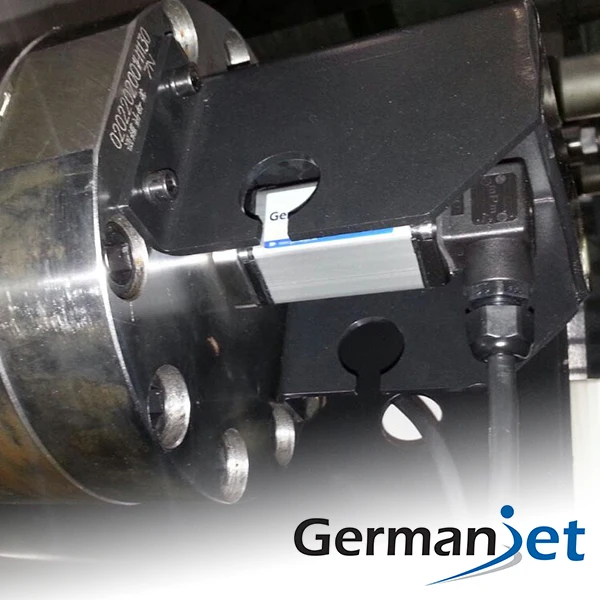

The 17 series non-contact absolute position transducer is specially designed for hydraulic cylinder to provide precise, direct and absolute position feedback. Hydraulic body is made by stainless steel; it can be inserted directly into hydraulic cylinder. Electronic component and hydraulic body are modular design which can be detached easily.



The transducer is rated for IP65 which offers full protection against outside agents for use in harsh environments with high contamination and presence of dust. The connector is common for use in hydraulic device and easy for field connection. Besides for hydraulic system, it is also suitable for machine installation. The absence of electrical contact eliminates all wear and guarantees almost unlimited mechanical life expectancy.

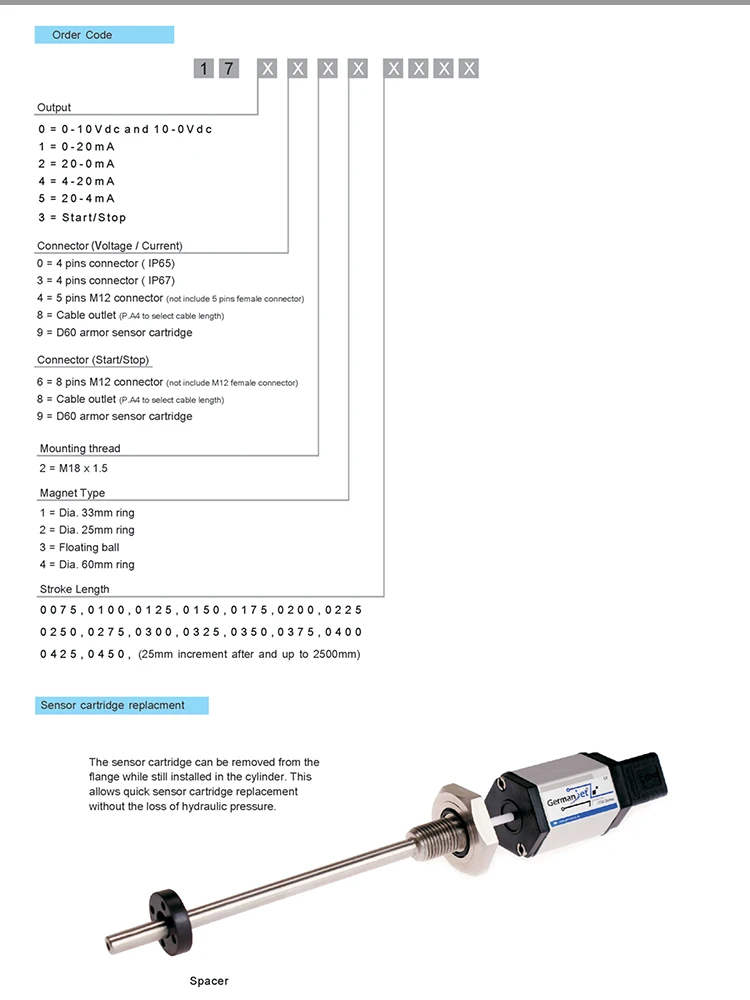

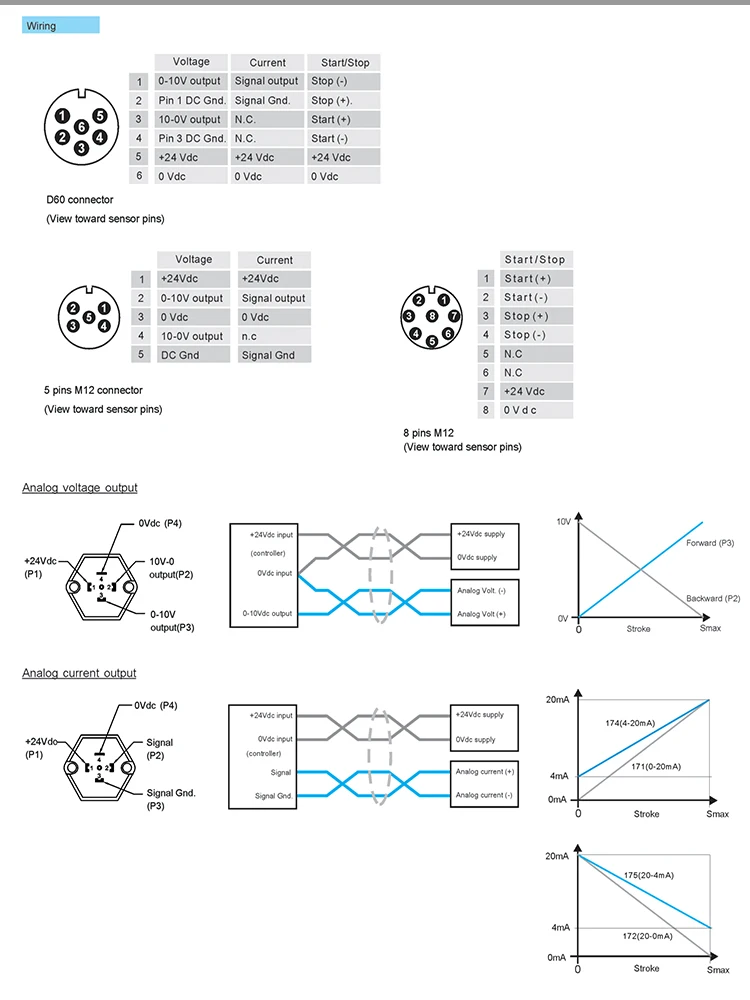

Order Code	173
Output	start / stop
Measurement Type	Linear displacement
Resolution	0.1 / 0.01 / 0.005mm
Input Voltage	+24Vdc (20.4 - 28.8Vdc)
Input Protection	Polarity protection up to -30Vdc, Over voltage protection up to 36Vdc
Current Consumption	50-140mA (stroke range dependent)
Dielectric Strength	500Vdc (DC ground to machine ground)
Repeatability	< ±0.005% of full scale
Non-Linearity	< ±0.02% of full scale (minimum ±90 μm)
Update Time	0.5 ms up to 1200 mm / 1.0 ms up to 2500 mm
Operation Temp.	-40 to 75 °C, Humility 90% non-condensing
Sealing	IP65 (with 4 pin connector) / IP67 (with D60 and M12 connectors)
Vibration Rating	15g / 10-2000Hz / IEC standard 68-2-6
Shock Rating	100g single hit per IEC standard 68-2-27
EMC	Emission EN 68000-6-3, Immunity EN 61000-6-2, EN 61000-4-2/3/4/6
Pressure Rating	350 bar / 600 bar peak

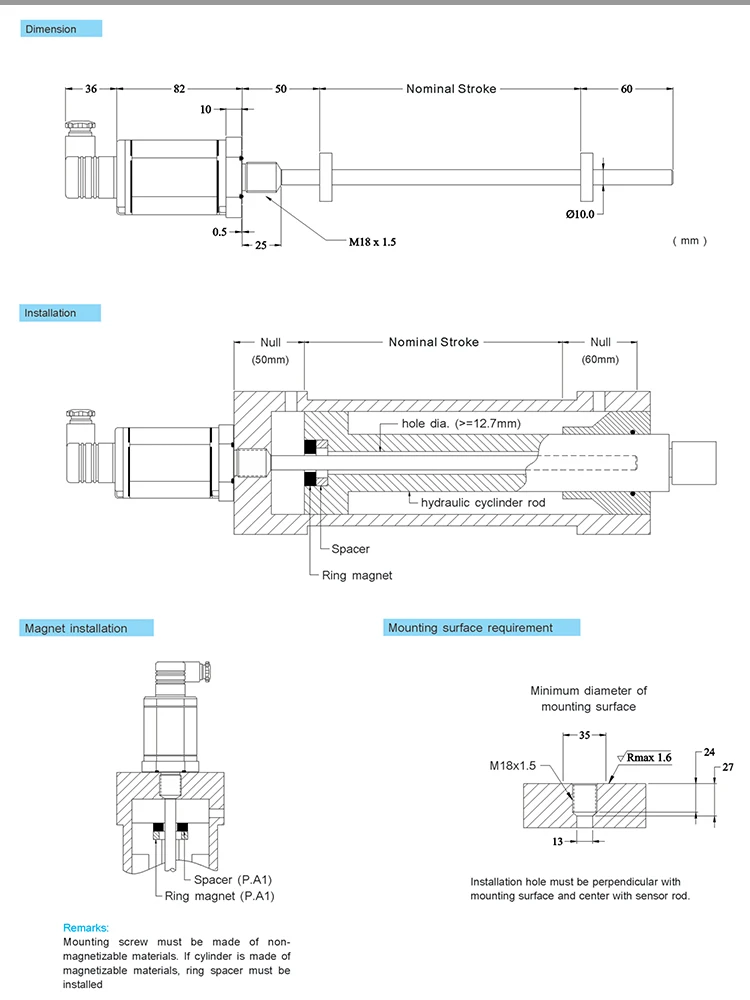

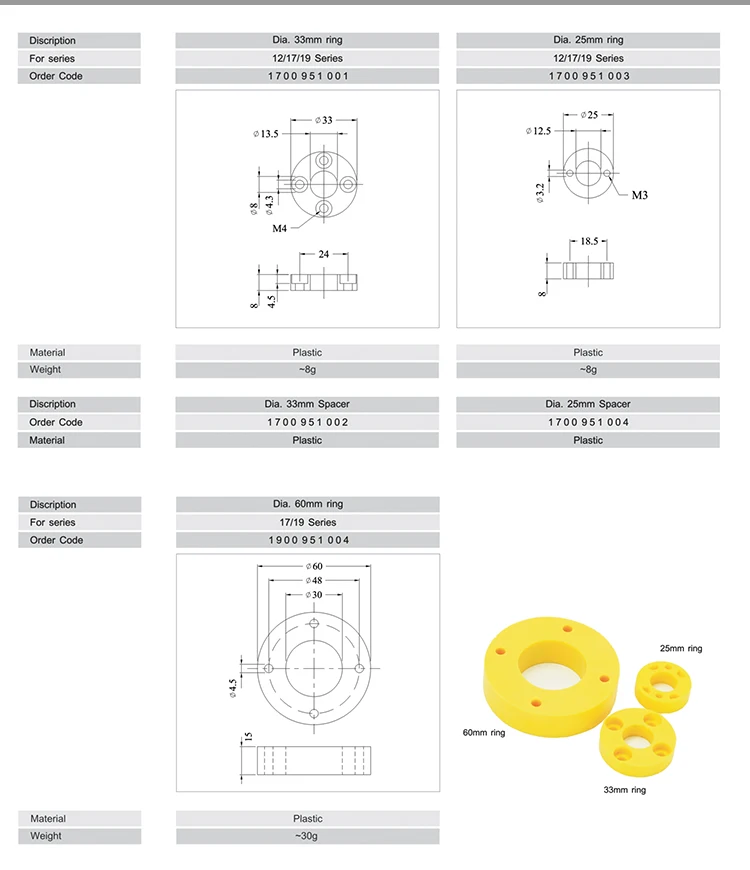

Mounting	M18 x 1.5
Housing Materia	Anodized aluminum cartridge, Stainless steel tube and flange, Plastic cartridge cover
