ZEAU315 160mm 315mm pipeline welding machine butt fusion equipment

Product Overview

Description

pipeline welding machine butt fusion equipment



Use and features:

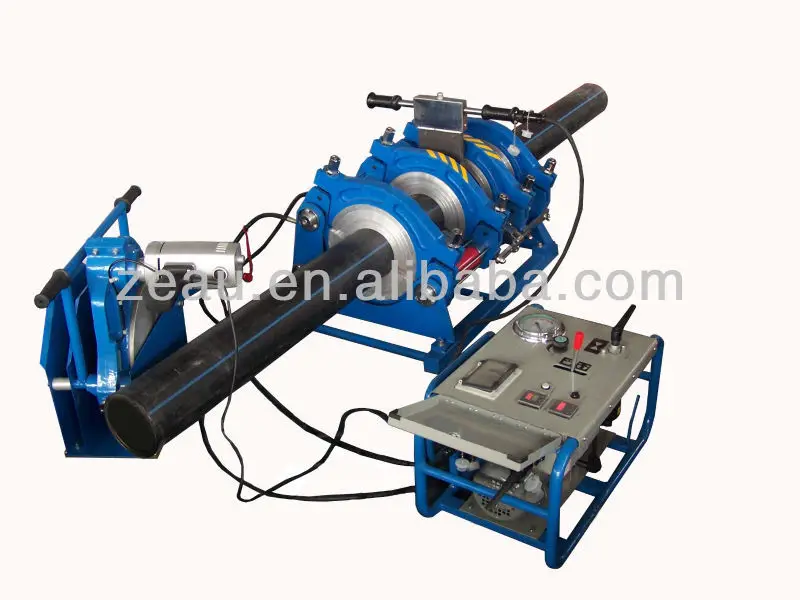

Apply to the site in connection PE, PP, PVDF pipes and pipe fittings, tubes and, also can use in workshop;

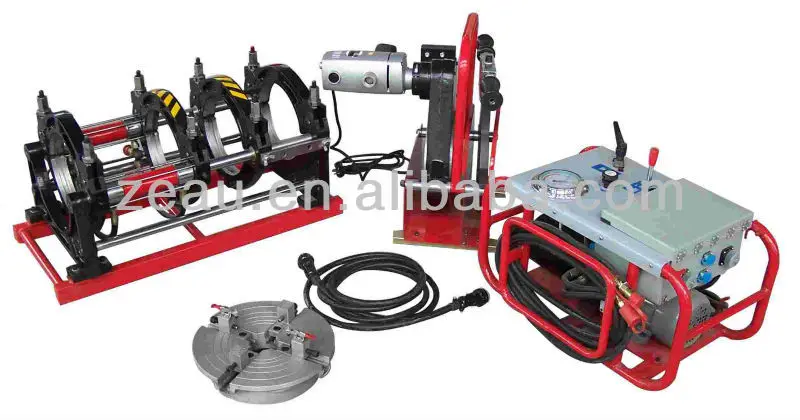

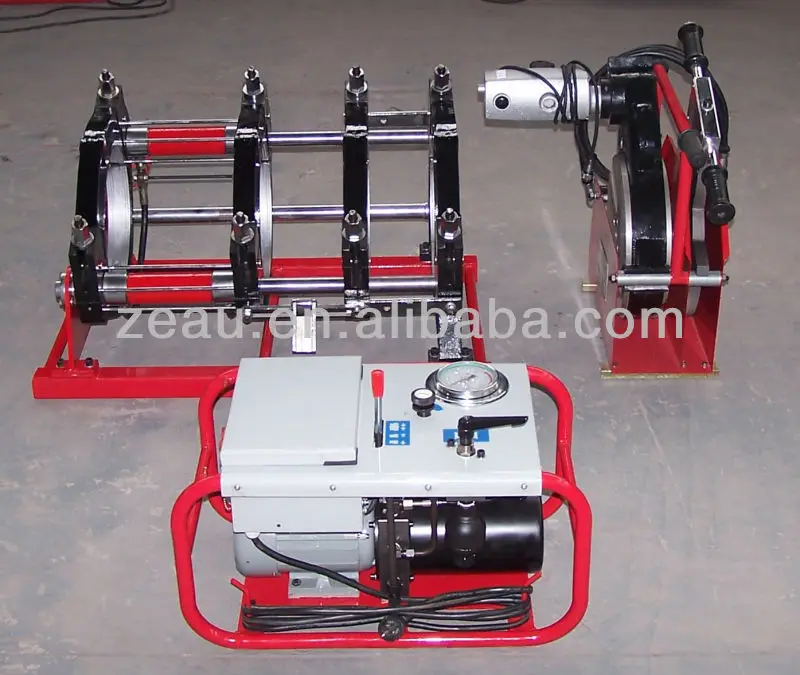

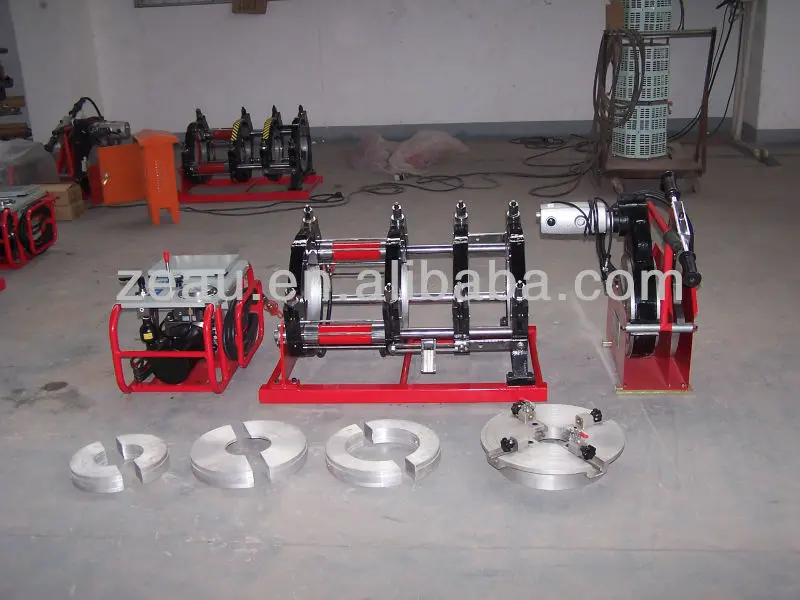

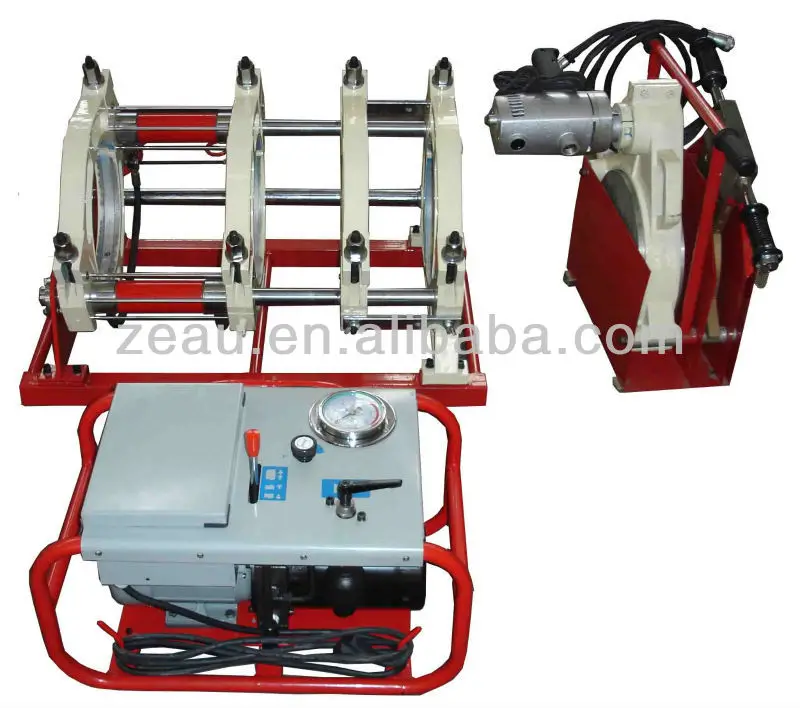

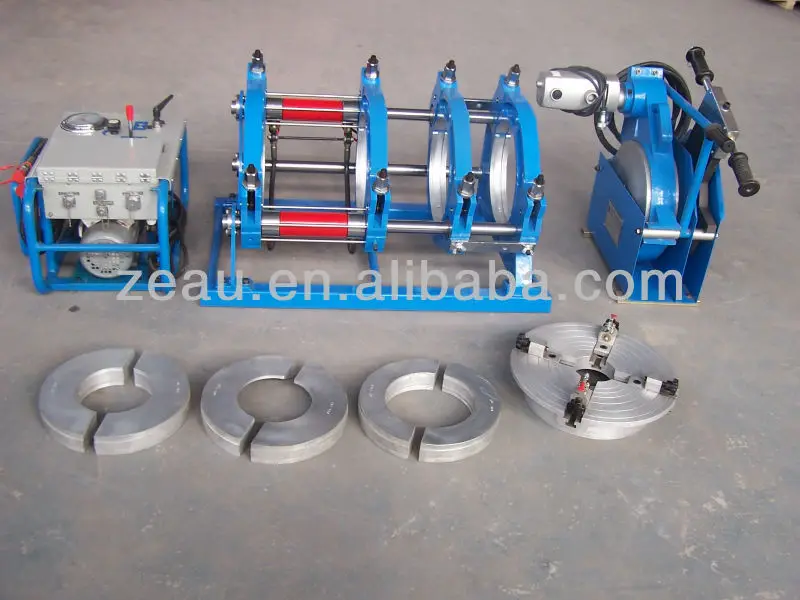

The frame, hydraulic pressure station, mills, the heating plate, mills and the heating plate stents and optional accessories composition;
The heating plate with high precision temperature control system, ptfe surface coatings;Electric milling cutters;
The main part of the frame for aluminum alloy material, the structure is simple, compact and easy to use;
Low start-up pressure, make small pipe welding more reliable;Low start-up pressure, make small pipe welding more reliable;
Welding position can transform, convenient welding various pieces;Independent double channel, timer, can record heat and cooling two period, the timing is over alarm, be convenient for the user to;
Big dial, high precision, shockproof pressure gauge, reading more clearly.Big dial, high precision, shockproof pressure gauge, reading more clearly.

SPECIFICATION	ZEAU160	ZEAU250	ZEAU315
welding range(mm)	63,75,110,125,140,160	110,125,140,160,180, 200,225,250	160,180,200,225,250,280,315
The heating plate highest temperature	270°C	270°C	270°C
The heating plate surface temperature	<±7°C	<±7°C	<±7°C
Pressure adjustment range	0-6.3MPa	0-6.3MPa	0-6.3MPa
Working voltage	220V,50Hz	220V,50Hz	220V,50Hz
The heating plate power	1.0KW	2.1KW	3.1KW
Milling cutters power	0.7KW	1.1KW	1.1KW
Hydraulic power station	0.75KW	0.75KW	0.75KW
Total power	2.45KW	3.95KW	4.95KW
total weight	106KG	143KG	216KG
