Product Overview

Description

Tinted Insulated glass

low e glass curtain wall price



Beijing XSH GLASS insulated glass is also called hollow glass, or double glazing unit, which is made of two or more PCS of glass glazing sheets which might be low-e or reflective glass or normal float colored glass and use sealant gumming and aluminum spacers with was filled with desiccant together. Due to its perfect sound insulation and energy saving performance, the modern most popular used glass would be blow hollow glass.



SPECIFICATION:
Max Size: 2500mm x 3500mm (except for manual production)
Min Size: 300mm x 300mm
Air or argon spacer gap: 6mm, 9mm, 12mm, 15mm, 16mm
Glass thickness: 5+9A+5mm; 6+12A+6mm; 6+16A+6mm; 8+12A+8mm; 8+16A+8mm; etc
Color: low iron, light blue, Ford blue, dark blue, ocean blue, light gray, blue gray, light green, gold, bronze

SPECIFICATION:
Structure	Double wall/triple wall with Aluminum spacer(Connected by Structure sealant)
Raw glass thickness	3mm,4mm,5mm,6mm,8mm,10mm,15mm,19mm
Color	Blue , Green ,Brown ,Grey ,tea color etc.
Advantages	1) Heat isolation and warmth preservation
	2) Distinct energy-saving effect, decreasing air-conditioning and heating costs
	3) Good soundproofing performance makes rooms comfortable
	4) Good anti-frosting and dew-formation properties
	5)IR reflected
Standard insulated glass thickness (Glass+Aluminum spacer+Glass)/mm
Item	Glass thick	Product parameter(mm)
low-e/tempered/Double/triple wall insulated glass	4mm	4+4A+4	4+5A+4	4+6A+4
	5mm	5+6A+5	5+7A+5	5+8A+5
	6mm	6+6A+6	6+7A+6	6+8A+6
	8mm	8+6A+8	8+7A+8	8+8A+8
	10mm	10+6A+10	10+9A+10	10+12A+10
	12mm	12+9A+12	12+12A+12	12+16A+12
Aluminum spacer thickness	4mm,5mm,5.5mm,6mm,6.5mm,7mm,8mm,8.5mm,9mm,10mm,
	11mm,11.5mm,12mm,14mm,14.5mm,15mm,16mm,17mm, etc.
Remark	For other thickness , produce according to customer's requirements



Features:
1. Independent research and development technologies
2. High quality float glass
3. Long term storage and convenient logistics
4. Jumbo size specification
5. Sufficient supply



Our Advantages:
1. Over 10 years experience on glass deep processing.
2. High quality glass with CCC and ISO certification.
3. Most of our production machines from Italy and Korea to ensure the quality
4. Professional international sales team

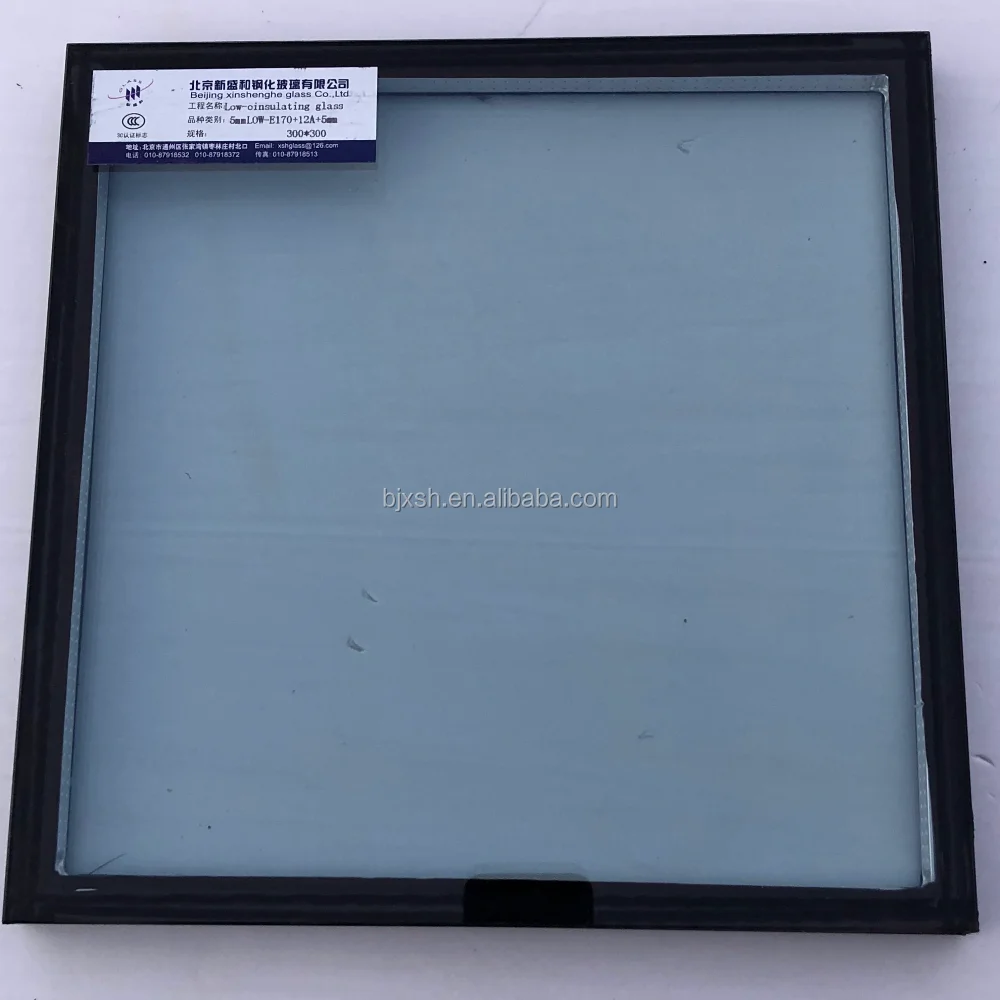

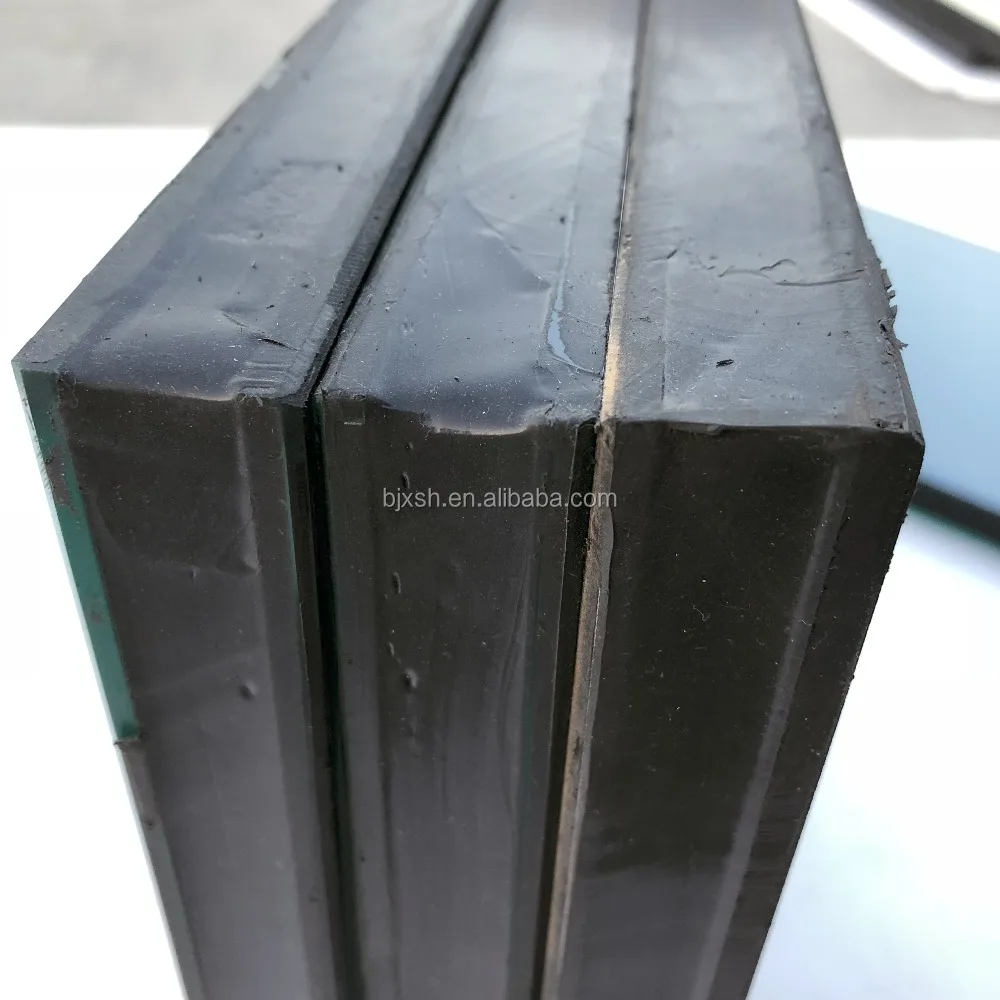

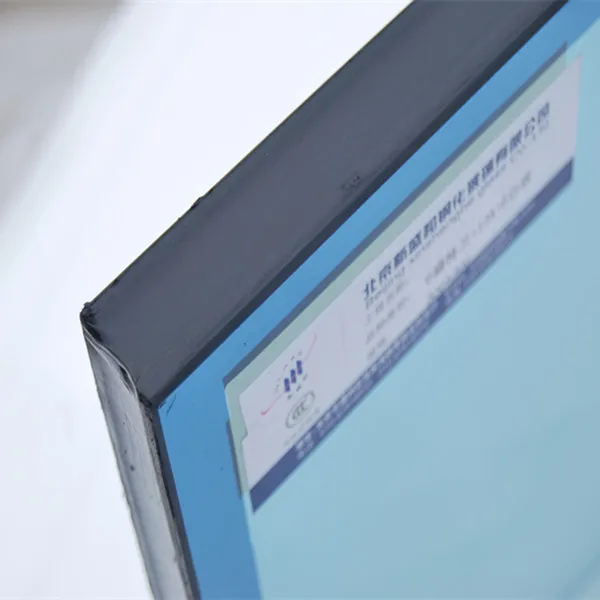

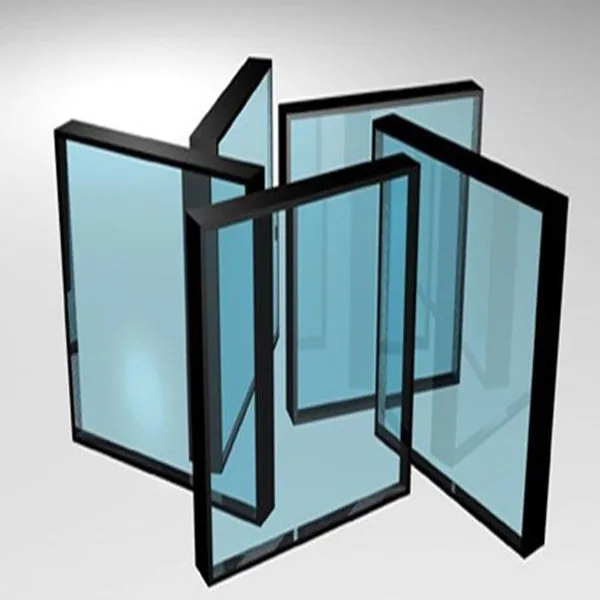

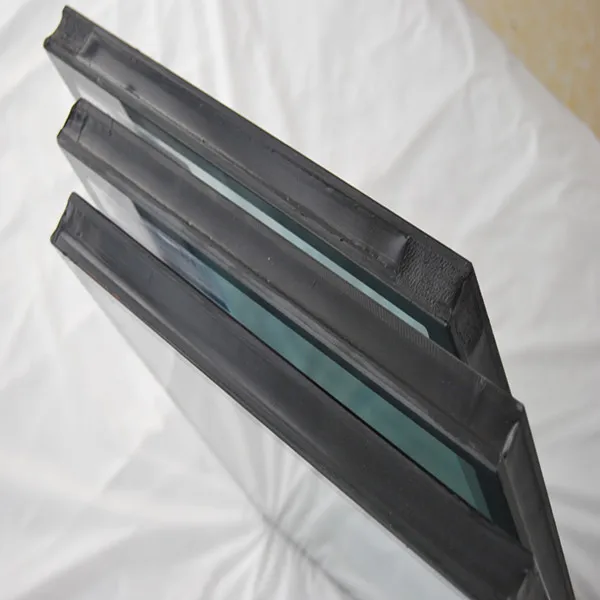

Product show:

Production Line:

  Project show:



Package Process and Safety Delivery:

Certification:
