This machinery is used for deboning chicken, hen, duck, goose, rabbit, pigeon, poultry, fish, fingerling, ikan, fruit and produce meat paste in order to further processing them into meat products, such as sausages, meat balls, meat pie. It is used in meat processing factory, frozen food processing factory, hotel, resturant and so on.
Application and Usage for chicken deboning/deboner machine
lIt is mainly applicable for deboning chicken, hen, duck, goose, rabbit, pigeon, fish and other poultry.
lMainly used for deboning meat, which separate bones from skeleton of poultry, chicken, duck, goose, rabbit, pigeon, fish and other poultry.
Characteristics of meat deboner / poultry debone /deboner/deboning machine :
Use the SUS304 stainless steel in line with international food standard.
Mechanical deboning meat from poultry skeleton, carcass or the whole frozen chick, duck, goose.
Frequency conversion control, speed can be adjustable.
Low rotation speed, small temperature rise and easy maintenance
Easy taking apart and cleaning, low maintenance cost
Calcium content in fished products lower than 0.03%, meat fiber not destroyed.
24 hours of continuous work.

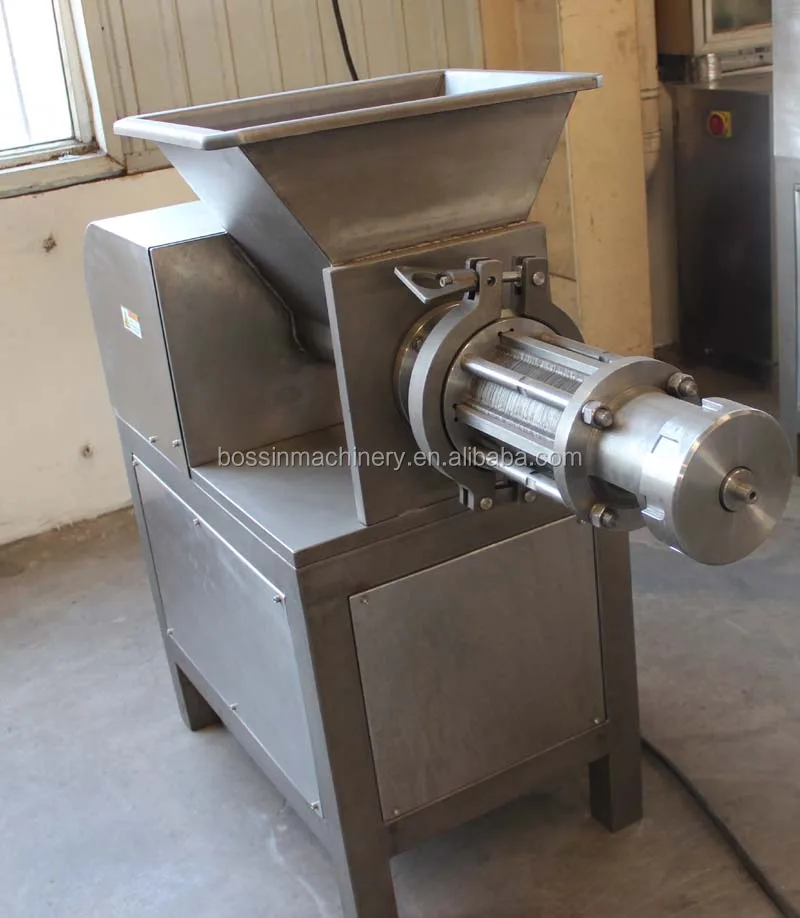

CHICKEN DEBONER/DEBONING MACHINE
Type
External Dimension(mm)
Voltage
Power(kw)
Speed(r/min)
Capacity
Weight
GRFL
2664x1135x2000
3phase 380V 50HZ
37
104
2800
1500
GRFLC
1437x555x1250
3phase 380V 50HZ
5.5
102
900
364
meat and bone separator deboner
1,The mechanical separation process consists in separation of meat from bones and fish bones pulp from fruits and vegetables.
2,Parts to be cleaned are easy to take apart and to reassemble.
3,The principle of smooth deboning consists in a low pressure.
Advantages
ALL ARE BASED ON ISO QUALITY MANAGEMENTSYSTEM AND WITH CE MARK
1.European technology ,adopt SUS304/316 stainless steel in compliance with HACCP standard, easy to be cleaned up.
2.PLC control ,CAD programmed control ,seting the data as different products.
3.Wholly welded machine body stable and low noises.
4.Adopted international advanced technology. Be changeable with imported cutters.
5.Auto protection design to make sure safe operation.
6.Little meat temperature change , benefit to preserve freshness.
7.Adopt good quality stainless steel ,knives are made of imported material,and imported knives can be another option . for the sasuaeg stuffer, our parts can exchangable with HAMDTMANN ,VEMAG etc brand. our GC6200 is toatally same with VF620 handtmann brand. the meat pump parts are the same with handtmann.
8.Key parts produced by advanced machine processing center(CNC lathe machine), ensure the precision of process.
9.Application include the processing of meat and also the processing of cheese ,vegetable , fruits, sweets and products of the chemical industry.
10.Parts:is built with INNOVANCE,EMERSON servo motor drive as drive system ,Mitsubish, BECHHOFF and ABB water-proof button etc imported famous brand.
