Product Overview
Description
Product Description
Center Pivot Irrigation System Allocation Standard | ||
Main pipe diameter | 6-5/8''(168mm*3.2mm,high frequency welded steel pipe | |
Standard span | 6-5/8''(168mm)*54.5m(8 pipes) | |
King-sized span | 6-5/8''(168mm)*61.3(9 pipes) | |
Overhang | 5-9/16''(141mm) | |
King-sized overhang | 4''(101mm) | |
Pipe length | 22feet/one (6.7m) | |
Main pipe Flange thickness | 10mm, Flange and pipe adopt double welded technology | |
Working voltage | 460--380V/50--60HZ | |
Power supply mode | Diesel generator and the local power company provide | |
Tire type | 14.9-24 irrigation tire | |
Motor power | 0.75~1.5 horse power | |

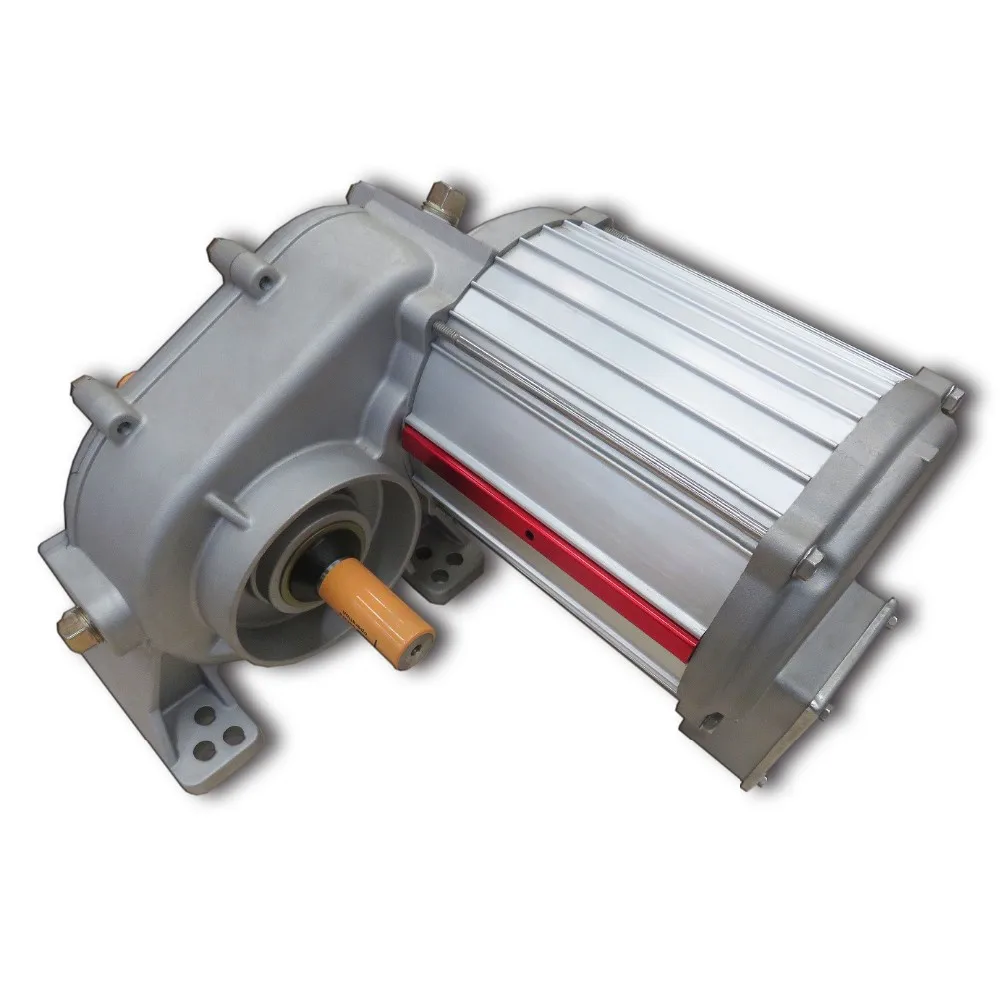

Motor speed reducer | output speed of electric transmission gearbox:28~86RPM | |
Span body tower structure | Adopt "V" model tower | |

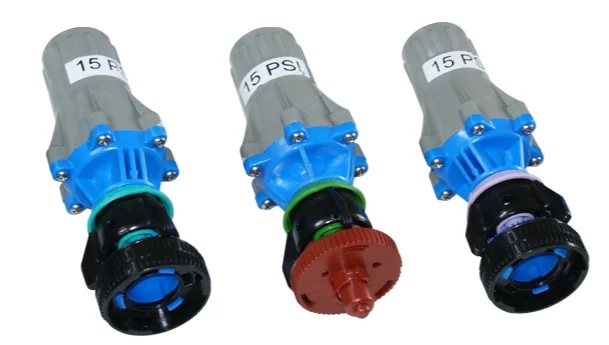

All the equipment with | The pressure of Nelson pressure governor:15PSI (20PSI)(10PSI) | |
Main cable | 4*4mm²+6*1.0mm²(resisting ultra violet and aging | |
The end has | LED working status instruction light | |

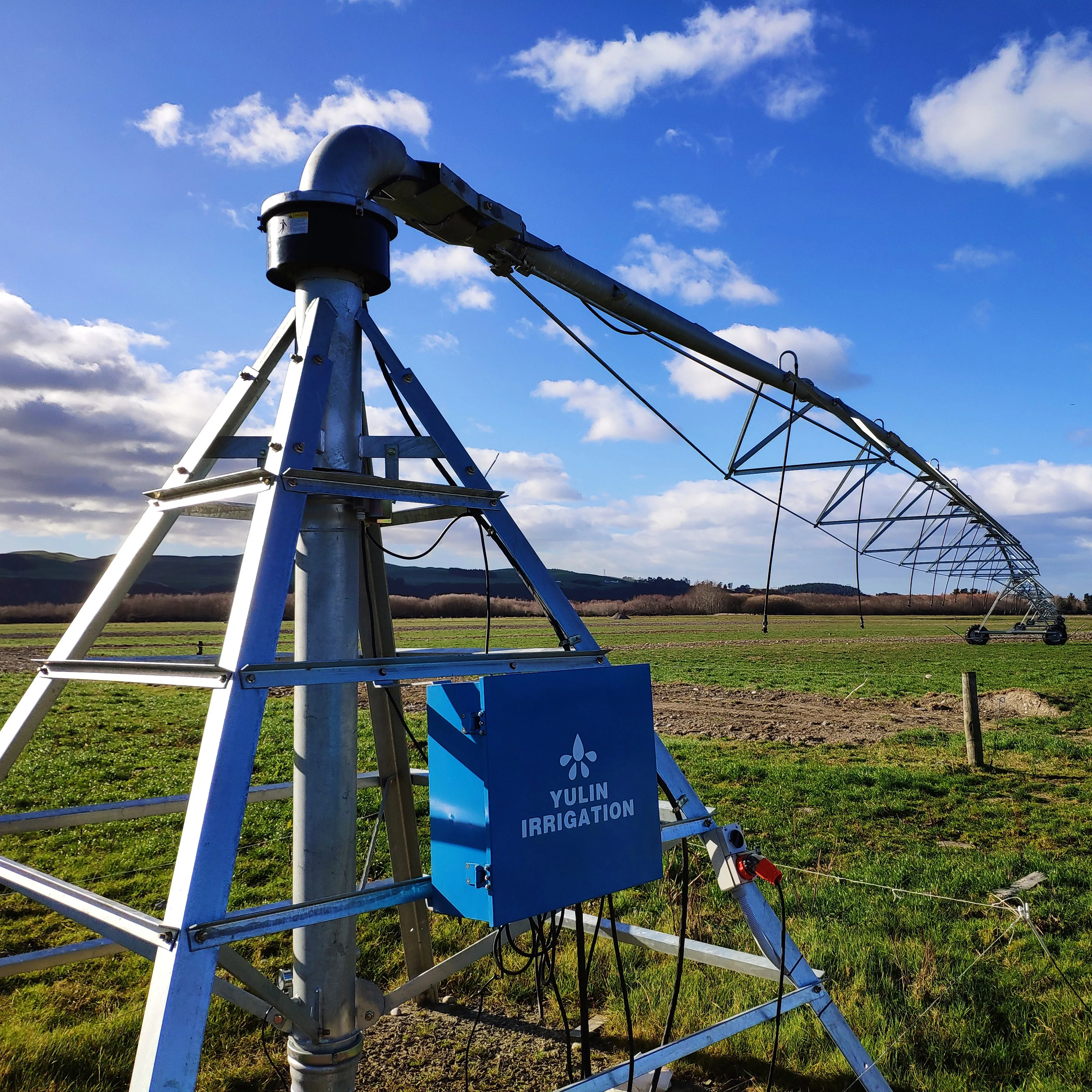

Irrigation intake | 1 water inlet in center point,quick pipe joint connected structure | |
Irrigation intake caliber | 8inches,the spot water supply pipe is more than 6 inches | |
Irrigation intake pressure | 0.20--0.35mpa | |
Standard irrigation truss height from the ground | 3.2m | |
Sprayer spacing | 2.2--4m (the quantity:2-3sprayer/water pipes | |
After complete machine steel component was welded, it adopts hot galvanizing | ||

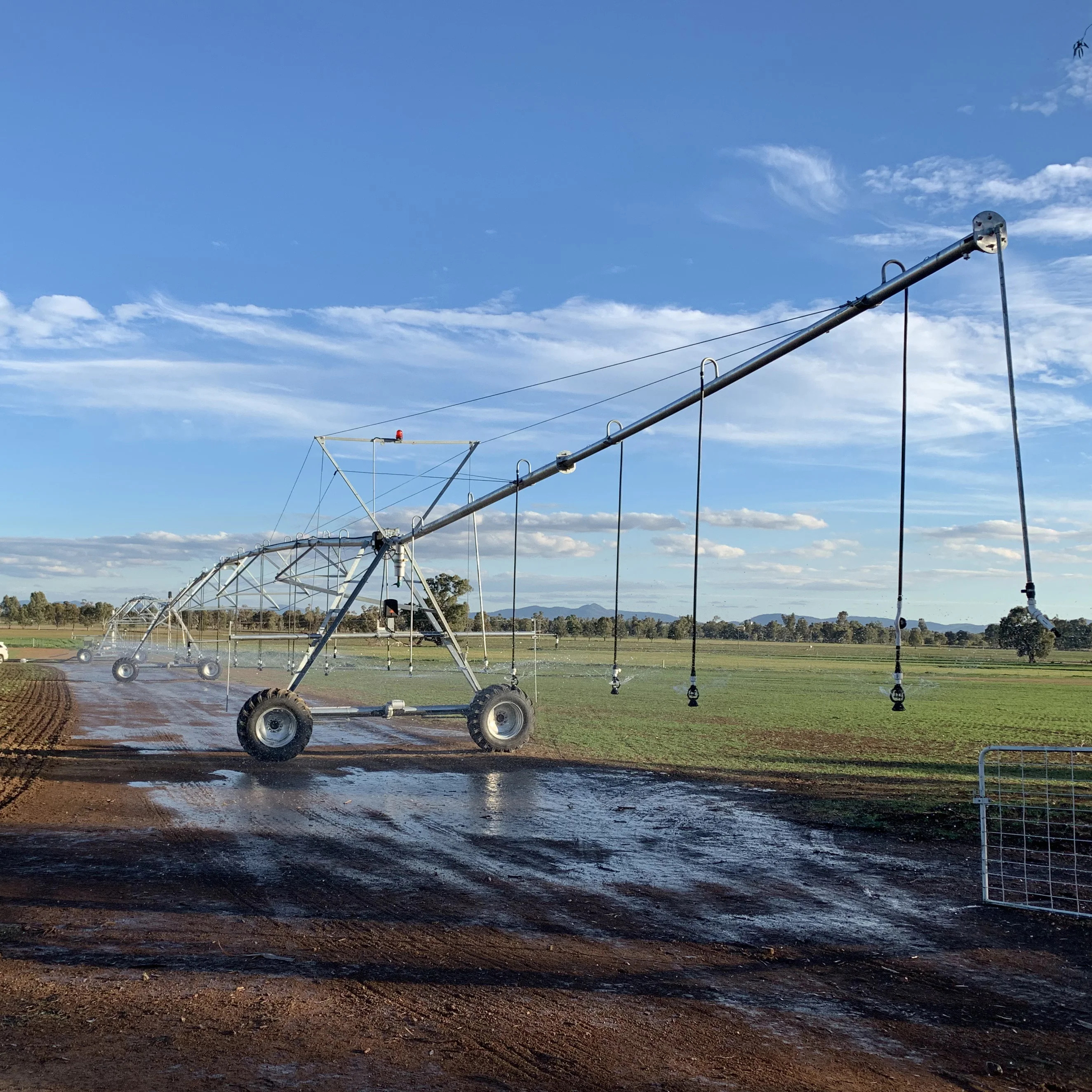

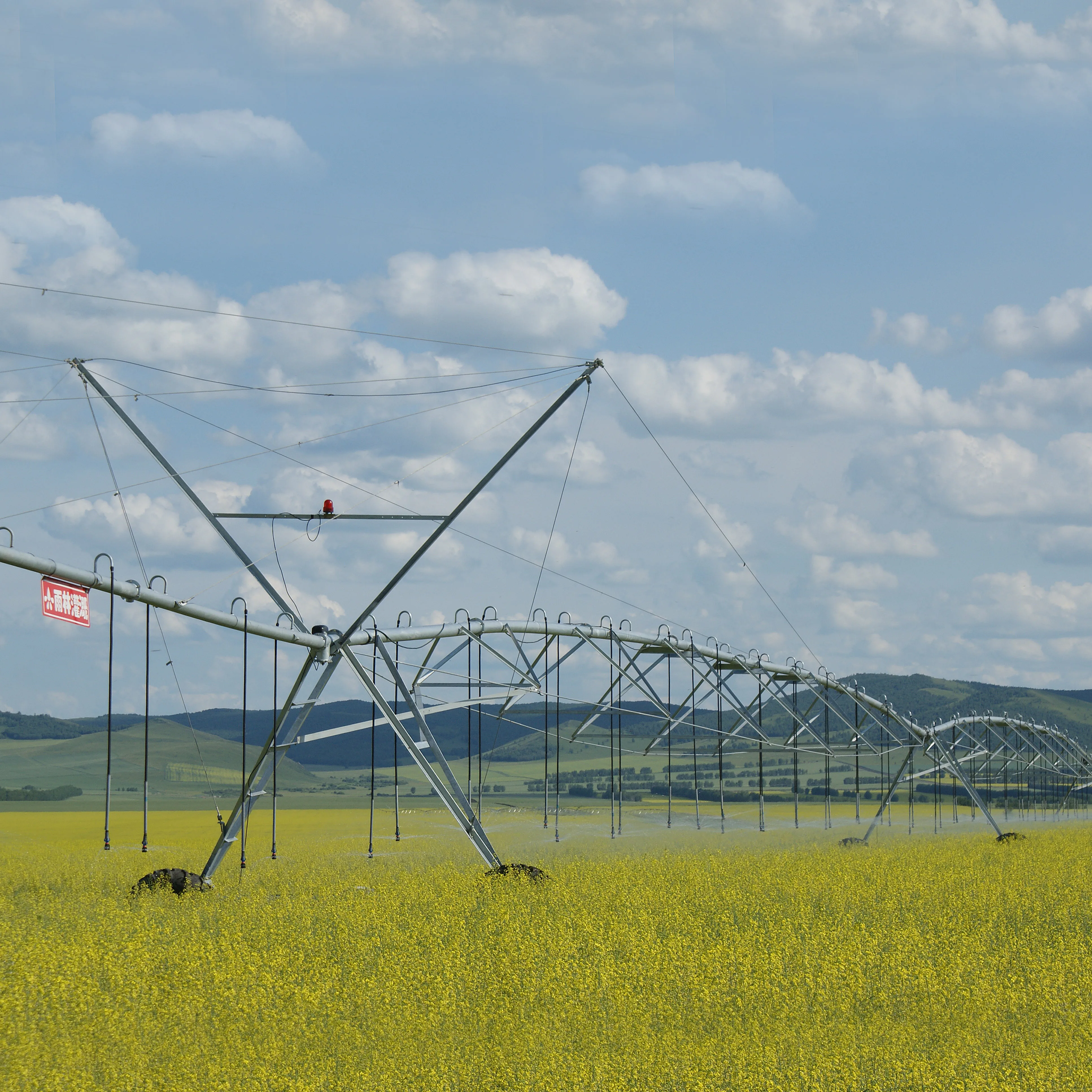

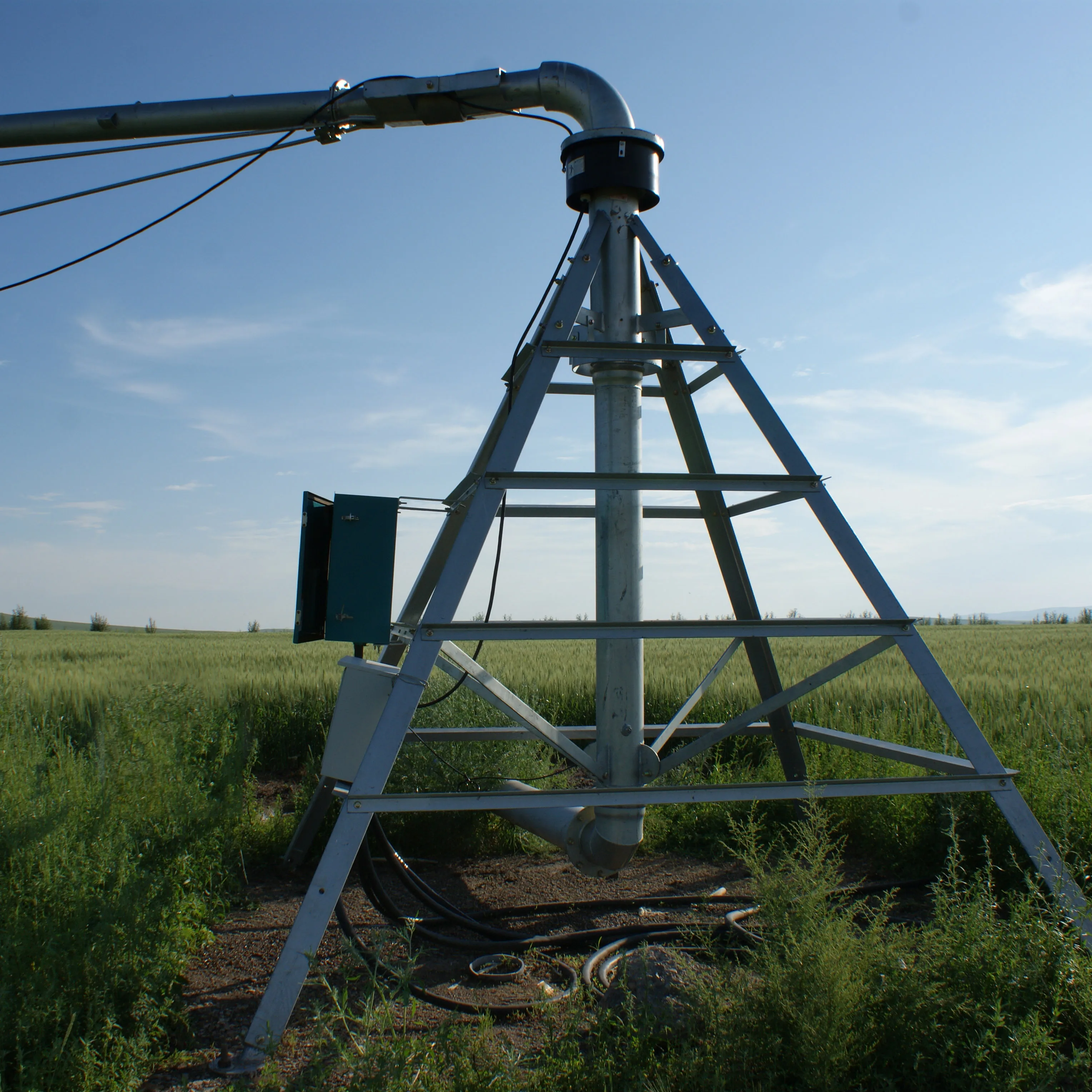

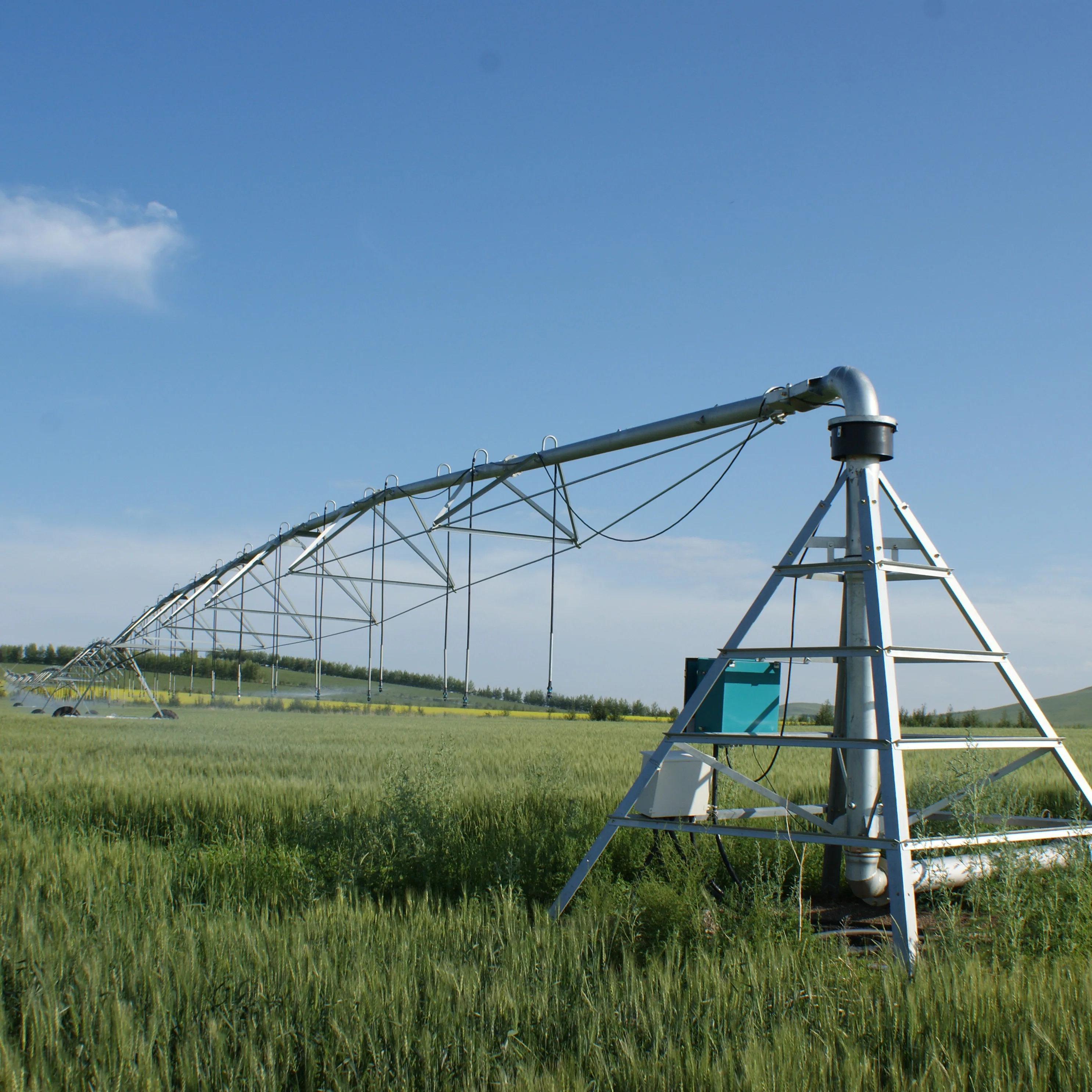

Pivots are irrigation systems consisting of one or more spans which rotate around a fixed point anchored to the ground.The spans turn repeatedly around a fixed central point. They are simple to use and require little intervention. These machines are both reliable and excellent value for money.
ZONAL PIVOT IRRIGATION
The spans rotate less than 360 degree and therefore maximize the irrigated surface area when there is an obstacle (farm building, tree,pylon etc.) situated in the middle of the Field, or where the shape of the Field does not allow full rotation.An automatic reverse system allows continuous operation whilst the security system ensures that the spans stop at the end of the irrigated

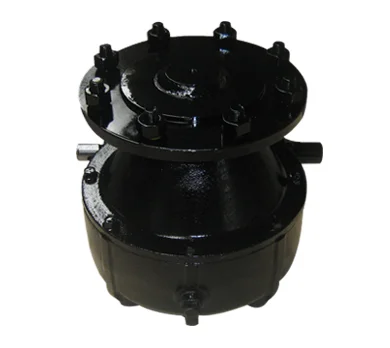

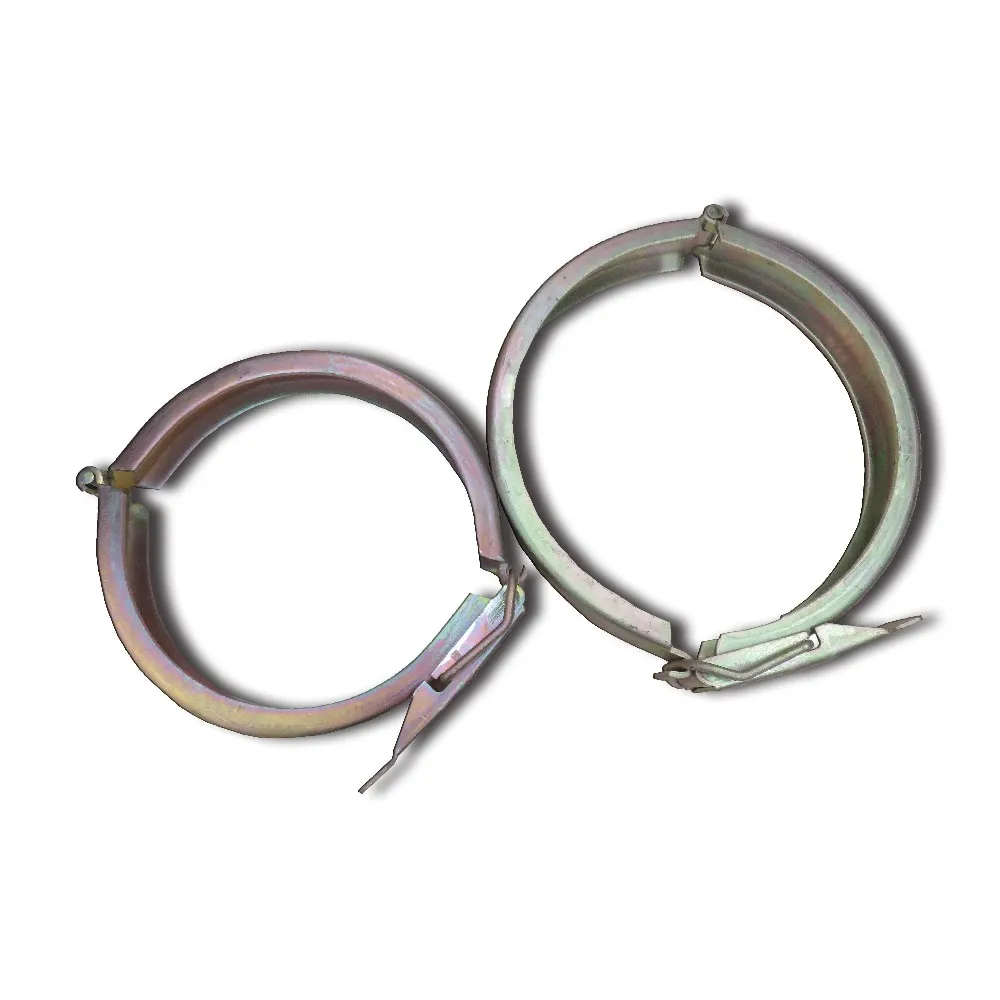

Irrigation Parts

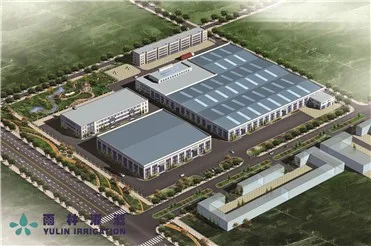

\t\t\t\t\t\t\t\t\tCompany Infomation \t\t\t\t\t\t\t

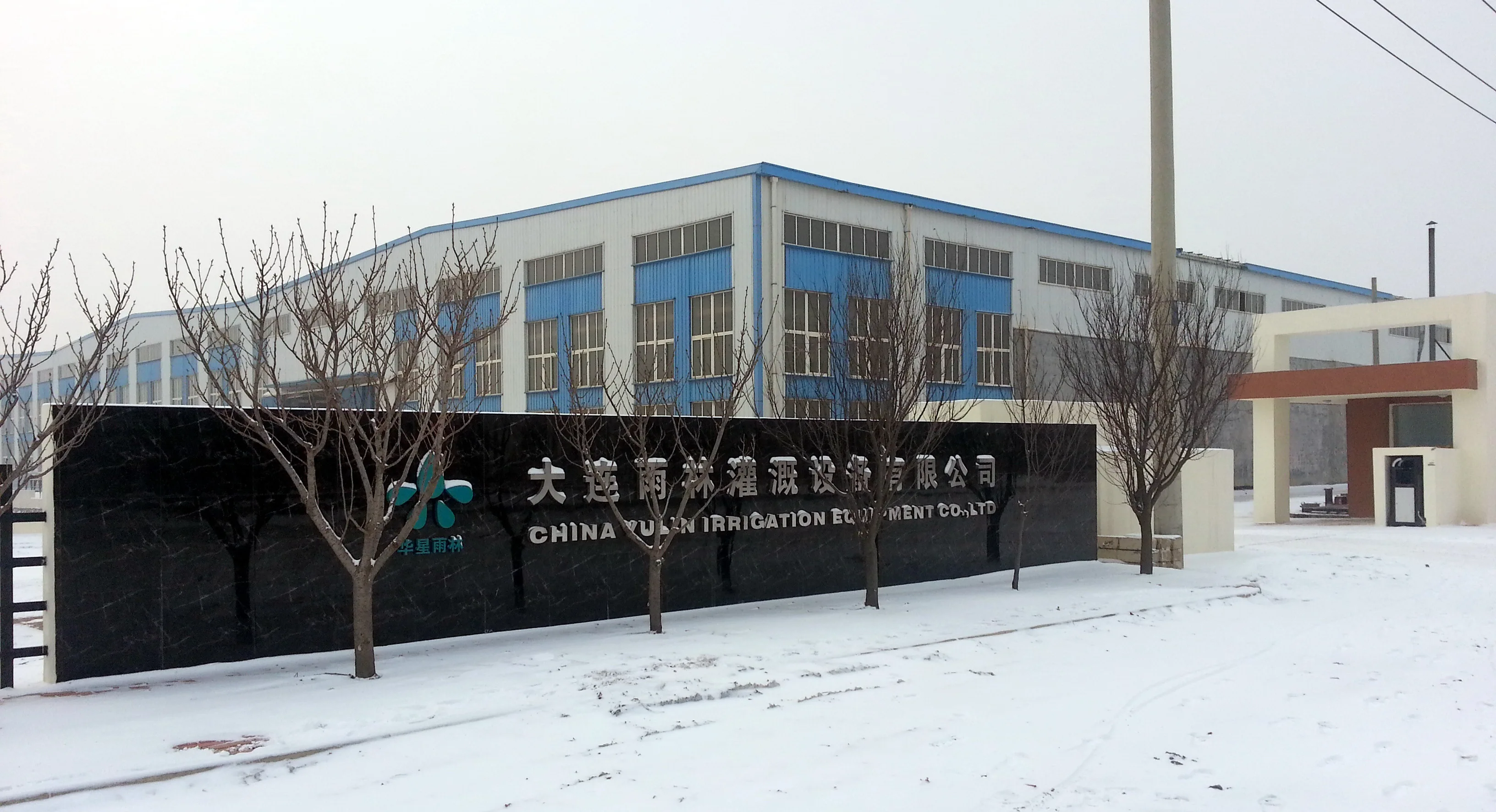

Yulin Irrigation Equipment Co., Ltd is a leading manufacturer of agriculture irrigation system equipment in China. We supply all kinds of agricultural irrigation systems for 17 years such as pivot irrigation, lateral move irrigation, and towing irrigation system which can meet different land conditions.
As an OEM manufacturer, we have supplied more than 1,000 large scale irrigation projects from 2000 to 2008 to the American irrigation company. We are the only one Chinese manufacturer to achieve their certification on technology, manufacturing process, quality assurance and management standards.
We supply advanced irrigation equipment, professional installation teams, high efficiency irrigation programs and timely after sales service for customers all over the would.
China Yulin Irrigation Equipment Co., Ltd is dedicated to the developoment of agriculture irrigation areas. We maintain lasting relationships with both our Chinese and internation business partners to constantly improve the farmers' use of their limited resource - water.
Our Service
1.24 hours online timely reply to each question from clients
2.Professional irrigation design service for the customerized land size for client
3.Techinical installation and debugging for your irrigation system
4.Perfect and timely after-sale service for clients and dealer
Debugging
Installing
Engineer with clients
Engineer with clients

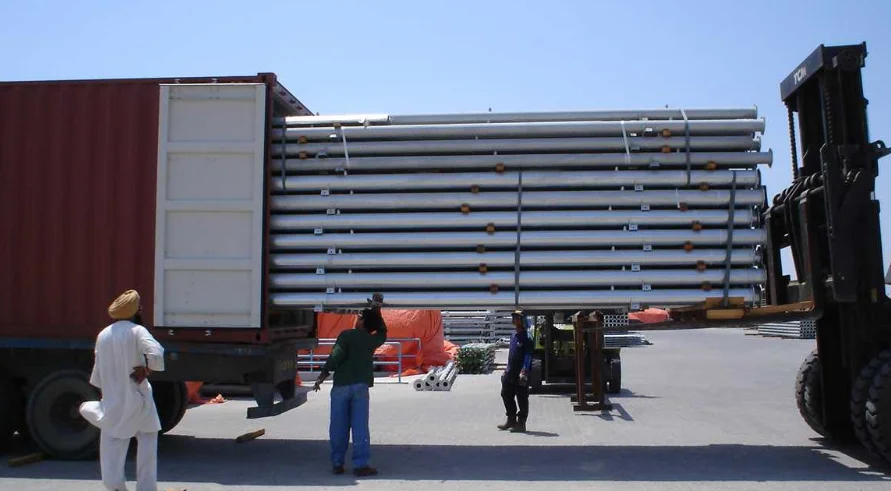

Packing & Delivery
Loading Container: 40GP for whole machine
20GP for irrigation machine
Mix container to loading for client
Vessel Compamy: COSCO,ZIM,CMA and famouse international vessel company
Standard Packing:

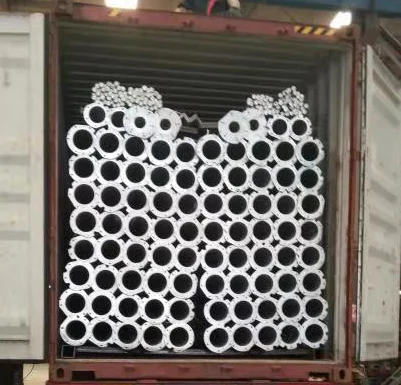

Pipe:5 pieces of pipe for one line,four line as one packing
10 pieces of pipe for one line,two line as one packing

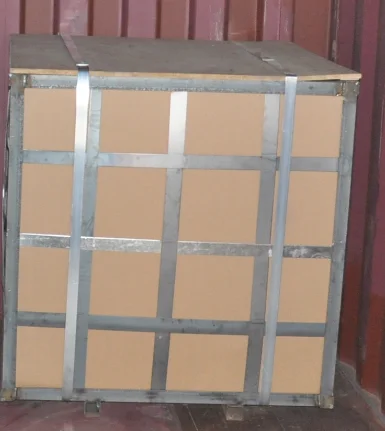

Eletricity parts :packaged by carton and then put inside of iron box
Angles: each span angle with different color marked for client as one packing
