10x38 mm 1000V DC 15A Photovoltaic PV Midget Style Solar Ceramic Fuse

Product Overview

Description

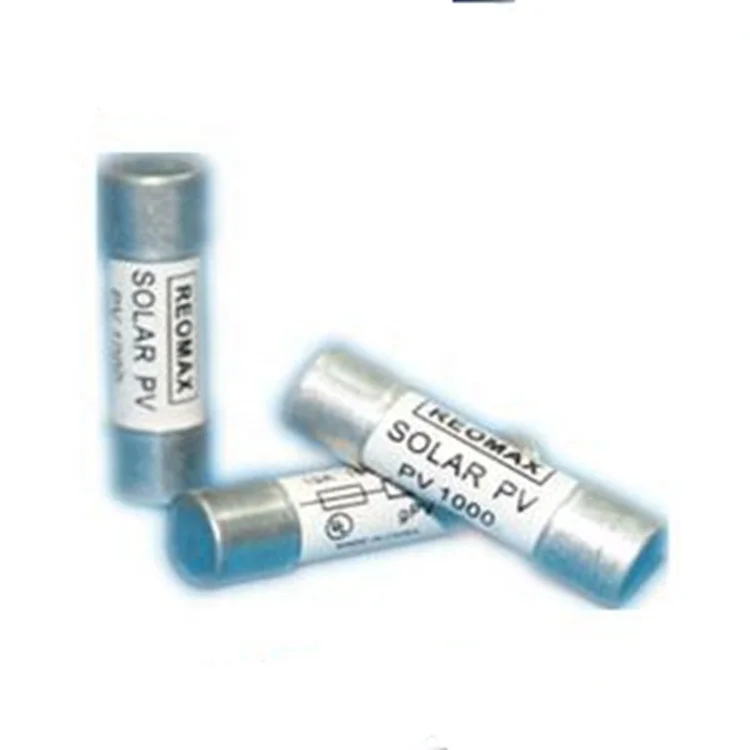

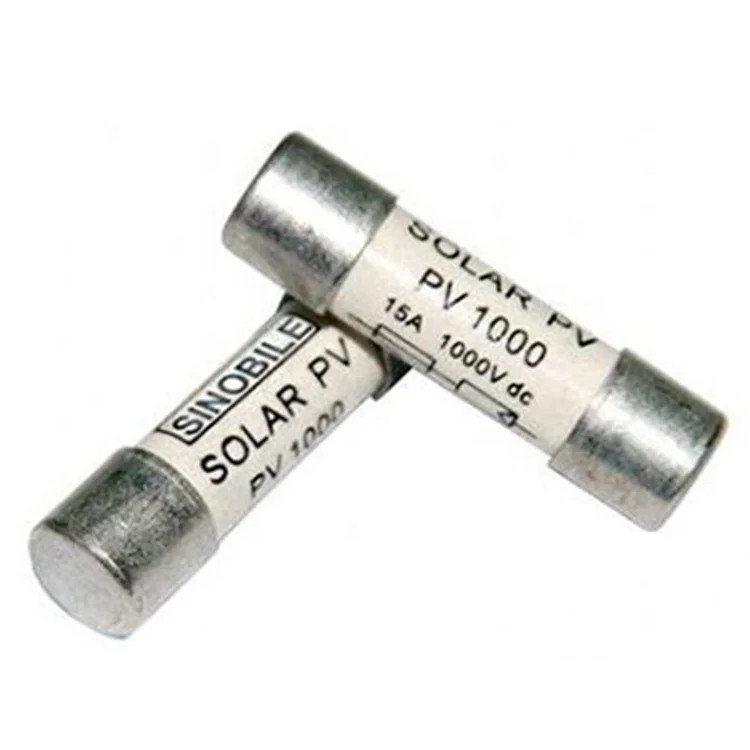

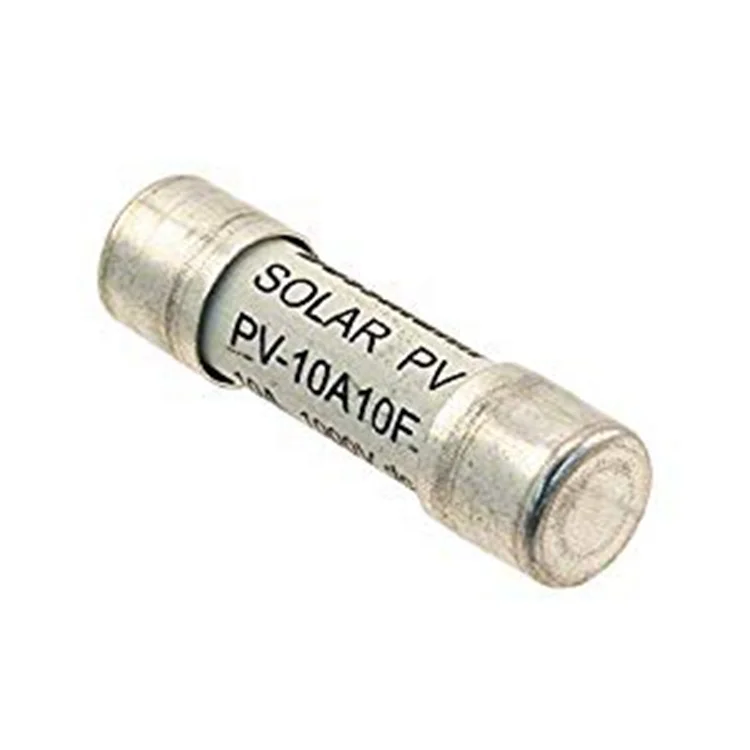

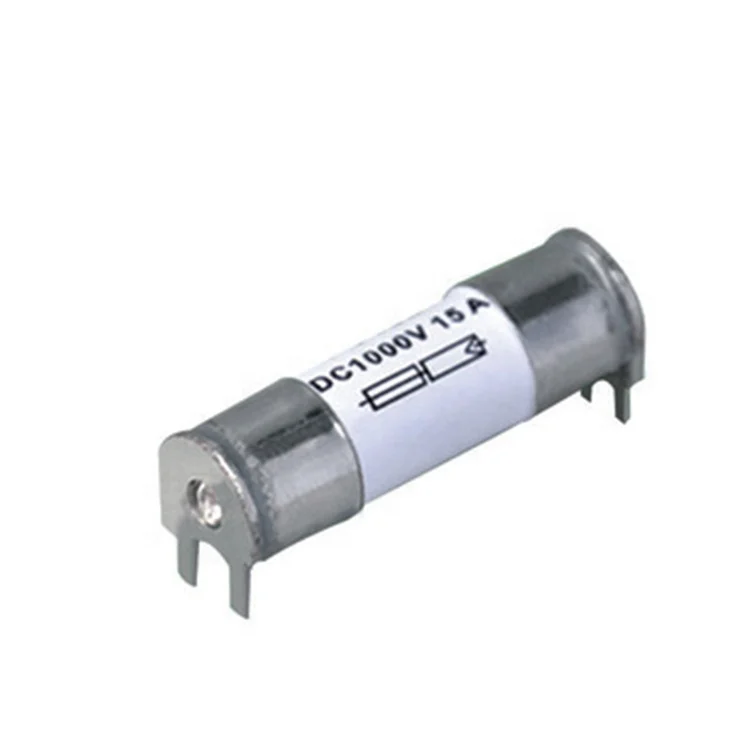

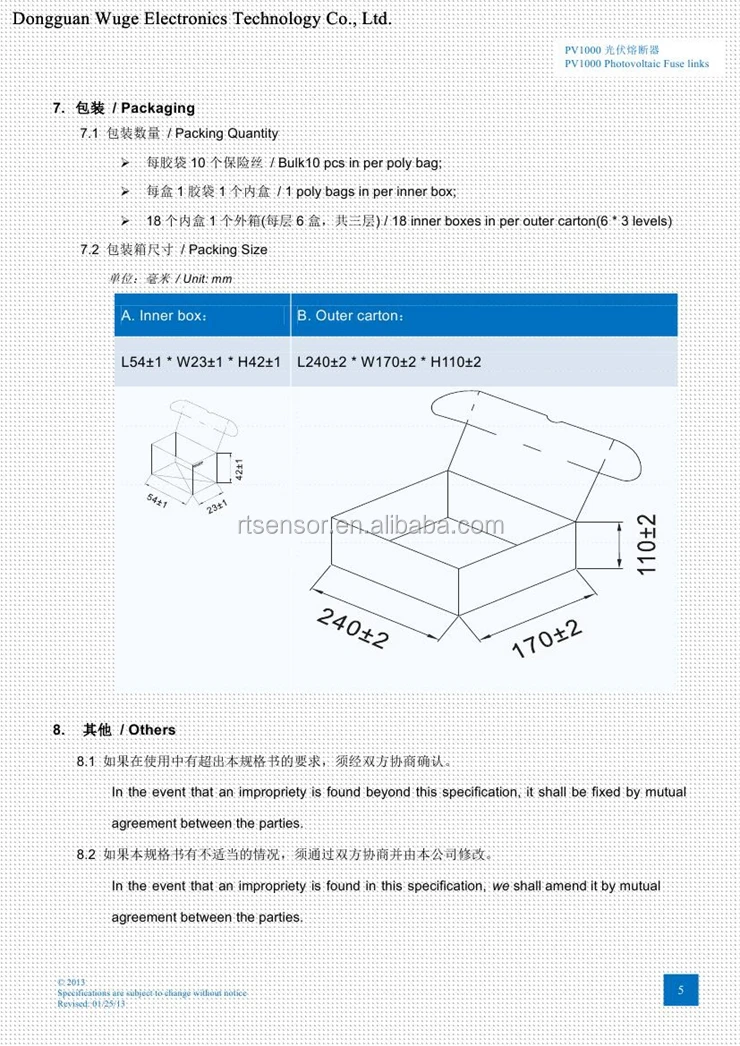

10x38 mm 1000V DC 15A Photovoltaic PV Midget Style Solar Ceramic Fuse

Quick Details

Catalog Number	PV1000.15A (No leads)
Dimensions	10 x 38mm
Volts	10000Vdc
Amps	1A-30A
Agency Information	CE, UL 2579
Typical Applications	Electronic Circuits
Construction	Ceramic tube, nickel-plated brass end caps



Description

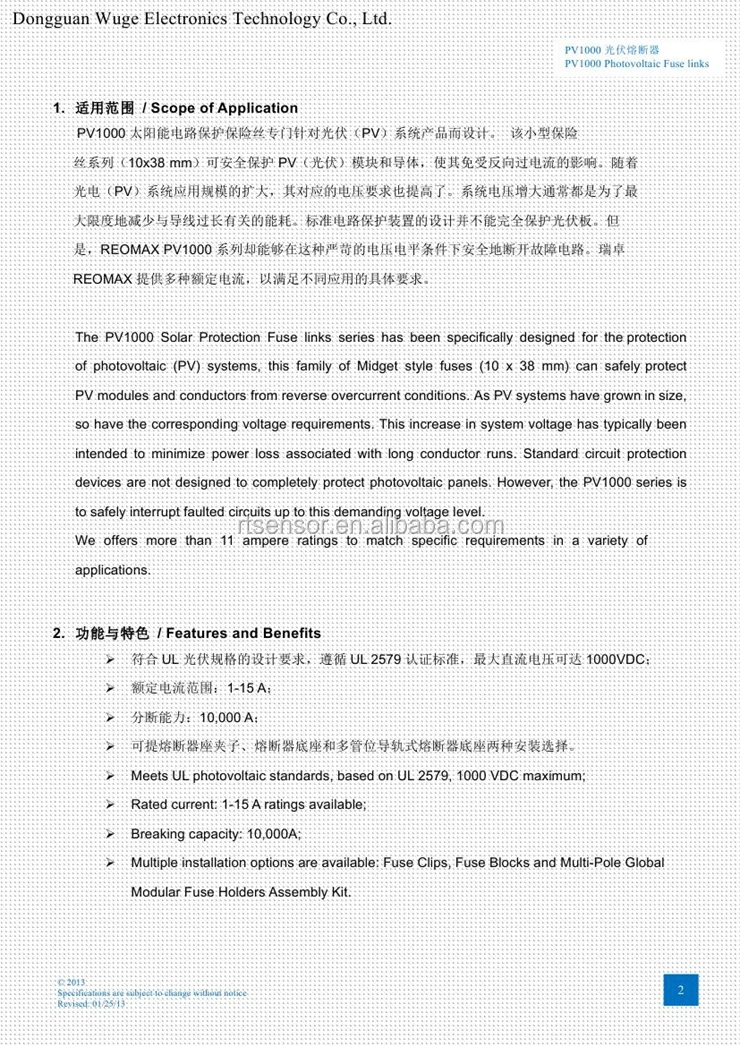

RTsensor's PV1000 Solar Protection Fuse links series has been specifically designed for the protection of photovoltaic (PV) systems, this family of Midget style fuses (10 x 38 mm) can safely protect PV modules and conductors from reverse overcurrent conditions. As PV systems have grown in size, so have the corresponding voltage requirements. This increase in system voltage has typically been intended to minimize power loss associated with long conductor runs. Standard circuit protection devices are not designed to completely protect photovoltaic panels. However, the RTsensor PV1000 series is to safely interrupt faulted circuits up to this demanding voltage level.

RTsensor offers more than 11 ampere ratings to match specific requirements in a variety of applications.



Features

• Meets UL photovoltaic standards, based on UL 2579, 1000 VDC maximum;
• Rated current: 1-16 A ratings available;
• Breaking capacity: 10,000A;
• Multiple installation options are available: Fuse Clips, Fuse Blocks and Multi-Pole Global Modular Fuse Holders Assembly Kit.

Applications

• Power Supply
• Consumer Electronics (video equipment, handheld portables)
• Lighting systems
• Medical equipment

• Input of 3 phase Power Supplies

• Uniterruptible Power Supplies (UPS)

Electrical Ratings

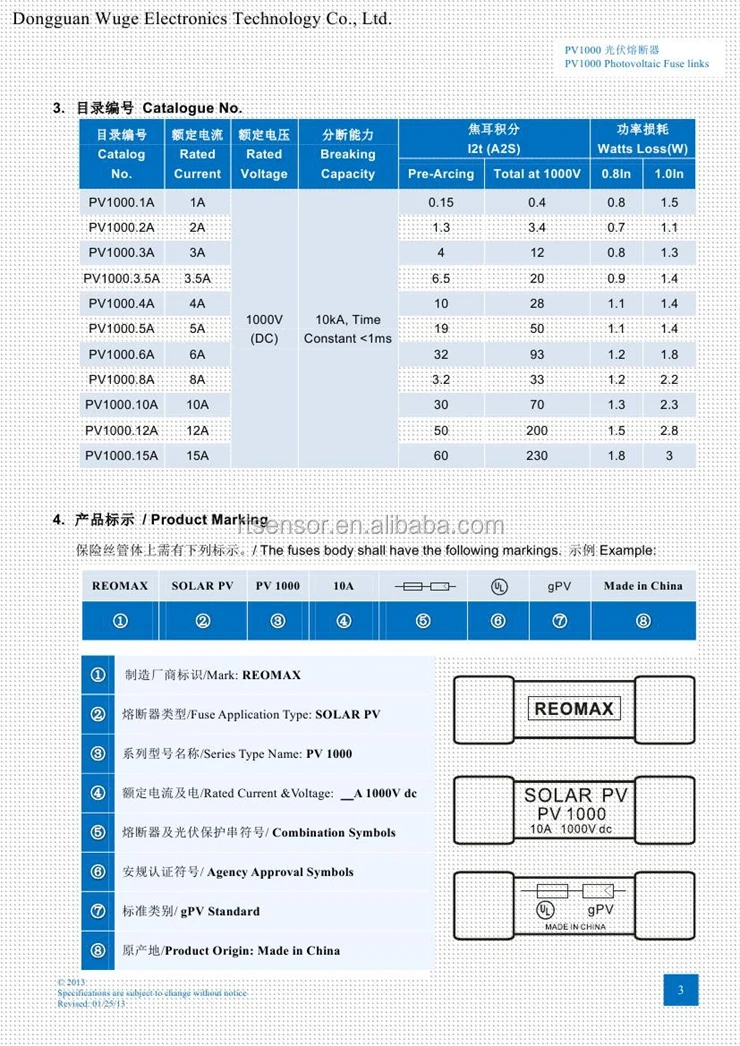

Catalog No.	Rated Current	Rated Voltage	Breaking Capacity	I2t (A2S)		Watts Loss(W)
				Pre-Arcing	Total at 1000V	0.8In	1.0In
PV1000.1A	1A	1000V (DC)	10kA, Time Constant <1ms	0.15	0.4	0.8	1.5
PV1000.2A	2A			1.3	3.4	0.7	1.1
PV1000.3A	3A			4	12	0.8	1.3
PV1000.3.5A	3.5A			6.5	20	0.9	1.4
PV1000.4A	4A			10	28	1.1	1.4
PV1000.5A	5A			19	50	1.1	1.4
PV1000.6A	6A			32	93	1.2	1.8
PV1000.8A	8A			3.2	33	1.2	2.2
PV1000.10A	10A			30	70	1.3	2.3
PV1000.12A	12A			50	200	1.5	2.8
PV1000.15A	15A			60	230	1.8	3





Note: Customize available !

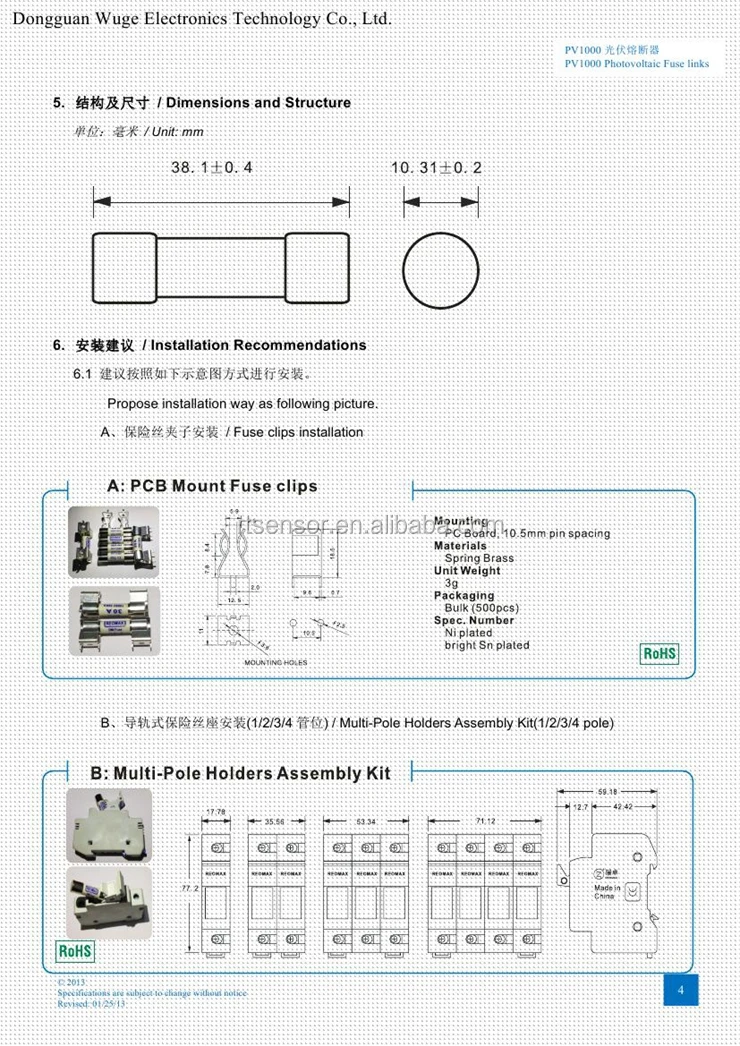

Material & Dimensional Drawing
