  • Ground drill Earth auger Gas post hole digger GASOLINE EARTH AUGER
Ground drill Earth auger Gas post hole digger GASOLINE EARTH AUGER
Ground drill Earth auger Gas post hole digger GASOLINE EARTH AUGER
Ground drill Earth auger Gas post hole digger GASOLINE EARTH AUGER
Ground drill Earth auger Gas post hole digger GASOLINE EARTH AUGER
Ground drill Earth auger Gas post hole digger GASOLINE EARTH AUGER
Ground drill Earth auger Gas post hole digger GASOLINE EARTH AUGER
Ground drill Earth auger Gas post hole digger GASOLINE EARTH AUGER

Ground drill Earth auger Gas post hole digger GASOLINE EARTH AUGER

Share on (60346736530):


Price:

Quantity:


Product Overview

Description


Sample order on line price  :




































































































Earth auger


machine



Spring


reducer


Extention rod (cm)HY-PT Earth auger bit dia mm/Length 800mm/Single helical bladeEXW Price
50 60 70 φ40φ60 φ80φ100φ120φ150φ200
$212.00$25.50$9.12$10.50$11.21$28.60$28.60$33.56$33.56$40.70$42.50$49.76$522.61
√√ √    √ √√$370.82
√       √ √√$334.82
√      √√√  $316.82





















































































Certificate : CE  EMC  ISO9001-2015
Engine model: 1E47F   2 strokeHandle design: V & Rectangle form to surround engine and gear case
Engine power: 1.85kw / 8800±300 rpm/minTrigger : (Optional )
Displacement : 58CC        * Simple type with safty arm
Max output speed:8800±300 rpm/min        * luxury with automatic reset switch & safty arm   (Bisc)
Fuel  tank capacity: 1200 mlVibration reduction system:1 pcs rubber & 1 pcs metal
Fuel  tank :(Optional )Transmission: Gear case  (Optional )
        *Normal standard fuel tank           *( 2 stages / Model - GC03-2012 )  (Bisc)
        *With external balance air level  (Basic)          *( 2 stages / Model - GC01-2007 )
Fuel tank keeper:(Optional )Gear wheel metrial :20CrMnTi
        * Without Gear wheel structure : Helical (rounded corner)
        * Simple metal  Main gear wheel contact with output shaft : Spline
       * Luxury / Plastic metrial  / Fully surrounded (Basic)Output rate: 29:1  (Basic)   /   10:1  / 5:1
Fuel: Gasoline mix 2 stroke Oil (25:1)Output shaft type :  (Optional )
Clutch : 2 Pcs hoof blocks         * Spline
Starting systerm : Recoil        * Cylinder φ20mm (Basic)
Starter: (Optional )        * Cylinder φ22mm
       *Normal starterMax drive ability : ≤ φ 300mm  auger bit
       *Normal easy starterRecommend drive :≤φ 250mm auger bit
       *Supper easy starter: 2 pcs spings  & 1 pcs needle bearing (Basic)Auger bit size :  φ40/60/80/100/150/200/250/300mm





Product Description

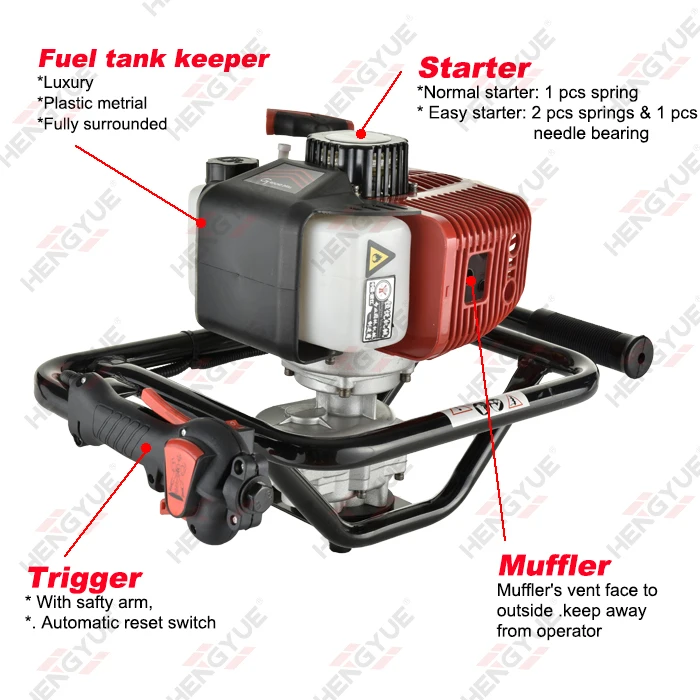

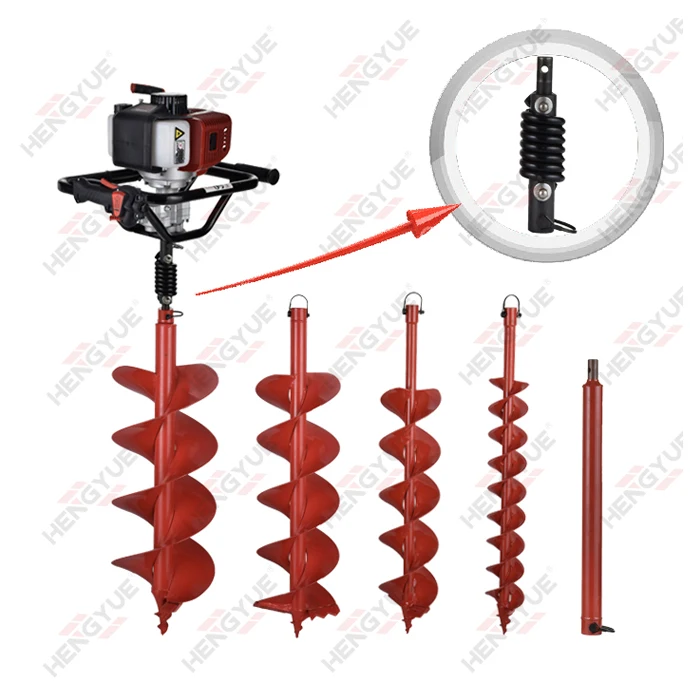

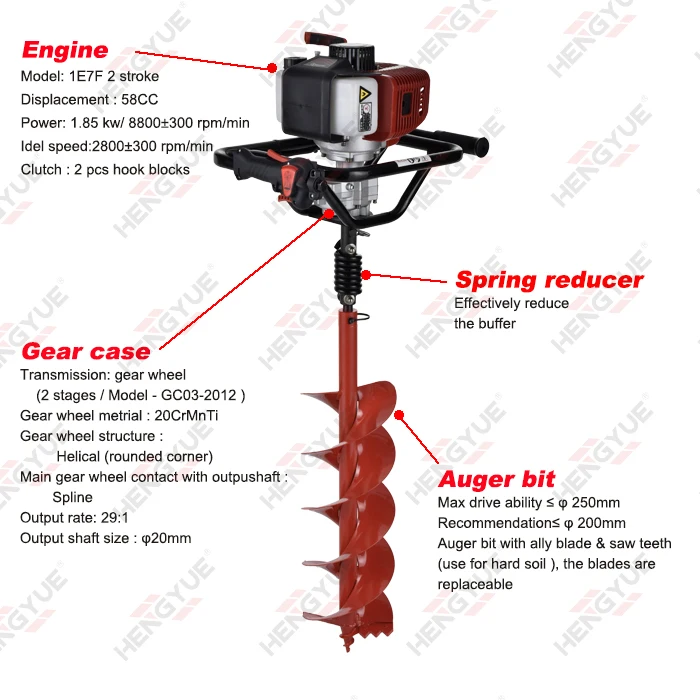

  4.jpg 1.jpg 2.jpg




















Different drill bit you can choose





1. Different tips


















 HY-ZT01
 A. Cast steel tip, which can not be take down
 B. Simple blade, which can not be take down
 C. Single laminae or double laminaes		 HY-PT01
 A. Easy tip
 B. Simple blade , which can not be take down
 C. Single laminae or double laminaes
 HY-HJZT01
 A. Cast steel tip, which can not be take down
 B. Alloy sawtooth or flat blade , which can be take down
 C. Alloy sawtooth or flat blade , which can be take down
 D. Single laminae or double laminaes 		 HY-ZYHJ01
 A. Cast iron twist tip, which can not be take down
 B. Alloy sawtooth or flat blade, which can be take down
 C. Whole metal disk plate in the bottom
 D. Single laminae or double laminaes
 HY-BYHJ01
 A. Cast iron twist tip, which can not be take down
 B. Alloy sawtooth or flat blade, which can be take down
 C. Alloy sawtooth or flat blade, which can be take down
 D. Half metal disk plate in the bottom
 E. Single laminae or double laminaes		 HY-CX01
 A. Cast iron twist tip, which can be take down
 B. Alloy sawtooth or flat blade , which can be take down
 C. Alloy sawtooth or flat blade , which can be take down
 D. Half metal disk plate in the bottom
 E. Single laminae or double laminaes




































 HY-CX02
 A. Cast iron twist tip, which can be take down
 B. Alloy sawtooth or flat blade , which can be take down
 C. Alloy sawtooth or flat blade , which can be take down
 D. Half metal disk plate in the bottom
 E. Single laminae or double laminaes

HY-CX03
 A. Cast iron twist tip, which can be take down
 B. Alloy sawtooth or flat blade , which can be take down
 C. Single laminae or double laminaes








 HY-ICE01
 A. Supper tip, which can be take down
 B. XK5 material blade ,which can be take down
 C. XK5 material blade ,which can be take down
 D. Single laminae or double laminaes		 HY-ICE02
 A. Supper tip, which can be take down
 B. XK5 material blade ,which can be take down
 C. XK5 material blade ,which can be take down
 D. Single laminae or double laminaes
 HY-ICE03
 A. Cast iron twist tip, which can not be take down
 B. Alloy sawtooth or flat blade, which can be take down
 C. Alloy sawtooth or flat blade, which can be take down
 D. Half metal disk plate in the bottom
 E - Single laminae or double laminaes		 HY-CX04
 A. Spring adapter, can reduce shake
 B. Single laminae or double laminaes
 C. Cast iron twist tip, which can not be take down
 D. Whole metal disk plate in the bottom
 E.Alloy sawtooth or flat blade, which can be take down








2. Different size and spare parts
