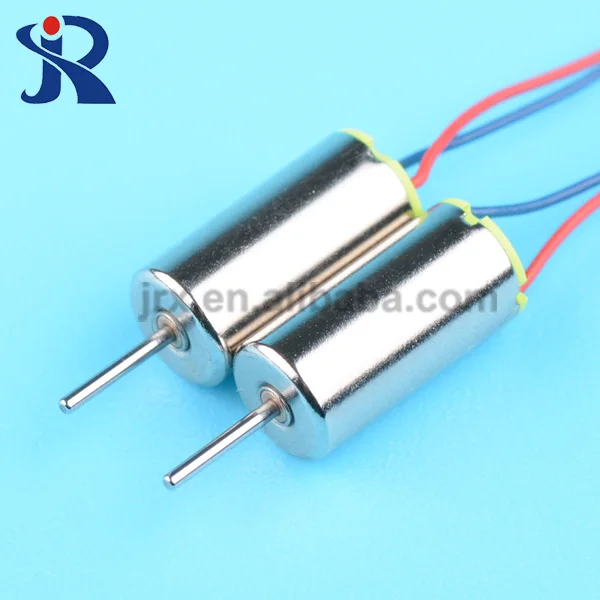

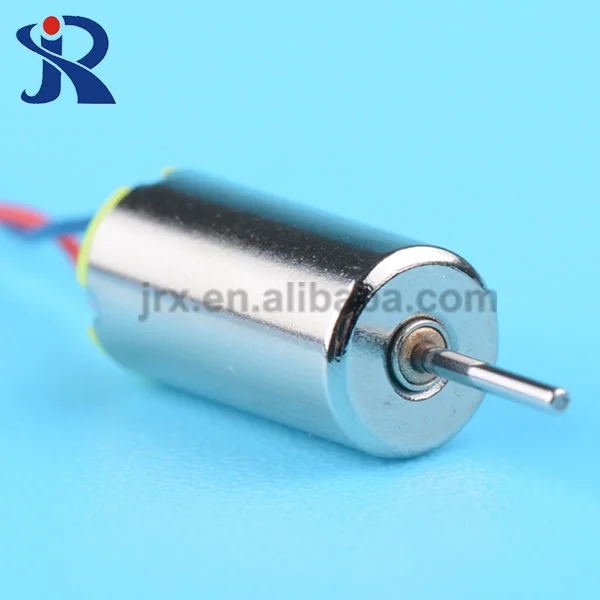

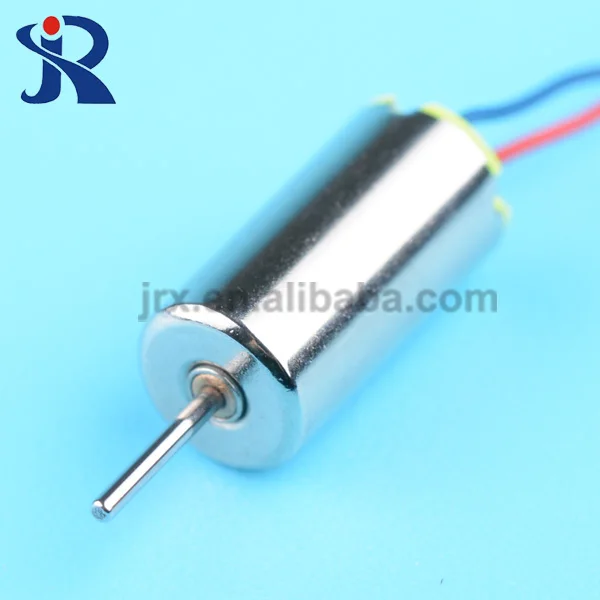

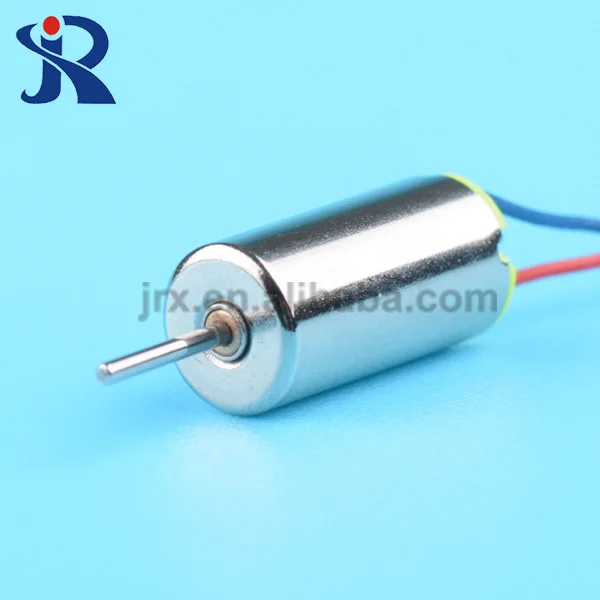

3v 6*12mm long shaft DC coreless driving motor for toy, small car toy engine JMM-1403
Product Description
JMM-1403 is a high speed coreless driving motor with 6mm long shaft, 6mm diameter. The speed can be 31000 rpm at 3v. It's wildly used in RC toys like toy car, toy quadcopter, teaching models and toy boat, etc.
The motor can be customized with Micro-JST connection.

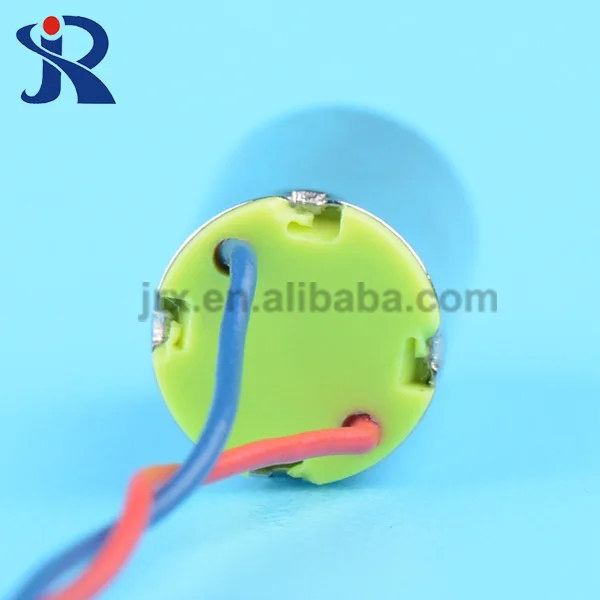

CW motor with red&blue wire, CCW motor with black&white wire.

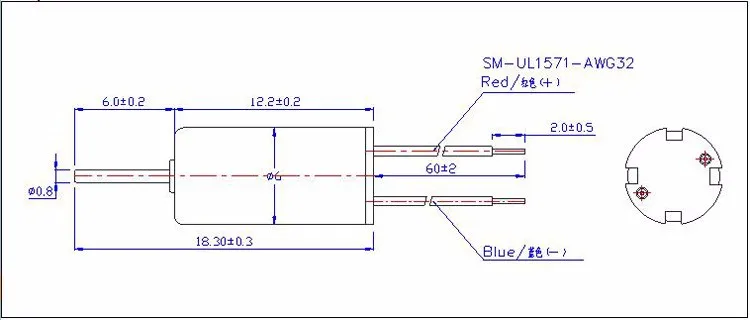

Motor Data
| Driving Model | Size | Rated Voltage | Operating Range | Speed | Rated Current | Terminal Resistance | Starting Voltage | Stall Current |
| mm | V | V | r/min | mA | Ω | V | mA | |
| JMM-1403 | Ø6x12 | 3.0 | 2.0~3.0 | 31000±10% | 25 | 5.5±5% | 0.8 | 400 Max |

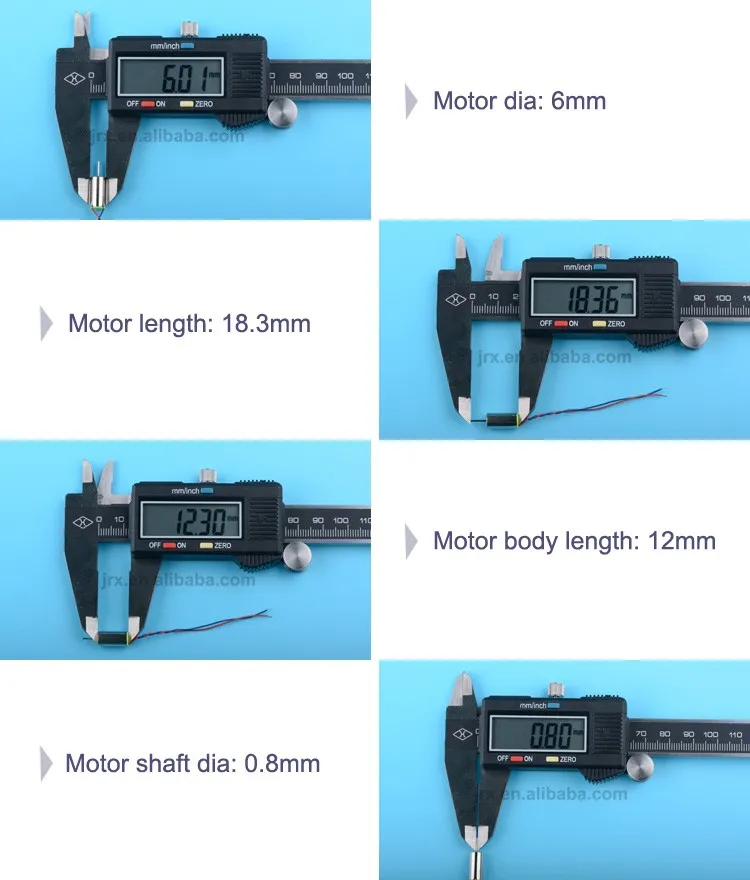

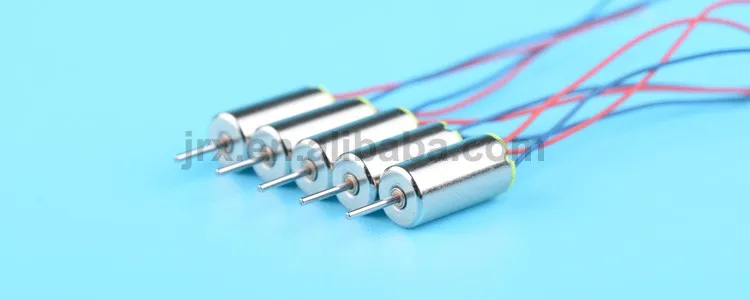

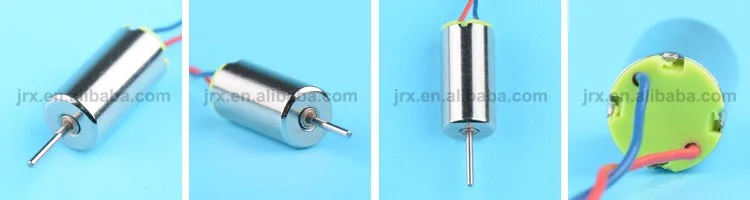

Detailed Images
Related Products
| Dia | Model | Size | Rated Voltage | Operating Range | Speed | Rated Current | Terminal Resistance | Starting Voltage | Stall Current |
| mm | mm | V | V | r/min | mA | Ω | V | mA | |
| Dia 4mm | JMM-1400 | Ø4x12 | 3.7 | 2.0~3.7 | 73000±10% | 40 | 12±5% | 0.8 | 450 Max |
Dia 6mm | JMM-1401 | Ø6x12 | 3.7 | 2.0~3.7 | 51000±10% | 50 | 3.5±5% | 0.8 | 850 Max |
| JMM-1402 | Ø6x10 | 3.0 | 2.0~3.5 | 21000±10% | 15 | 31±5% | 0.8 | 100 Max | |
| JMM-1403 | Ø6x12 | 3.0 | 2.0~3.5 | 31000±10% | 25 | 5.5±5% | 0.8 | 400 MAX | |
| JMM-1404 | Ø6x12 | 3.0 | 2.0~3.5 | 20000±10% | 15 | 17.3±5% | 0.8 | 170 Max | |
| JMM-1405 | Ø6x12 | 3.7 | 2.0~3.7 | 49000±2500 | 65 | 2.2±5% | 0.8 | 1000 Max | |
| JMM-1654 | Ø6x14 | 3.7 | 2.0~3.7 | 51000±10% | 70 | 1.4±10% | 0.8 | 1300 Max | |
| 4.2 | 2.0~4.2 | 59000±10% | 100 | 1.4±10% | 0.8 | 1600 Max | |||
| JMM-1655 | Ø6x14 | 3.7 | 2.0~3.7 | 48000±10% | 70 | 1.6±10% | 0.8 | 1100 Max | |
| 4.2 | 2.0~4.2 | 56000±10% | 100 | 1.6±10% | 0.8 | 1400 Max | |||
| JMM-1650 | Ø6x15 | 3.7 | 2.0~3.7 | 53000±10% | 65 | 1.6±10% | 0.8 | 1400 Max | |
| Dia 7mm | JMM-1418 | Ø7x16 | 3.0 | 2.0~3.5 | 28000±10% | 35 | 7.9±5% | 0.8 | 750 Max |
| JMM-1651 | Ø7x20 | 3.7 | 2.0~3.7 | 56000±10% | 115 | 0.5±10% | 0.8 | 2200 Max | |
| Dia 8mm | JMM-1421 | Ø8x20 | 3.7 | 2.0~4.0 | 45000±2000 | 110 | 0.55±5% | 0.8 | 5000 Max |
| Dia 10mm | JMM-1605 | Ø10x20 | 3.7 | 2.9~3.9 | 40000±15% | 240 | 0.37±20% | 0.8 | 1100 Max |
Certifications

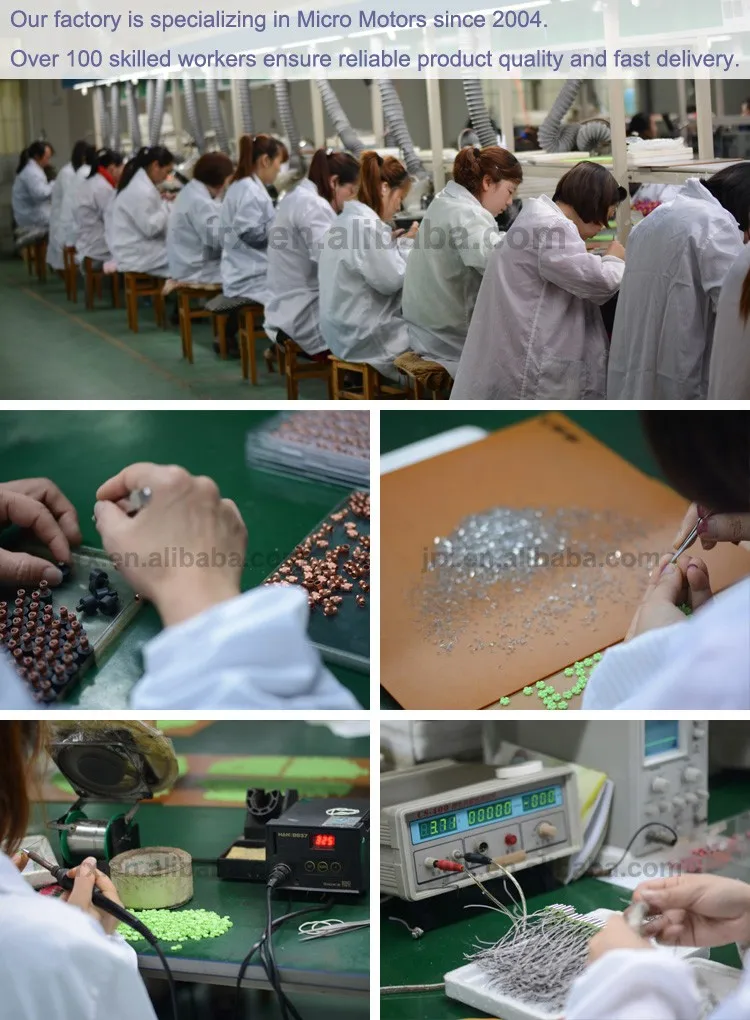

Company Information
FAQ
Q: Is there a MOQ for your motors?
A: Yes. The MOQ is 1,000pcs for different models after sample approval. But it's also okay for us to accept smaller lots like a few dozens, hundreds after sample approval.
Q: Could you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q: Is it possible for you to develop new motors if we provide the tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not .
