Product Overview

Description

High strength Grouting material epoxy resin for construction cracks



For many grouting applications an Epoxy Resin Grout may be overkill and cement based aggregate filled grouts are sufficient. This is usually where non-shrink characteristics are required and loading is static. Epoxy resin grouts come into their own when situations demand much higher specification and greater reliability.



Typical examples of use are:

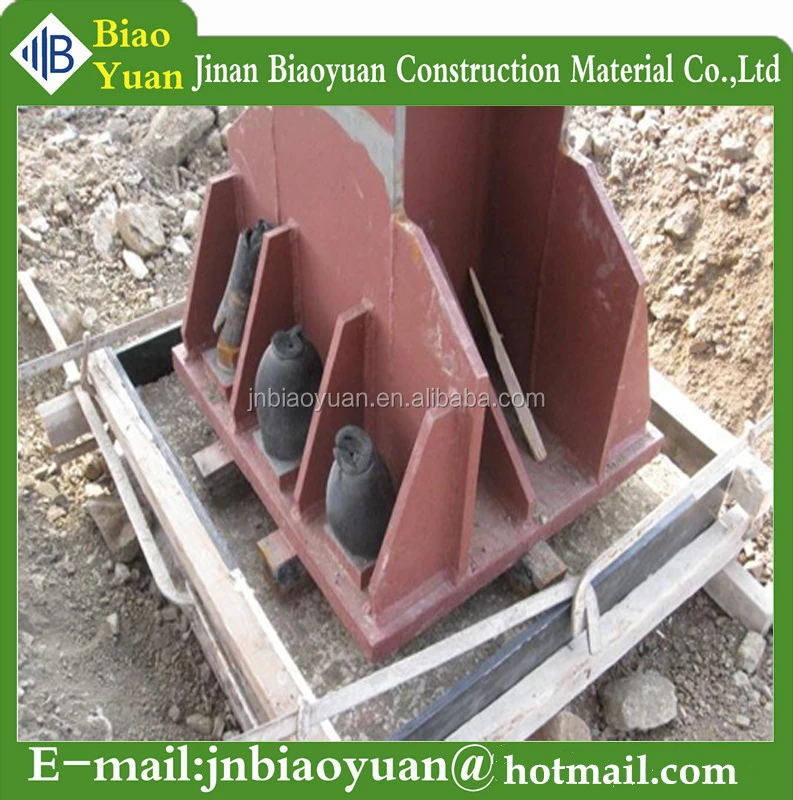

installation of machine base plates
crane rail fixing
motorway bridge bearing installation
dowel and starter bar fixing
bedding manhole frames
airport light installation

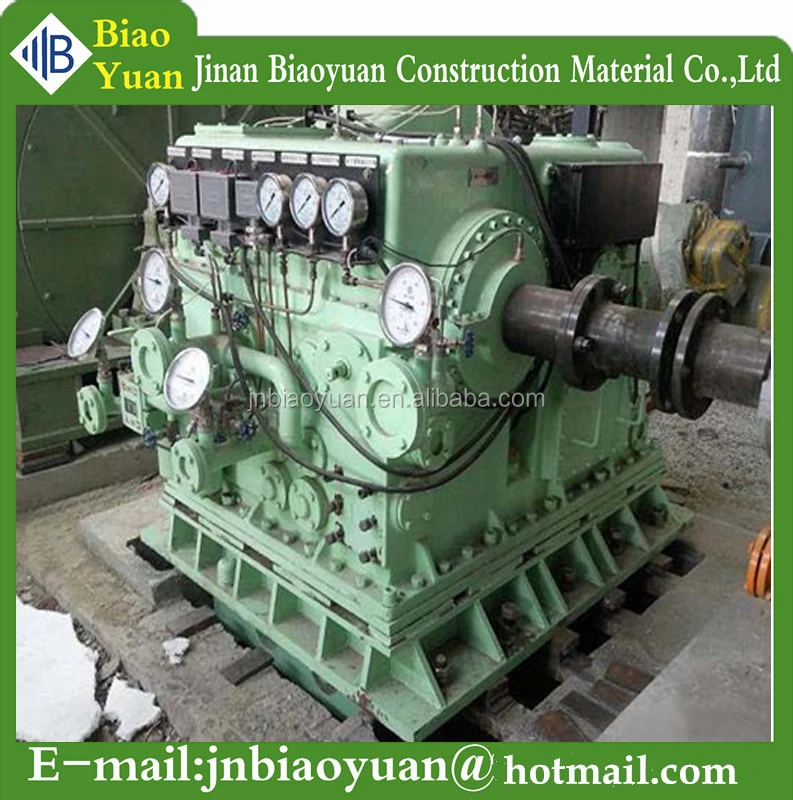

heavy machine bolt fixing
grouting in tight inaccessible areas

Epoxy resin grouts:

reach high compressive and tensile strengths
have excellent chemical resistance
withstand high dynamic loading and vibration
have negligible shrinkage allowing full contact and support
can be placed in much thinner sections
have a range of flow characteristics
possess strong adhesion to concrete and steel

Technical Date:

PERFORMANCE	Index
Viscosity (mPa.s)/20°C	< 100
Initial Setting Time(h)/20°C	> 1
Finale Setting Time(h)/20°C	< 5
Bonding Strength (MPa)	> 3/bonding cement mortar“8”mold(dry)
	> 2/bonding cement mortar“8”mold(wet)
Compression Resist (MPa)	>30/Compressive Deformation 50%
Tensile Strength (MPa)	>5
Elongation At Break (%)	100



Application:
Leakage-proofing and concrete reinforcing grouting for deformation cracks, construction cracks and cracks in the field of Subway, water conservancy project, and some industrial and civil concrete buildings.

Construction method:
Consistent with relevant construction specification.

Storage:
In the shade, 12 months of validity without opening the package.
