new C Type injection molding machine c type pvc/abc ac plug
- Category: >>>
- Supplier: Dongguan Min-Hui Plastic Manchinery Co. Ltd.
Share on (60347033455):
Product Overview
Description

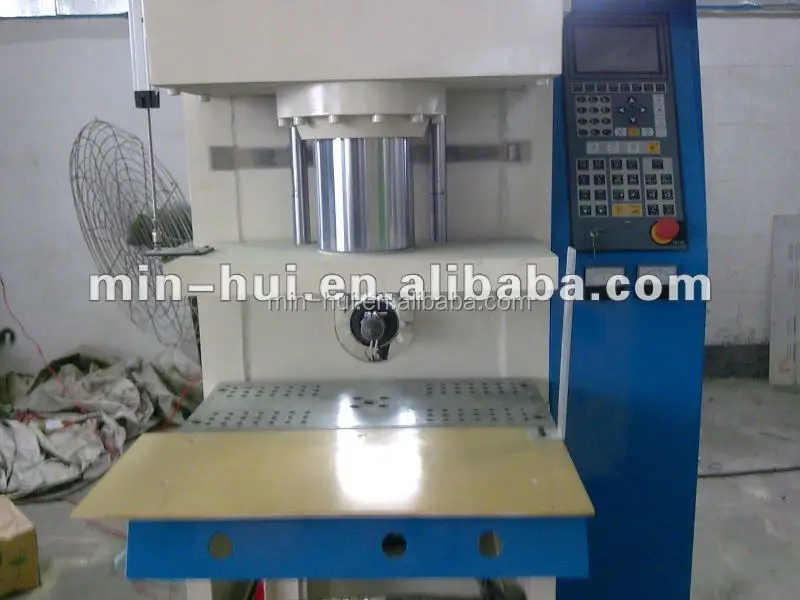

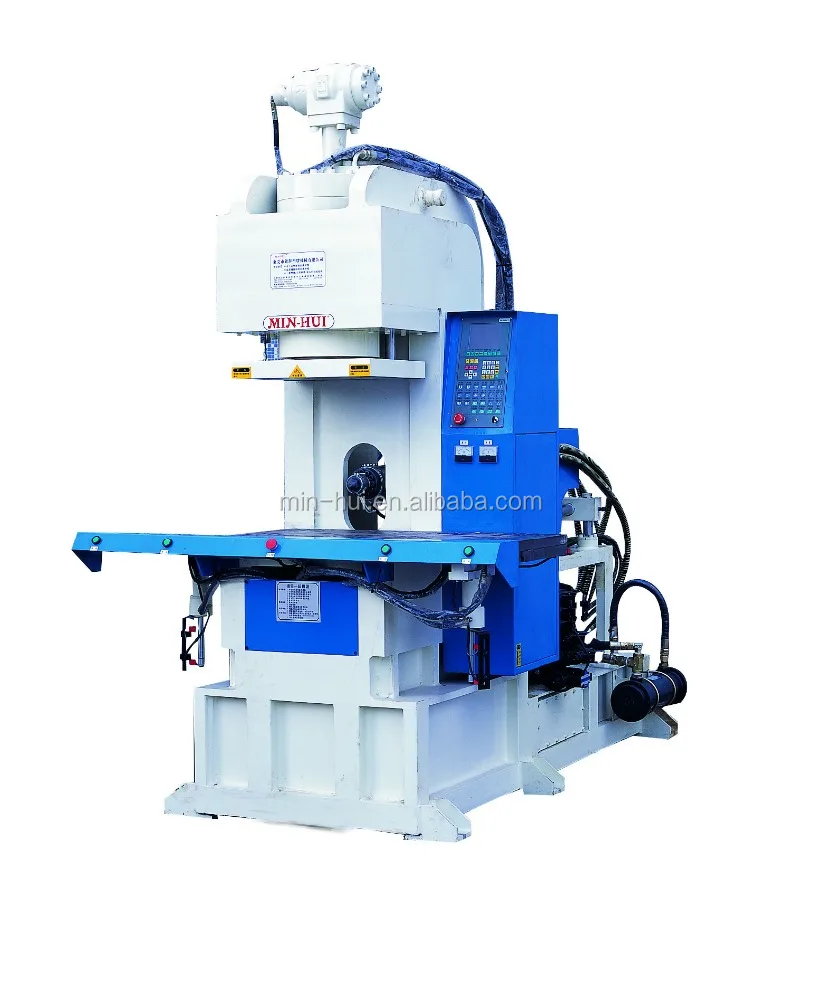

C-Type injection molding machine
Product Description
C-Type Machine Series
Clamping force: 55T to 85T
Injection weight: 130g to 360g
Clamping vertical, horizontal injection
no columns design, three sides open,
convenient take out products and put inserts.
More convenient to embed the long insert.
We can upgrade to servo motor for customer's
need, The actual energy save 50%~70%.
100% new small injection moulding machine.
Taiwan computer systerm
Japan Yuken Hydraulic vale
CE,ISO9001:2000,UKAS127-1
we supply semi-automatic small injection moulding machine Optional setting (price will be added)
1.High efficiency
2.Most famous component parts
3.Vertical plastic injection molding machine
1).Infrared safety device.
2).Taiwan brand "Porcheson" Computer. Double proportional hydraulic control.
2).Taiwan brand "Porcheson" Computer. Double proportional hydraulic control.
3).Japan "Yuken" hydraulic valve.
4).Japan "Nok" oil seal.
5).Taiwan" Hidraman" electromagnetic hydraulic valve.
6). Danish" Denver Shi" hydraulic motor.
7). Taiwan" YangMing" proximity switch.
8).Switzerland Displacement Transducers.
9).Japanese high density seamless cylinder.
10). Imported "Pionner" high pressure tubing.
4).Japan "Nok" oil seal.
5).Taiwan" Hidraman" electromagnetic hydraulic valve.
6). Danish" Denver Shi" hydraulic motor.
7). Taiwan" YangMing" proximity switch.
8).Switzerland Displacement Transducers.
9).Japanese high density seamless cylinder.
10). Imported "Pionner" high pressure tubing.
11)High efficiency
12).Most famous component parts
13).Vertical plastic injection molding machine 1
14).good quality and stable.
Website: //en.min-hui.com
12).Most famous component parts
13).Vertical plastic injection molding machine 1
14).good quality and stable.
Website: //en.min-hui.com
Specification
| DONGGUAN MIN-HUI PLASTIC MACHINERY CO.,LTD. | |||||||||
| SPECIFICATION | |||||||||
| unit | MHC-55T | MHC-85T | |||||||
| Injection Unit | Screw Diameter | mm | Φ30 | Φ38 | Φ45 | Φ38 | Φ45 | Φ50 | |
| Theoretical shot Volume | cm3 | 106 | 170 | 238 | 181 | 254 | 314 | ||
| (PS)Injection Weight(PS) | g/(oz) | 98(3.5) | 158(5.5) | 221(7.7) | 168(5.9) | 236(8.3) | 292(10.3) | ||
| Injection rate | cm3/sec | 70 | 112 | 158 | 125 | 175 | 217 | ||
| Injection speed | mm/s | 93 | 111 | ||||||
| Max.Injection Pressure | Mpa(kgf/cm2) | 242(2468) | 151(1545) | 108(1102) | 173(1760) | 122(1254) | 100(1016) | ||
| Screw Speed Rotation | r.p.m | 0-240 | 0-300 | ||||||
| Clamping Unit | Clamping Force | KN(tf) | 539(55) | 833(85) | |||||
| Clamping Stroke | mm | 200 | 270 | ||||||
| Min. Mold Thickness | mm | 175 | 185 | ||||||
| Max.Opening | mm | 375 | 455 | ||||||
| (L*W)Distance Between Tie Bars | mm | - | - | ||||||
| (L*W)Max.Mould Size | mm | 450*200 | 500*350 | ||||||
| Ejector Distance | mm | 90 | 90 | ||||||
| Ejector force | KN(tf) | 26.5(2.7) | 26.5(2.7) | ||||||
| Others | System Pressure | Mpa(kgf/cm2) | 13.7(140) | 13.7(140) | |||||
| Oil Tank Capacity | L | 200 | 350 | ||||||
| Electric Power | KW(HP) | 7.5(10) | 15(20) | ||||||
| Heater Power | KW | 6.7 | 10.2 | ||||||
| Machine Dimensions | L*W | M | 2.5*1.1 | 2.9*1.3 | |||||
| H | 2.0 | 3.1 | |||||||
| Machine weight | tf | 2.8 | 5.2 | ||||||

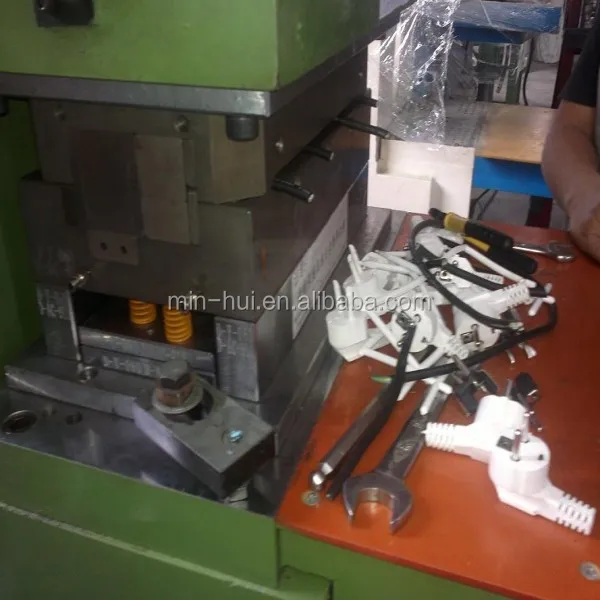

Finished products
Production Flow
Packaging & Shipping
1.Machines should be ready in 5 working days after reveived deposit. And it is allow to postpone if there is some information need to clarify.
2.There will be two manuals in English + 1 Set of tool box together ship with the machine.
3.Export Packing (with wooden box).
Our Services
1.Warranty one year.
2.Min-Hui don't send an engineer for the installation but confirm he warranty is good what ever happens to the machine during one year all the assistance to repair the machine with free components needed for it.
3.Beyond warranty,we'll send new components on basic cost,and if necessary,we'll send engineers to your door with salary/accommodation on your charge.
4.No matter under or beyond warranty,we always supply free, patient and warm online instructions for correct operation,maintenance and simple repair
