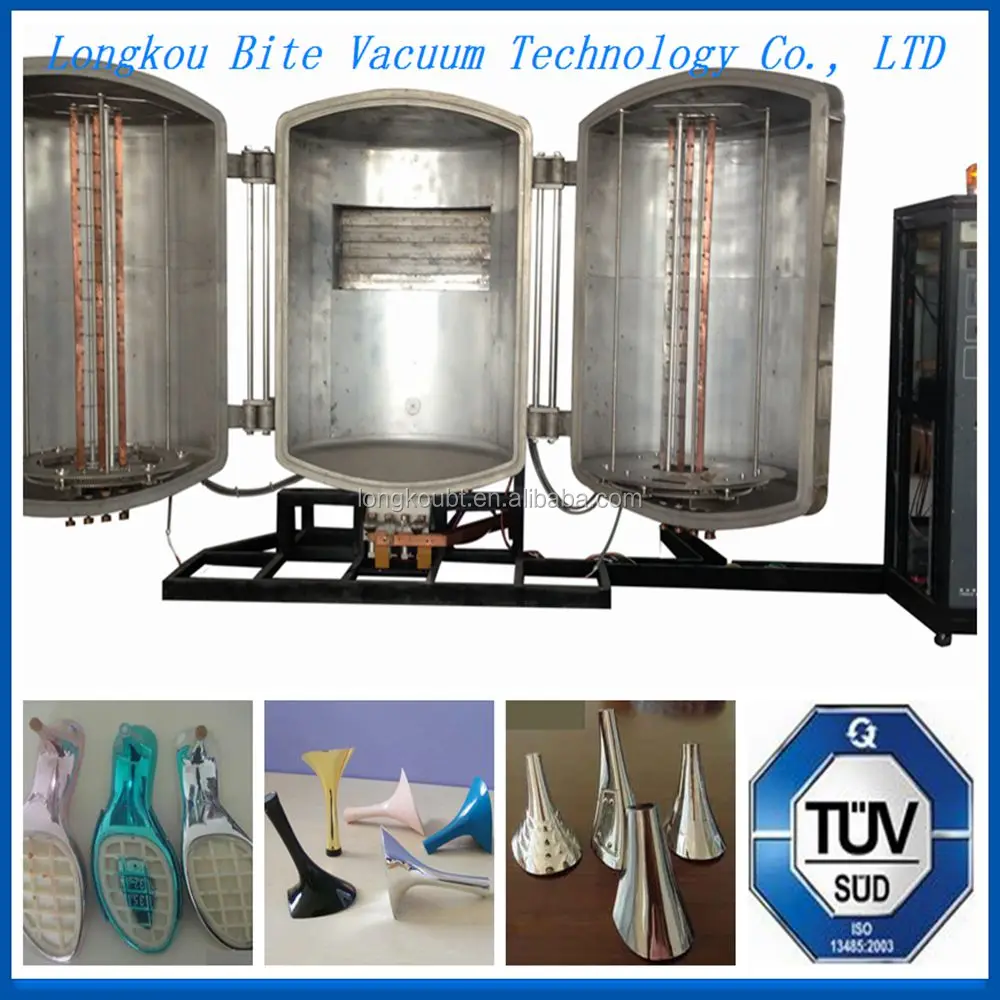

Plastic Shoe Heel Zinc Depostion Sray coating machine/ABS Shoe Heel Chrome Vacuum Metalizing Plating Equipment

Product Overview

Description

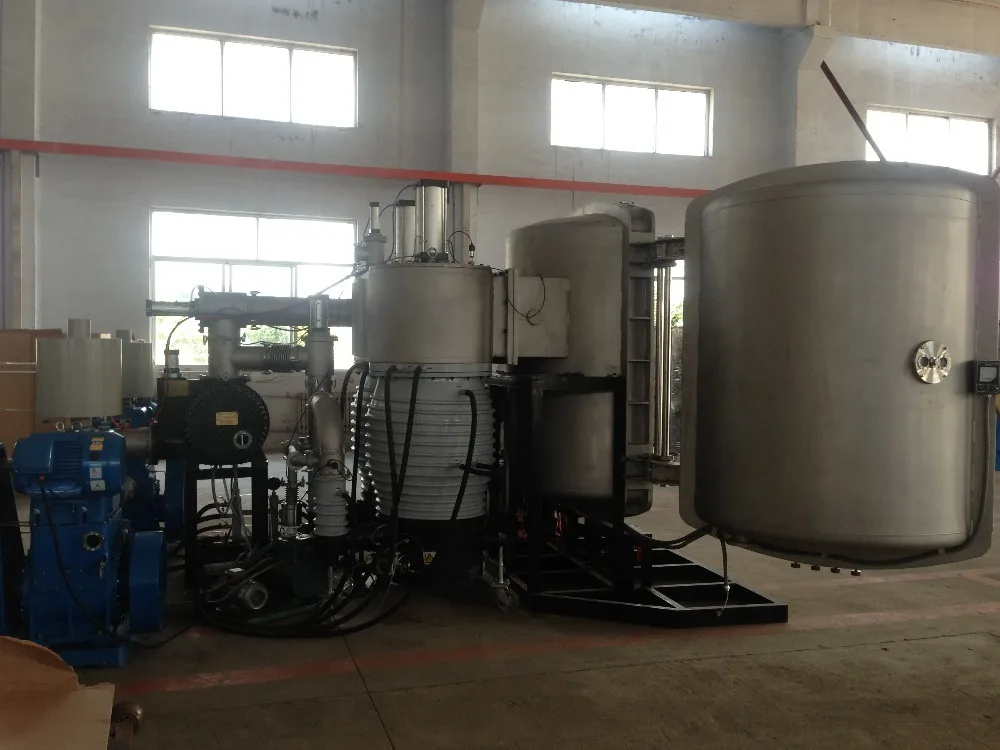

PVD Shoe Heel Evaporation Vacuum Coating Machine

PVD metallizing equipment adopts the resistance heating in the vacuum chamber, to melt and vaporize the metal wire (aluminum wire) cling to the resistance wire. The vaporized metal molecule deposit on the substrates, to gain the smooth film as well as high reflectivity. Thus the surface of the items can be decorated and beautified.





Characteristics:



Working stable, simple operation.



Fast coating speed, high efficiency.



Coated film layer is firm, bright, delicate, no easy to be contaminated, and with high density,high purity and uniform thickness.

Function:

Applying resistance heating methods to make plastic products surface decoration with low price, high quality. Any colors plastic can be coated by gold/silver/red/purple/blue/gray/black and rainbow colors by vacuum coating, can improve products grade, more beautiful appearance.

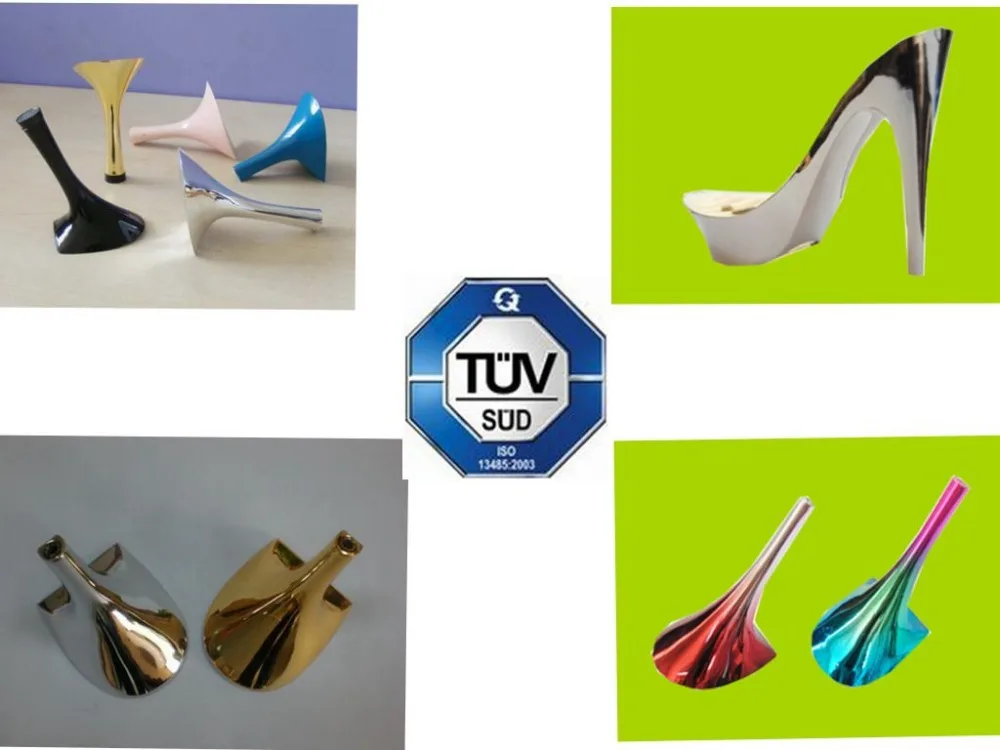

Application: widely used in toys/decorative products/crafts/phone shell/electricity products/light spare parts/cosmetic package with plastic(ABS,PS,PP,PC,PVC)/nylon/ceramic/resin/glass material etc.







 Machine Technical Parameter:

	Parameters	Model No.	Quantity
The structure of the vacuum chamber	Vertical front door , Double or cooling tank cooling
dimension of vacuum chamber	900×1000		1
pumping speed	1×105Pa~3×10-3Pa≤15min
limit vacuum	≤8×10-4Pa
system form a complete set	Maintaining the pump	2X-15	1
	Mechanical pump	2X-70	1
	Diffusion pump	KT-500	1
	roots-type pump	ZJP-300
workpiece system	Rotation of the planet forms(8 roating shaft, since the amount)		8
heating methods	Edge installation of stainless steel heating tube		4
ion bombardment	20KW inverter bias	PLS-20KW	1
Arc target	40-200A adjustable	TIG-250	3
magnetron target amount	one plane target or Cylindrical target		2
Magnetron power	30KW IF power	MF-30KW	1
working methods	PLC semi-auto control or PC+PLC auto control
working gas	Ar N2 O2
total power	40KW
compress air	0.4~0.8MPa
water-cooling system	hydraulic pressure/water temperature:≤25°C/≥0.25MPa(user provide for himself)

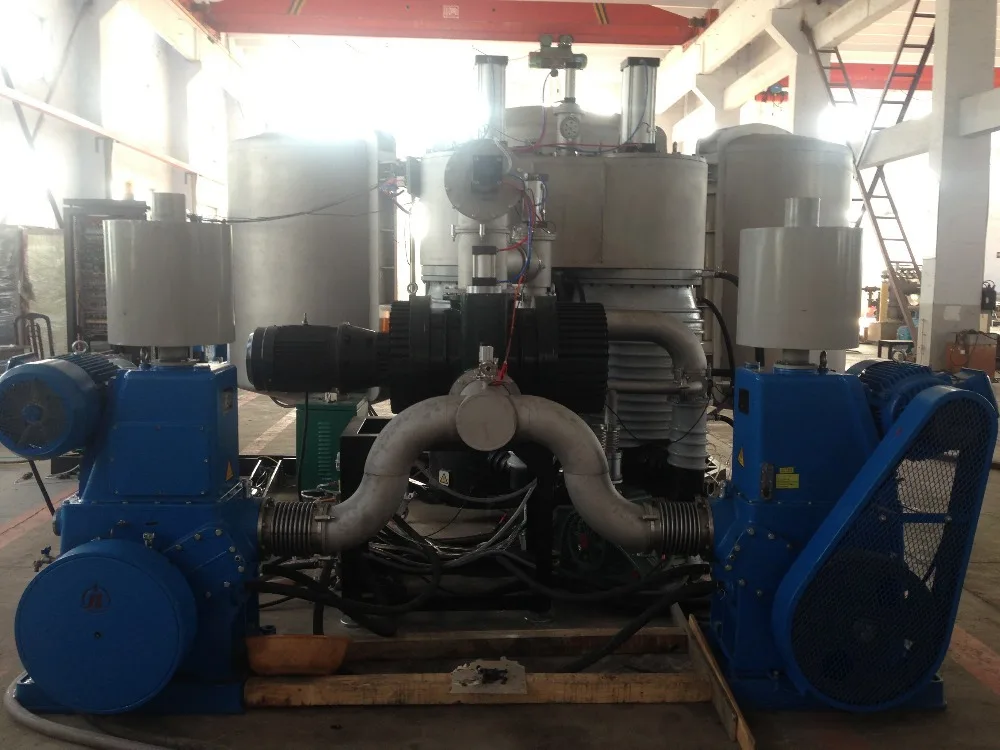

Vacuum Pump System:

High Qulity Roots Pump

High efficient pumping.
