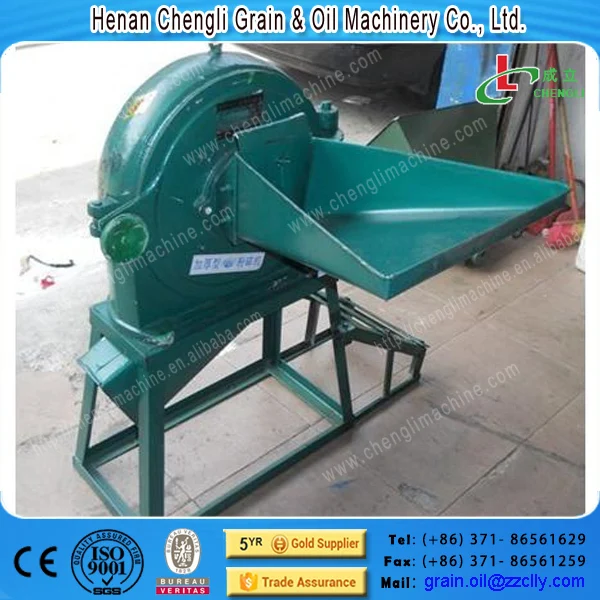

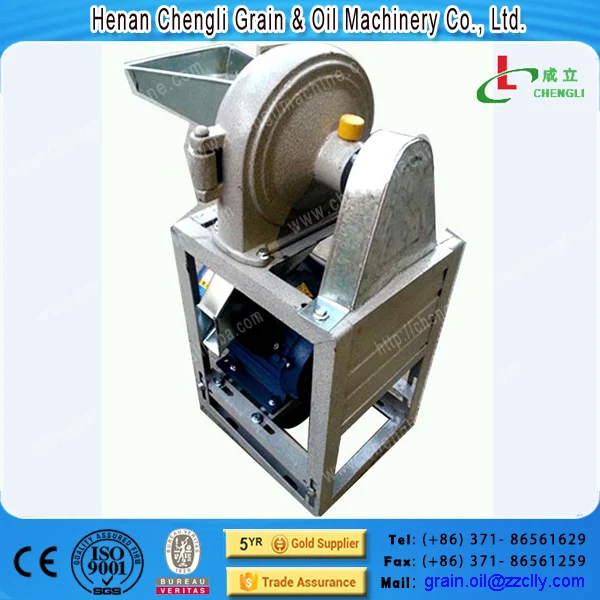

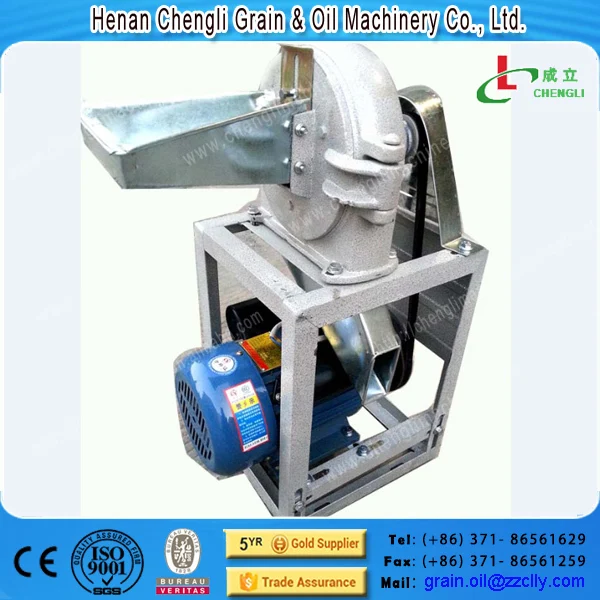

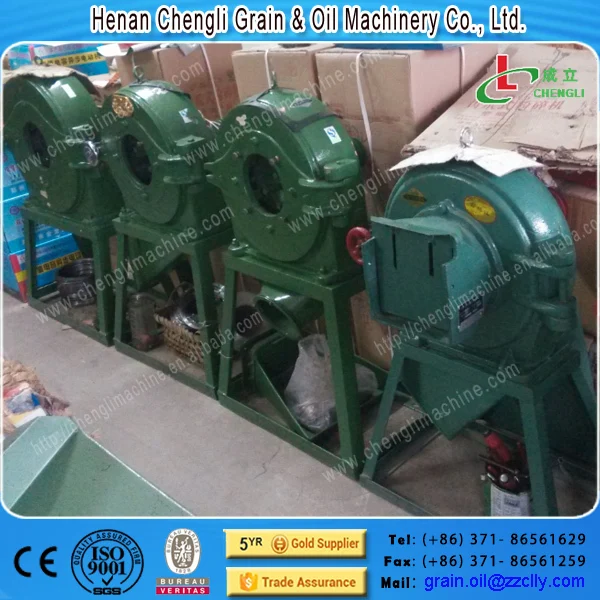

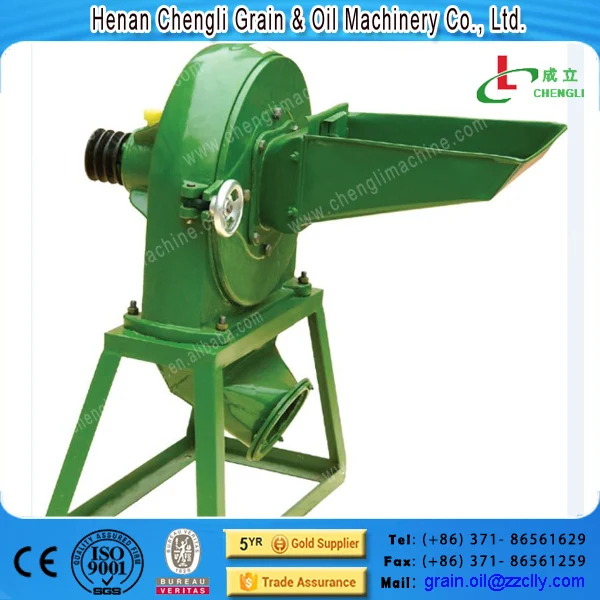

9FZ feed grinder mill/
Introduction
This feed grinder mill can crush all kinds of raw materials, such as corn , sorghum , soybean, wheat , beans and other grains and coarse dry fodder like the broken cake for animal feed.
9FZ series , the main working parts is the installation of the vertical piece on the rotor blade . Crushed particles with a variety of materials, chopped grass , corn stalks and other forage is more widely used and economical grinding equipment ,which has a small size , light weight , installation, operation , maintenance is simple, many advantages of higher productivity.


Structure
The teeth claw crusher consists of the feeding hopper, the crushing room, the rotor, the outlet.
Working principle
The main part of the crusher is the rotor; the fixed gear is with the function of crushing. When the machine starts, need people to put the raw materials into the machine, after feeding into the crushing room, with the rotation of the rotor, the materials is crushed in the process of impacting with the rotor. Under the function of the self weight and airflow, the crushed materials are discharged.


Model | Motor(kw) | Weight(kg) | Dimension(mm) | Capacity(kg/h) |
9FZ-160 | 3kw | 25 | 350*700*500 | 50-100 |
9FZ-200 | 3kw | 35 | 400*550*550 | 100-150 |
9FZ-280 | 4 kw | 45 | 550*550*400 | 150-250 |
9FZ-300 | 4 kw | 50 | 550*580*400 | 200-300 |
9FZ-300 | 5.5kw | 65 | 850*550*1050 | 300-500 |
9FZ-320 | 7.5kw | 110 | 950*650*1050 | 500-1000 |
9FZ-360 | 11kw | 125 | 1050*750*1150 | 1000-2000 |
9FZ-400 | 18.5kw | 155 | 1250*750*1200 | 1500-3000 |
9FZ-450 | 22kw | 195 | 1350*850*1350 | 2000-5000 |



Henan Chengli Grain & Oil Machinery Co., Ltd has decade years of researching, designing and producing experience, as a professional manufacturer specialized in producing grain processing machineries. CHENGLI is engaged specially in project design on grain processing factory of wheat flour and corn/maize flour. Our superior products are complete set of 30T-200T/D maize flour processing machine and wheat flour processing machine and oil pressing and refinery.

We can supply the technology and service on complete set of Corn&Maize Deep-processing Machine, Maize/Wheat Flour Deep Milling machine, single Peeling machine, single Grinding machine, single Polishing machine, different kinds of Pulverizer, Separator, Classifier, Sieves and Plansifter, Centrifugal Ventilator, Pellet machine, Hammer Mill, Packing machine, Oil Refining production line, Oil Press and other machinery parts. We can supply the different designs with different cost to meet different buyer's request.

Our company is also a college & enterprise cooperation combine, we get support from Henan University of Technology, which is the only institution specialized in grain and food in China. Professor An Hongzhou, the grain professor and PhD of Henan University of Technology who studied grain further processing in USA for years is one of the leader technical in our factory.
