plastic pvc pipe extruder machines making machine extrusion machine

PVC Pipe Machine/PVC Pipe Making Machine

Process flow

PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator → vacuum forming machine → haul off machine → cutting machine → discharging rack

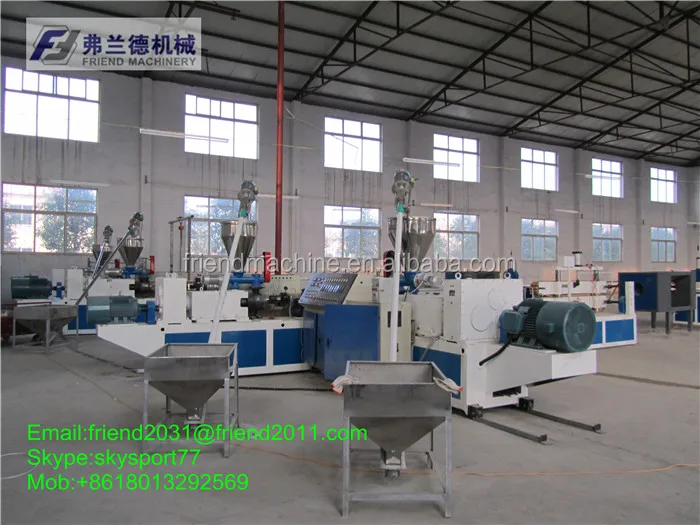

The System configuration of PVC pipe making machine:

1.screw feeding machine

2.mixing unit

3.spring feeding machine

4.twin screw extruder

5.pipe moulds

6.vacuum calibration tank

7.hauling off machine

8.cutting machine

9.pipe stacker

Technical parameter

Outstanding features of PVC Pipe Making Machine:

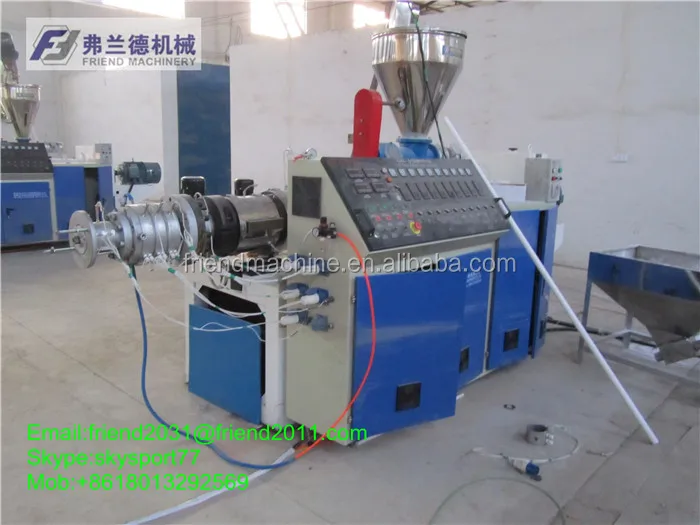

1. 1.     extruder: adopting conical twin-screw extruder, unique designed screw, realizing shorting plasticizing time, good compounding and excellent plasticization.
2. 2.     gearbox: adopting super quality gear box and reducer, with nice  outline, stable running, low noise and long service time.
3. 3.     extruding barrel temperature controlling system: adopting cast aluminum heaters with stainless steel covers, wind cooling system, ensuring good features of cooling and heating, precision temperature controlling.
4. 4.     screw and barrel: screw-core installing with internal temperature controlling system, barrel equipped with vacuum degassing system, can get rid of the waste gas from the raw material which can guarantee super quality of the products.
5. 5.     driving system: adopting A.C motor, using FUJI or ABB inverters which provide stable torque output and various speed.

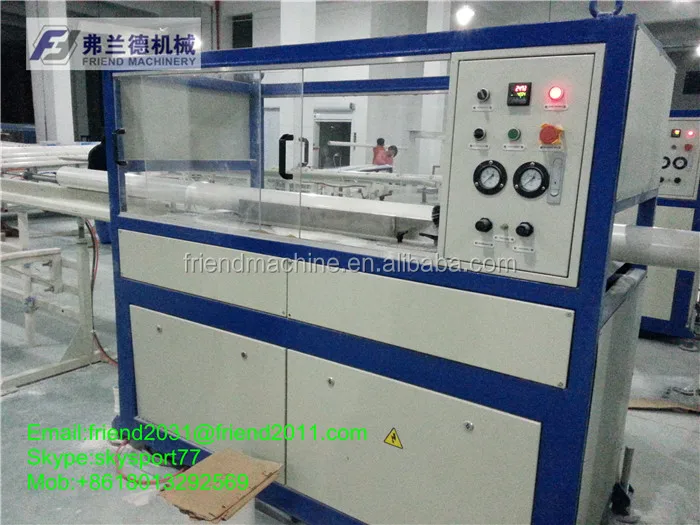

6. 6.     vacuum calibrating tank: with two vacuum chambers which can make sure the perfect roundness of the pipe, spraying water cooling, equipped with temperature controller, realizing automatic discharging the water, the main body of the tank make of stainless steel, long service time.
7. 7.     haul-off machines: 2 laws, 3 claws, 4 claws, 6 claws and 8 claws are provided to manufacture various pipes, haul-off speed governed by the FUJI or ABB inverter.

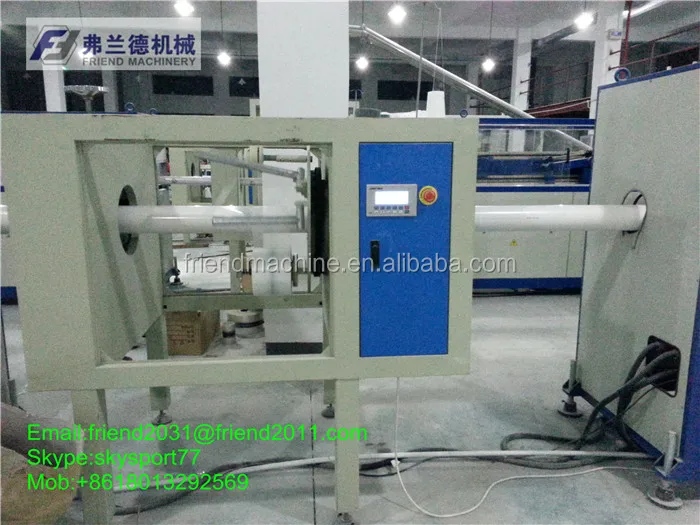

8. 8.     cutting unit: saw cutting and planet saw cutting, with dust collection system.
9. 9.     staking unit: automatic overturning system, can freely fix the length of the pipe.
10. 10.   controlling system: manual controlling cabinet or SIEMENS PLC touch screen controlling

Noting:

Please feel free to contact us for more information. Additionally, it is worth noting that, it will be more advantageous if you told the diameter and more details of the pipes you are going to produce when sending your messages.

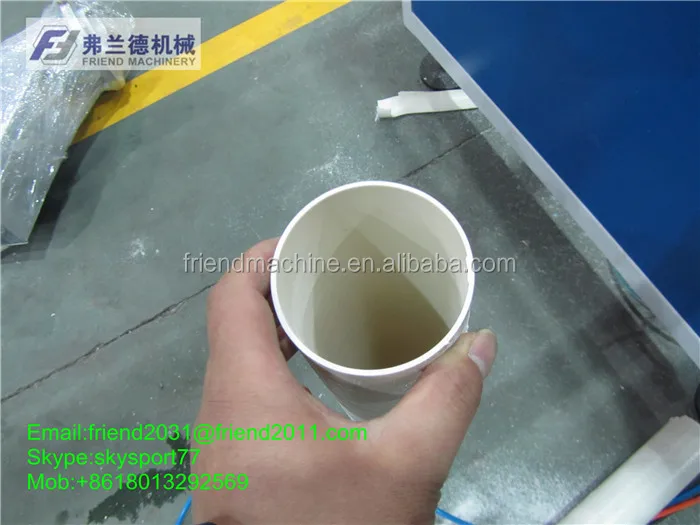

Main Applications:

1. Water supply and drainage pipelines in building;

2. Rainwater drainage pipelines in building;

3. Electrical wiring pipe in building;

4. Air conditioning condensate water systems.

Zhangjiagang Friend Machinery Co., Ltd. is a professional company specializing in the design and manufacture of plastic machines, such as 3D printer filament extrusion line,single screw extruders, conical twin screw extruders, PVC, PE, PP and PP-R pipe extruders, PVC and PE profile extruders, PVC and PE recycling machines, crushing, washing and pelleting machines, conveying and mixing machines for all kinds of plastics and other kinds of auxiliary equipment in the field.

Our company is well known both at home and abroad for high quality products and complete service systems. Our products sell well all over the world.
If you are interested in any of our products, please feel free to contact us for more information.
