4 8t/h Biomass coconut husk hammer mill/hammer mill for wood chips/shavings/crop etc.

Product Overview

Description

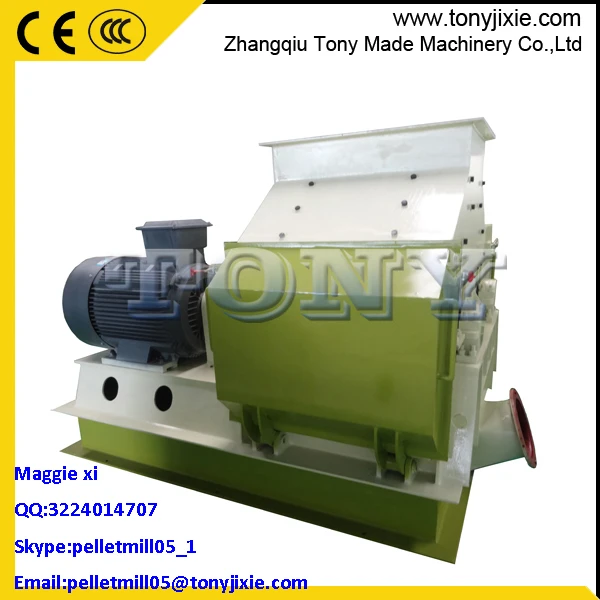

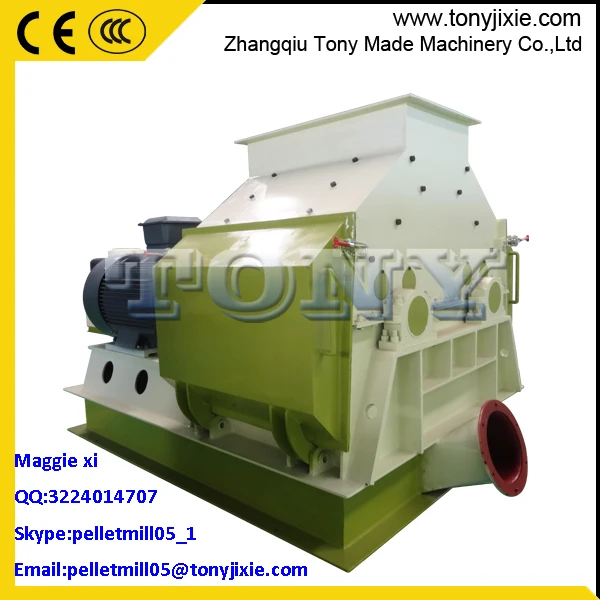

4-8t/h Biomass coconut husk hammer mill/hammer mill for wood chips/shavings/crop etc.

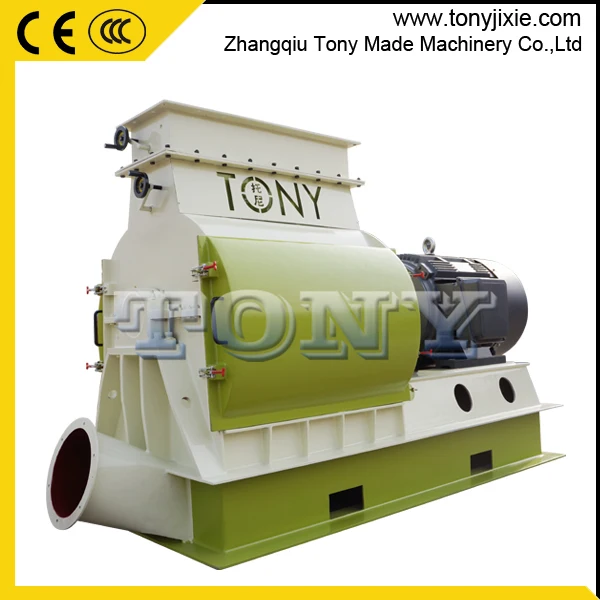

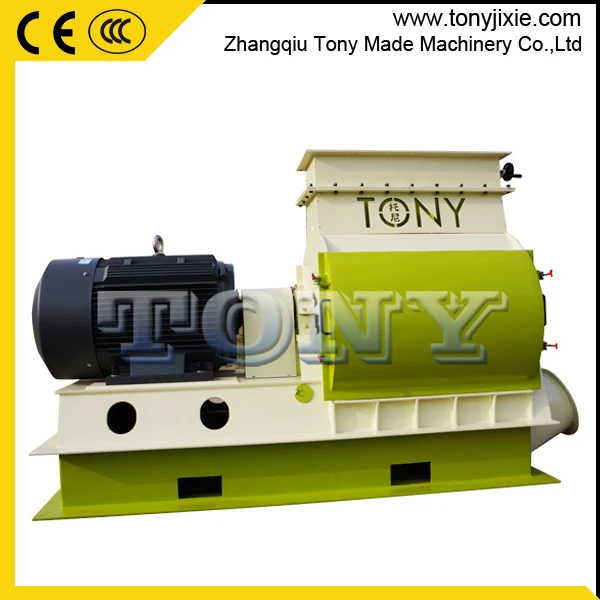

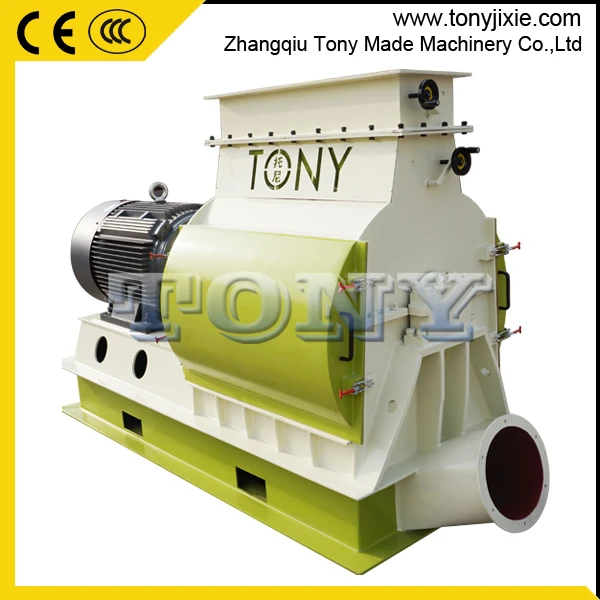

The biomass hammer mill for wood, stalk, coconut husk, palm waste is a pulverizer specially used for raw materials crushing in the biomass fuel production process. It has two series of single spindle and dual spindle, with features of high output and efficiency. It can crush wood chips, shavings, crop and plant crude fibers, roughage, etc.







Features In Detail:



1.  The shell adopts welded-steel plate construction, the main machine is embedded for seal, completely avoids dust spillover and maintains a clean work environment.

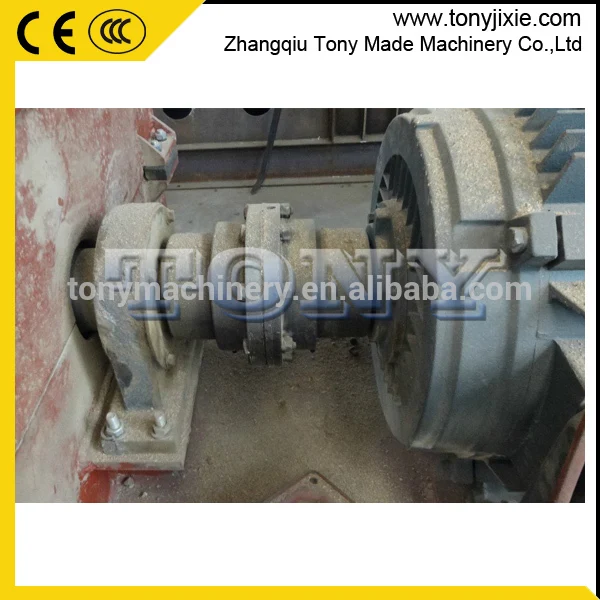

2.  The motor and crusher are direct-connected driving with drum coupling and built-in rotors. Dead-zone free crushing and better uniform granularity.

3.  The magnetic selector on the upper part can sort out the magnetic metal materials and reduce the machine’s damage rate.

4.  Forged hammers has symmetric homogeneous permutation, small vibration without blind angle, large crushing friction area. Wear-resisting material behind sieving slice has big wrapping angle. Hammer are independently designed with fasteners for easy assembly. The blades are enhanced for better wear-resistance and longer working life.

5.  After balance calibration, rotors can work reversely.

6.  The operating door has safety interlock equipment to make sure it can not be opened when the machine is running.

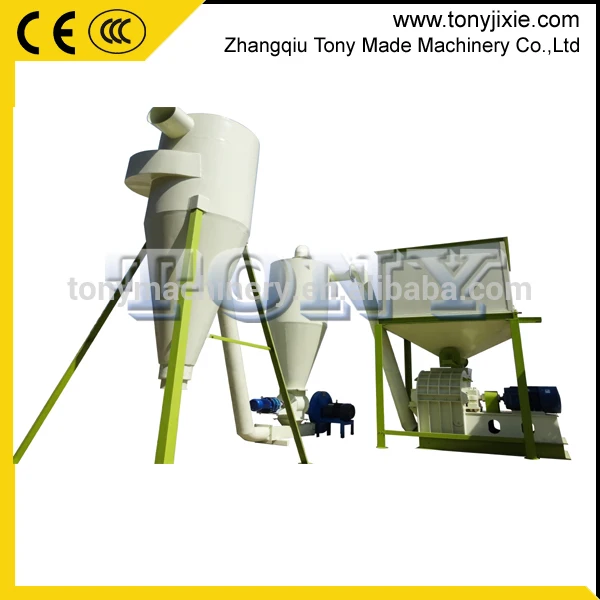

7.  The blower’s efficiency is maximized with faster pneumatic conveying and minimum wind resistance. Arc side door ensures easy observation and replacement of the sieve, without disturbing wind and flying dust.





Parameter and models:



Type	Model	Power (KW)	Capacity (T)	Hammers (Slice)	Dimension (MM)	Weight (T)
Single Spindle	TFD65*55	37-55	1-4	48	2000*1600*1700	2.5
	TFD65*75	55-75	2-5	72	2000*1900*1700	3.2
	TFD65*100	90-110	4-8	96	2000*1900*1700	4.3
Dual Spindle	TFS65*75	55*2-75*2	4-10	144	3000*1900*1700	6.5
	TFS65*100	90-110	6-12	192	3500*2900*1700	7.8





Raw material:

All kinds of wood, timber scraps, tree branches, wood chips, edge material, tree bark, bamboo skin and other material which can be crushed into sawdust.



OutPut:

The produced sawdust or stalk power are ready for pellet production with out any further processing.





Operating Principle:

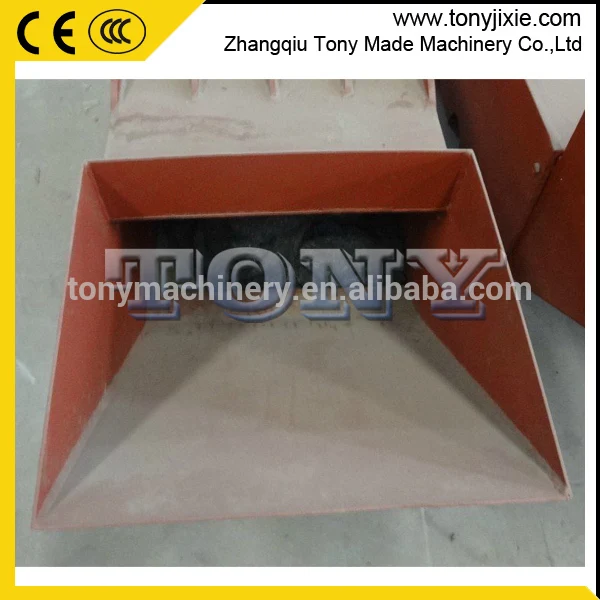

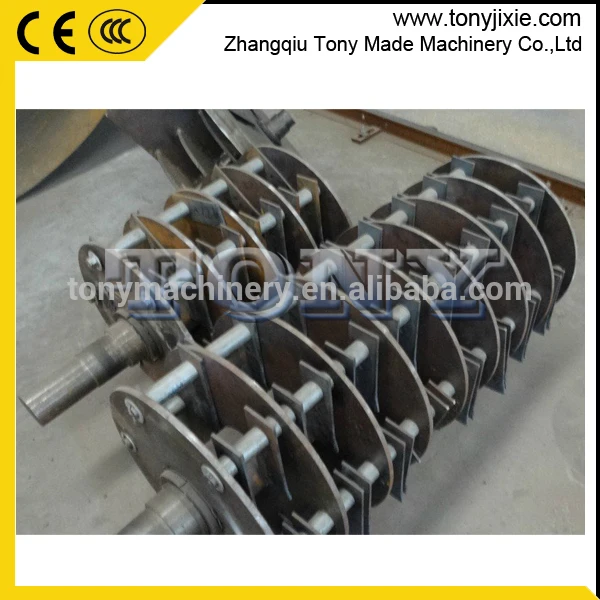

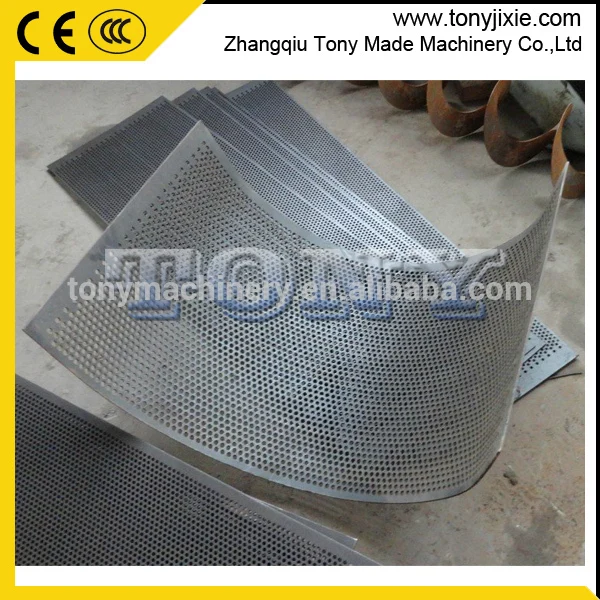

Motor of Hammer crusher drives rotor to rotate in high speed in the crushing cavity. The materials are feeded into the machine through the upper feeding opening and are striked, impacted, sheared and grinded   by high speed moving. Under the bottom of rotor, it is equipped with sieve plate. Among the crushed  materials fractions that is less than mesh size are discharged through sieve plate, materials fractions  that is bigger than mesh size are kept on the sieve plate to be striked and grinded by hammer and they are discharged out of machine finally. The main woriking parts of hammer crusher is the rotor with   hammer. Rotor consists of main shaft, disc, pin roll and hammer.





 Quality Guarantee:

The electrical motor,gear box and electrical cabinet is 1 year; the upper body and box of main shaft is 1

years(except wearing parts).



Our promise:

A. Steady and timely supply of spare parts

B. We can timely settle customers’ problems in 24 hours.

C,.We can provide customers with services including cost analysis like production benefit analysis,

consulting service, and relevant service of optimization and combination of small pellet complete set, etc.

 D. Multilingual Instruction.

E. Incoming tests are allowed

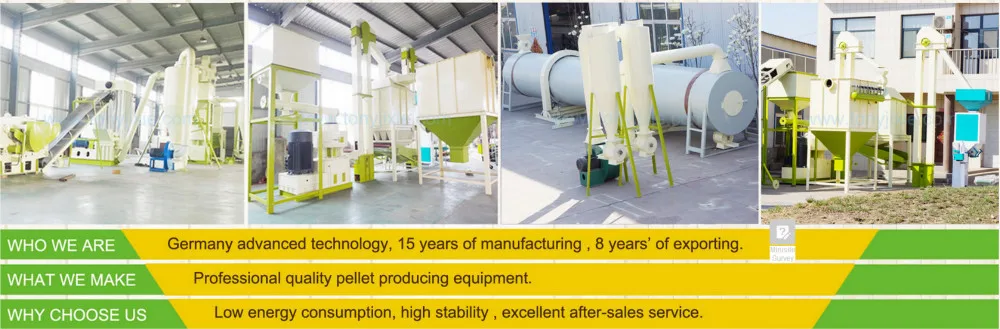

Company Information:

TONY  is a hi-tech biomass pellet machine manufacturer that integrates scientific research, manufacturing, training and international business.

Main products:

Biomass wood pellet line

feed pellet production line

wood pellet mill

feed pellet mill

 griding equipment

crushing equipment

drying equipment

cooler two series

other screening & conveying products

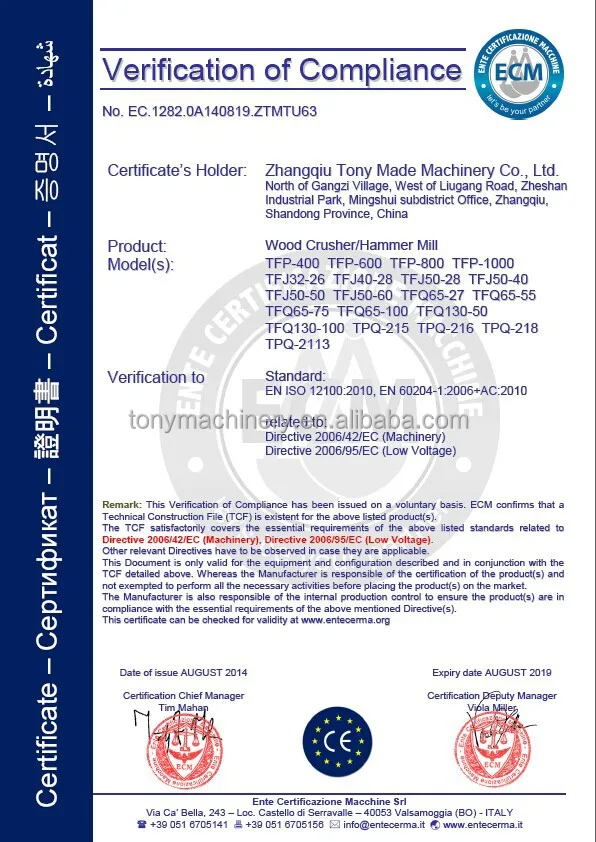

All the products have got the CE Certificate with excellent quality and safety device.
