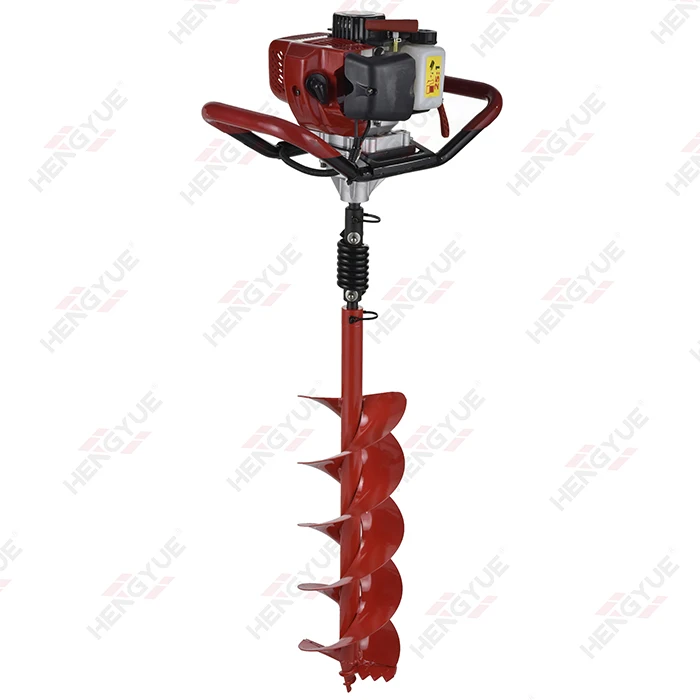

earth auger and soil auger and drilling machine hand operated
earth auger and soil auger and drilling machine hand operated
earth auger and soil auger and drilling machine hand operated
earth auger and soil auger and drilling machine hand operated
earth auger and soil auger and drilling machine hand operated
earth auger and soil auger and drilling machine hand operated

earth auger and soil auger and drilling machine hand operated

Share on (60347212434):


Price:$82.00

Quantity:


Product Overview

Description




















































































Certificate : CE  EMC  EURO-V  EPA  ISO9001-2015
Engine model: 1E47F   2 strokeHandlE:oval elbow design , with dipping rubber on two sides of the handle
Engine power: 1.85kw / 8800±300 rpm/minTrigger :(Optional )
Displacement : 58CC   * Simple with waterproof keep switch button
Max output speed:8800±300 rpm/min   * luxury type with automatic reset switch & waterproof keep switch Button (Bisc)
Fuel  tank capacity: 1200 mlVibration reduction system:2 pcs rubber & 2 pcs metal
Fuel  tank : (Optional )Transmission: Gear case  ( 2 stages / Model - GC02-2007 )
        *Normal standard fuel tank Gear wheel metrial :20CrMnTi
        *With external balance air level  (Basic)Gear wheel structure : Helical (rounded corner)
Fuel tank keeper:(Optional )Main gear wheel contact with output shaft : Spline
        * Without Output rate:  (Optional )
        * Simple metal          * 29:1  (Basic)
        * Luxury / Plastic metrial  / Fully surrounded   (Basic)        *10:1   /    5:1
Fuel: Gasoline mix 2 stroke Oil (25:1)Output shaft type :(Optional )
Clutch : 2 Pcs hoof blocks         * Spline
Starting systerm : Recoil        * Cylinder φ20mm (Basic)
Starter: (Optional )        * Cylinder φ22mm
        *Normal starterMax drive ability : ≤ φ 300mm  auger bit
        * Normal easy starterRecommend drive :≤φ 250mm auger bit
        *Supper easy starter: 2 pcs spings  & 1 pcs needle bearing (Basic)Auger bit size :  φ40/60/80/100/150/200/250/300mm


Product Description

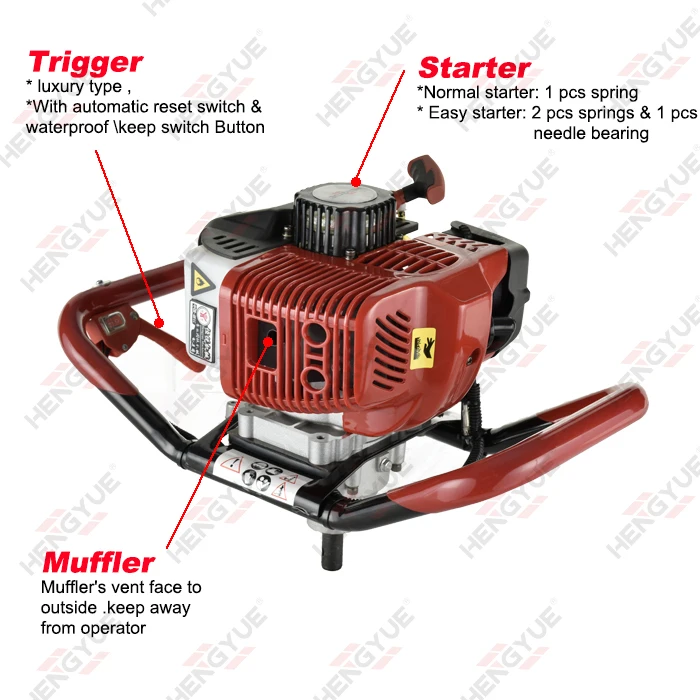

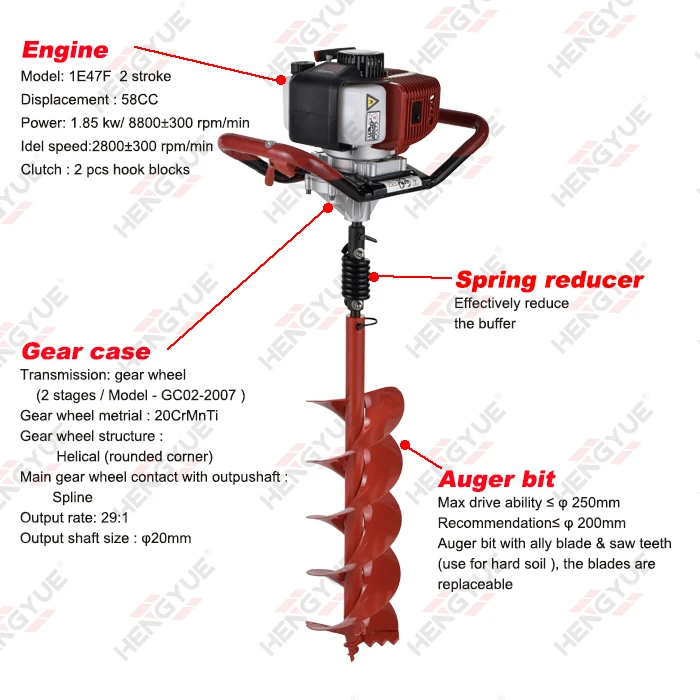

 4.jpg 1.jpg 2.jpg

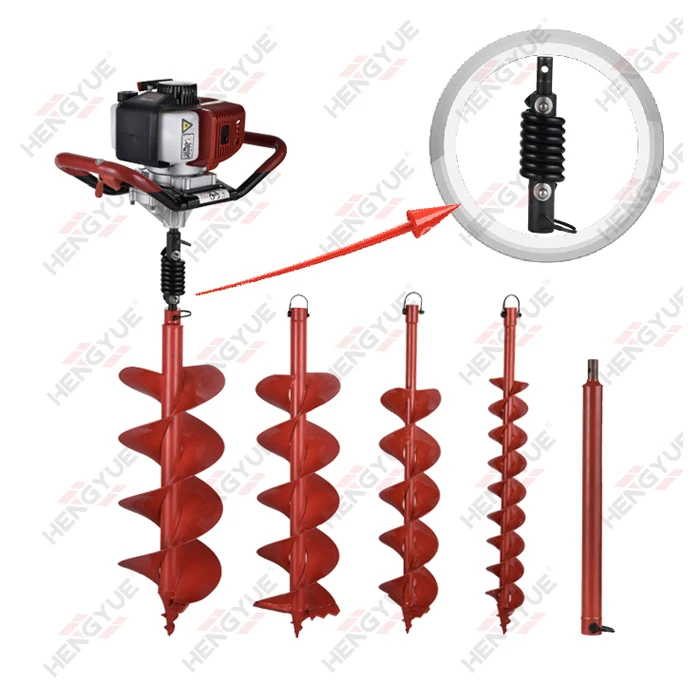

Different drill bit you can choose





1. Different tips


















 HY-ZT01
 A. Cast steel tip, which can not be take down
 B. Simple blade, which can not be take down
 C. Single laminae or double laminaes		 HY-PT01
 A. Easy tip
 B. Simple blade , which can not be take down
 C. Single laminae or double laminaes
 HY-HJZT01
 A. Cast steel tip, which can not be take down
 B. Alloy sawtooth or flat blade , which can be take down
 C. Alloy sawtooth or flat blade , which can be take down
 D. Single laminae or double laminaes 		 HY-ZYHJ01
 A. Cast iron twist tip, which can not be take down
 B. Alloy sawtooth or flat blade, which can be take down
 C. Whole metal disk plate in the bottom
 D. Single laminae or double laminaes
 HY-BYHJ01
 A. Cast iron twist tip, which can not be take down
 B. Alloy sawtooth or flat blade, which can be take down
 C. Alloy sawtooth or flat blade, which can be take down
 D. Half metal disk plate in the bottom
 E. Single laminae or double laminaes		 HY-CX01
 A. Cast iron twist tip, which can be take down
 B. Alloy sawtooth or flat blade , which can be take down
 C. Alloy sawtooth or flat blade , which can be take down
 D. Half metal disk plate in the bottom
 E. Single laminae or double laminaes




































 HY-CX02
 A. Cast iron twist tip, which can be take down
 B. Alloy sawtooth or flat blade , which can be take down
 C. Alloy sawtooth or flat blade , which can be take down
 D. Half metal disk plate in the bottom
 E. Single laminae or double laminaes

HY-CX03
 A. Cast iron twist tip, which can be take down
 B. Alloy sawtooth or flat blade , which can be take down
 C. Single laminae or double laminaes








 HY-ICE01
 A. Supper tip, which can be take down
 B. XK5 material blade ,which can be take down
 C. XK5 material blade ,which can be take down
 D. Single laminae or double laminaes		 HY-ICE02
 A. Supper tip, which can be take down
 B. XK5 material blade ,which can be take down
 C. XK5 material blade ,which can be take down
 D. Single laminae or double laminaes
 HY-ICE03
 A. Cast iron twist tip, which can not be take down
 B. Alloy sawtooth or flat blade, which can be take down
 C. Alloy sawtooth or flat blade, which can be take down
 D. Half metal disk plate in the bottom
 E - Single laminae or double laminaes		 HY-CX04
 A. Spring adapter, can reduce shake
 B. Single laminae or double laminaes
 C. Cast iron twist tip, which can not be take down
 D. Whole metal disk plate in the bottom
 E.Alloy sawtooth or flat blade, which can be take down








2. Different size and spare parts
