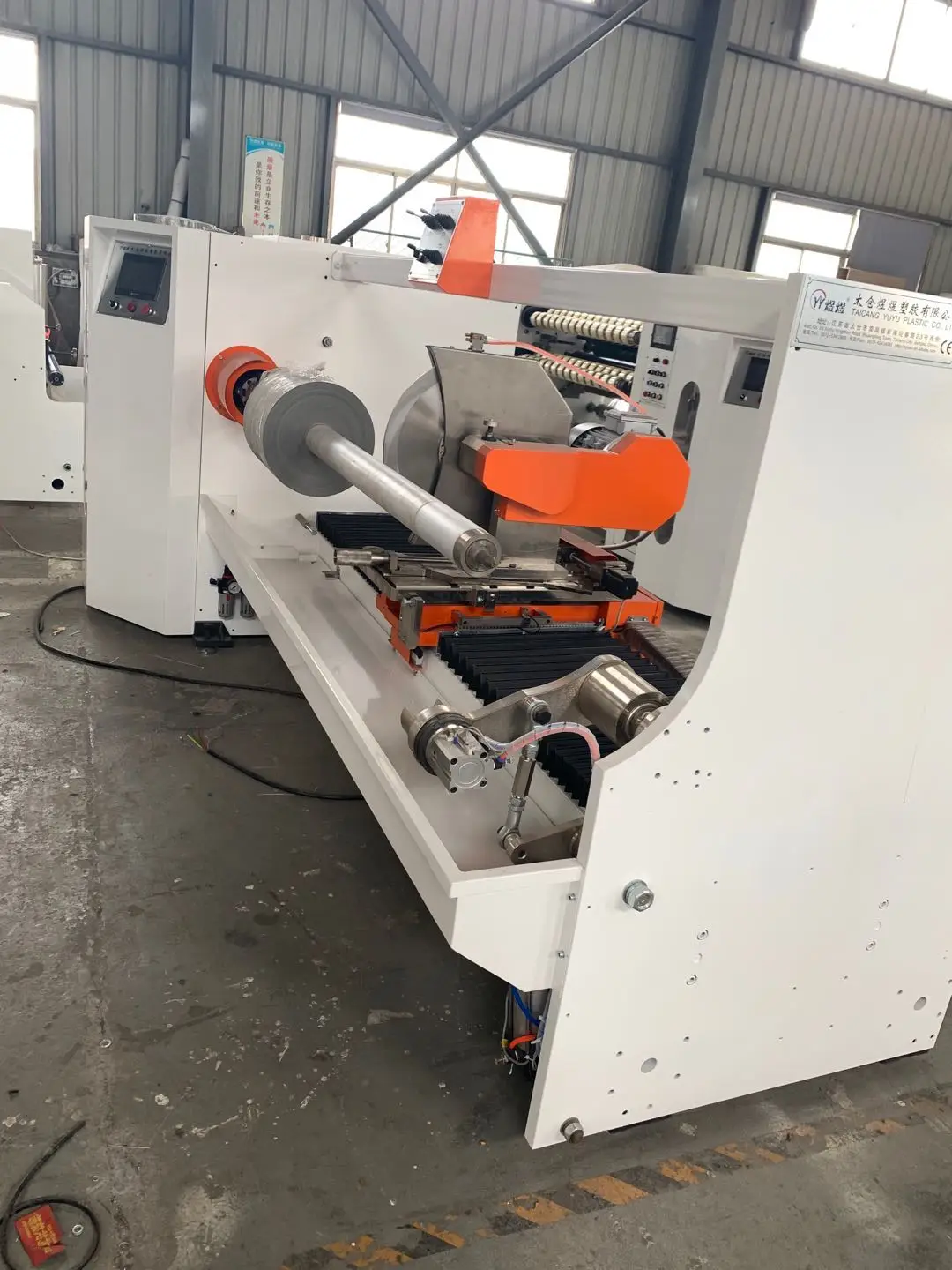

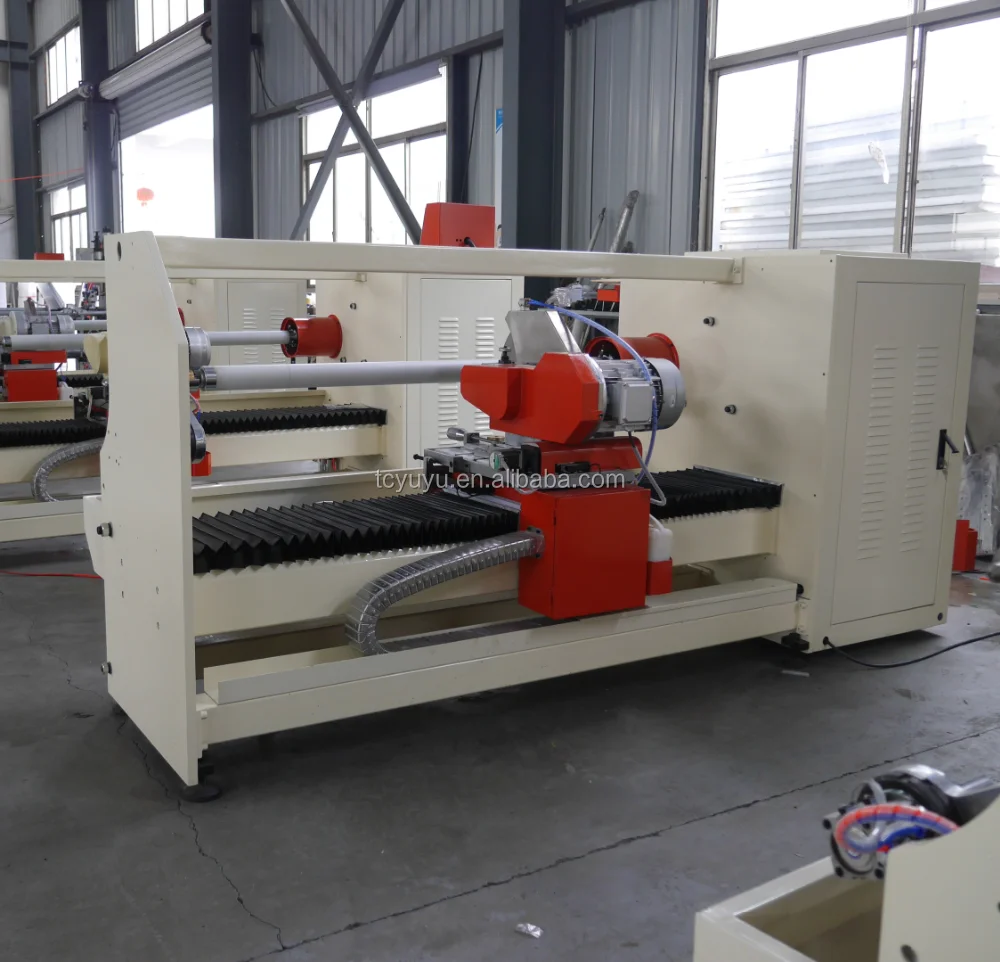

YU 701 PTFE Skived Flexible Sheet Automatic Slitting Machine Film Roll Automatic Slitter
- Category: >>>
- Supplier: Taicang Yuyu Plastic Products Co. Ltd.
Share on (60347347402):
Product Overview
Description

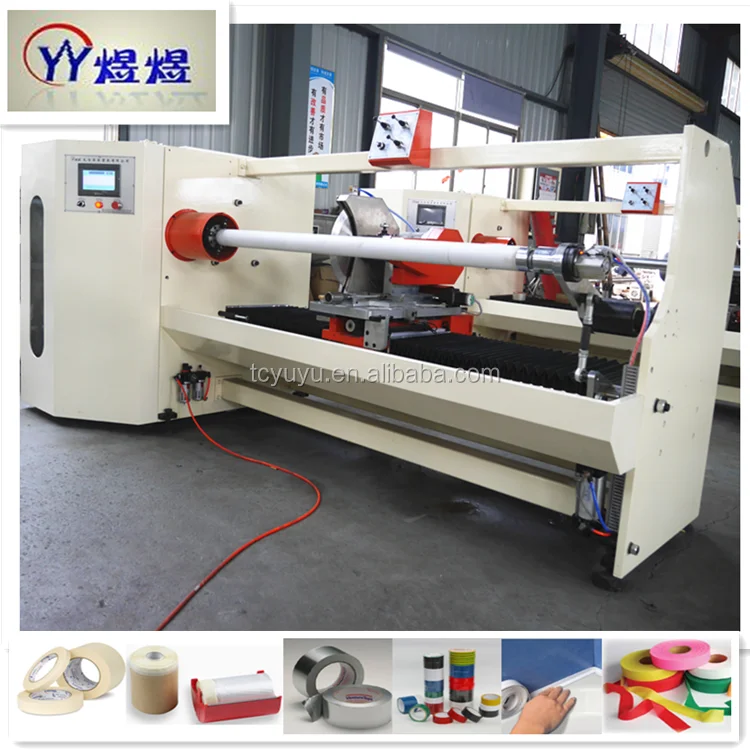

YU-1300/1600 Automatic Single Shaft PVC Tape Cutting Machine
(BOPP,Masking,Foam,Double Side Tape,PET ,PVC tape CuttingMachine)

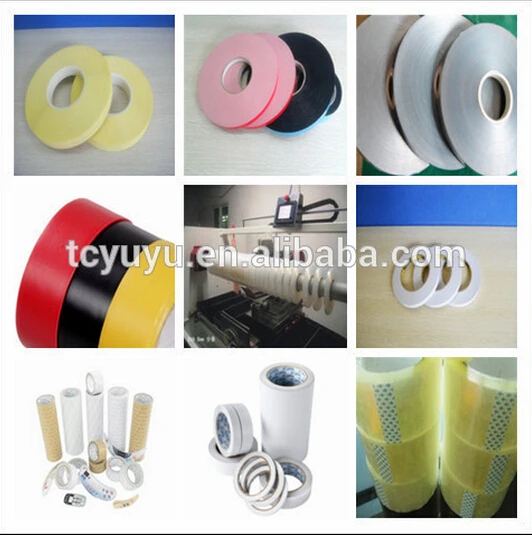

Suitable for cutting log roll: insulation tape/PVC/OPP/PE/Masking tape/Double-side tape/Plastic films/window films/3M tape/fabric...
YU-701 PTFE Skived Flexible Sheet Automatic Slitting Machine Film Roll Automatic Slitter Features:
1. Centralized control panel: all operation controls. For this machine are centralized in a control panel.
2. Control panel provides major functions: material and blade running speed (LED screen display), width counter, number of cuts counter.
3. Silicon lubricating system prevents the blade from sticking on adhesives and allows smooth cutting at all times. Silicon liquid is re-circulated.
4. The blade is back pressure controlled through an air and hydraulic combination, giving maximum cutting stability and fast blade retract after each cut, cutting pressure can be easily adjusted to suit various types of materials.
5. Cutting circular knife and main shaft power force adopted with AC step-less adjusting motor and available in any rotating direction.
6. Cutting width setting up controlled by servo motor adjustable equipped with ball screw to secure accurate size.
7. PLC programmable control.
YU-701 PTFE Skived Flexible Sheet Automatic Slitting Machine Film Roll Automatic Slitter Technical parameters:
Max. cutting diameter | 270mm |
Max. cutting speed | 35cuts/min |
Max. length of cut | 1300mm or 1600mm |
inside diameter of paper core | 32-76.2mm |
cutting width | 3-1600mm |
main motor | 5HP |
blade drive motor | 3HP*6P(servo motor) |
blade diameter | 150-350mm |
blade speed | 360-1800rpm |
weight | 1150kg |
machine dimension(L*W*H) | 2850*1430*1520mm |

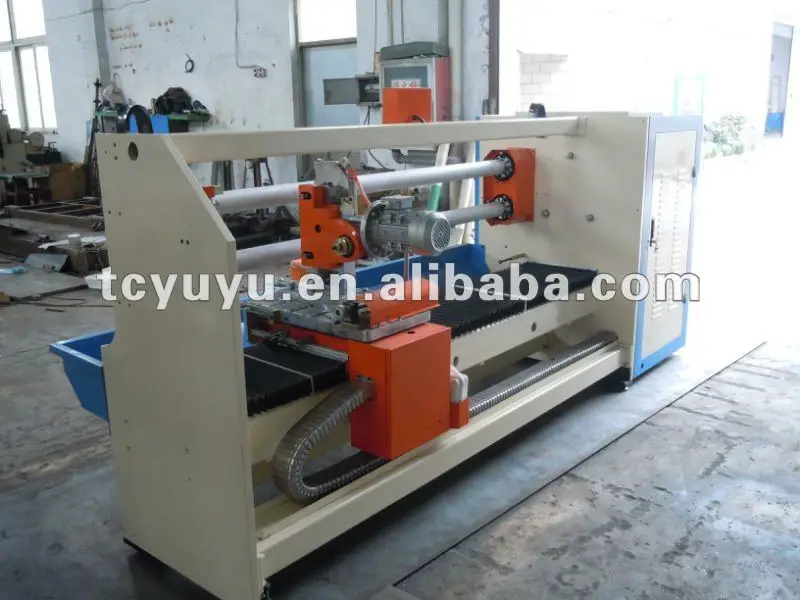

Double shafts cutting machineYU-701 PTFE Skived Flexible Sheet Automatic Slitting Machine Film Roll Automatic Slitter
Related Product
Company Profile

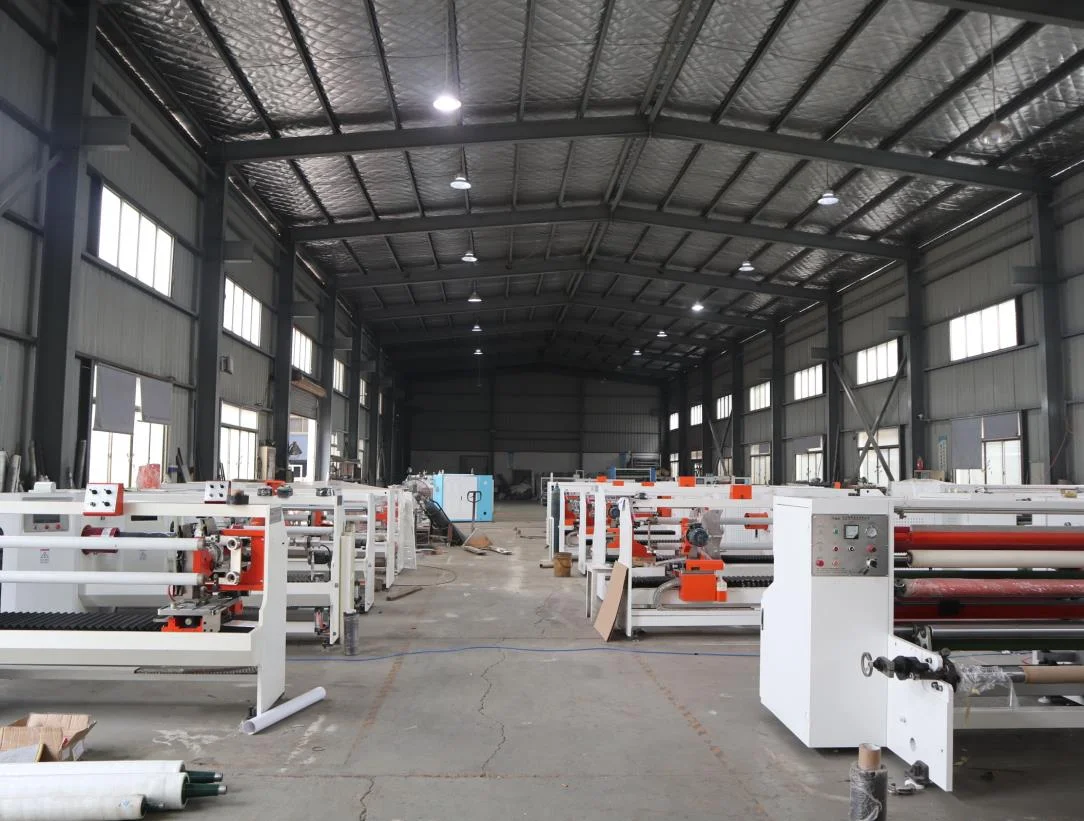

Yu Yu Plastic Co., Ltd is located in China Tape Technology Industry Park, Taicang City, Jiangsu Provience where is near to Shanghai City .The company is a professional manufacture of adhensive tape device after the Steel Machinery. We provide professional technology, perfect service,so that every customer can feel free to buy and feel comfortable to use.
The company is a research and development, design, production, sale , trade in one large multi-functional integrated modern enterprise, which specializing in automatic rewinding machine,slitting machine,cutting machine,manufacturing machines for tape.
With a coating machine,slitting machine,cutting machine prototype,ready and waiting for your visit.Customers are free to choose the style,working site to customize and have a train operation for you. Zhao Manjun, the general manager has the experience for many years to solve your questions on technology,production and operation in 24 hours.
Certificate
FAQ
1)Q: Are you trading companies or manufacturers
A: We are a manufacturer located in taicang city,jiangsu province,China.With 20 years of industry experience,we welcome customers to visit our factory.
2) Q: What are your main products?
A: Our company is a professional manufacturer of adhesive tape and whole plant equipment.Main production glue, coating,rewinding, cutting, packaging and other special equipment.We also offer custom services
3) Q: What are the raw materials?
A: Bopp film&adhesive glue &paper tube
4) Q: What is your equipment advantage?
A: All outsourcing products will be supplied by well-known suppliers, and the equipment will be tested well before delivery
Customers can visit the equipment or take their materials for testing
5) Q:What is the expected life of Motor and other parts?
A:The host equipments are entitled to one year warranty&free replacement&life time technical support service
Packaging & Shipping
Packaing type: case.Film Packaing material:Wood.Plastic Shipping port:Shanghai Guangzhou .Qingdao.Lianyungang.etc,Also can According to Your Demands
