This machine is effective, ideal and reliable solution to precisely square cut and bevel for all types of metal pipes/tubes. All saw-blades pipe cutters with precise, square and clean cut, which save any additional preparation work on the cut-off face for orbital welding. Its automatic deformation-free clamping system avoids pipe deformation. The cut/beveled pipe is free from burr and deformation because of high quality saw blades. It is the best choice for direct S. S pipe welding on catering, pharmacy, Semiconductor Optoelectronics, Biology, chemical industry, oil & gas, Water Treatment, shipbuilding, Electric Power Industry, etc. It also can be efficient, precision cut and bevel at the same time.
*Just a few seconds to finish the cut with one single rotation around the pipe *Compact design; Small space. *Cold cutting process will not influence the quality of the material of the pipes *Free-deformation clamp mechanism, swift clamp pipe *Beveling blade for pipe cutting and beveling simultaneously *Can process material: Carbon steel, alloy steel, stainless steel, non-ferrous meta *Engineering plastic and cast steel
Technical Parameter

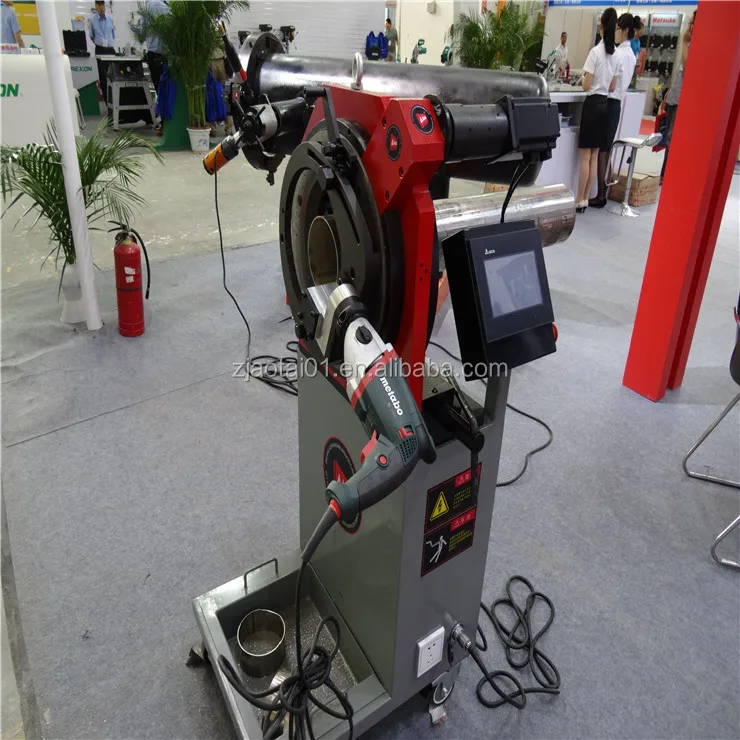

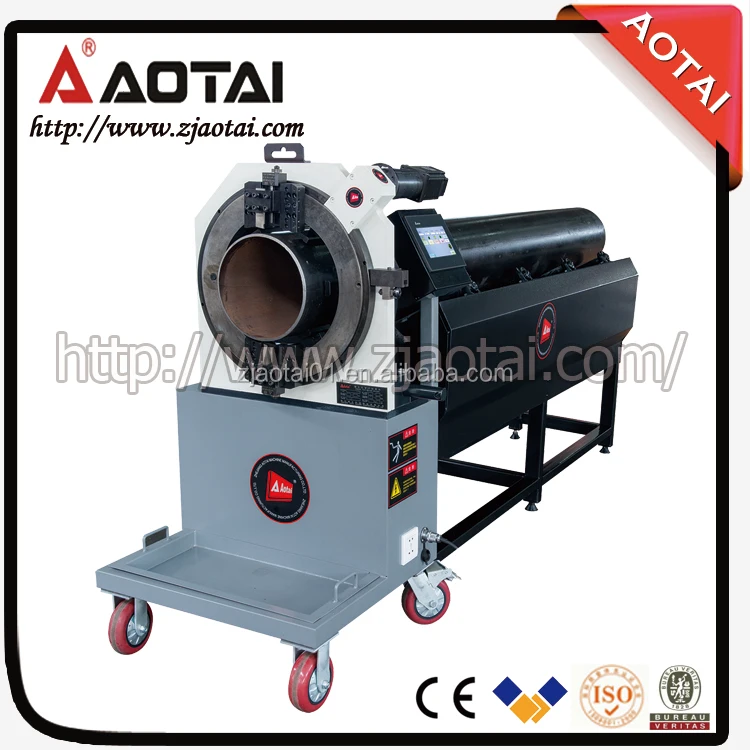

OSK 120 NC Orbital Pipe Cutting Machine
Patent No.: 201230008951.5
Technology parameter:
Automatic
Manual
Working Range
(I.D.)
Wall Thickness
Rotating Rate
(rpm)
OSK-120
OSE-120
Φ12-121mm
1-5mm
150-225
OSK-170
OSE-170
Φ20-170mm
1-5mm
150-225
OSK-220
OSE-220
Φ60-225mm
1.5-5mm
150-225
OSK-320
OSE-320
Φ140-330mm
1.5-5mm
150-225
OSK-420
OSE-420
Φ215-420mm
2-6mm
150-225
OSK-520
OSE-520
Φ315-520mm
2.5-6mm
150-225
OSK-620
OSE-620
Φ346-630mm
3-8mm
150-225
OSK-720
OSE-720
Φ486-760mm
3.5-8mm
150-225
Pipe carrier is not included, if necessary is negotiable.
Company Information
AOTAI,since 1998,focus our attention on manufacturing all kinds of pipe beveling machine.
