HQ-L Fully automatic PET bottle blowing machine adopts heating by infrared tubes, can heat thoroughly and evenly, the draft cooling system can guarantee the perform heating and container mouth stable cooling. PLC control the temperately segmently, heating tunnel is designed reasonably, can turn over, can adjust by front and back,up and down. The perform heating center distance is small, with fast heating speed, can save 40% comparing the normal heating system. The perform enter the heating tunnel, the neck points to up. Because there’ve high efficiency heating tunnel draft cooling system, the bottle neck an axis will not be heated heavily, even the thick perform or high efficiency products can be cooled eventually, avoid crystallization. To ensure the yield during the blowing, the heater places an important role of measuring the quality of machine. This machine heater structure adopts the most advanced international infared heating technique. The temperature control adopts automatic reveal, closed loop adjustment mode.

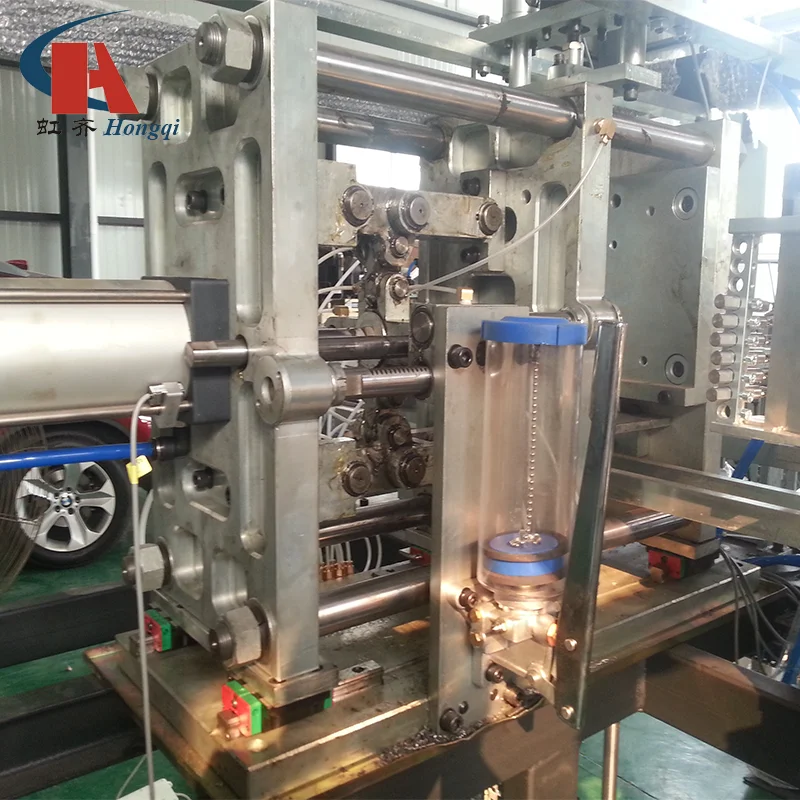

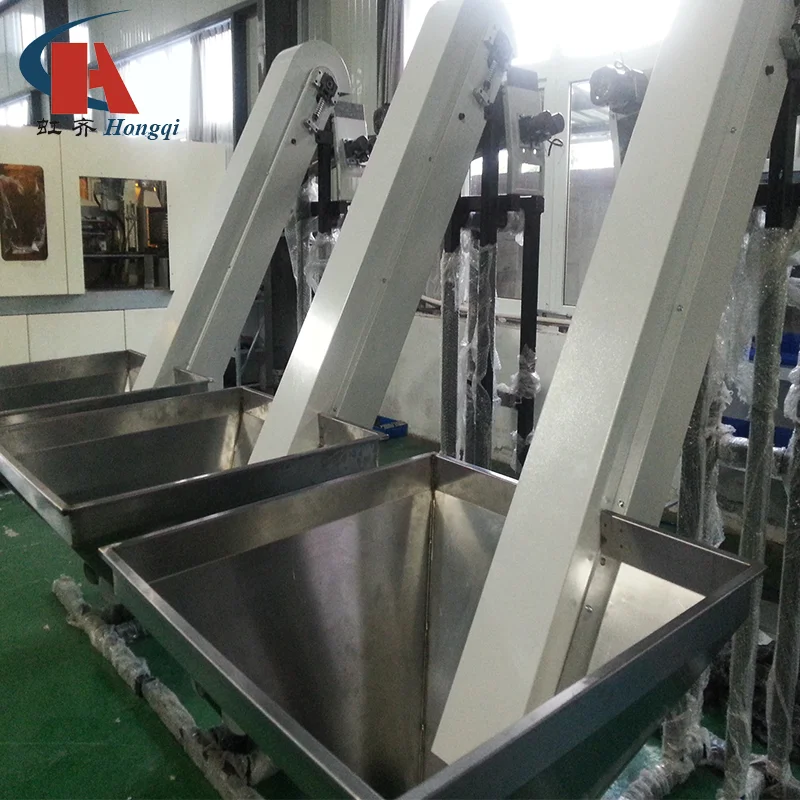

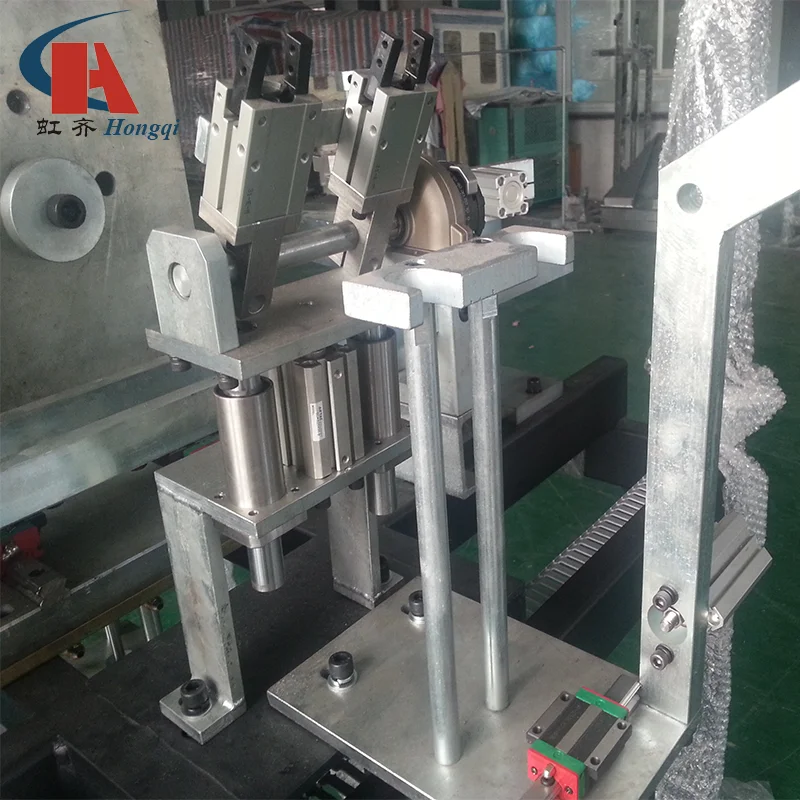

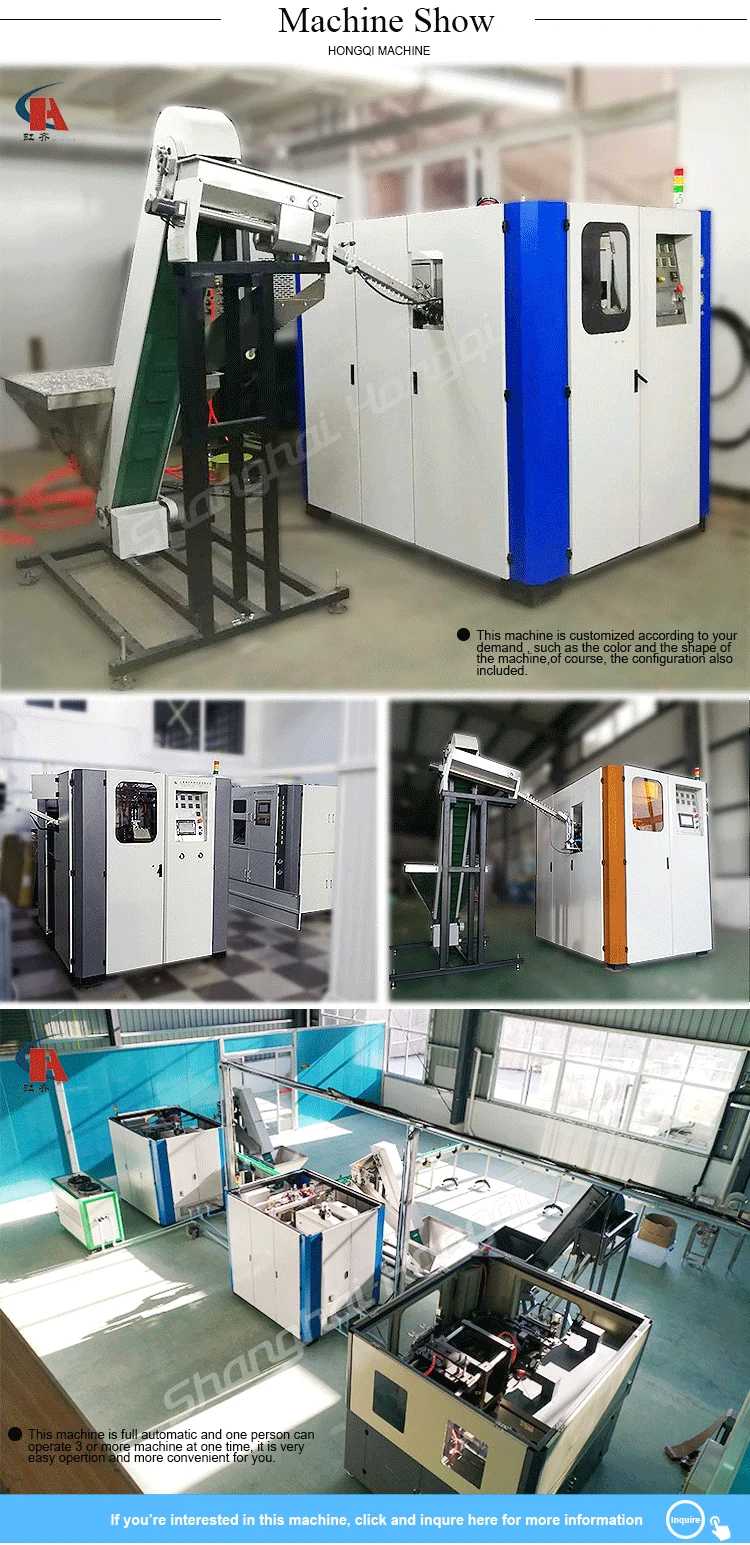

Detailed Images
Accessories

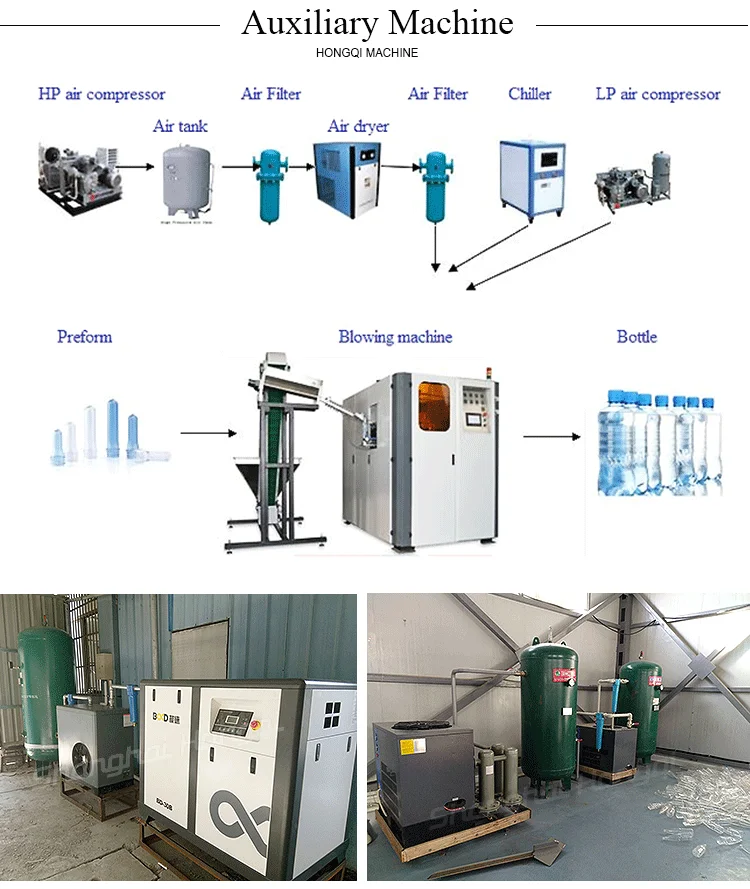

The Function Of The Auxiliary
1. High Pressure Air Compressure: The air in a free state is compressed into a clean and odorless high-pressure gas, and the preform is blown at a high speed, and the preform is formed into a bottle.
2. Low Pressure Air Compressure : Pre-blowing and low-pressure blowing, and blowing with high pressure to ensure one-time bottle forming rate.
3. Chiller: Rapidly cool the water, cool the mold of the blow molding machine, protect the mold of the blow molding machine, and simultaneously cool the product quickly, improve the product and quality.
4. Dryer : The main function is to filter out the oil, water, impurities and other wastes contained in the compressed air and work with the dryer.
Component List
NO
Name
Model
Brand
Country of Origin
1

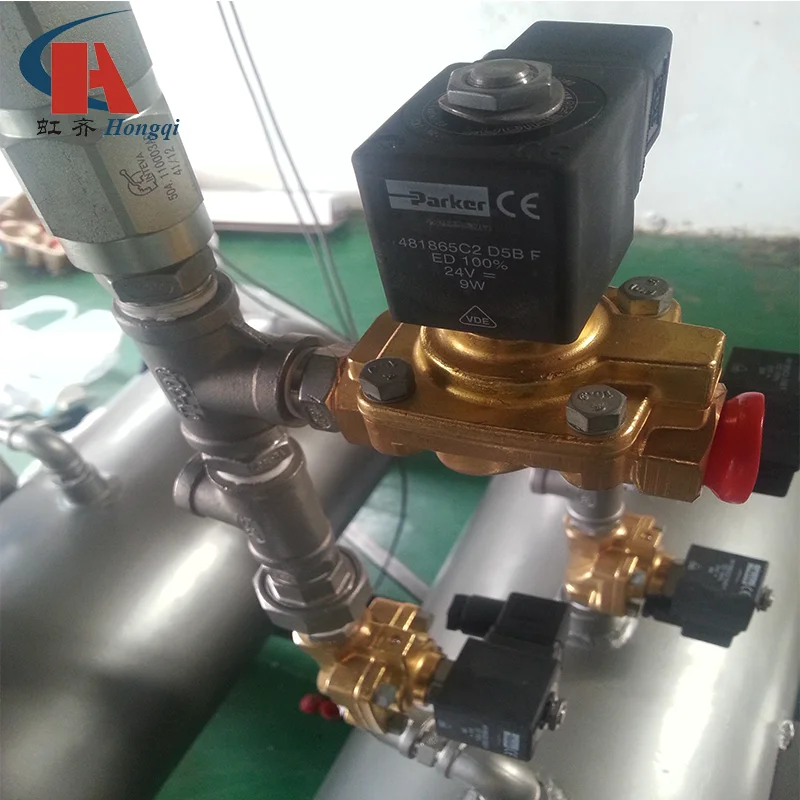

High pressure valve
321H-35-2995
Paker
America
2
Low pressure valve
7321BAN00-DC24V
Paker
America
3
Check valve
9C800S
Paker
America
4
Action solenoid valve
AirTAC
Taiwan
5
Host Power
NES-200-24V
MEANWELL
Taiwan
6
PLC
FX1N-60MR
Mitsubish
Japan
7
Touch screen
TK6070IH
WEINVIEW
Taiwan
8
Standard Cylinder
SC100X135-S
AirTAC
Taiwan
9
Thin cylinder
SDAS25X43-B
AirTAC
Taiwan
10
Pneumatic processing elements
GR20008-F1
AirTAC
Taiwan
11
Swing cylinders
DSR-25-180-P
FESTO
Germany
12
Quick exhaust valve
SEU-3/8
FESTO
Germany
13
Proximity Sensor
Autonics
Korea
14
Photoelectric switch
OPTEX
Japan
15
Module
SEMIKRON
Germany
16
Ruby lamp
CR30-15DN
HAICHUANG
China
(This is just the general configuration of our machine, we can replace the higher configuration according to customer needs.)
Sample and Mold

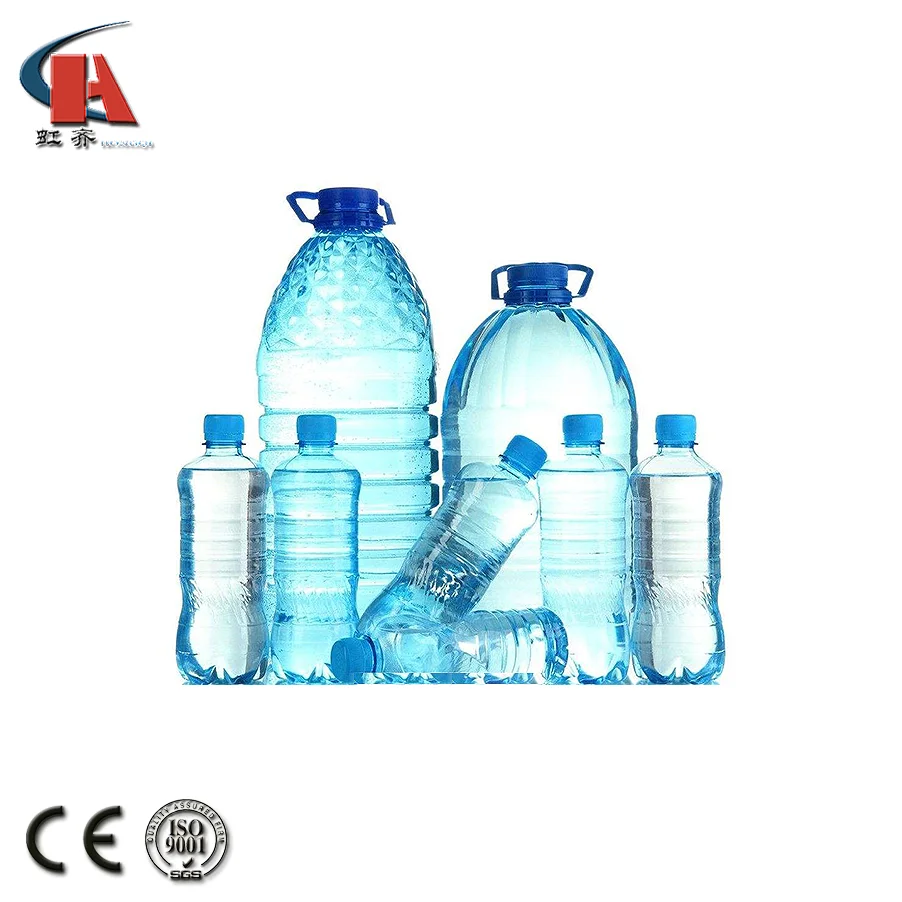

Sample
Before starting to manufacture the machine it is neccessory for us to get the bottles samples according to which we can design the preform and bottles mold. The shape of the PET bottles can be various according to client. We can help to sculpt the bottles and confirm with client before making bottle moulds.
Our Designed Bottle
Company Information
Packaging & Shipping
Our Services
1.Installation Services Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
2.Traning Services We can train your staff to use our machine properly.It means that we offer Customers Training, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity.
3.After Sales Service We offer the Preventative Maintenance and After Sales Service. For we strongly feels about the importance of supporting our customers and the product solutions we provide.Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period and lifelong technical support!
4.Check and Test
When finished the machine ,you can come to your factory to check the machine,and we also can send the checking video to you if you do not plan to our factory
