                                     5907 Bearing GFK35 Ball Bearing Sprag Type Clutch GFK 35






Product Description





 Features of Sprag Type Clutch


Type GF, GFK is a sprag freewheel integrated into a 59. series ball bearing.


The dedign provides high torque capacity for minimal outside diameter.





















































Product name



Sprag Type Clutch



Model



GFK35



Torque capacity



204Nm



Inner diameter



35mm



Outer diameter



55mm



Material



GCr15



Thickness



27mm



Weight



0.2kg



Package



Carton Box / Wooden box or customized



Payment terms



TT, L/C, D/A, D/P, Western Union



Delivery time



5-7 days after order confirmed if no stock






Installation instruction of Sprag Type Clutch


Torque transmission must be ensured by a press fits assembly into a rigid outer housing with R6 tolerance, and onto a shaft with P5 tolerance.




 Catalogue of Sprag Type Clutch for your choice
































































































































































Type



Size







Overrunningspeeds



Bearing


series



Loads







Weight



Rollers


dyn.



Balls


dyn.



Rollers


stat.



Balls


stat.








GFK



d



TKN1)



n imax2)



n amax3)







C



C



C0



C0



D



L



r







[mm]



[Nm]



[min-1]



[min-1]







[N]



[N]



[N]



[N]



[mm]



[mm]



[mm]



[kg]



20



51



5500



4000



5904



5600



4400



2900



2750



37



23



0.5



0.09



25



65



5300



3800



5905



6300



5300



3450



3350



42



23



0.5



0.11



30



95



5000



3500



5906



7700



5500



4600



3650



47



23



0.5



0.13



35



204



4600



3200



5907



8200



8500



5200



5700



55



27



1



0.2



40



315



4200



3000



5908



8650



9300



5750



6700



62



30



1



0.3



45



370



3800



2500



5909



9200



9700



6350



7300



68



30



1



0.34



50



460



3400



2200



5910



9650



10000



6950



7800



72



30



1



0.36







Detailed Images

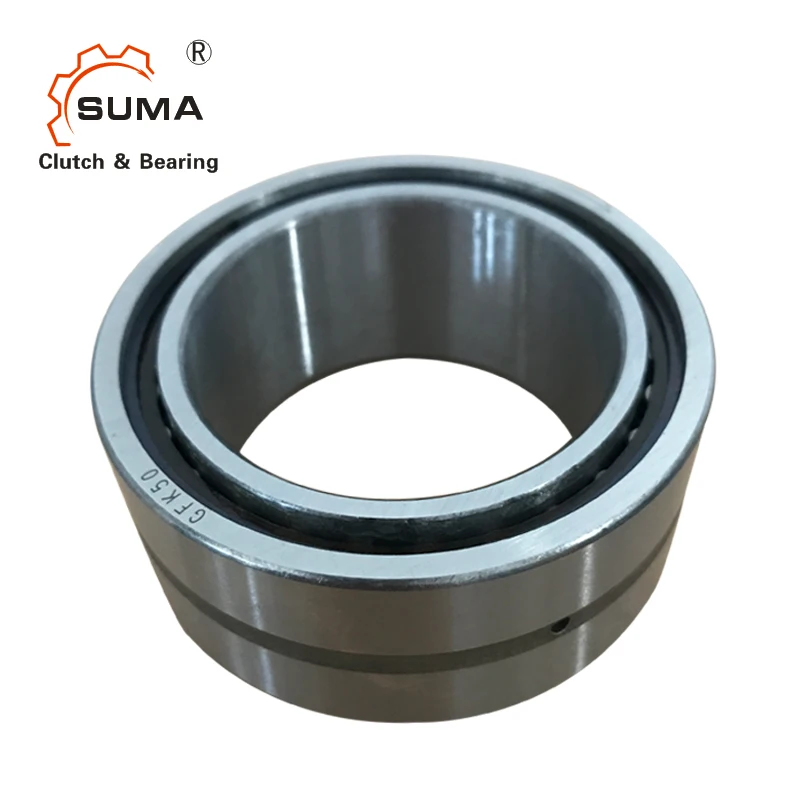

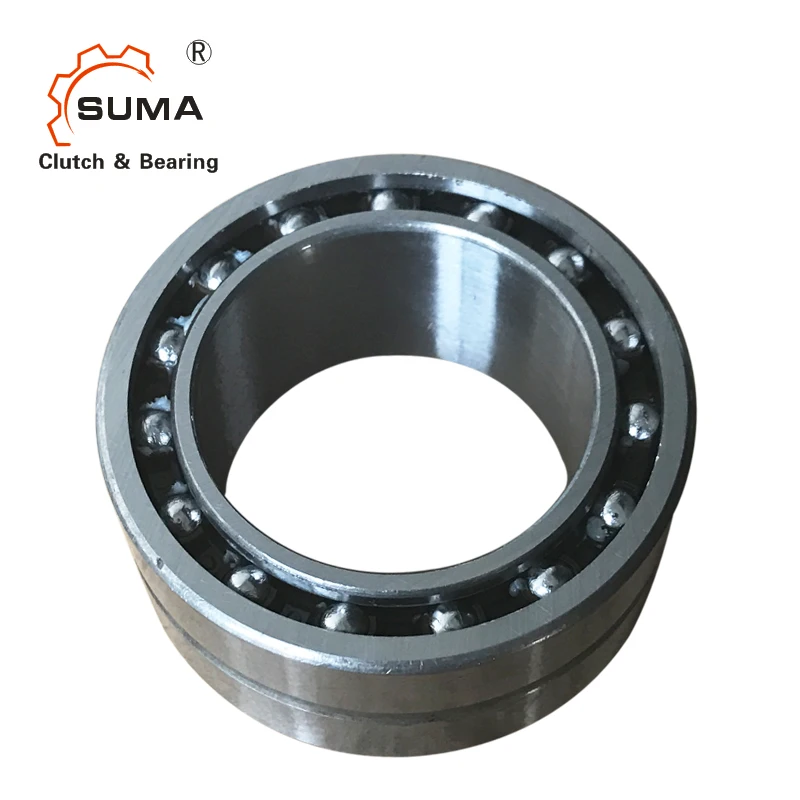

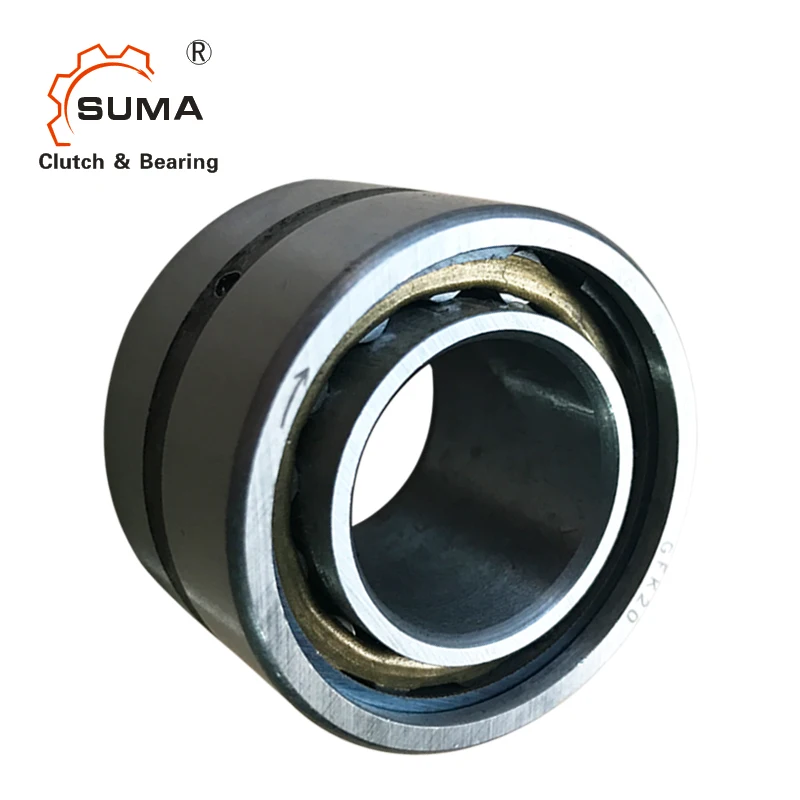

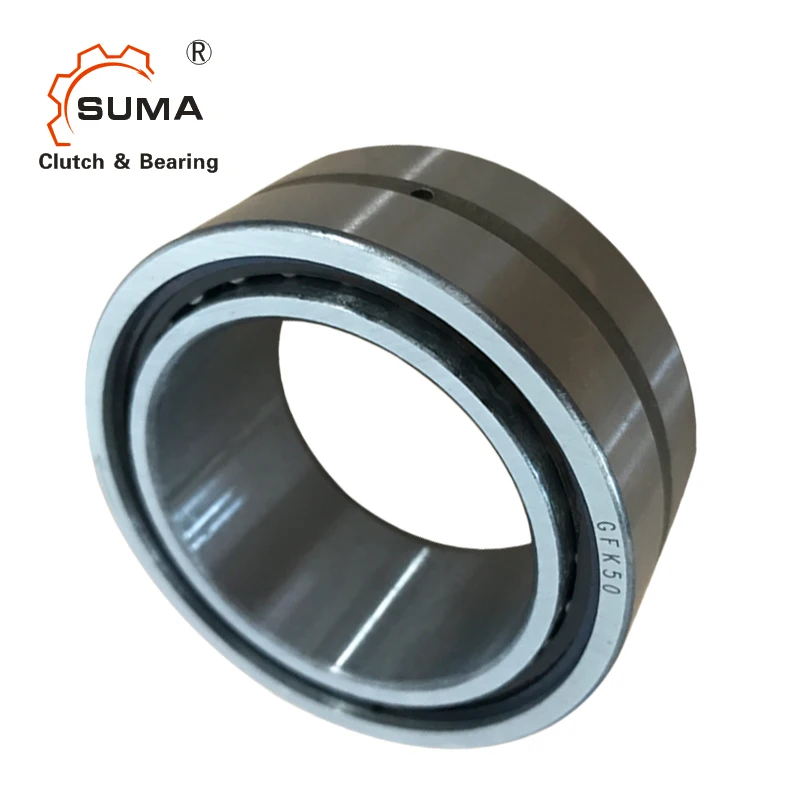

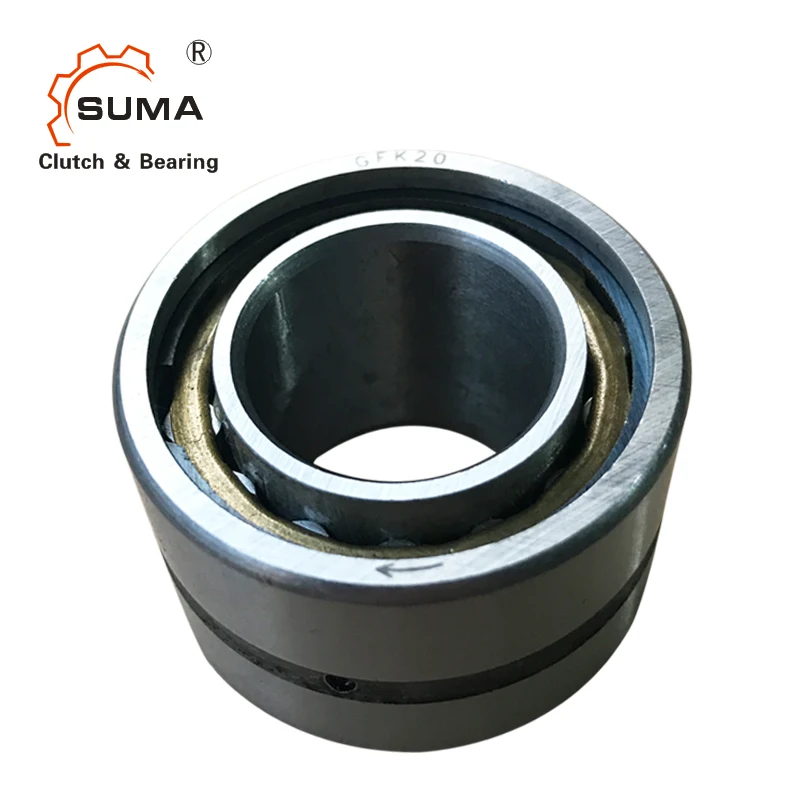

GFK20-1GFK50GFK 40





3_103_083_09





FAQ


Q: How do you pack the goods?



  •  Small Items:


Each in small white box or Roll Pack or Tube pack - in 19x18x9CM carton box - 29*28*19CM carton box - Wooden box / Wooden pallet



  • Medium Items: 29*28*19cm carton box + Wooden box /Wooden pallet

  • Heavy Items: Wooden Box / Wooden Pallet


Q: Can i get the samples from you?


A: It is highly encouraged to ask for the samples for quality check.


Q: Can you promise to deliver the goods in time?



  •    Small items: In stock.

  •     Medium Items: 10-15 Days

  •     Big items: 20-25 Days
