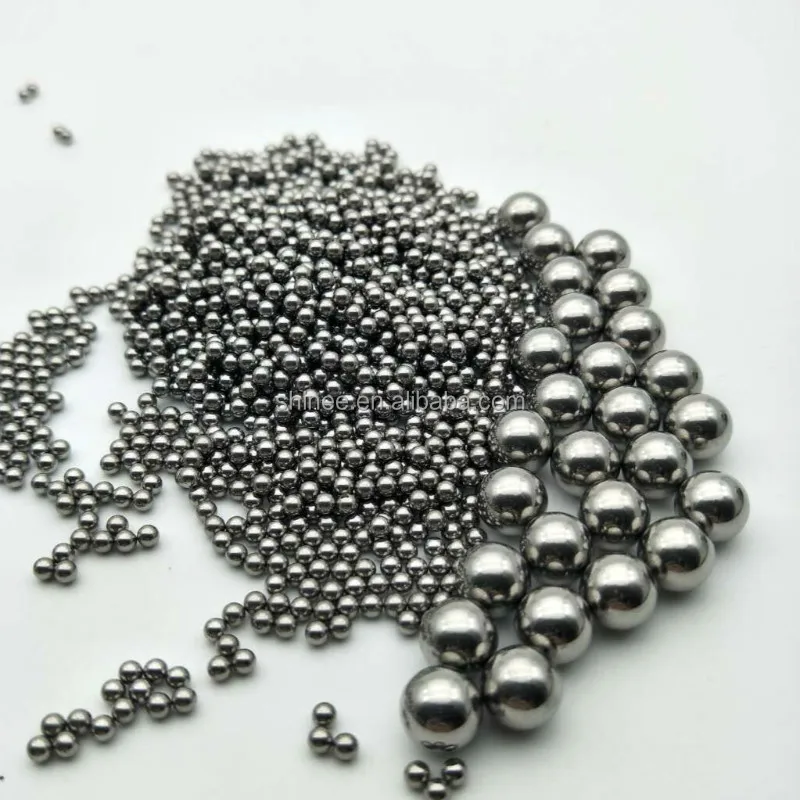

Chinese leading factory supplied 1mm iron ball carbon steel sphere

Product Overview

Description





Specification



Basic Information
Material	1010 1015
Metric Size	0.4mm - 50mm
Inch Size	1/64" - 2"
Grade	G100 G200 G500 G1000



Chemical Composition
	1010	1015
%C	0.08 - 0.13	0.12 - 0.18
%Si	0.10 - 0.35	0.10 - 0.35
%Mn	0.30 - 0.60	0.30 - 0.60
%P	0.040 Max	0.040 Max
%S	0.050 Max	0.050 Max



Mechanical Properties
	Soft	Hardened
Density	7.82 g/m3	7.82 g/m3
Hardness	60 - 90 HRB	55 - 65 HRC
Tensile Strength	29 - 43 PSI×103	43 - 58 PSI×103
Young's Modulus	200 GPa	200 GPa





Application



Soft: Caddies, wrought iron work, curtain mechanisms, steel shots, munitions, stirrers and mixers in not aggressive environments, welding appliances.



Hardened: Furniture rails and rollers, drawers and rolling bearings, locks, oilers and greasers, skates, caddies, toys, belt and roller conveyors, tumble finishing.





OEM



Because we're not just a ball company, we can go beyond this technology to provide subassemblies or complete solutions. We can combine our ball technology with our injection molding, segmented linear bearing, and motion control expertise. We have extensive in-house tool room capabilities and offer rapid prototyping. With manufacturing facilities that span the globe, we can produce and deliver your solution with minimum time and cost.



Distinctively Shaped Ball: We offer a variety of flat, diagonally cut, cone and pin shaped balls that are typically used as hardened polishing and shaping tools. For example, the diagonally cut and shaped balls can be used to polish surfaces with sharp angles. Flat balls are typically used to polish uniformly shaped surfaces such as soins. Sizes and materials can be made available to suit your needs. Contact us to find the product that's just right for you.



Drilled Ball: Mingliang offers a full range of sizes, hole depths (including thru-hole), diameters and materials. Typical applications include body jewelry, earring posts, rings, seal slides, valves, and automotive engine push rods.



Plated Ball: Platings are used to enhance the physical properties of precision balls. These may include added hardness (titanium nitride), corrosion resistance (molybdenum disulfide), noise supression (rubber), and electrical characteristics (gold). Mingliang offers a myriad of plating to meet your needs.



Hollow Ball: Hollow balls are typically used for weight sensitive applications such as aircraft ball transfer units, liquid float systems, and custom ball valves. We provide 201, 304, 316 stainless steel hollow balls in a variety of sizes.

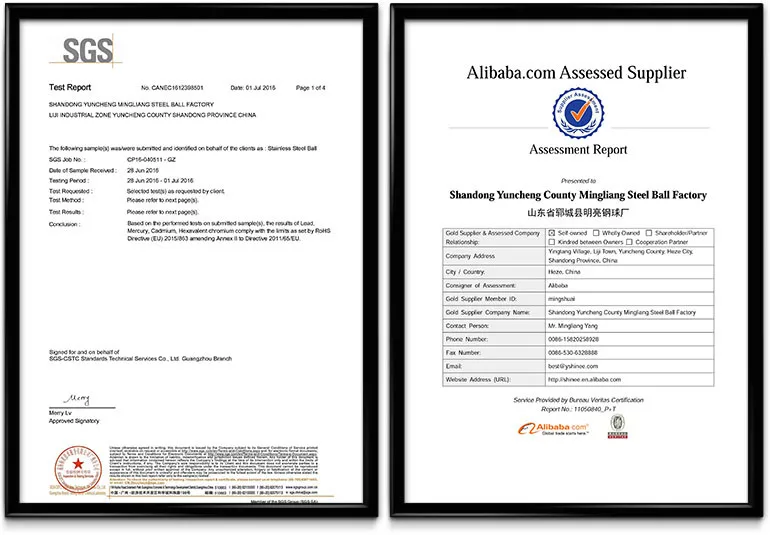

Certification





1. RoHS certified by SGS

2. Alibaba.com Assessed Supplier Assessment Report certified by BV

If can't read them clearly, please contact us for clearer ones.

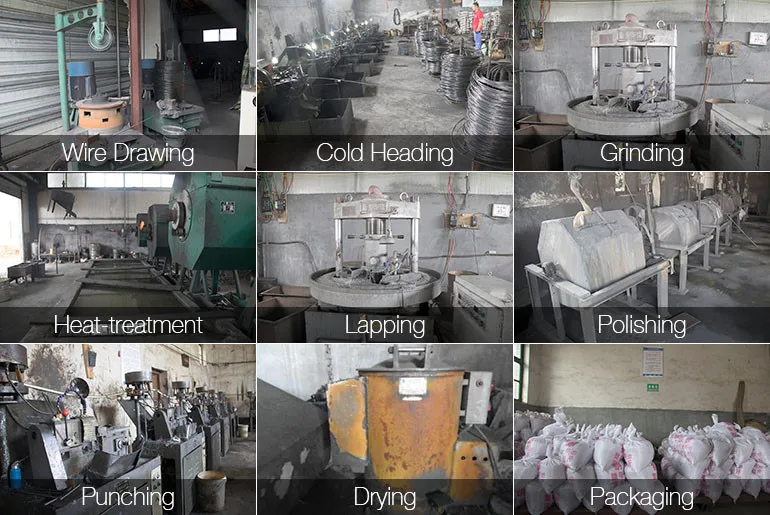

Production Flow

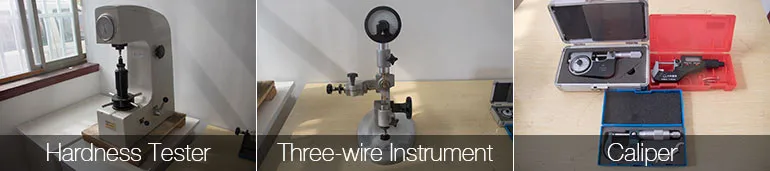

Quality Assurance



After precision washing, oiling & before packing sample balls from the batch are sent for final audit to check for surface roughness, roundness, waviness, lot size variation and hardness in a sophisticated laboratory, according to specified control plans and dock audit procedures. Once all requirements are met, a test certificate is then prepared for the customer. Our sophisticated laboratory is equipped with high precision, worldwide respected machines and equipment and is managed by properly trained and qualified personnel.







Why Choose Us



1. Professional manufacturer of steel balls since 1988.

2. Non-standard sizes of steel balls supplied.

3. Special types of steel balls supplied.

4. RoHS certified by SGS, field certified by MiC.

5. Small MOQ with competitive price.

6. Fast delivery based on quality guaranteed.

7. Small quantity of free samples could be provided.

8. All inquiries and messages will be replied in 24 hours.





About Us



Shandong Yuncheng County MingLiang Steel Ball Factory was established in 2000, covers a vast area of 8000 square meters, with over 30 professional and technical specialists, in which 8 of them are senior technical experts. Our factory is equipped with over 200 advanced production facilities and over 30 testing equipment for steel balls inspection and quality guarantee.



Because our efficient management, advanced production lines and sufficient capital support, our annual production of all kinds of steel balls has reached 50 billion, and we have the capability to produce our products that can meet the high standards of American National Standards Institute. we can supply stainless steel balls, carbon steel balls, chrome steel balls, copper balls and hollow balls. Most importantly, we can provide OEM services of steel balls such as drilling, threading, plating, cutting, and many surface treatment to suit various needs of our customers.



Our products have been exported to America, Europe, the Middle East, Southeast Asia and many other countries. With features of low-noisy, high-accuracy, best-service, our products has been used in many sectors, such as aerospace industry, bearing, bicycle, car industry, medical industry, electronic field, military industry and so on.



We are looking forward to starting cooperation with you in the near future.
